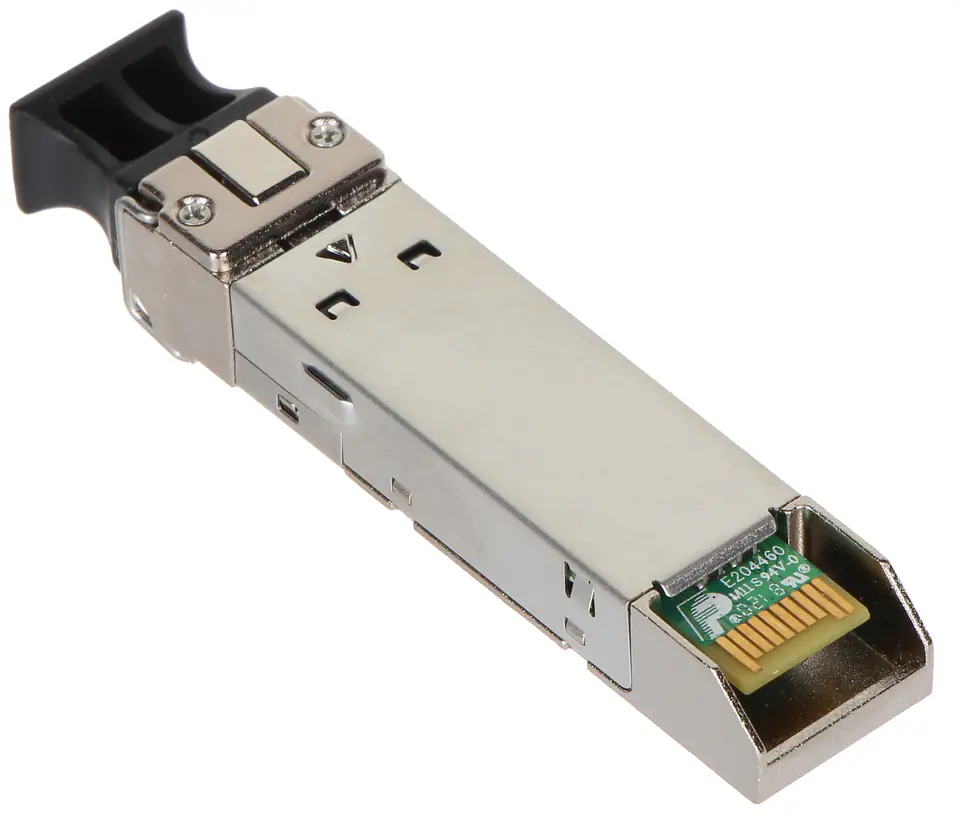

SINGLE-MODE MODULE DS-1.25G-20-1550 Hikvision

Name: SINGLE-MODE MODULE DS-1.25G-20-1550 Hikvision
Brand: HIKVISION
SKU: 522685
Price: 35 EUR
Availability: InStock

€35.00

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Dec 30 - Tue, Dec 31

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:
Product code:: DS-1.25G-20-1550 / 5902887042898

Specification

Fiber type::	Single-mode fiber
Light source / optical wavelength::	Laser FP - 1550 / 1310 nm (Tx / Rx)
Manufacturer / brand::	Hikvision
Maximum transmission range::	20 km
Number of fibers needed::	1
Operating temperature::	0 °C ... 70 °C
Optical connectors::	LC/PC
Power::	3.3 VDC
Sap code::	307400046
Scales::	0.02 kg
Selected features::	WDM Optical Wavelength Multiplication Technology (Tx 1550nm / Rx 1310nm)
Transfer::	Max. 1.25 Gbps
Transmission protocols::	IEEE 802.3z 1000Base-FX
Warranty::	3 years

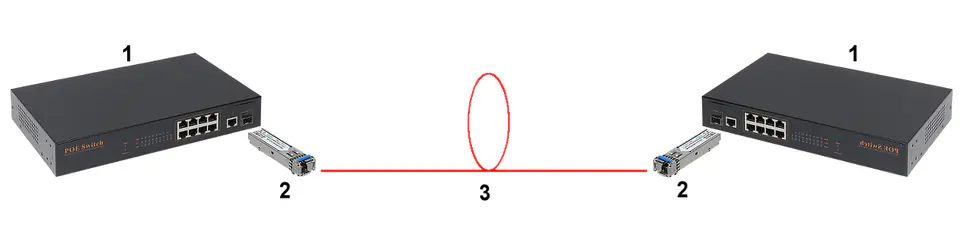

Optical modules compliant with the SFP (Small Form-factor Pluggable) standard are devices that convert electrical signals into optical and optical into electricalThe use of media converters with the possibility of replacing SFP modules is particularly beneficial due to their versatility, e.g. in the case of changing the network configuration, instead of replacing the entire device or adding new media converters, it is enough to choose the appropriate SFP module. Modules work with most switches and routers with SFP socket

Remark! DS-1.25G-20-1550 requires DS-1.25G-20-1310 to cooperate

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
