SINGLE-MODE MEDIA CONVERTER OM1-SM SET TXRX

€25.78
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Fri, Nov 15 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
OM1-SM / 5902887009150

Specification

Baud:10/100 Mbps
Dimensions:95 x 72 x 27 mm
Number of fibres:1 pc
Operating temperature:-10 °C ... 50 °C
Optical wavelength:1550 / 1310 nm
Permissible relative ambient humidity:5 % ... 95 %
Port lan:(RJ-45. UTP/STP)

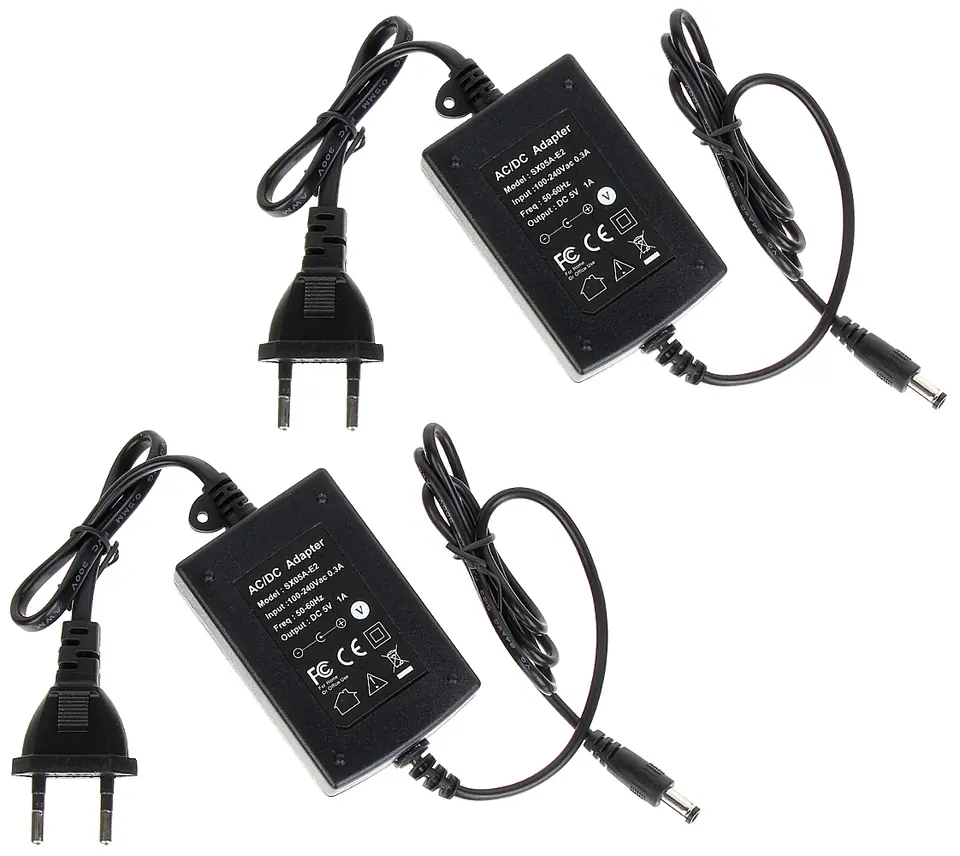

Power:5 V DC / 1 A (power adapter included)
Scales:0.18 kg
Selected features:Auto MDI/MDI-X detection - automatically detects data transmission mode Auto bit rate detection Two-way transmission via single optical fiber LEDs indicating correct operation of the device WDM optical wavelength multiplication technology (Tx 1550nm / Rx 1310nm)
Supported standards:IEEE 802.3, IEEE 802.3u
Transmission range:25 km - Single-mode fiber

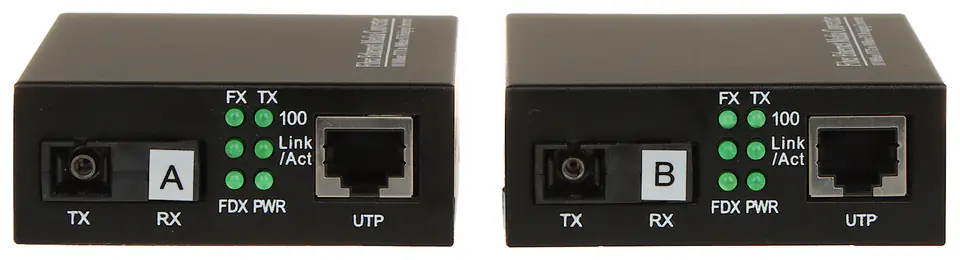

Type of optical connector:SC / PC
Warranty:2 years

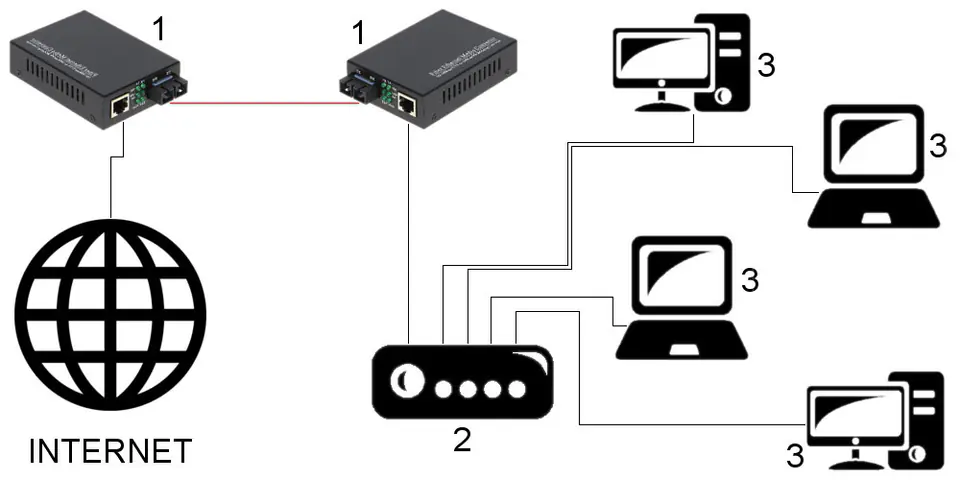

The OM1-SM converter allows to change the conductive medium (data stream) from standard STP/UTP cable to single-mode fiber optic cable

The device is equipped with SC connector for reliable connectionsThe optical signal is transmitted and received in the II and III transmission window 1310/1550 nm

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
