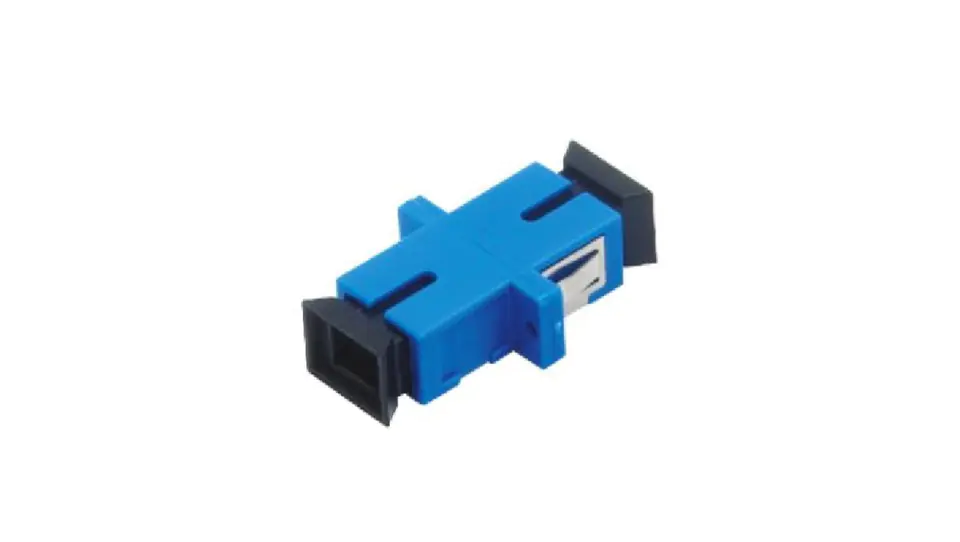

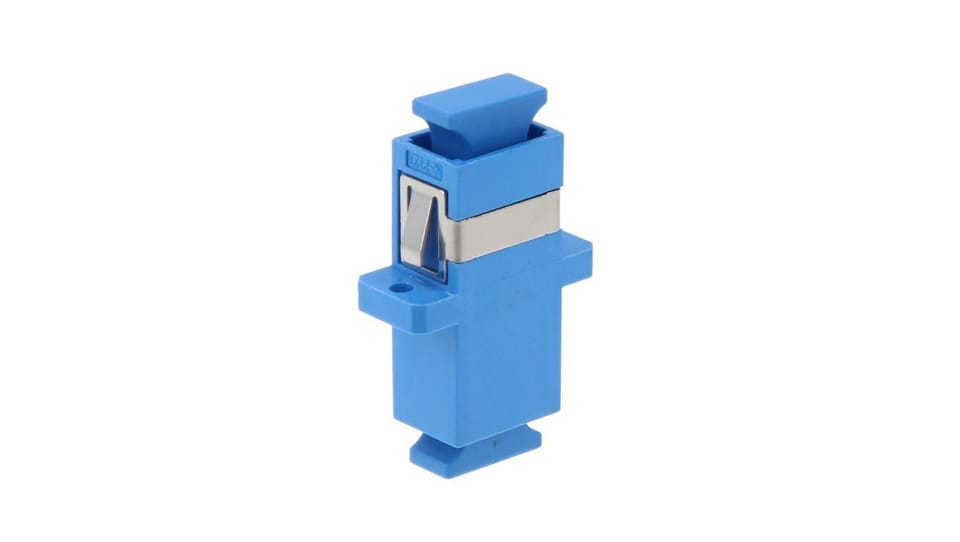

The adapters allow you to connect a pair of optical fibers terminated with plugs. Most often used in distribution frames, connecting patch cords with pigtails welded with fiber optic cable or in subscriber outlets. Depending on the design recommendations and functionality, different connectors are used. The most popular connectors on the market today are SC and LC connectors due to the simple snap connection, rectangular cross-section allowing dense packing on the panel and plastic construction (of course outside the ferrule).
FEATURES
- SC fiber optic connectors
- ensure the highest transmission and operating parameters
- Connection elements available in MM, SM, PC and APC versions and in DUPLEX versions
| DANE TECHNICZNE | DANE TECHNICZNE2 |
|---|---|
| Rodzaj | SingleMode |
| Transmisja | simplex |
| Typ | UPC |
| Typ złącza | SM PC 0º |
| Straty wtrąceniowe IL (dB) | 0,15 |
| Powtarzalność IL (dB) | ±0,1 |
| Trwałość | ponad 1000 cykli |
| Temperatura pracy (ºC) | od -40 do +85 |
| Średnica ferruli (mm) | 2,5 |
