Single-family video intercom Spacetronik DiO SPD-DS901

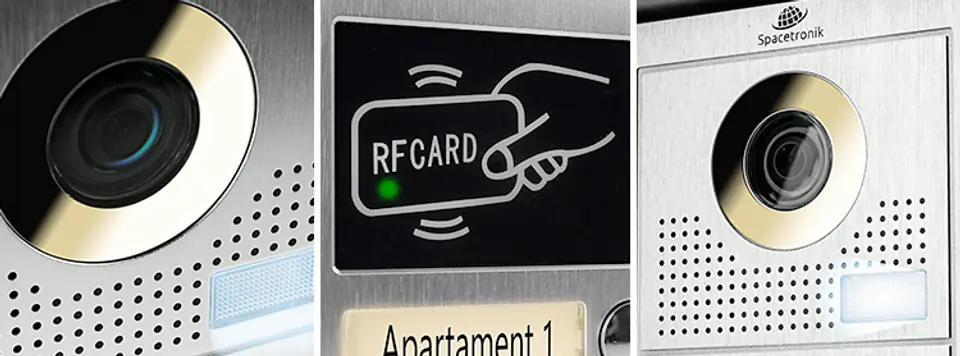

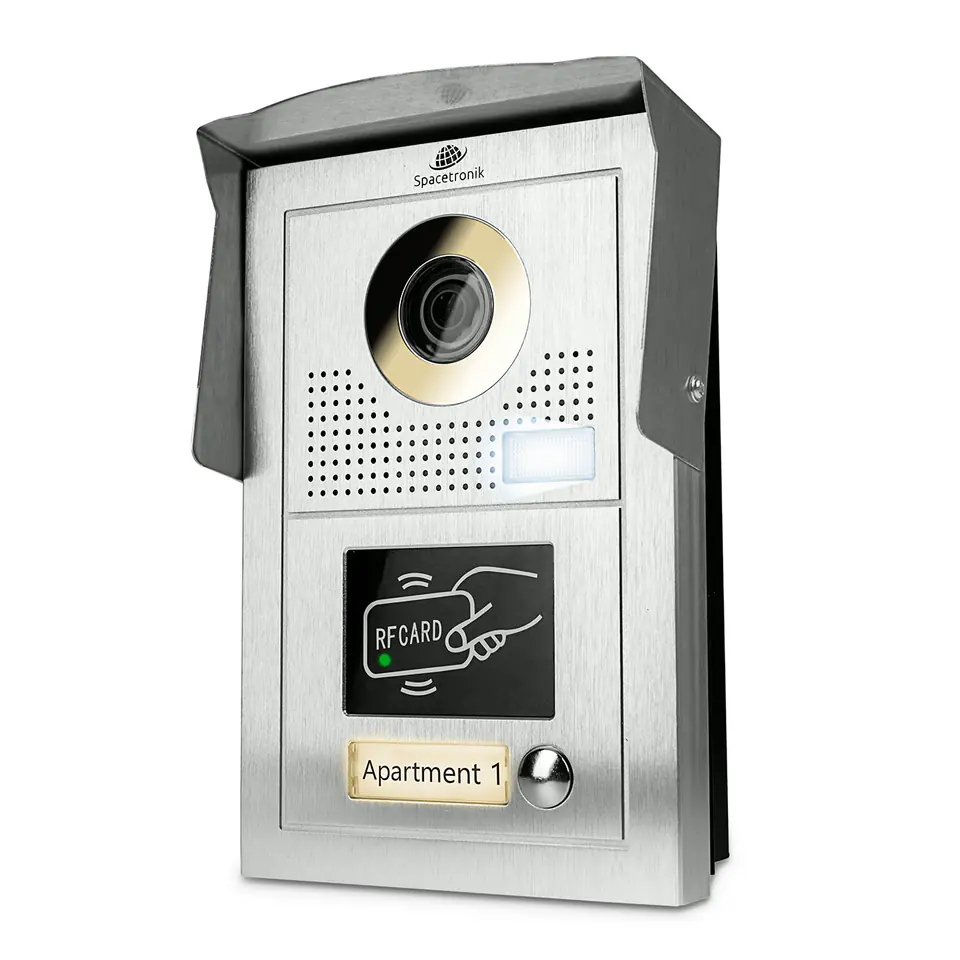

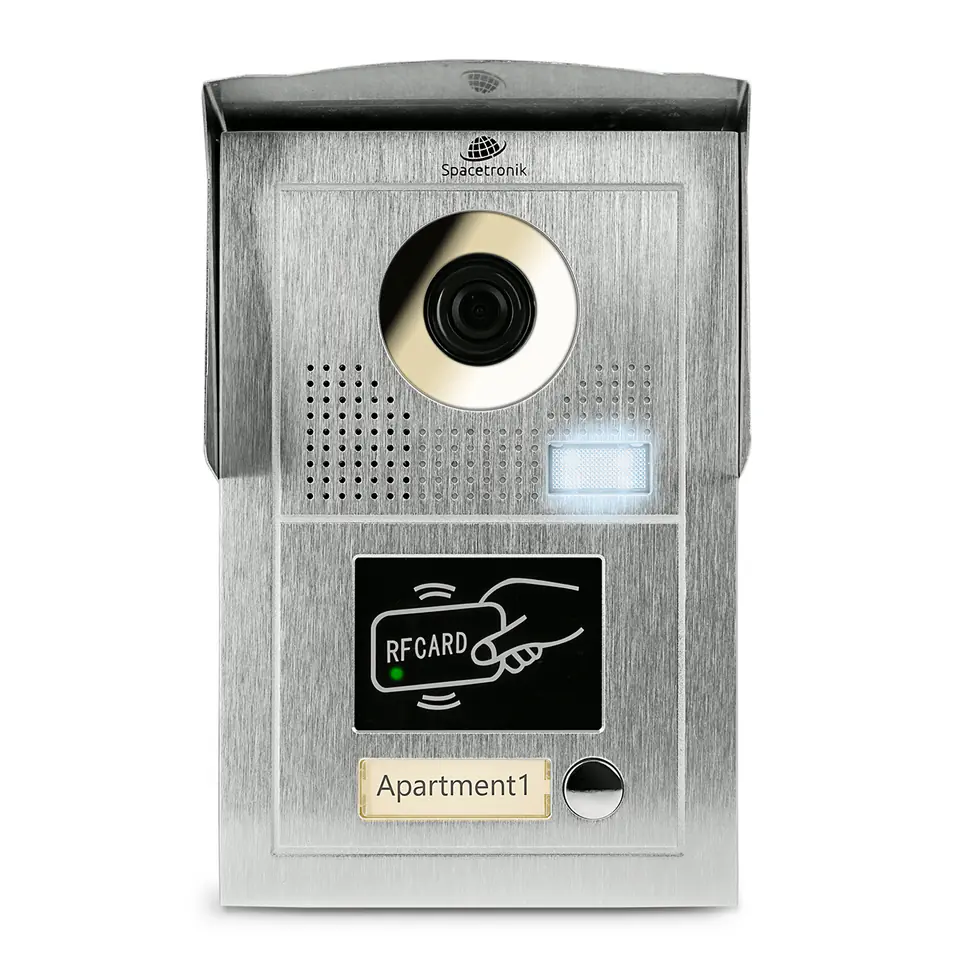

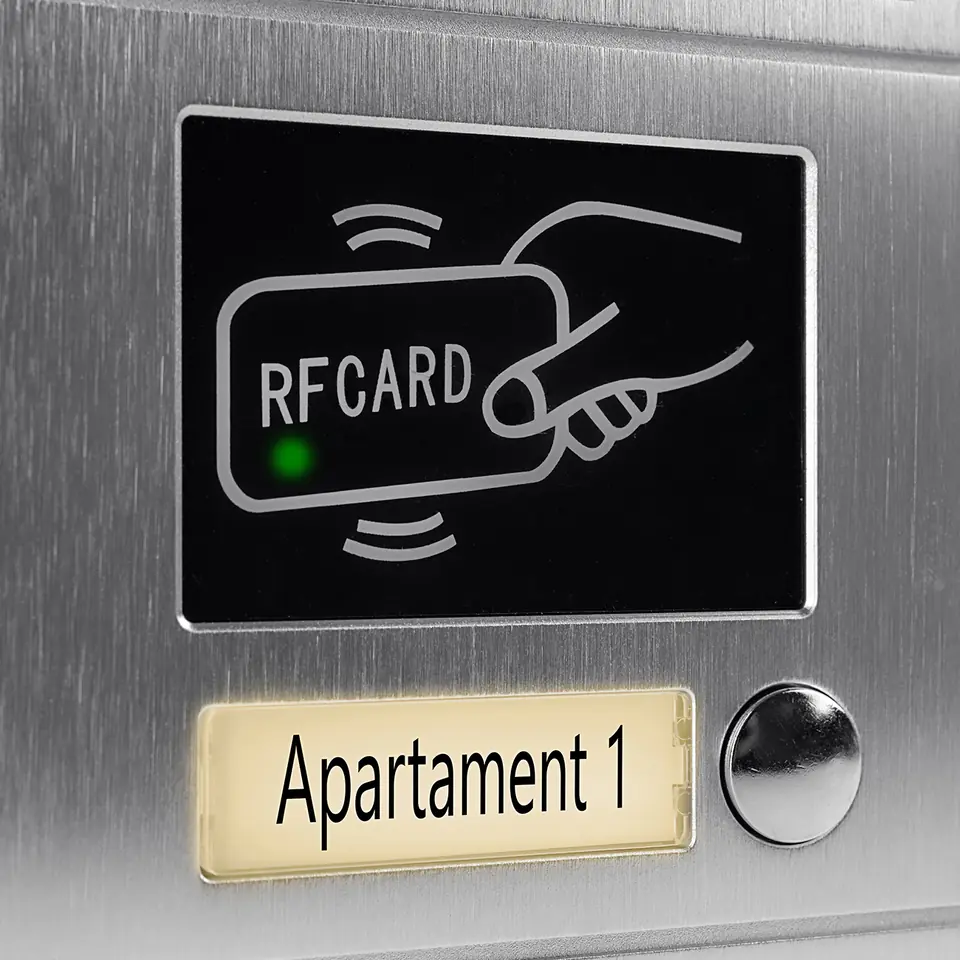

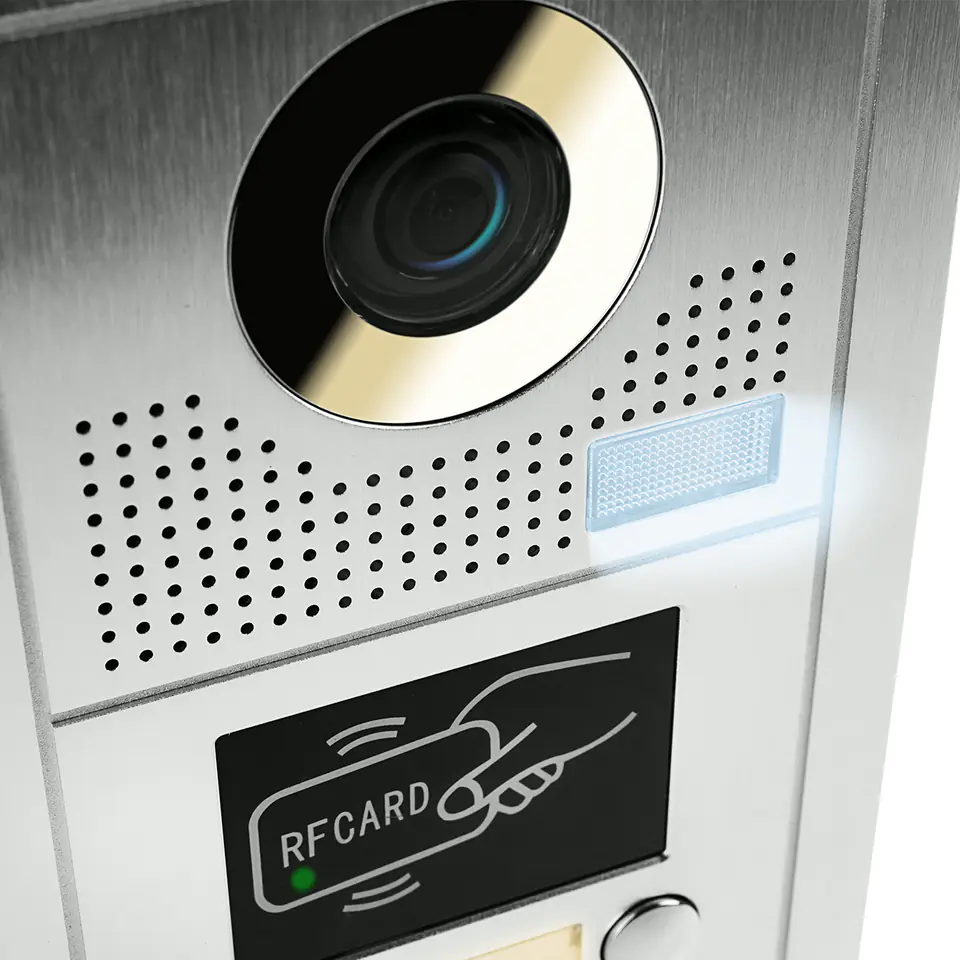

A single-subscriber video intercom station with a built-in RFiD proximity reader that allows you to open the entrance using a card or key rings. The panel is distinguished by an aesthetically made vandal-resistant aluminum alloy housing, in which a proximity reader and an illuminated signboard have been integrated. Additional key rings or cards can be added to each video intercom, and this is done using the included Master card. LED night backlight allows for comfortable use of the device in conditions of insufficient visibility.
Elegant design, ease of use and practicality are the features that describe the Spacetronik DiO video intercom system. Talk to your guests and look at them carefully before you decide to open the door. In this way, you will take care of safety and make your life more comfortable. The SPD-DS901 has a wide-angle lens that allows 120° viewing with additional up/down adjustment.

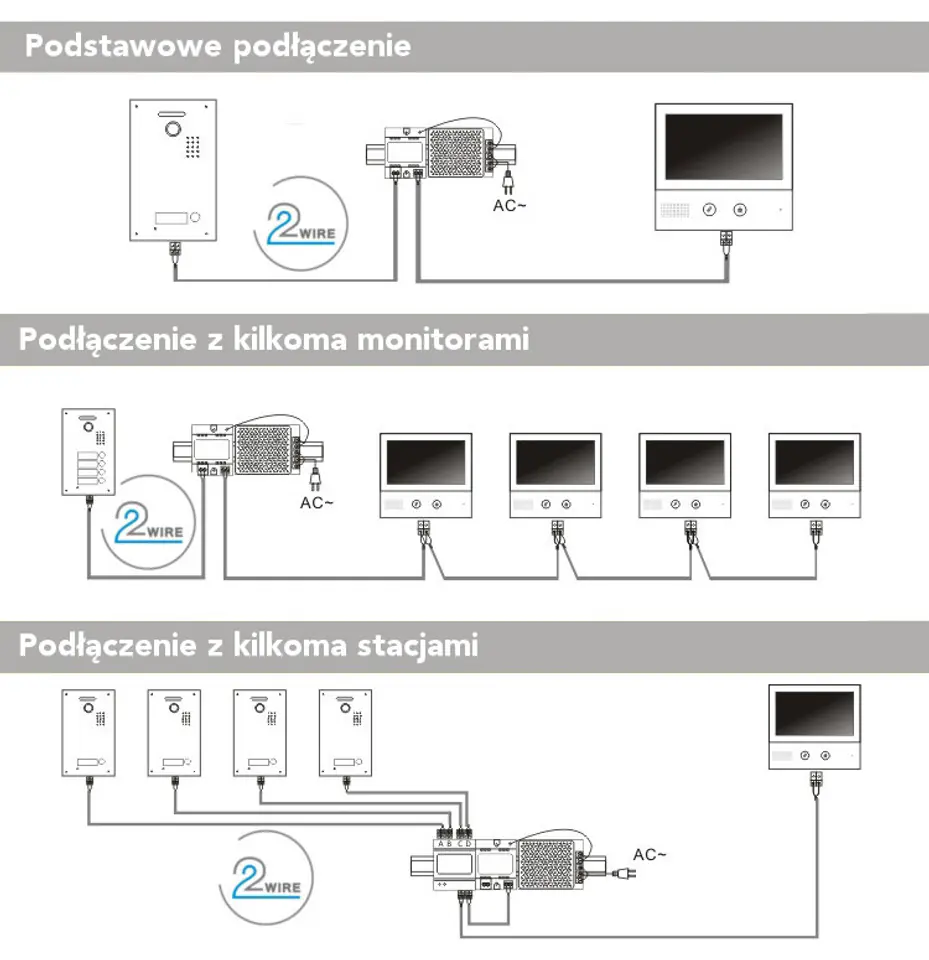

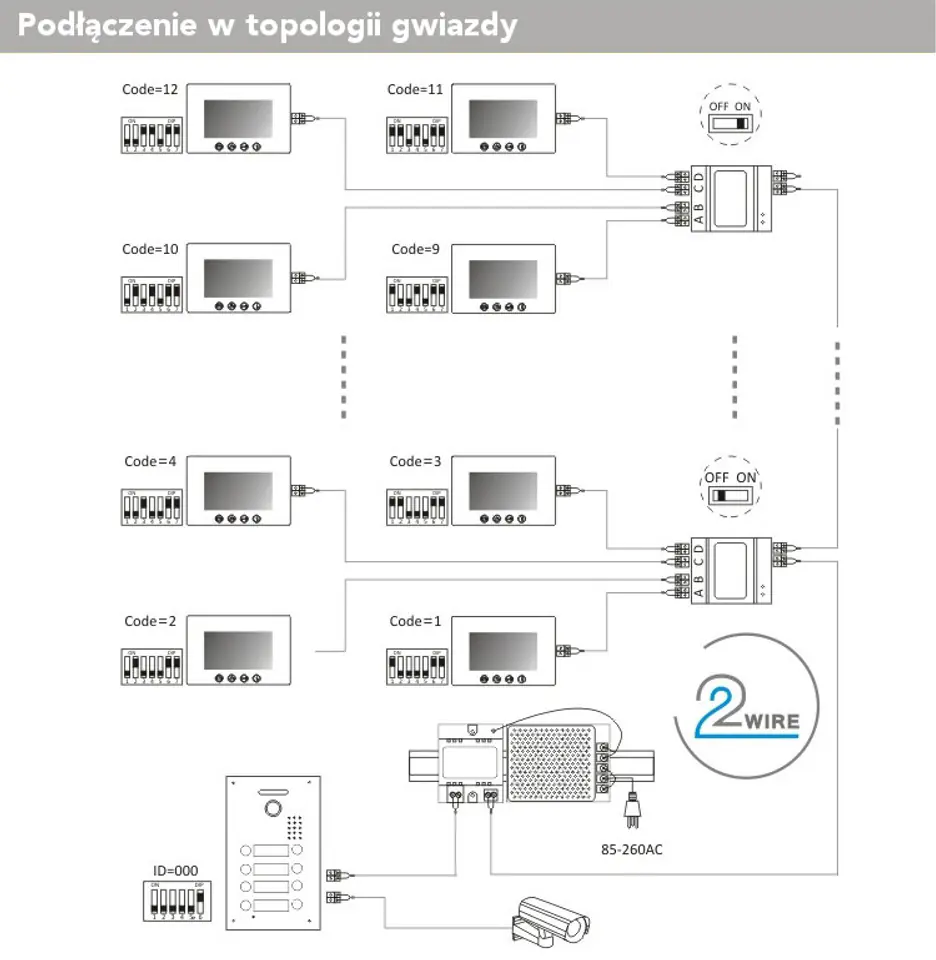

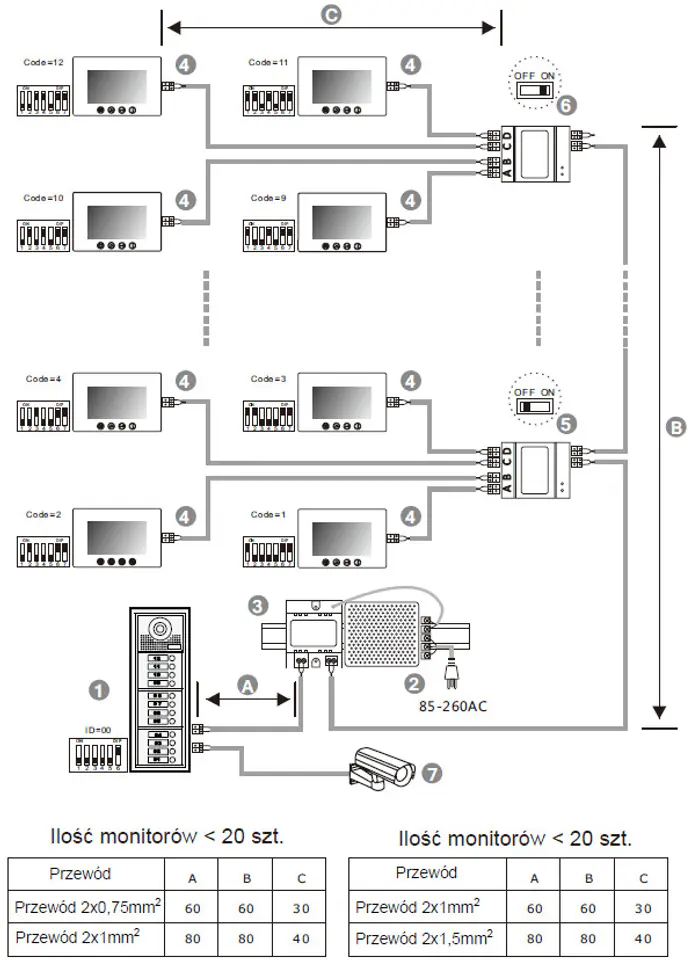

1. External station, when there is only one intercom station, bit-1, bit-2 and bit-3 should be set to OFF
2. Power supply, MUST be installed side by side with power separator
3. Power separator, MUST be installed side by side with power supply
4. Monitors - each with a unique user code, note that in this case all bit-6 should be set to ON
5. Switch the video splitter switch to OFF unless it is at the end of the line
6. Set the video distributor switch to ON at the end of the line
7. Additional camera

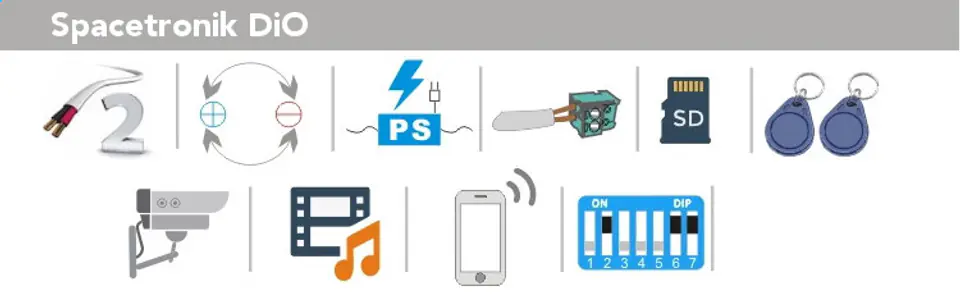

- the whole system based on 2 wires (2-wire)
- no polarity
- vandal-resistant housing
- possibility of mounting modules on a DIN rail
- plug-in connector Plug-in
- configuration and addressing using DIP function buttons
- expandable with a camera
- possibility of expansion with SD card
- recording photos and videos
- simple input using RFiD key rings
User manual in Polish for download
https://dmtrade.pl/katalogi/dio/ds901/DS90xPL.pdf
User manual in English for download
https://dmtrade.pl/katalogi/dio/ds901/DS90xEN.pdf
