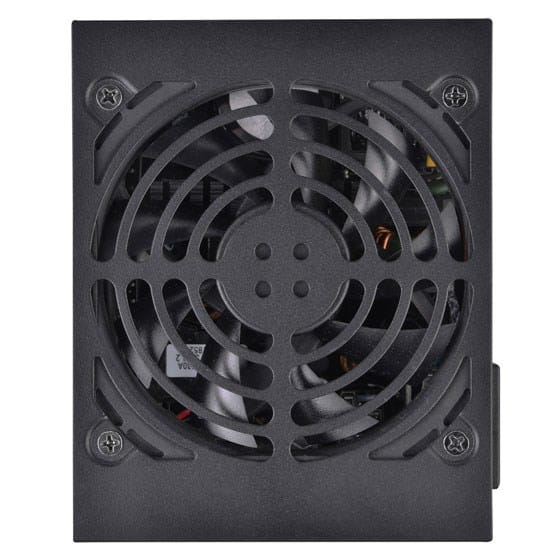

Silverstone SX700-PT power supply unit 700 W 20+4 pin ATX SFX Black
This product is not available
- Availability:
- expected delivery
- Brand:
- SilverStone
- Product code:
- SST-SX700-PT / 4710007227497
Share this product:
Specification
| 80 plus certification: | 80 PLUS Platinum |
|---|---|
| Ac input frequency: | 47 - 63 Hz |
| Ac input voltage: | 90 - 264 V |
| Atx power connector (20+4 pin): | Yes |
| Cabling type: | Fully-Modular |
| Combined power (+12v): | 700 W |
| Combined power (+3.3v): | 110 W |
| Depth: | 100 mm |
| Efficiency: | 90% |
| Eps power connector (4+4 pin): | Yes |
| Fan diameter: | 9.2 cm |
| Floppy disk drive cable length: | 10 cm |
| Floppy disk drive connector: | Yes |
| Floppy drive power connector: | 1 |
| Height: | 63.5 mm |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 58.4 A |
| Max output current (+3.3v): | 22 A |
| Max output current (+5v): | 22 A |
| Max output current (+5vsb): | 2.5 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power cable length: | 30 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Noise level: | 18 dB |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 6 |
| On/off switch: | Yes |
| Operating temperature (t-t): | 0 - 40 °C |
| Pci express power cable length: | 55 cm |
| Pci express power connectors (6+2 pin): | 4 |
| Peripheral (molex) power cable length: | 300 mm, 200 |
| Peripheral (molex) power connectors (4-pin): | 3 |
| Power factor: | 0.9 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Over power, Short circuit, Over voltage, Under voltage, Over current, Overheating |
| Power supply unit (psu) form factor: | SFX |
| Product colour: | Black |
| Purpose: | PC |
| Sata power cable length: | 300 mm, 100, 200 |
| Total power: | 700 W |
| Weight: | 960 g |
| Width: | 125 mm |
