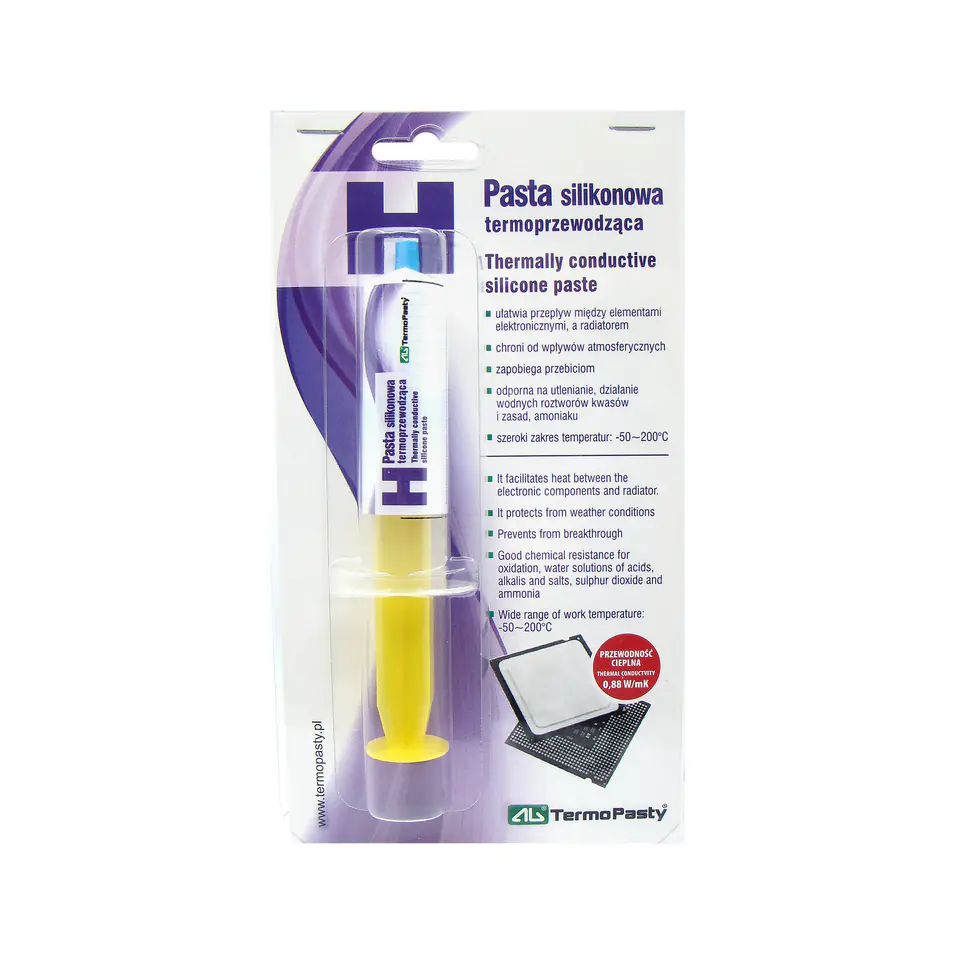

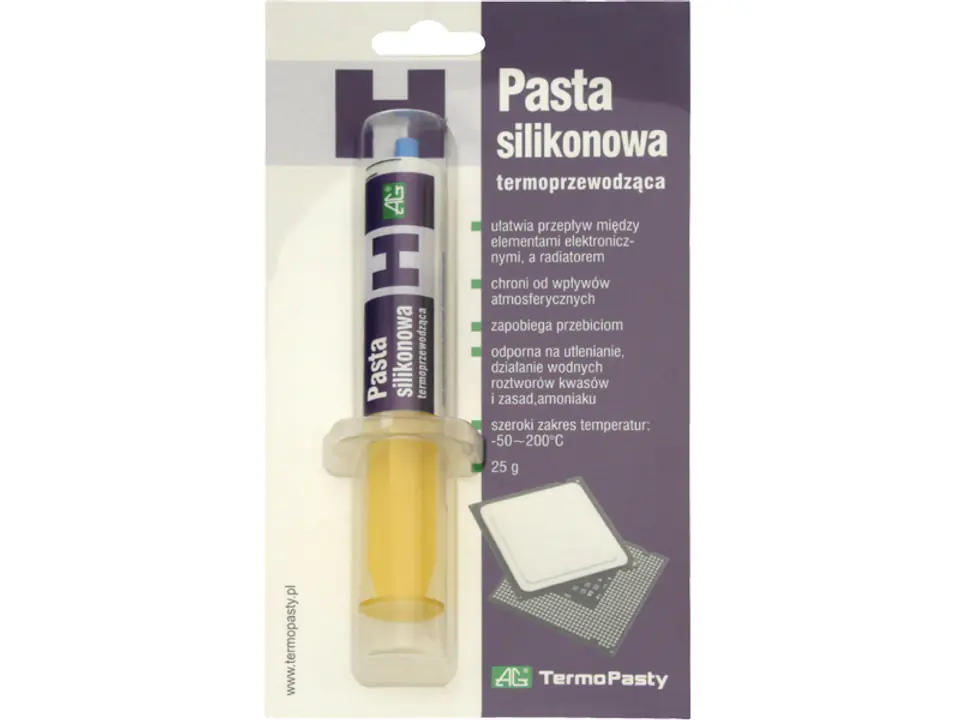

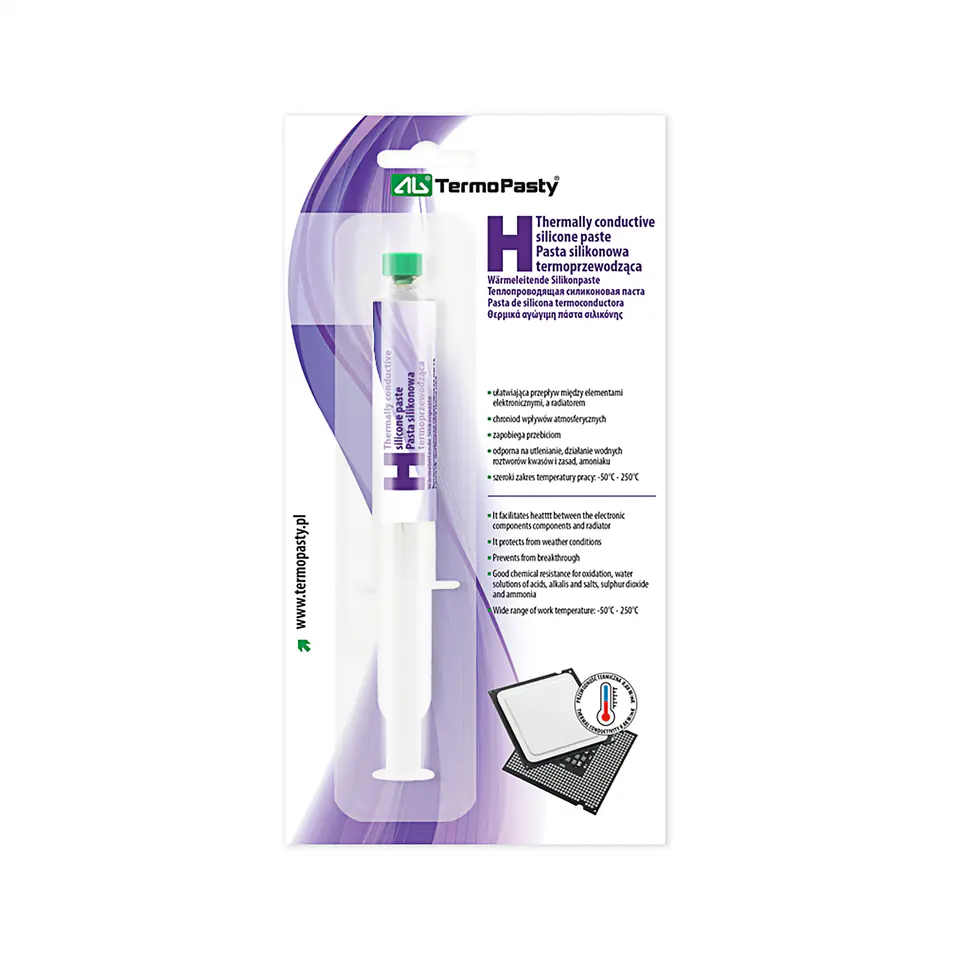

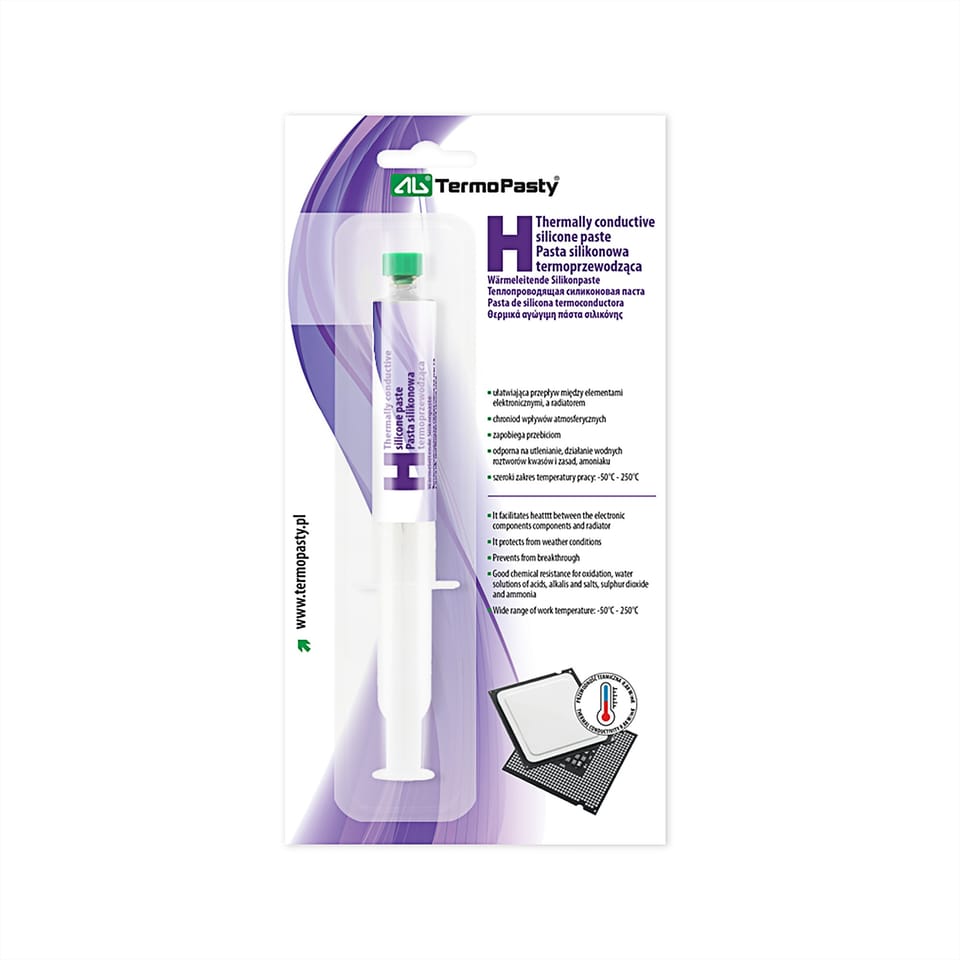

The paste facilitates the flow of heat between the electronic components and the heatsink. It is necessary for the proper operation of all kinds of temperature sensors, protects from atmospheric influences, prevents punctures. It is characterized by very good chemical resistance to oxidation; action of aqueous solutions of acids, bases and salts; sulphur dioxide and ammonia. It has a wide operating temperature range: from -50°C to 200°C.
Features:
- Facilitates the flow between electronic components and the heatsink
- Protects from weather influences
- Prevents punctures
- Resistant to oxidation, aqueous solutions of acids and bases, ammonia
- Wide temperature range: -50 to 200 degrees
Specification:
Producer: AG TermoPasty
Packaging: Syringe 25 g
Density at 20°C: 1.47 G/cm3
Flash point: 350°C
Pour point: -50°C
Refractive Index: 1.405
Specific heat at 50°C: 0.243 Cal/g K
Heat transfer coefficient at 0-150°C: 0.88 W/m K
Dielectric constant at 100 Hz: 4.7 (±0.1)
Resistance in cross-volume: 5 x 10 to the power of 14 Ohm x cm
Tangen of dielectric loss angle at f=100 Hz: 0.020 (±0.003)
Operating Temperature Range: -50~200°C
