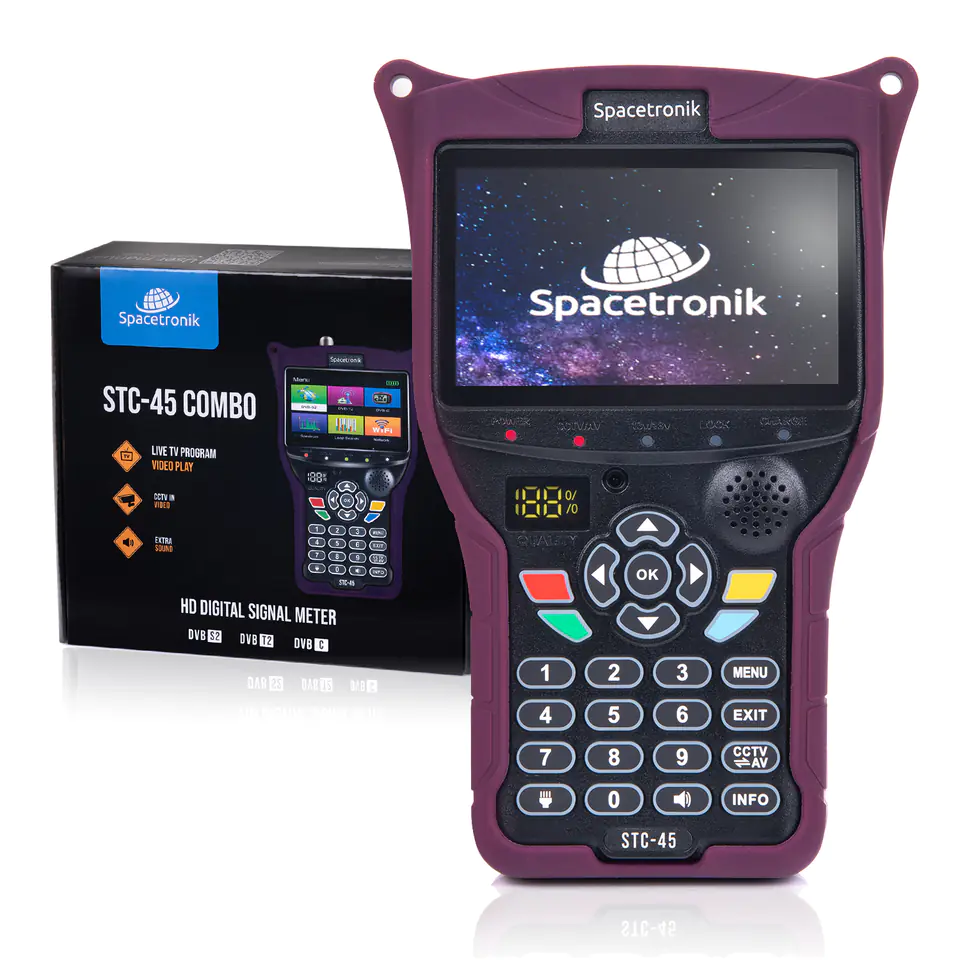

Miernik Combo SAT Finder Spacetronik STC-45 DVB-S2+T2/C
The STC-45 Combo meter is a high quality meter that allows for fast and precise measurement of satellite, terrestrial and cable DVB-S/S2/T/T2/C/C2 signals. The built-in 4.3" colour display and clear interface make measuring extremely easy. Internal 7.4V 5000mAh battery allows for continuous and uninterrupted operation without the need for additional charging.

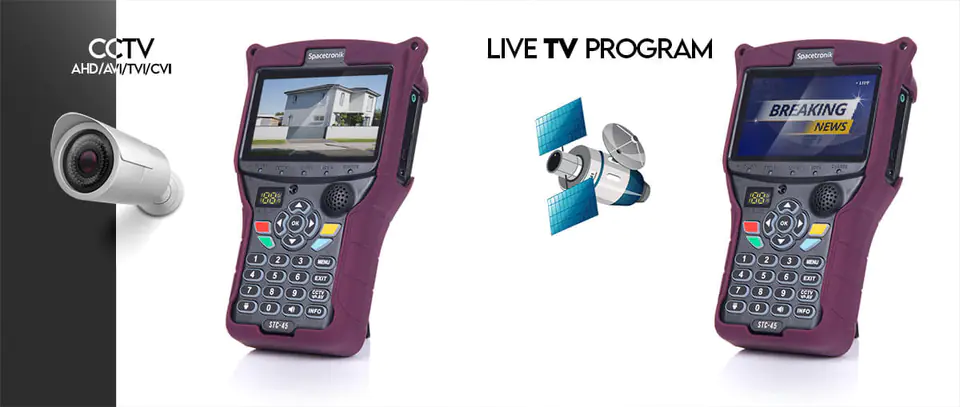

Thanks to the built-in LIVE TV support, your meter will allow you to check the signal quality without connecting the antenna to the TV. This will speed up the work to a large extent and reduce the need for constant movement between the transmitter and receiver.
The device has been equipped with a module for viewing images from AHD/AVI/TVI/CVI cameras, so we can connect CCTV cameras to the meter and check the signal quality.
4.3" TFT Color LCD Screen (Resolution 800*480)
Support video play and Live TV program
Fully supported DVB-S/S2, DVB-T/T2, DVB-C, MPEG2/MPEG4, H.264/H.265

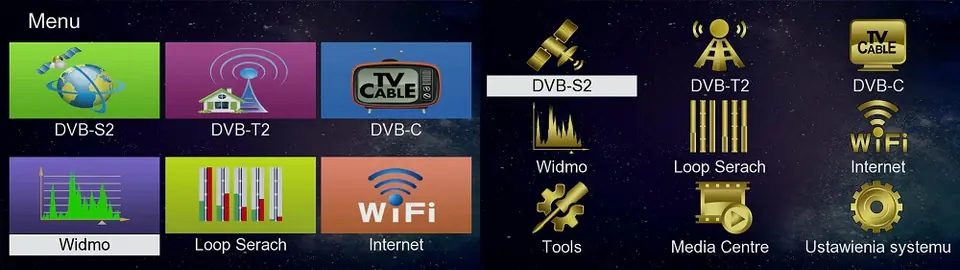

2 kinds of UI Menu Styles

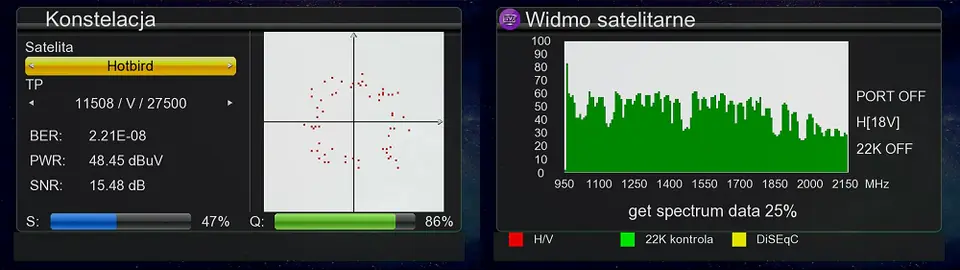

Spectrum Analyzer
Motor Set and antenna motor control - DiSEqC 1.2/USALS/OFF

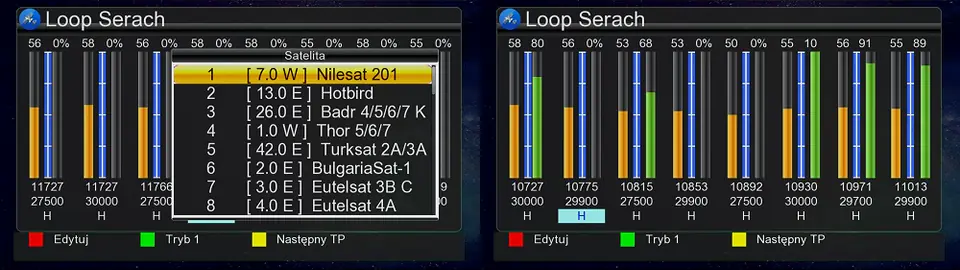

2 kind of Loop Search mode
Constellation Analyzer
With CCTV +8MP AHD/AVI/TVI/CVI module for camera

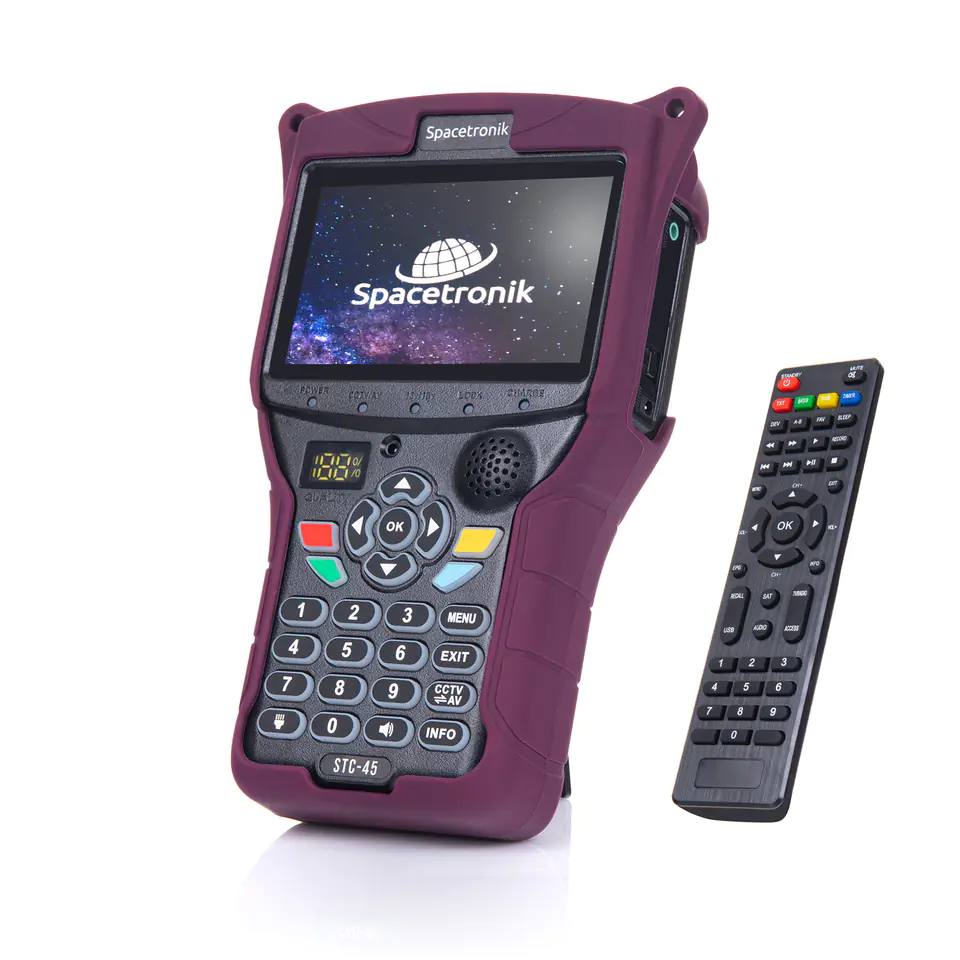

With remote control

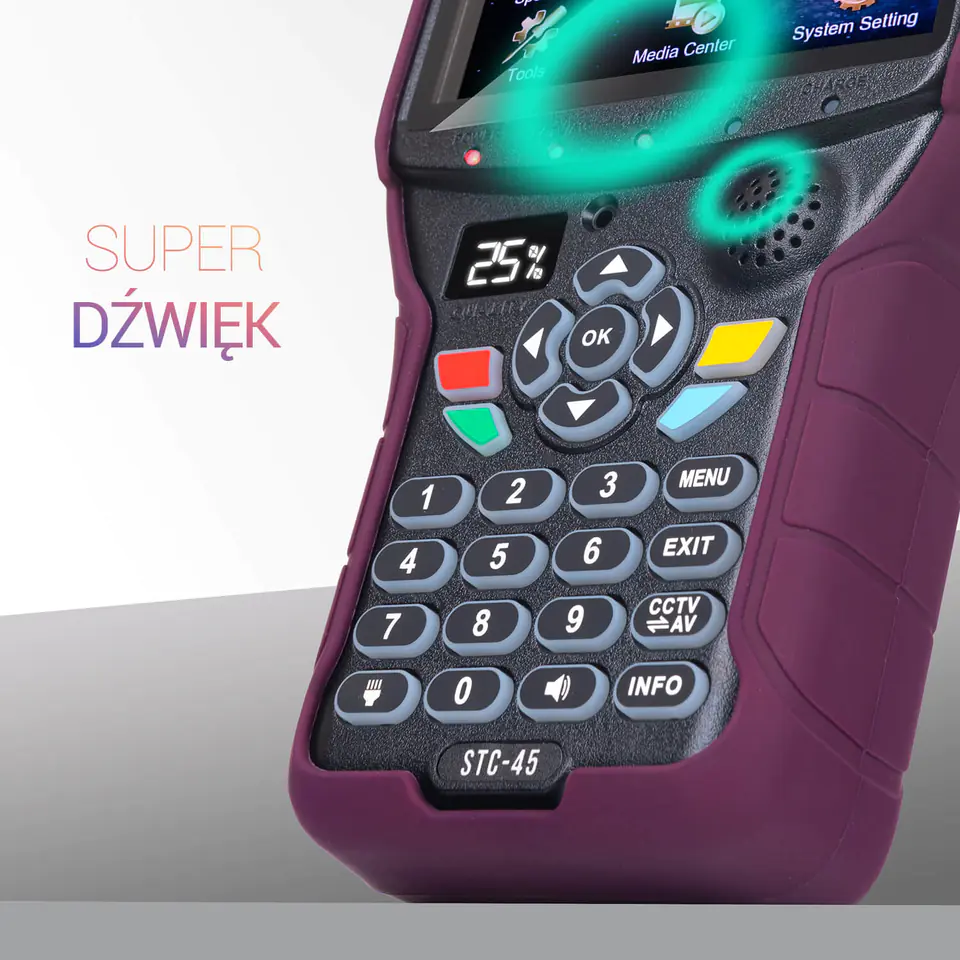

Full range/Heavy Bass Effect Speaker
Support power for T2 Antenna (0V, 5V, 12V, 24V)
Support multiple OSD languages
Support DiSEqC 1.0 / 1.1 / 1.2, USALS 0 / 22khz Tone

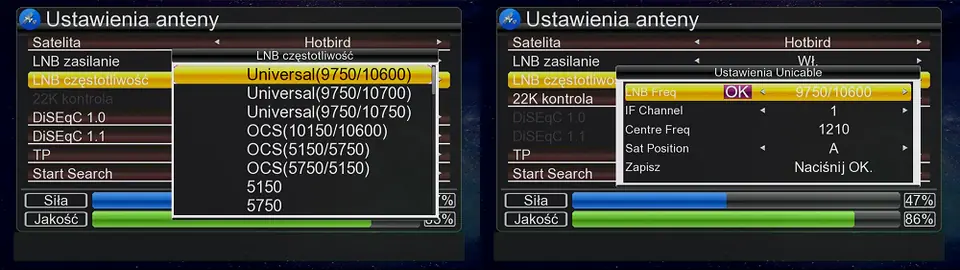

Work with Unicable A/B, SCR, DeSS LNB

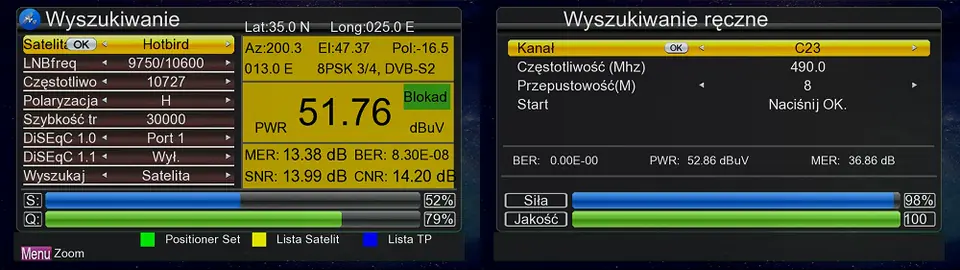

Test Content: Signal Strength, Quality, MER, BER, PWR, SNR etc.
LNB short-circuit protection and indicator
Support low-voltage charging, can AUTO wake up the sleep battery
Operation on Transponder: Edit, Add and Delete
Audio alarm indicates signal intensity level
Signal lock audible notification: On/Off
Power supply: 12V, 2A Quick Charge

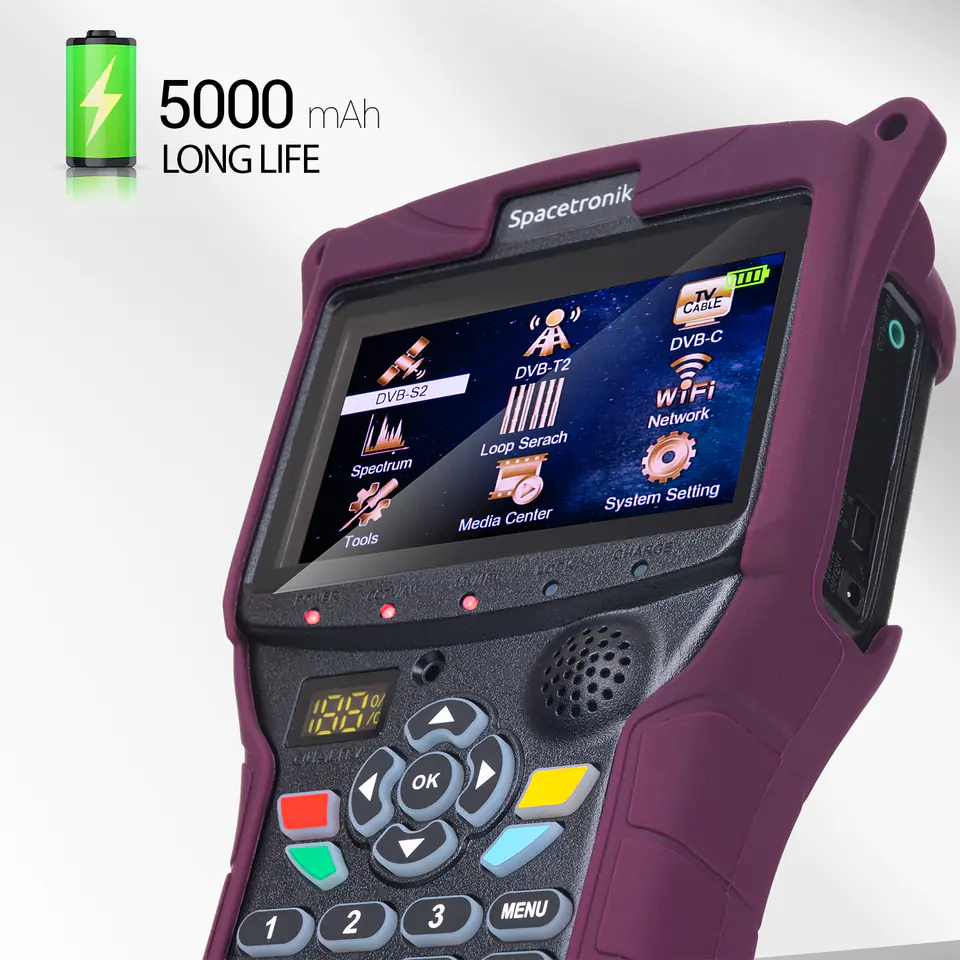

5000mAh Fast charging Li-ion battery

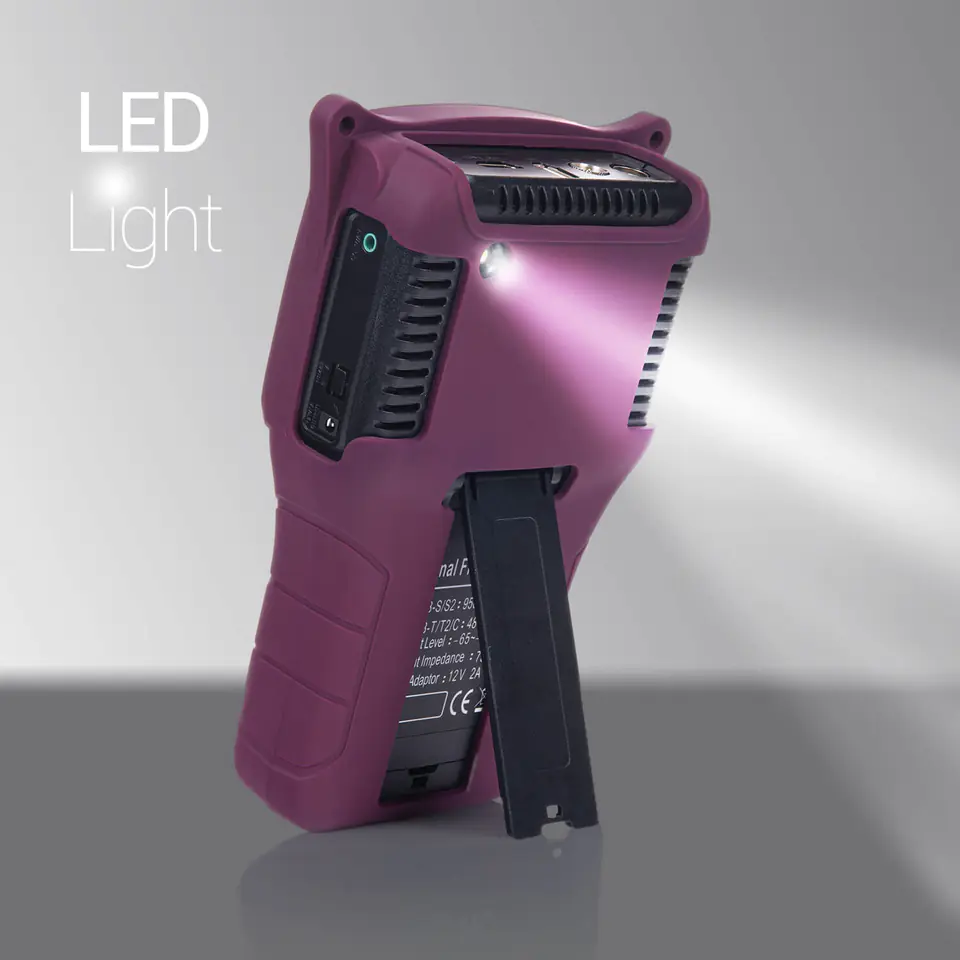

With LED high brightness lighting
Ultra-long standby, low power consumption
Backlit Keys: On/Off
SW update by USB
