| Colour:: | white |
|---|---|
| Detection:: | Opening a door or window |

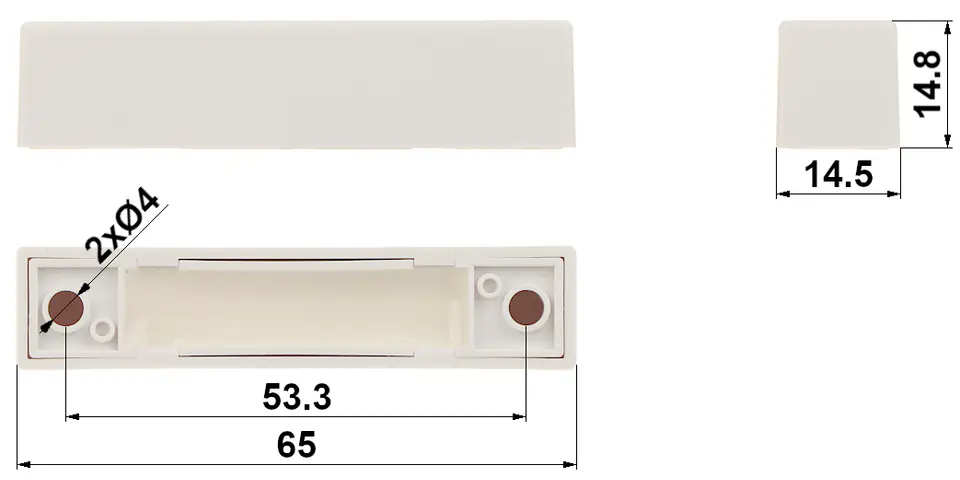

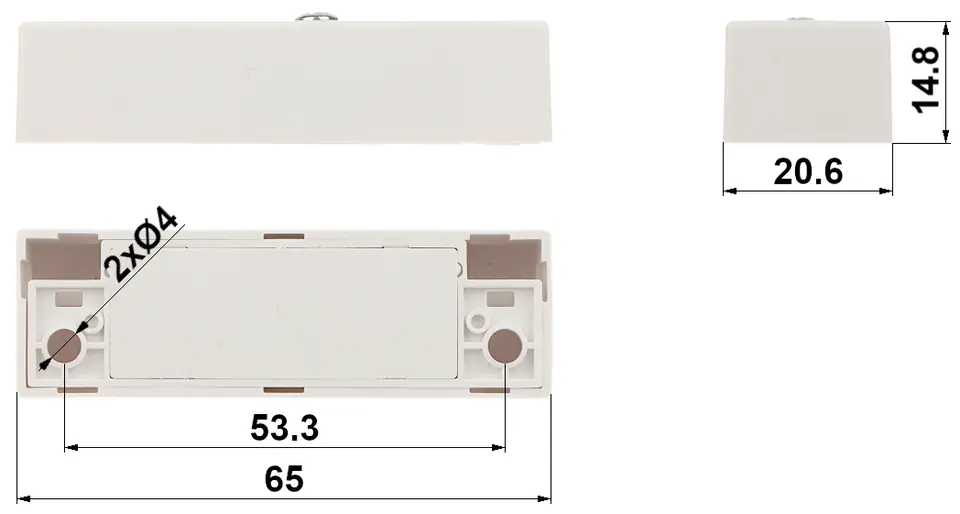

| Dimensions:: | 65 x 20.6 x 14.8 mm - Reed switch 65 x 14.5 x 14.8 mm - magnet |
| Manufacturer / brand:: | ALARMTECH |
| Maximum switchable current:: | 500 mA |
| Maximum switchable voltage of the reed switch:: | 48 volts |
| Opening distance of reed switch contacts:: | 40 mm Wood / 25 mm Steel |
| Operating temperature:: | -40 °C ... 70 °C |
| Reed contact closing distance:: | 37 mm Wood / 24 mm Steel |
| Scales:: | 0.04 kg |

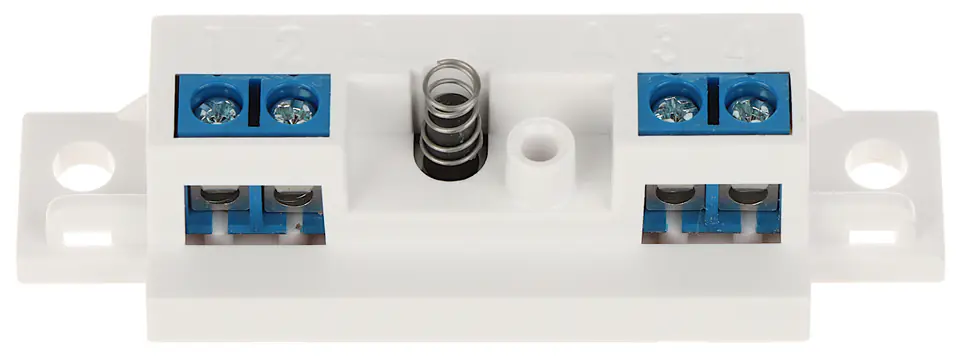

| Selected features:: | Plastic (ABS) NC output - magnet similar to a reed switch - does not cause alarm, contacts are shorted Connectors : screw terminals In accordance with EN 50131-2-6 @ Grade 2 Environmental class EN 50130-5 : Class II Tightness class : IP43 |
| Warranty:: | 2 years |
Magnetic detectors can be used wherever there is a need to control the condition of doors, windows or other moving elements, e.g. to protect or control access to specific objects, rooms, devices, automation systems, etc.
The sensor is designed for surface mounting
