SIDE REED SWITCH KN-M06

€6.73
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Fri, Nov 15 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
running out
Product code:
KN-M06 / 5902887025341

Specification

Colour:Silver
Detection:Opening a door or window

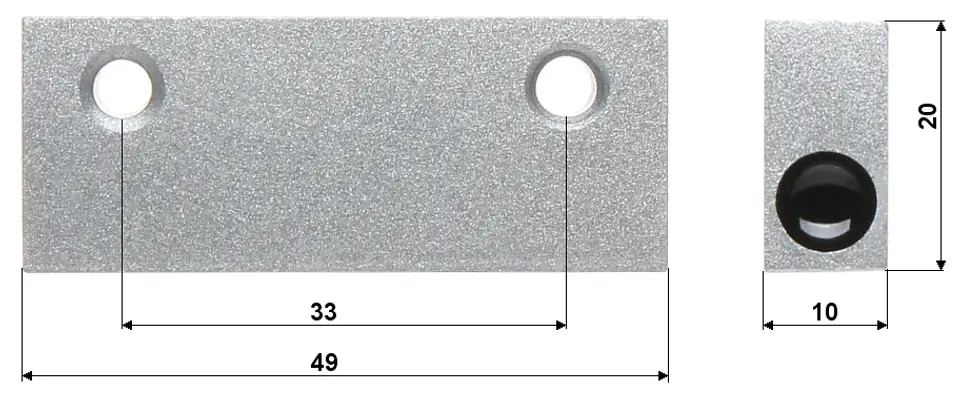

Dimensions:49 x 20 x 9.7 mm
Distance of opening of reed contacts:25 mm
Maximum switchable current:10 mA
Maximum switchable voltage of reed switch:20 volts
Reed switch closing distance:24 mm
Scales:0.105 kg
Selected features:Reinforced, hermetic metal housing NC output - magnet close to reed switch - does not trigger an alarm, contacts are shorted
Warranty:2 years

Magnetic detectors can be used wherever there is a need to control the condition of doors, windows or other moving elements, e.g. to protect or control access to specific objects, rooms, devices, automation systems, etc.

The sensor is designed for surface mounting

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
