| Colour: | Silver |
|---|---|
| Detection: | Opening a door or window |

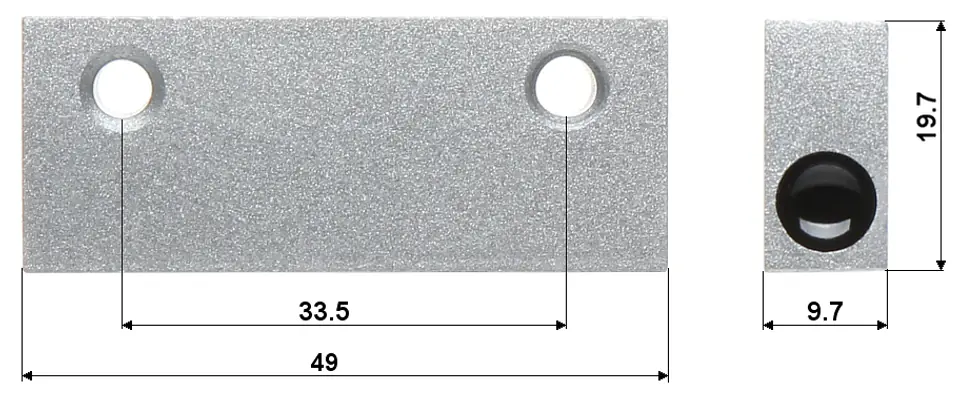

| Dimensions: | 49 x 19.7 x 9.7 mm |
| Distance of opening of reed contacts: | 20 mm |
| Maximum switchable current: | 10 mA |
| Maximum switchable voltage of reed switch: | 20 volts |
| Reed switch closing distance: | 19 mm |
| Scales: | 0.125 kg |
| Selected features: | Reinforced, hermetic metal housing NC output - magnet close to reed switch - does not trigger an alarm, contacts are shorted |
| Warranty: | 2 years |
Magnetic detectors can be used wherever there is a need to control the condition of doors, windows or other moving elements, e.g. to protect or control access to specific objects, rooms, devices, automation systems, etc.
The sensor is designed for surface mounting
