| Colour: | white |
|---|---|
| Detection: | Opening a door or window |

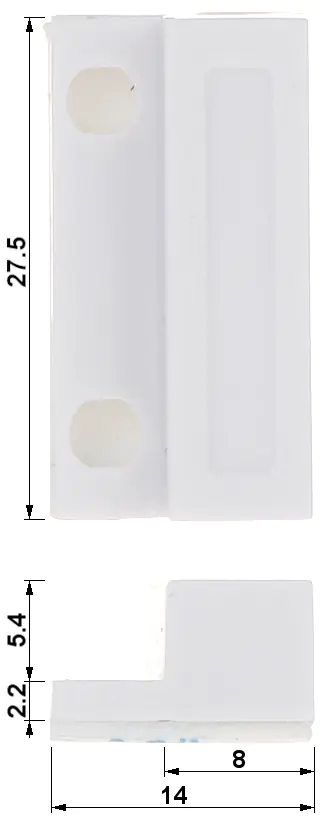

| Dimensions: | 27.5 x 14 x 8 mm |
| Distance of opening of reed contacts: | 28 mm |

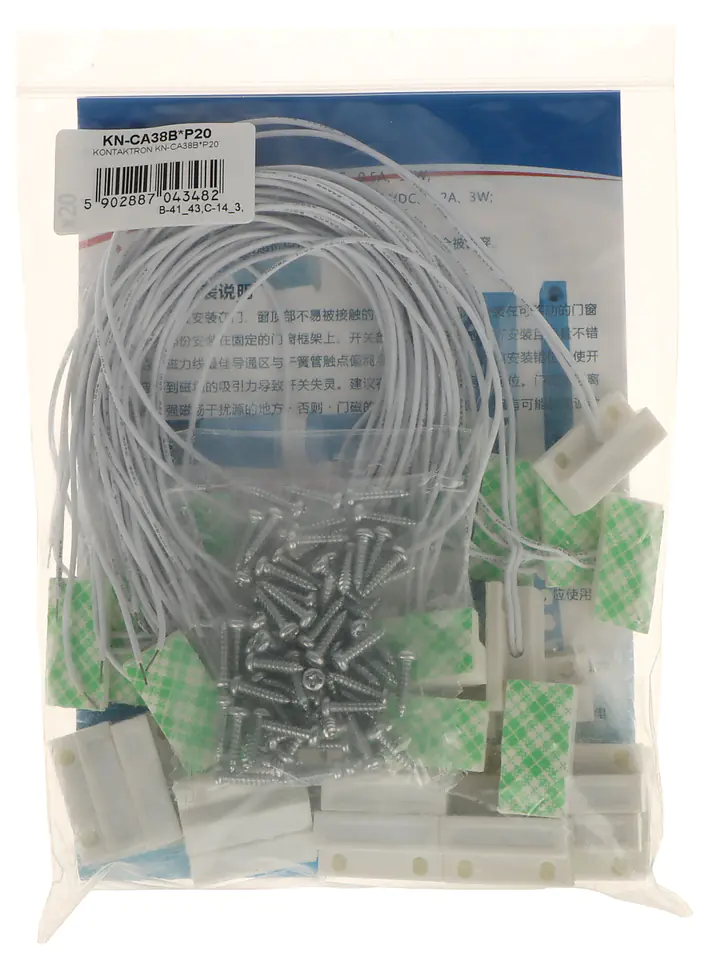

| In the package: | 20 pcs. Price per pack |
| Maximum switchable current: | 20 mA |
| Maximum switchable voltage of reed switch: | 20 volts |
| Reed switch closing distance: | 18 mm |
| Scales: | 0.012 kg |
| Selected features: | Plastic (ABS) NC output - magnet close to reed switch - does not cause alarm, contacts are shorted Cable length : 25 cm Cable lead: On the long edge |
| Warranty: | 2 years |
Magnetic detectors can be used wherever there is a need to control the condition of doors, windows or other moving elements, e.g. to protect or control access to specific objects, rooms, devices, automation systems, etc.
The sensor is designed for surface mounting
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
