| Colour: | Brown |
|---|---|
| Detection: | Opening a door or window |

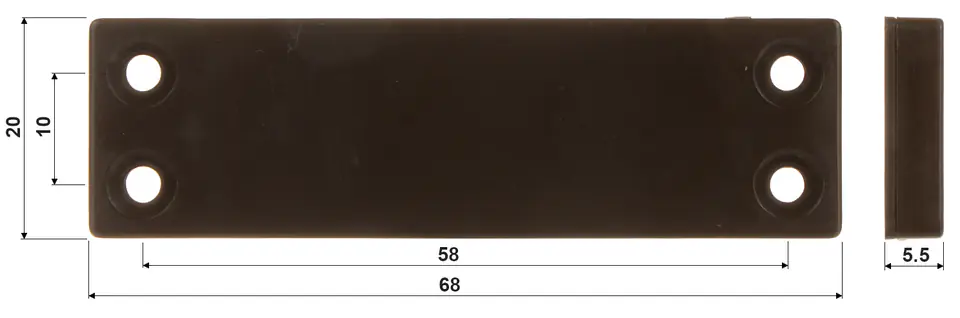

| Dimensions: | 68 x 20 x 5.3 mm |
| Distance of opening of reed contacts: | 26 mm |
| Maximum switchable current: | 500 mA |
| Maximum switchable voltage of reed switch: | 100 volts |
| Producer / brand: | SATEL |
| Reed switch closing distance: | 25 mm |
| Scales: | 0.01 kg |
| Selected features: | Wire Length : 40 cm Flat housing |
| Warranty: | 2 years |
Magnetic detectors can be used wherever there is a need to control the condition of doors, windows or other moving elements, e.g. to protect or control access to specific objects, rooms, devices, automation systems, etc.
The sensor is designed for surface mounting
