Specifications:
Article no.: 75 02 125
EAN: 4003773043720
Pliers: blackened
handles: with plastic caps
Weight: 80 g
Dimensions: 125 x 74 x 17 mm
Standard: DIN ISO 9654
Cutting range of medium hardness wire (diameter): 1.0 mm
Cutting range of hard wire (diameter): 0.6 mm
Piano wire cutting range (diameter): 0.4mm
Soft wire cutting range (diameter): 0.2 – 1.3 mm

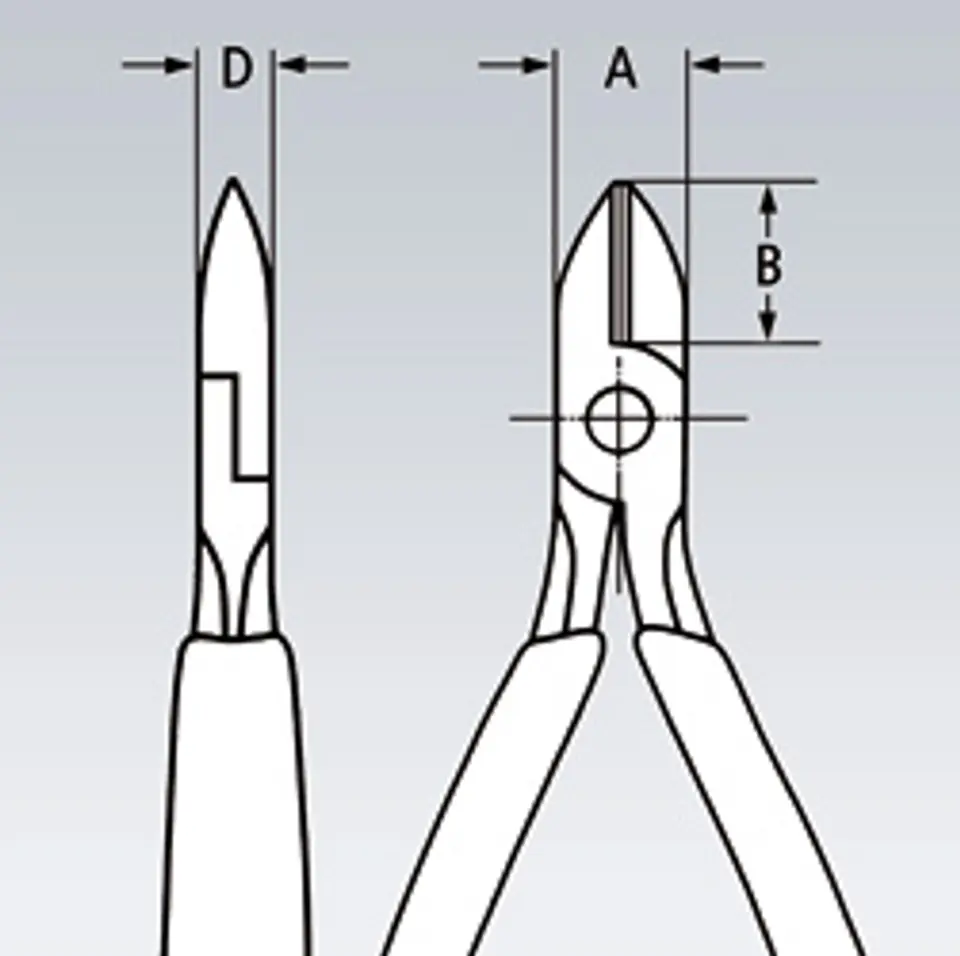

Jaw Length (B): 14 mm
Jaw thickness (joint) (D): 6.5 mm
Detail Tip Width (A): 10.5 mm

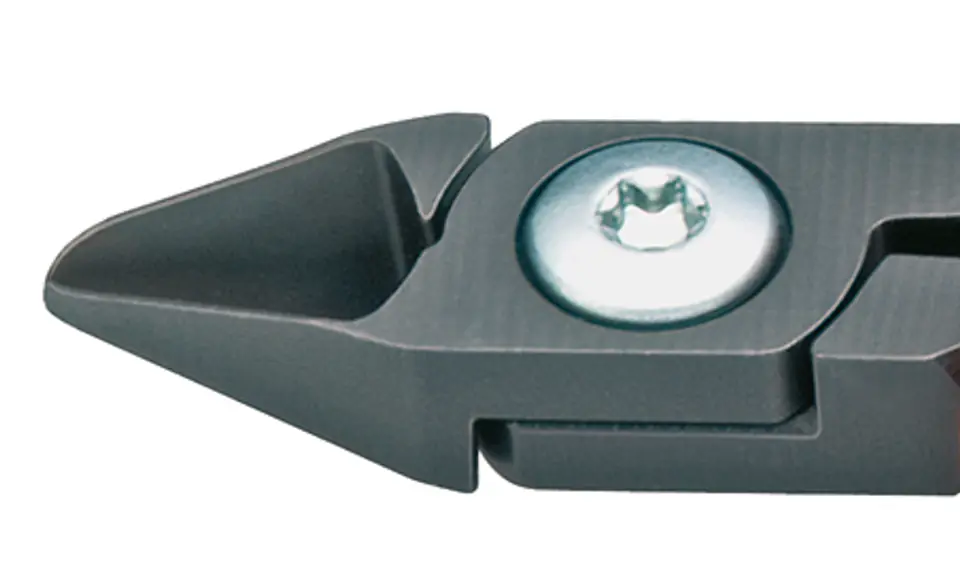

Screw joint for high precision and high durability
For extremely accurate cutting, e.g. in electronics and precision mechanics
With sharp, ground blades for cutting soft and hard wire and piano wire
Blades separately induction hardened, blade hardness approx. 64 HRC
Double opening spring with low friction for gentle and even tool opening
With beveling
Special high-quality tool steel, forged, multi-stage oil-hardened
**

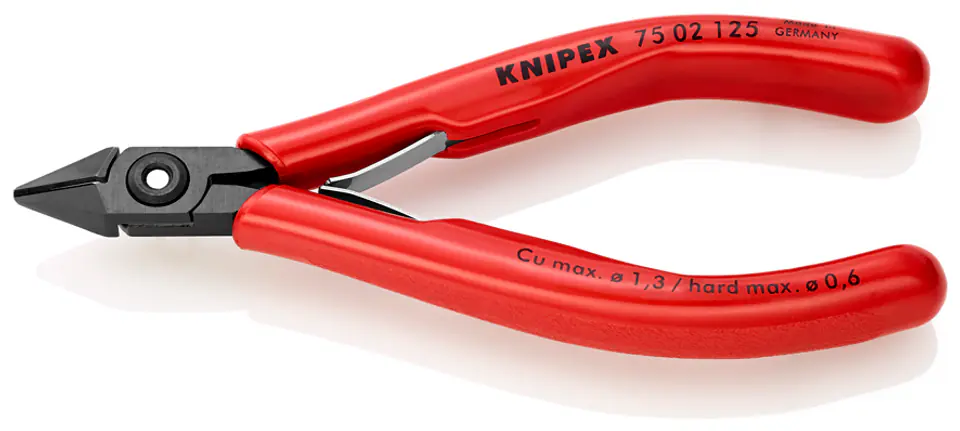

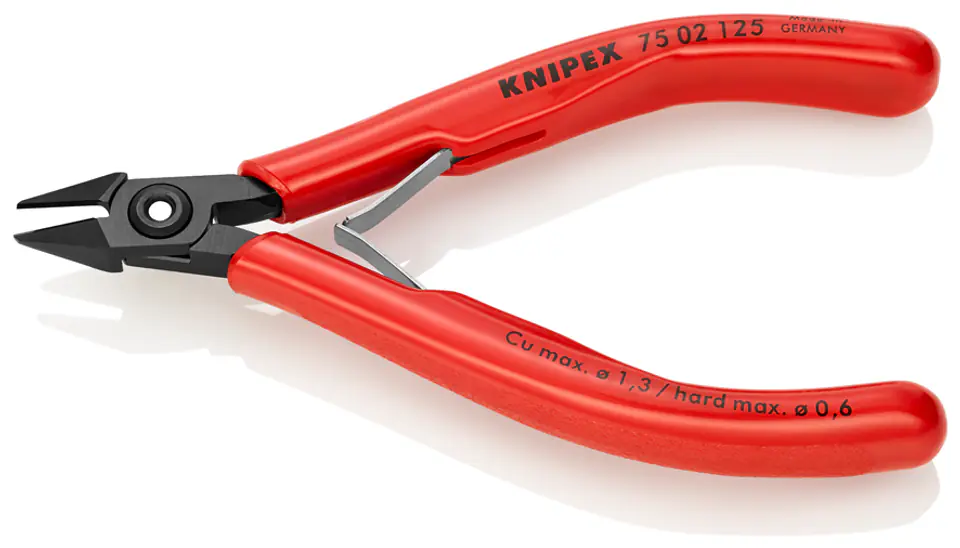

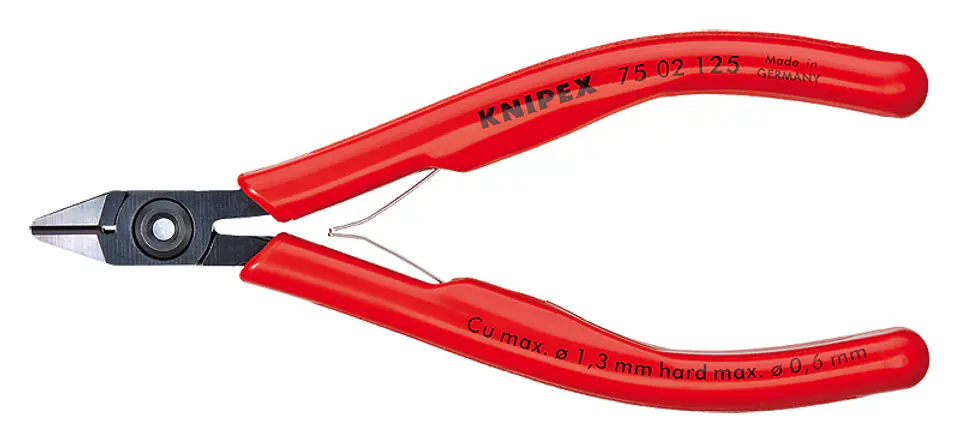

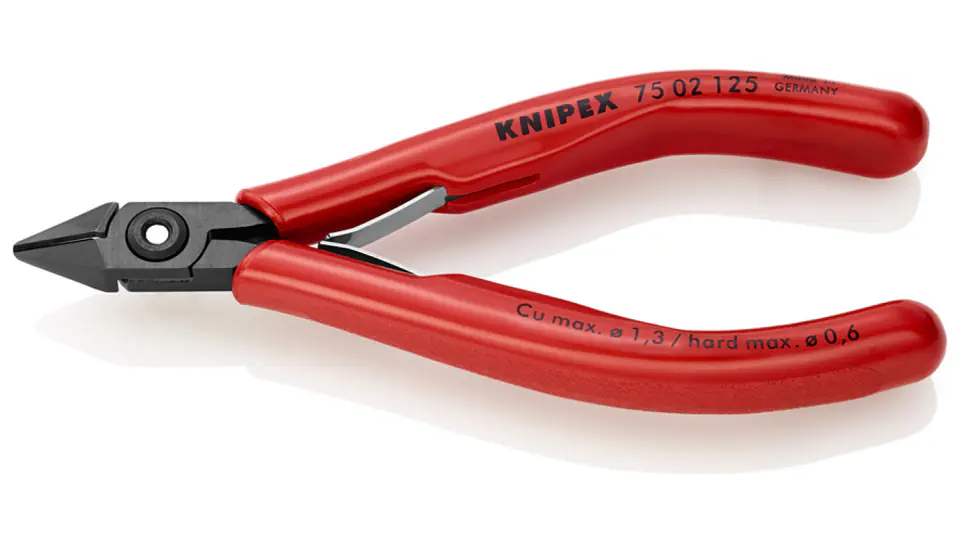

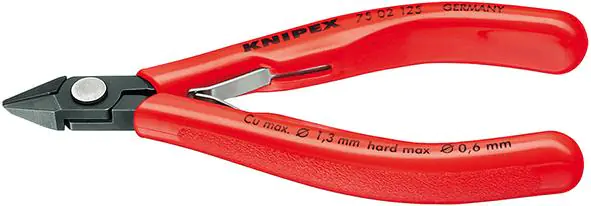

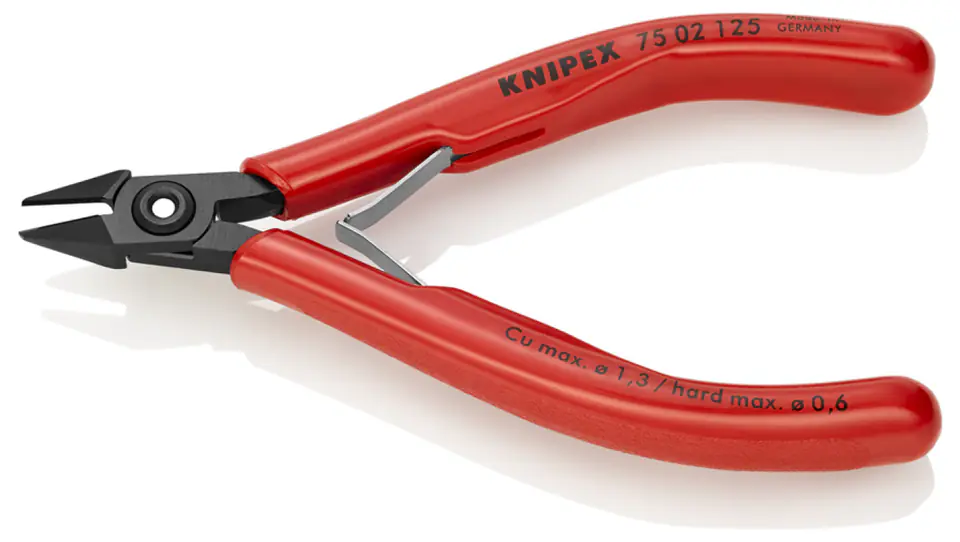

Illustrative photos.
SIDE CUTTING PLIERS 125MM
€42.21
Shipping from warehouse: U1
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- KNIPEX
- Product code:
- 8253320005 / 4003773043720
Share this product:
Specification
| Cutting parameters, ø medium hard wire: | 0.2 to 1.0 mm |
|---|---|
| Cutting parameters, ø of hard wire: | 0.2 to 0.6 mm |
| Cutting parameters, ø of piano wire: | 0.2 to 0.4 mm |
| Cutting parameters, ø soft wire: | 0.2 to 1.3 mm |
| Execution: | with bevel |
