Specifications:
Item no.: 77 32 115
EAN: 4003773044307
Head: polished to a high gloss
handles: with multi-component caps
Weight: 65 g
Dimensions: 115 x 66 x 17 mm
Standard: DIN ISO 9654
Cutting range of medium hardness wire (diameter): 1.0 mm
Hardcore Cutting Range (diameter): 0.5mm
Cutting range of soft wire (diameter): 0.3 – 1.3 mm

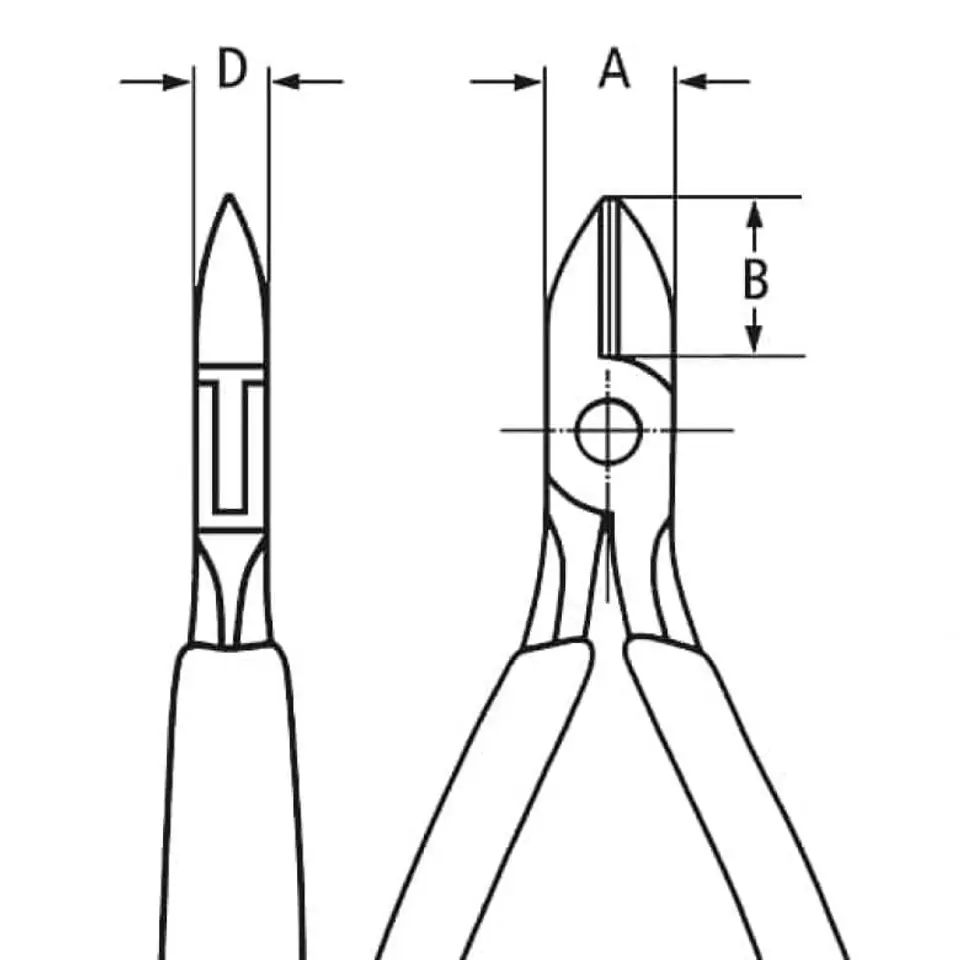

Jaw Length (B): 14 mm
Jaw thickness (joint) (D): 7.5 mm
Width of the head (A): 11 mm

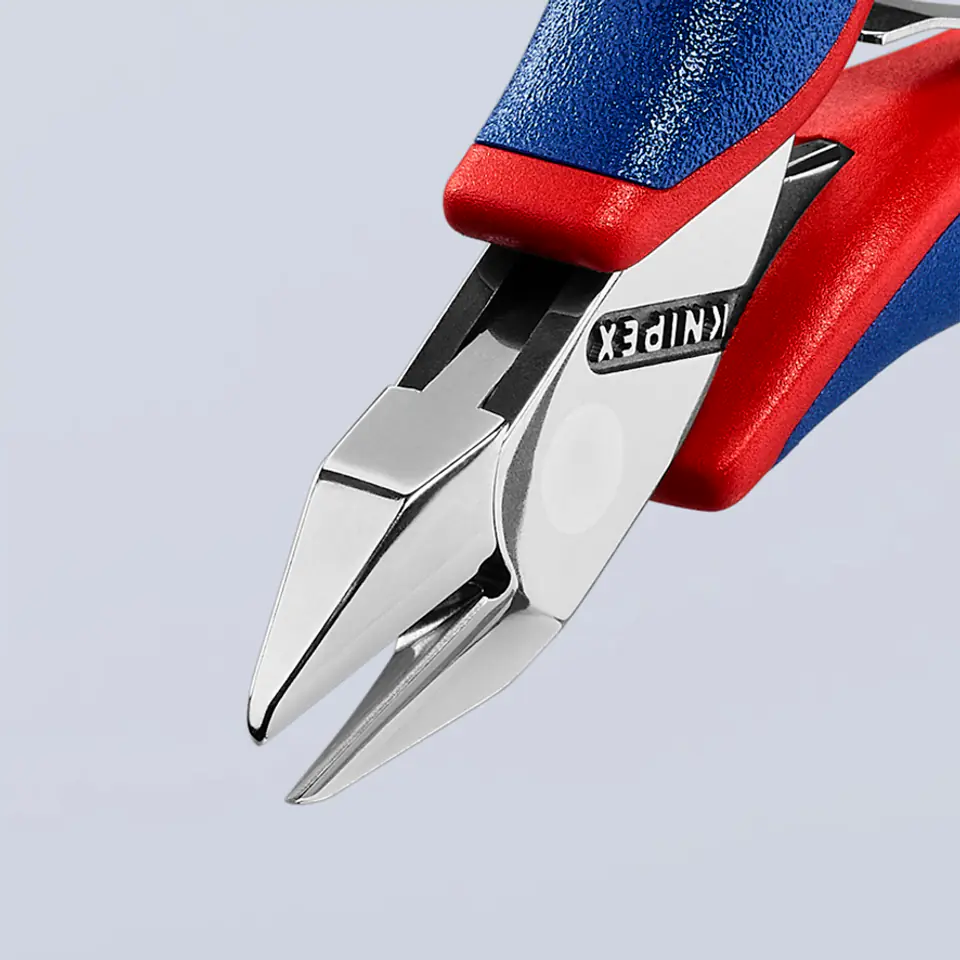

Head narrowed, with a small bevel
Blade hardness approx. 60 HRC

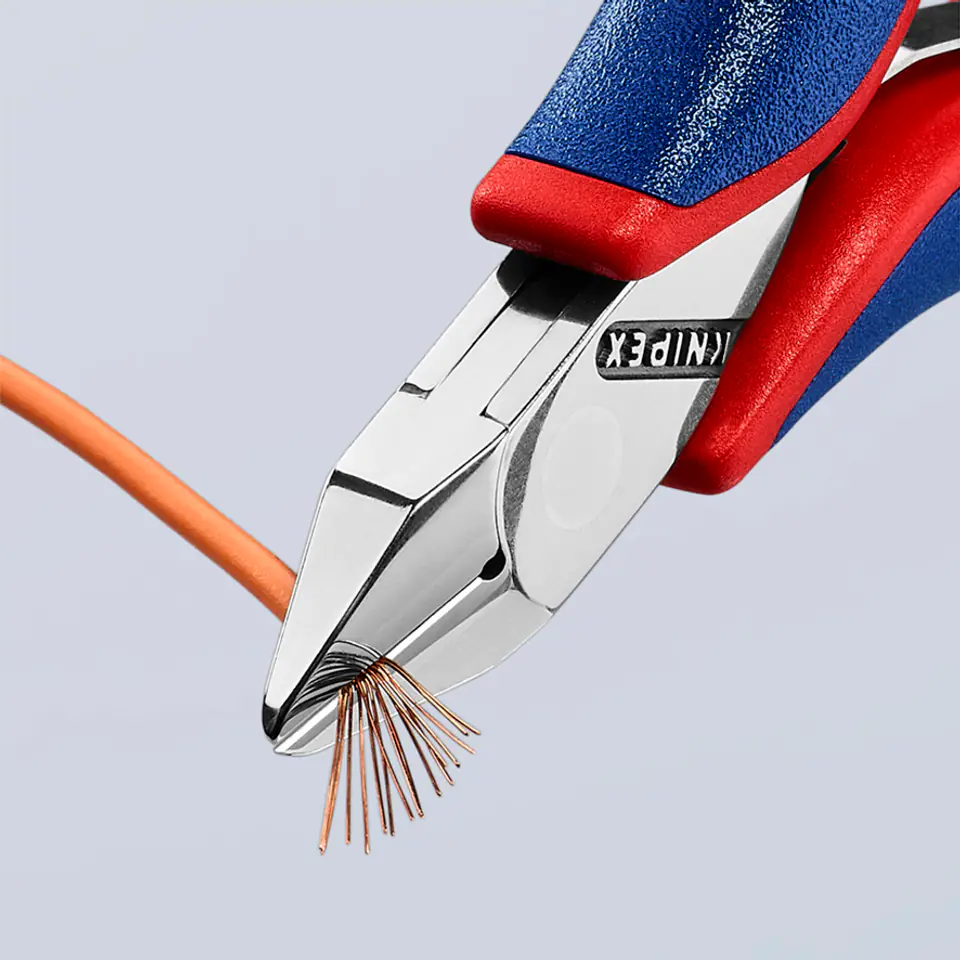

For accurate cutting, e.g. in electronics and precision mechanics
Workload-optimized design for even more comfortable operation
Stable slide connection for backlash-free operation
Double opening spring with low friction for gentle and even tool opening
High gloss polishing together with a thin layer of oil perfectly protects the tool against corrosion
Blades additionally hardened, hardness of blades min. 60 HRC
Safe and comfortable operation of the pliers even between thumb and forefinger thanks to the slim extension caps
Chrome bearing steel, oil hardened
**
Photos are for illustrative purposes.

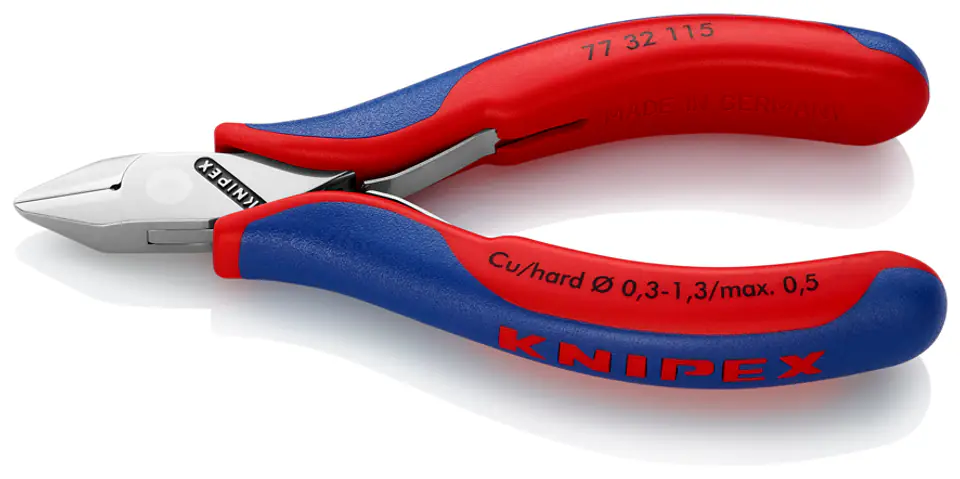

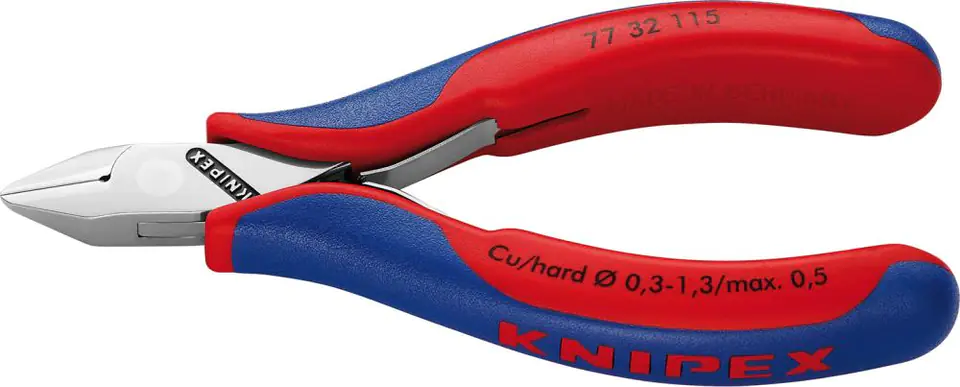

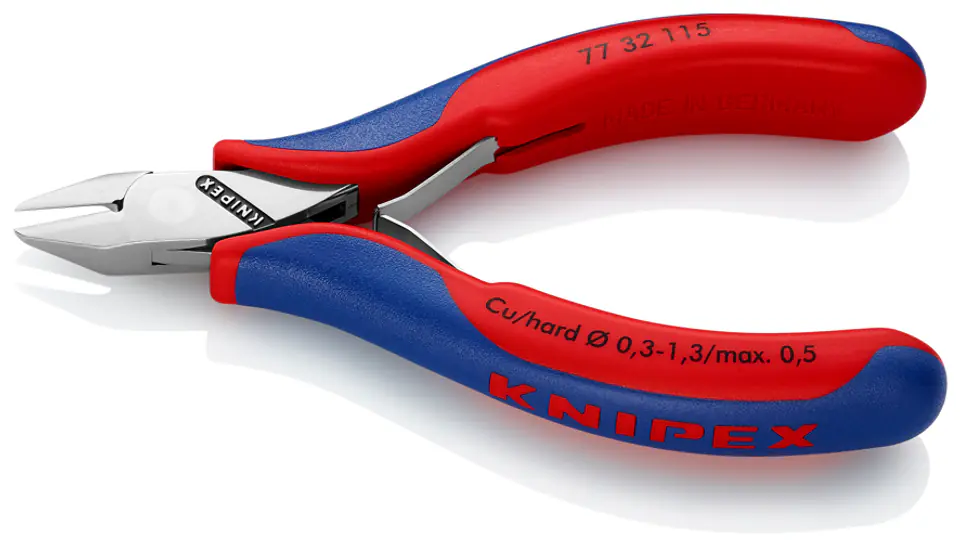

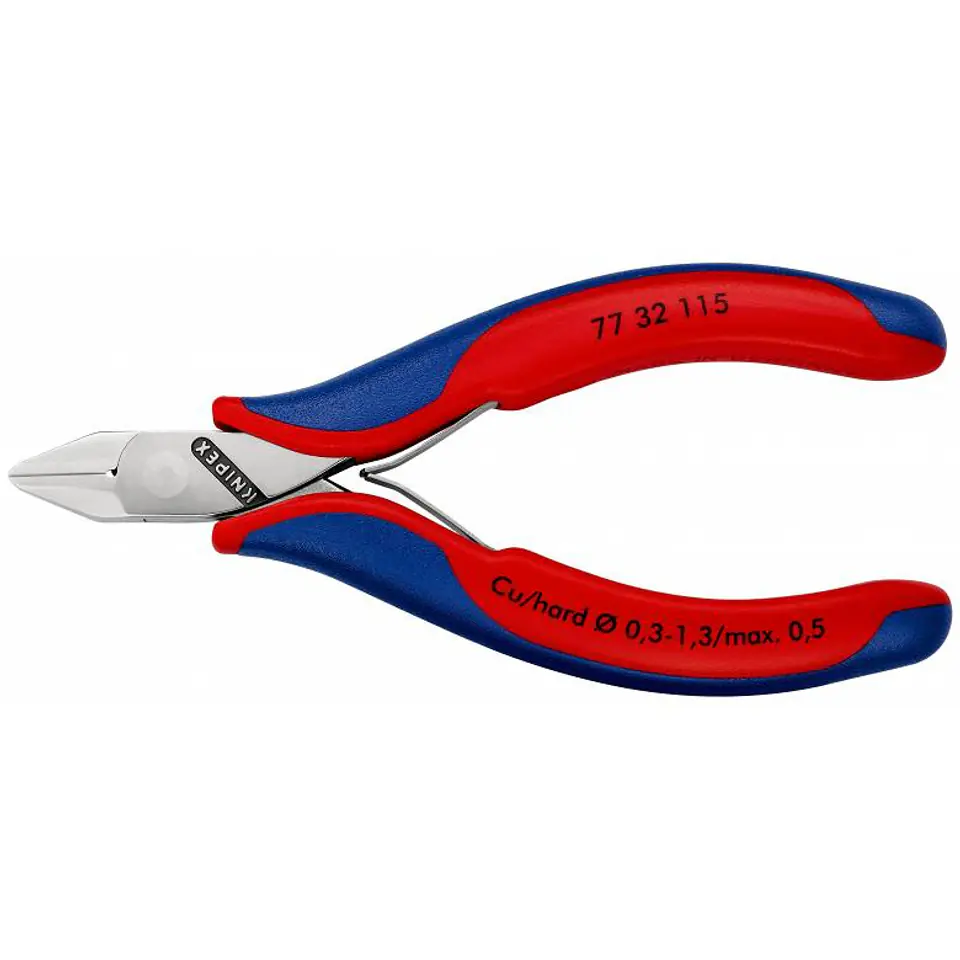

SIDE CUTTING PLIERS 115MM
€45.70
Shipping from warehouse: U1
Estimated shipping: Fri, Nov 15 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- KNIPEX
- Product code:
- 8253380018 / 4003773044307
Share this product:
Specification
| Cutting parameters, ø medium hard wire: | 0.3 to 1.0 mm |
|---|---|
| Cutting parameters, ø of hard wire: | 0.3 to 0.5 mm |
| Cutting parameters, ø soft wire: | 0.3 to 1.3 mm |
| Execution: | with a small bevel, head pointed |
