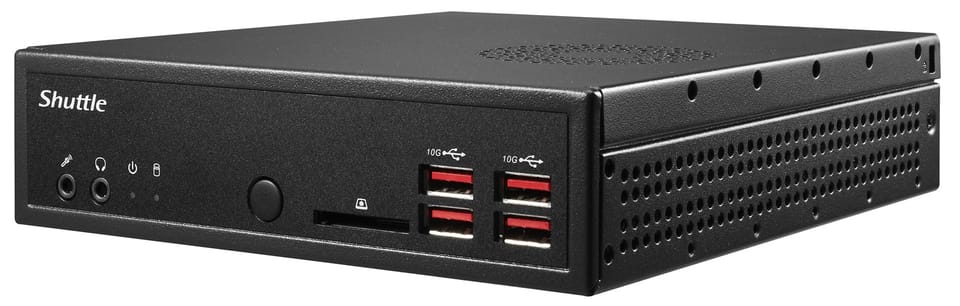

Shuttle XPC slim Barebone DH32U5, Intel i5-1135G7, 4x HDMI 2.0b 2x LAN, 2x COM, incl. VESA 24/7 permanent operation

€880.72
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Mon, Nov 4 - Wed, Nov 6
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Shuttle
Product code:
7600878 / 0887993004464

Specification

Ac adapter included:Yes
Ac adapter output current:4.74 A
Ac adapter output voltage:19 V
Ac input frequency:50 - 60 Hz
Ac input voltage:100 - 240 V
Audio output channels:5.1 channels
Bios type:UEFI AMI
Built-in processor:Yes
Built-in speaker(s):No
Cable lock slot:Yes
Cable lock slot type:Kensington
Card reader integrated:Yes
Chassis type:1.35L sized PC
Compatible memory cards:SDXC, SD, SDHC
Cooling type:Active
Country of origin:China
Cpu configuration (max):1
Dc-in jack:Yes
Depth:165 mm
Drivers included:Yes
Embedded options available:No
Ethernet lan:Yes
Ethernet lan (rj-45) ports:2
Graphics card family:Intel
Harmonized system (hs) code:84713000
Hdmi ports quantity:4
Hdmi version:2.0b
Headphone outputs:1
Height:43 mm
Housing material:Metal
Idle states:Yes
Intel stable image platform program (sipp):No
Intel trusted execution technology:No
Intel virtualization technology (vt-x):Yes
Intel virtualization technology for directed i/o (vt-d):Yes
Intel vt-x with extended page tables (ept):Yes
Lan controller:Intel® I211
Led indicators:Power, HDD
Linux operating systems supported:Yes
Maximum internal memory:64 GB
Maximum resolution:4096 x 2304 pixels
Memory channels:Dual-channel
Memory slots type:SO-DIMM
Memory voltage:1.2 V
Microphone in:Yes
Motherboard chipset:Intel SoC
Number of m.2 (m) slots:1
Number of memory slots:2
Number of power supply units:1
Number of processors supported:1
Number of storage drives supported:2
On-board graphics card:Yes
On-board graphics card model:Intel Iris Xe Graphics
Operating relative humidity (h-h):10 - 90%
Operating system installed:No
Operating temperature (t-t):0 - 50 °C
Package weight:2.1 kg
Pci express slots version:4.0
Power cord included:Yes
Power supply:90 W
Power supply type:External AC adapter
Processor boost frequency:4.2 GHz
Processor cache:8 MB
Processor cores:4
Processor family:Intel® Core™ i5
Processor generation:11th gen Intel® Core™ i5
Processor lithography:10 nm
Processor manufacturer:Intel
Processor model:i5-1135G7
Processor threads:8
Product colour:Black
Product type:Mini PC barebone
Serial ports quantity:2
Storage drive interface:PCI Express, Serial ATA III
Storage drive sizes supported:M.2, 2.5
Supported memory clock speeds:3200
Supported memory types:DDR4-SDRAM
Supported storage drive types:HDD & SSD
Trusted platform module (tpm) version:2.0
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:4
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:4
Vesa mounting:Yes
Weight:1.3 kg
Wi-fi:No
Width:190 mm
Windows operating systems supported:Windows 10, Windows 11
