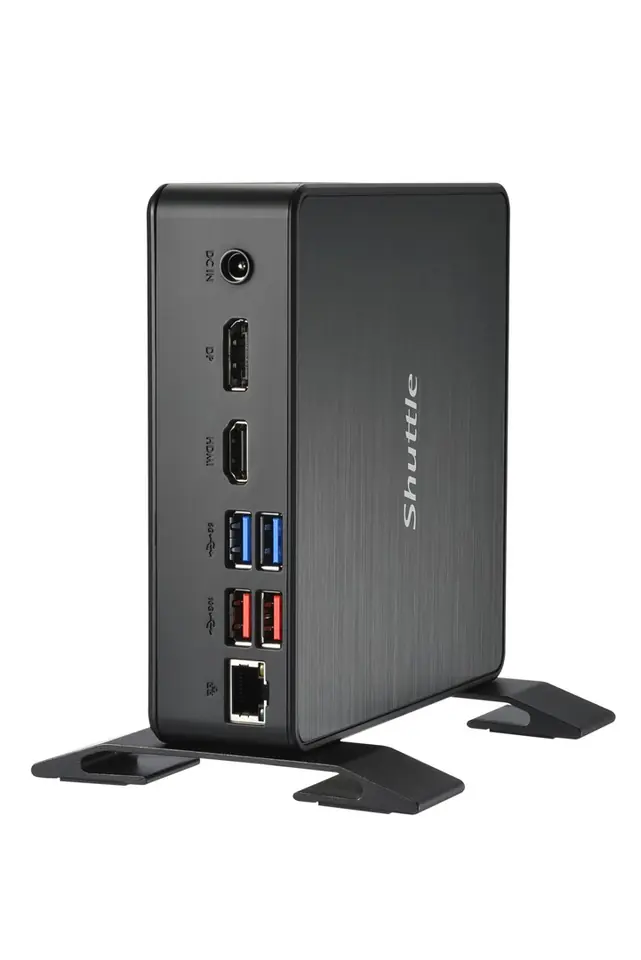

Shuttle XPC Nano PC NC40U, Intel Celeron 7305U, 1x HDMI, 1x DP,1xUSB-C/DP, 6x USB3.2, 1x 2.5" bay, 2x M.2, 1x LAN, RAID, 24/7 permanent operation, incl. VESA & Stand
This product is not available
- Availability:
- expected delivery
- Brand:
- Shuttle
- Product code:
- NC40U / 0887993005904
Share this product:
Specification
| Ac adapter included: | Yes |
|---|---|
| Ac adapter output current: | 3.42 A |
| Ac adapter output voltage: | 19 V |
| Ac input frequency: | 50/60 Hz |
| Ac input voltage: | 100 - 240 V |
| Bios type: | AMI |
| Built-in processor: | Yes |
| Built-in speaker(s): | No |
| Cable lock slot: | Yes |
| Cable lock slot type: | Kensington |
| Card reader integrated: | No |
| Chassis type: | 0.84L sized PC |
| Compliance certificates: | RoHS, CE, BSMI, UKCA, Federal Communications Commission (FCC) |
| Cooling type: | Active |
| Dc-in jack: | Yes |
| Depth: | 142 mm |
| Displayport version: | 1.4a |
| Displayports quantity: | 1 |
| Drivers included: | Yes |
| Ecc: | No |
| Efficient cores: | 4 |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Graphics card family: | Intel |
| Harmonized system (hs) code: | 84733080 |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.0b |
| Headphone outputs: | 1 |
| Height: | 42 mm |
| Housing material: | Plastic |
| Lan controller: | Intel® I219 |
| Led indicators: | HDD, Power |
| Linux operating systems supported: | Yes |
| Maximum internal memory: | 64 GB |
| Maximum resolution: | 7680 x 4320 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | SO-DIMM |
| Memory voltage: | 1.2 V |
| Microphone in: | Yes |
| Motherboard chipset: | Intel SoC |
| Non-ecc: | Yes |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 2 |
| Number of power supply units: | 1 |
| Number of processors supported: | 1 |
| Number of storage drives supported: | 3 |
| Nvme: | Yes |
| On-board graphics card: | Yes |
| On-board graphics card model: | Intel® UHD Graphics |
| On/off switch: | Yes |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating system installed: | No |
| Operating temperature (t-t): | 0 - 40 °C |
| Package weight: | 1.2 kg |
| Panel mounting interface: | 75 x 75,100 x 100 mm |
| Pci express slots version: | 4.0, 3.0 |
| Performance cores: | 1 |
| Power cord included: | Yes |
| Power supply: | 65 W |
| Power supply type: | External AC adapter |
| Processor cache: | 8 MB |
| Processor cores: | 5 |
| Processor family: | Intel® Celeron® |
| Processor frequency: | 1.1 GHz |
| Processor manufacturer: | Intel |
| Processor model: | 7305 |
| Processor threads: | 5 |
| Product colour: | Black |
| Product type: | Mini PC barebone |
| Quick start guide: | Yes |
| Safety: | CB IEC60950/62368, cTUVus (UL 62368) |
| Storage drive interface: | PCI Express, Serial ATA III |
| Storage drive sizes supported: | 2.5, M.2 |
| Supported memory clock speeds: | 3200 MHz |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive types: | HDD & SSD |
| Sustainability certificates: | ENERGY STAR, ErP |
| Sustainability compliance: | Yes |
| Trusted platform module (tpm): | Yes |
| Trusted platform module (tpm) version: | 2.0 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) type-c ports quantity: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 2 |
| Vesa mounting: | Yes |
| Weight: | 400 g |
| Wi-fi: | No |
| Width: | 142 mm |
| Windows operating systems supported: | Windows 11, Windows 10 |
