| Aluminium > 8% silicon: | 50 |
|---|---|
| Cast iron gg/gts: | 33 |
| For thread: | M12 |
| Ggg cast iron: | 26 |
| Inox austenite.: | 8 |
| Inox duplex: | 6 |
| Inox ferrite./martenz.: | 10 |

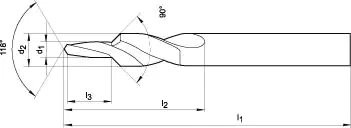

| Length of steps l3: | 30.0 mm |
| Ø drill bits d1 x ø countersink d2: | 10.2 x 13.5 mm |
| Spiral length l2: | 54 mm |
| Steel < 1000 n/mm2: | 24 |
| Steel < 1400 n/mm2: | 19 |
| Steel < 700 n/mm2: | 30 |
| Total length l1: | 107 mm |
Short step drill, 90°, for thread holes
Design: depth angle 90°.
Application: for drilling thread holes according to DIN 336, part 1 and countersinks of 90° according to through holes according to DIN EN 20273. Designed especially for use on NC and CNC machines.
