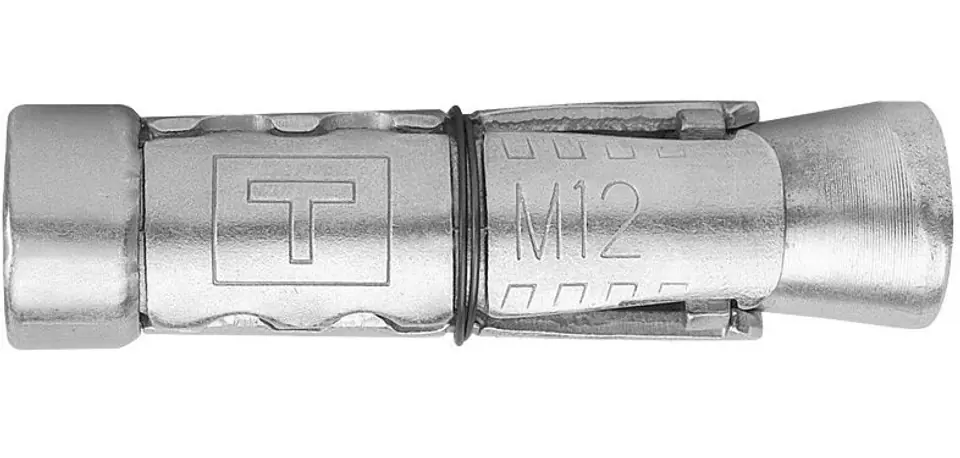

SHIELD SHIELD SLEEVE 10/16*60MM

TSA ... - Anchors with Shield Anchor (bushing only).

Use:

• installation of piping, ventilation, electrical and telecommunication installations,
• fixing and securing scaffolding and formwork,
• installation of suspended ceilings and lighting,
• high and medium load class depending on the substrate,
• possibility of direct mounting of threaded rods.

Advantages:

• universal anchor for solid substrates and channel panels,
• anchoring in channel slabs in concrete class from C20/25,
• simple assembly that does not require specialized tools,
• high safety of deposition in substrates with voids and channel slabs, e.g. Żerańska brick, FERT, TERIVA , ACKERMAN, COBIAX ceilings, BUBBLE DECK.

Anchor rod material:

TSA expansion fastener bodies and straight threaded pins finished with an eyelet or hook are made of 5.8 steel according to PN-EN ISO898-1: 2001a screws in class 8.8 according to the same standard.
Galvanized thickness up to 5μm according to PN-EN 10152:2005.
