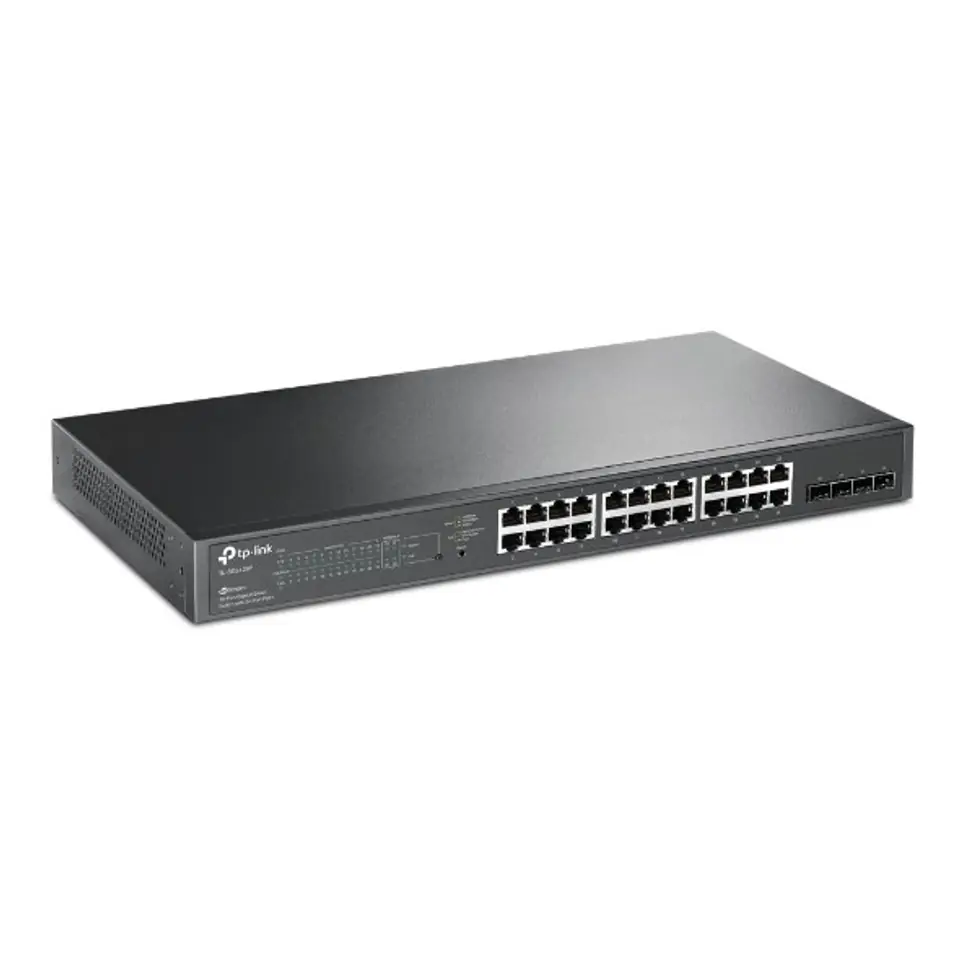

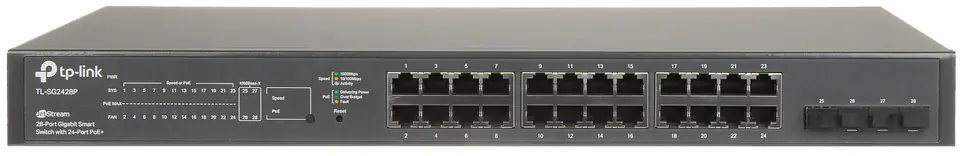

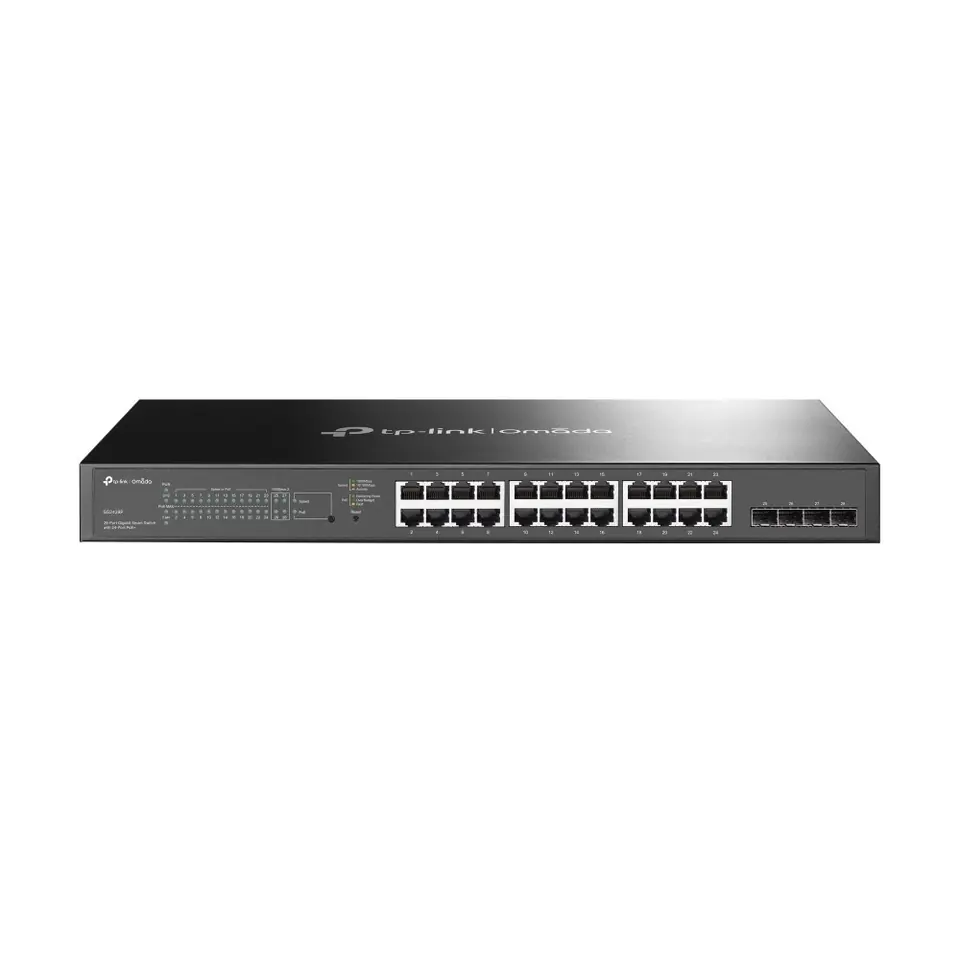

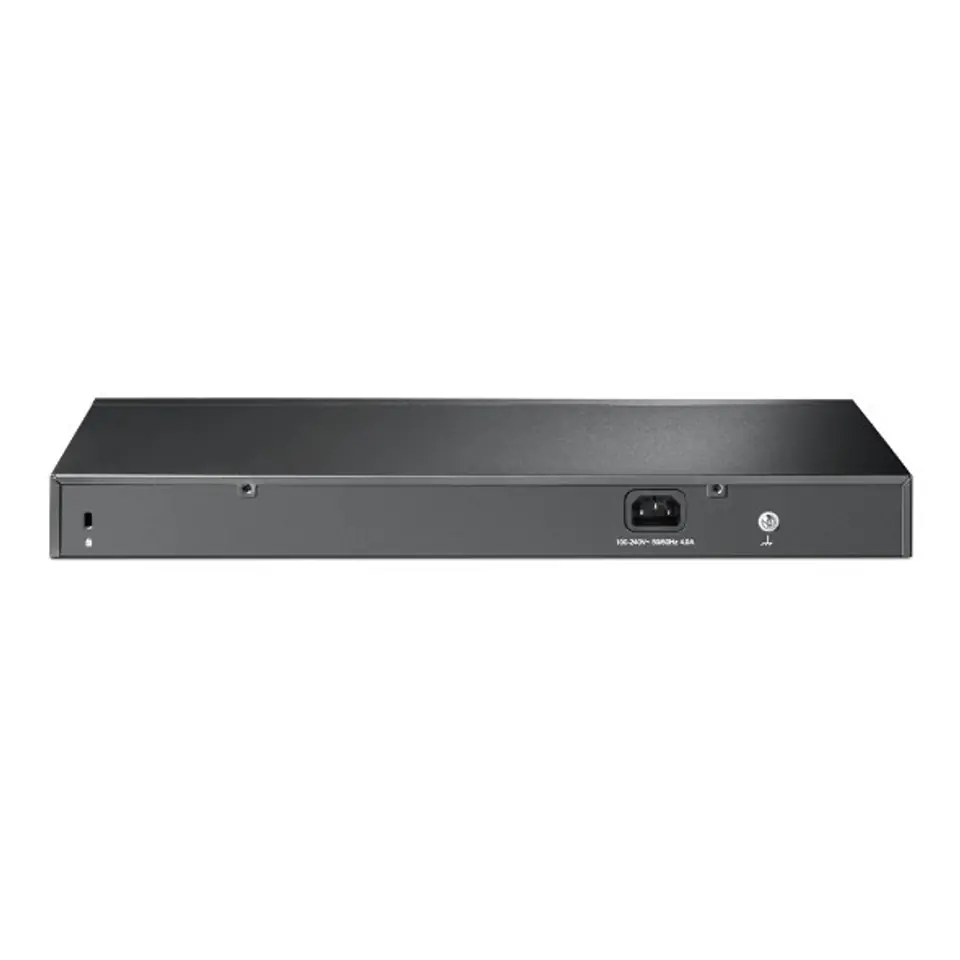

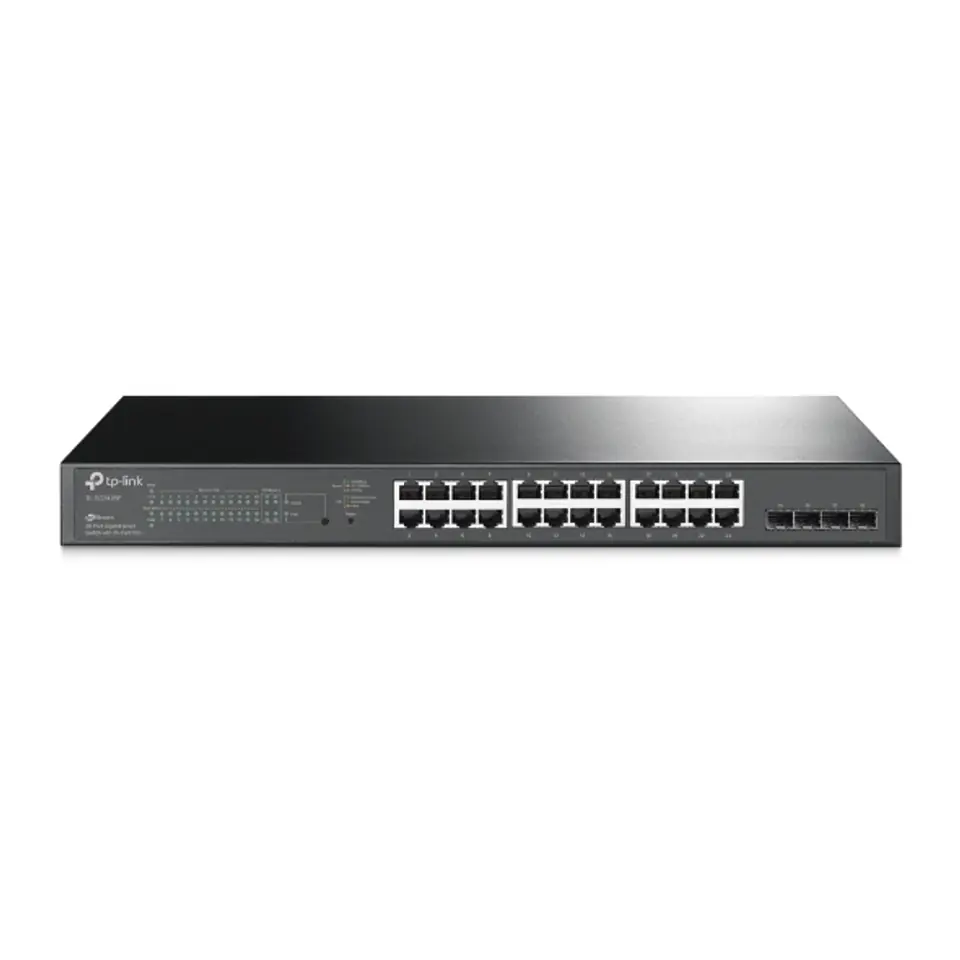

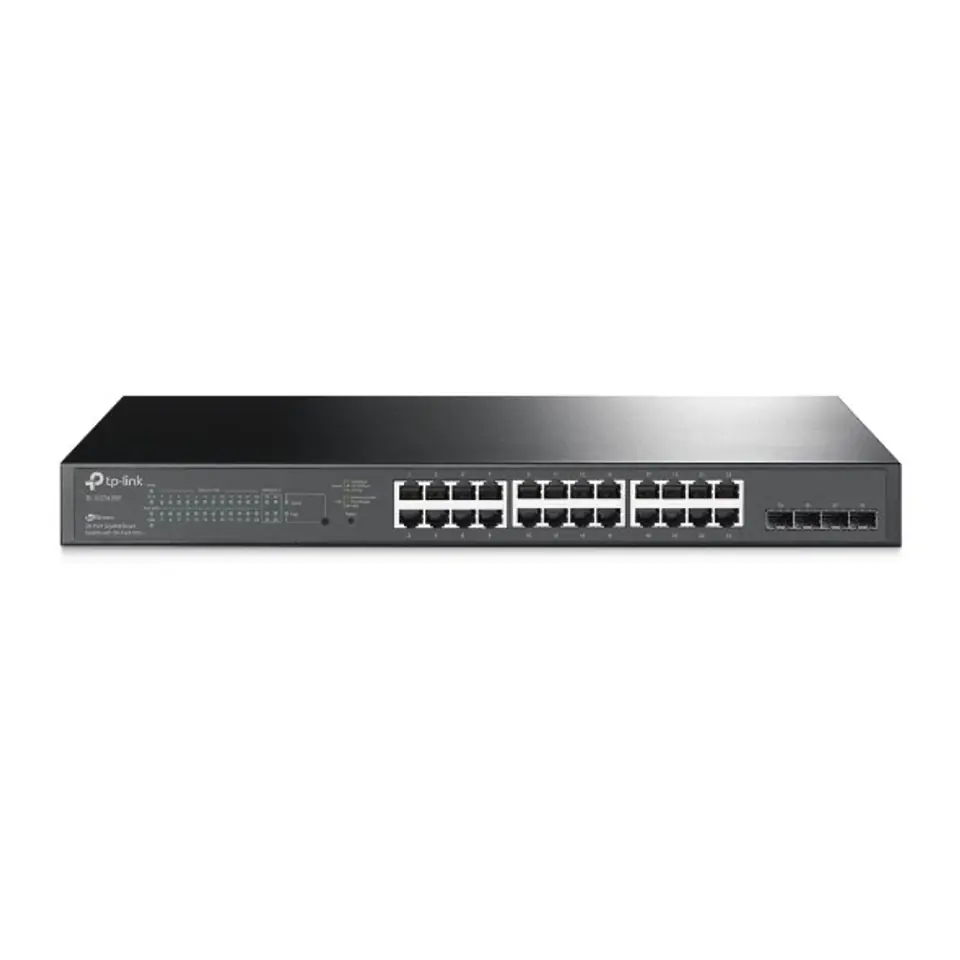

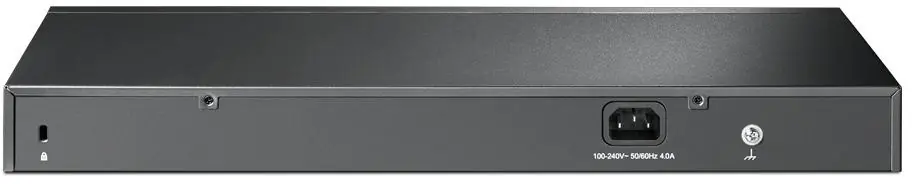

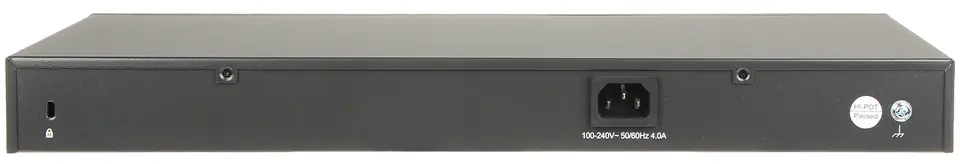

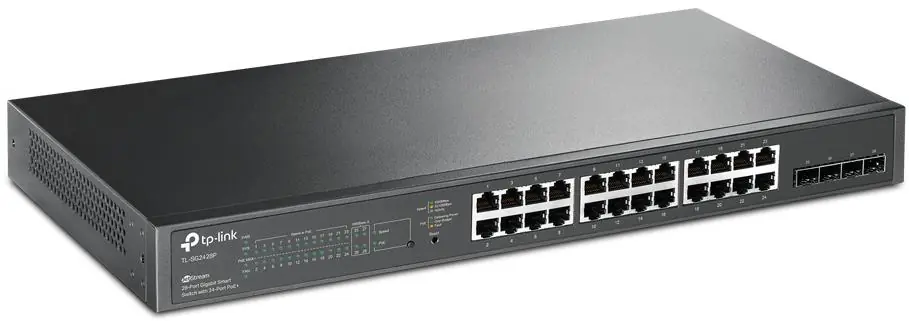

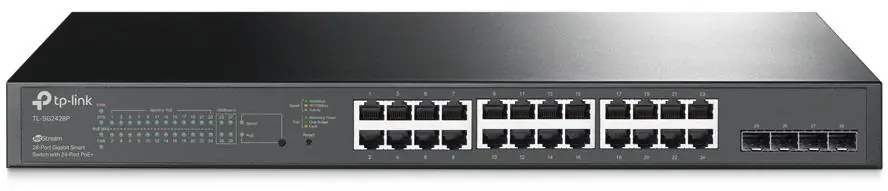

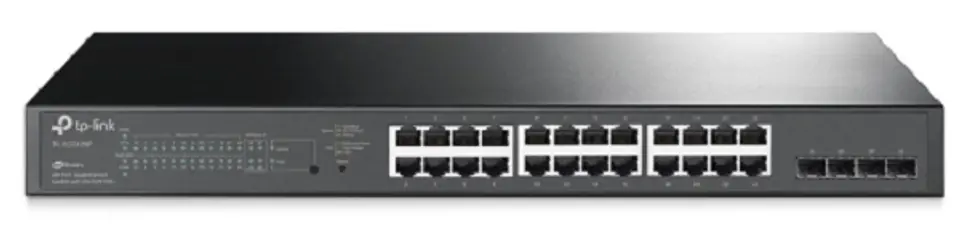

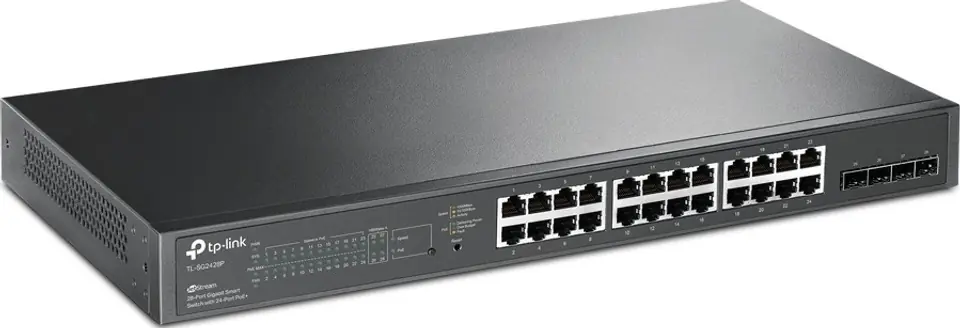

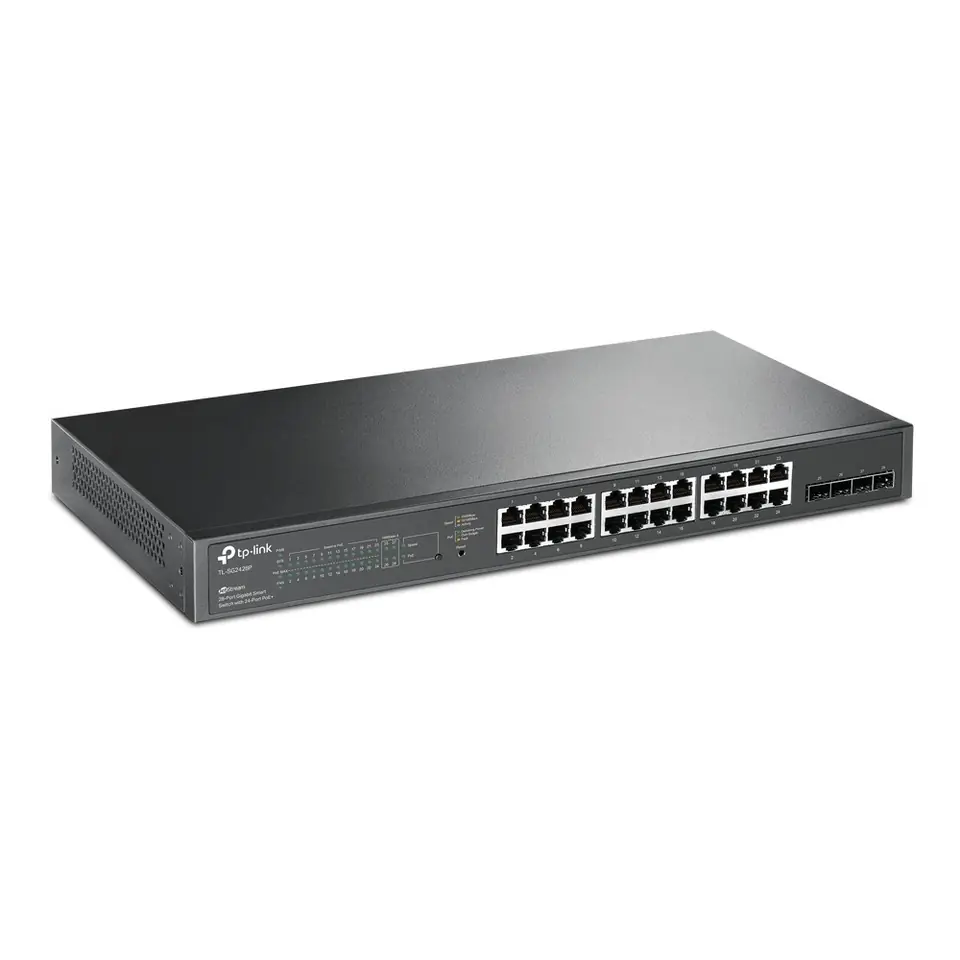

SG2428P Switch 24xGb-PoE+ 4xSFP
€361.65
Shipping from warehouse: H7
Estimated shipping: Tue, Feb 25 - Fri, Feb 28
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Tp-Link
- Product code:
- TL-SG2428P / 6935364030650
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input frequency: | 50/60 Hz |
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Yes |
| Arp inspection: | Yes |
| Authentication type: | RADIUS |
| Basic switching rj-45 ethernet ports quantity: | 24 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Bpdu filtering/protection: | Yes |
| Broadcast storm control: | Yes |
| Cable types supported: | Cat4, Cat5, Cat5e, Cat3 |
| Cables included: | AC |
| Copper ethernet cabling technology: | 10BASE-T, 1000BASE-T |
| Depth: | 220 mm |
| Dhcp features: | DHCPv6 client, DHCP server, DHCP snooping, DHCP client, DHCP relay |
| Fiber ethernet cabling technology: | 1000BASE-X |
| Firmware upgradeable: | Yes |
| Flow control support: | Yes |
| Form factor: | 1U |
| Forwarding rate: | 41.66 Mpps |
| Gigabit ethernet (copper) ports quantity: | 24 |
| Heat dissipation: | 1052.94 BTU/h |
| Height: | 44 mm |
| Igmp snooping: | Yes |
| Ip-mac-port binding: | Yes |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Link aggregation: | Yes |
| Mac address table: | 8000 entries |
| Management protocols: | SNMPv1/v2c/v3, SNTP |
| Mib support: | Y |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.1x, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3i, IEEE 802.1D, IEEE 802.3z, IEEE 802.1w |
| Number of fans: | 2 fan(s) |
| Number of queues: | 8 |
| Number of vlans: | 4000 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 50 °C |
| Packet buffer memory: | 4.1 MB |
| Port mirroring: | Yes |
| Power consumption (max): | 301.1 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 30 W |
| Power over ethernet plus (poe+) ports quantity: | 24 |
| Power source: | AC |
| Power supply included: | Yes |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |
| Queue scheduling algorithms: | SP, WRR+SP, Weighted Round Robin (WRR) |

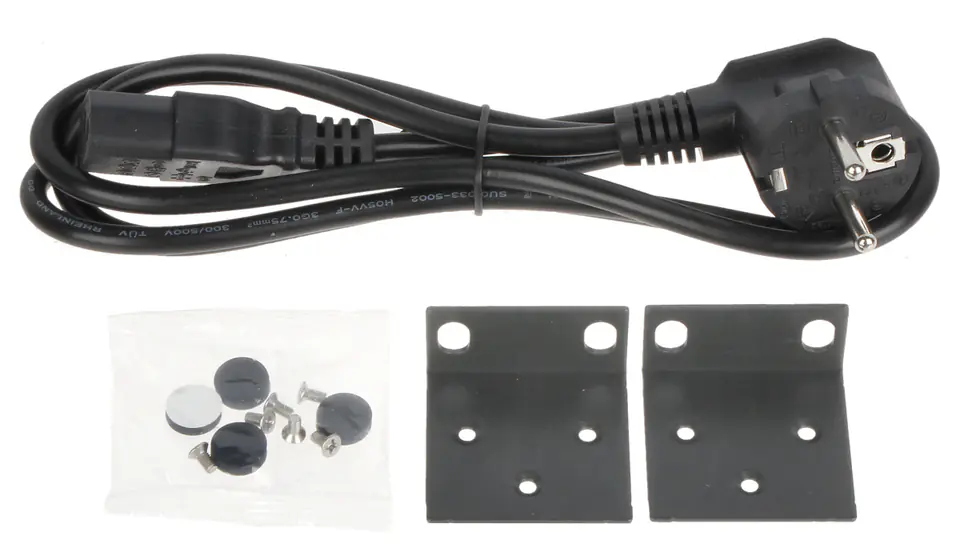

| Rack mount kit: | Yes |
| Rack mounting: | Yes |
| Rate limiting: | Yes |
| Security algorithms: | SNMPv2, SNMP, SNMPv3, SSH, HTTPS, SSL/TLS, SSH-2 |
| Sfp module slots quantity: | 4 |
| Spanning tree protocol: | Yes |
| Ssh/ssl support: | Yes |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Switch layer: | L2/L2+ |
| Switch type: | Managed |
| Switching capacity: | 56 Gbit/s |
| System event log: | Yes |
| Total power over ethernet (poe) budget: | 250 W |
| User guide: | Yes |
| Virtual lan features: | MAC address-based VLAN, Protocol-based VLAN, Voice VLAN |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Width: | 440 mm |
