| 0.04 kg: | Scales: |
|---|---|
| 1: | Number of control inputs: |
| 1150 watts (printing): | Maximum output power: |
| 2 years: | Warranty: |
| 230 vac: | Tension: |
| 3 mm: | Mounting hole diameter: |
| 3 x screw terminals max. 1.5 mm²: | Connector type: |
| 5 a fuse fuse time-lag (5/20mm): | Type of protection: |
| 52 x 47 mm: | Spacing of mounting holes: |
| 60 x 55 x 28 mm: | Dimensions: |

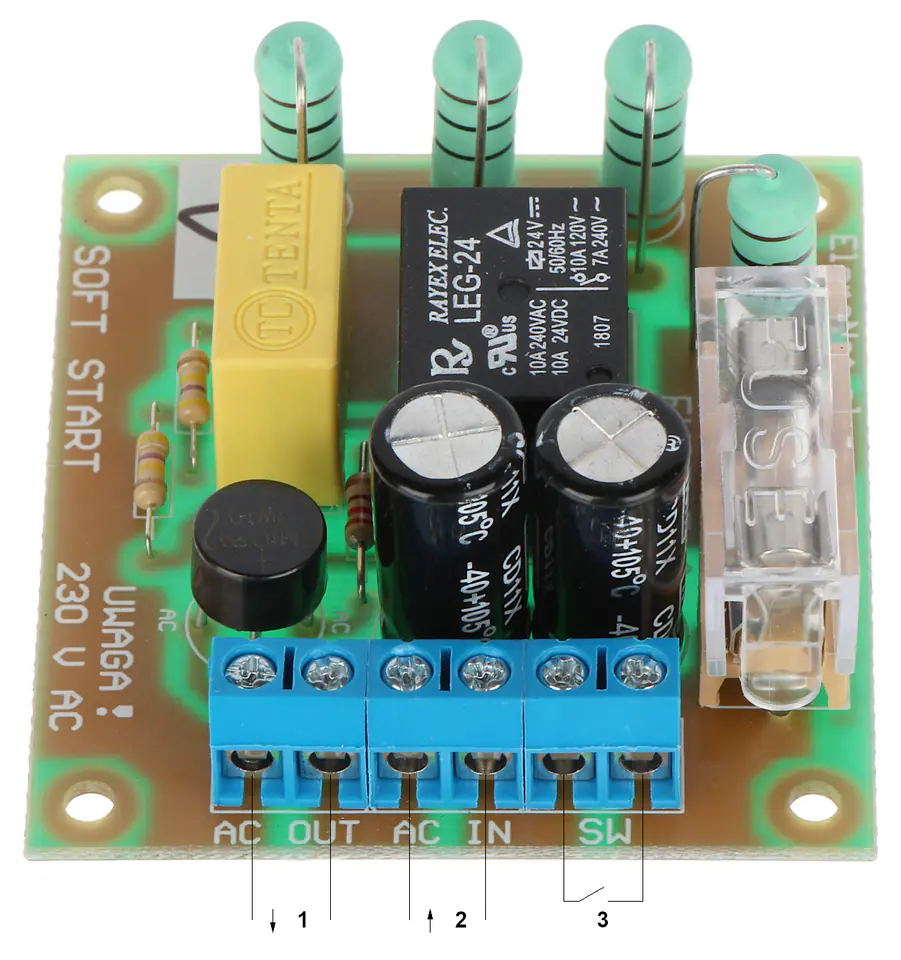

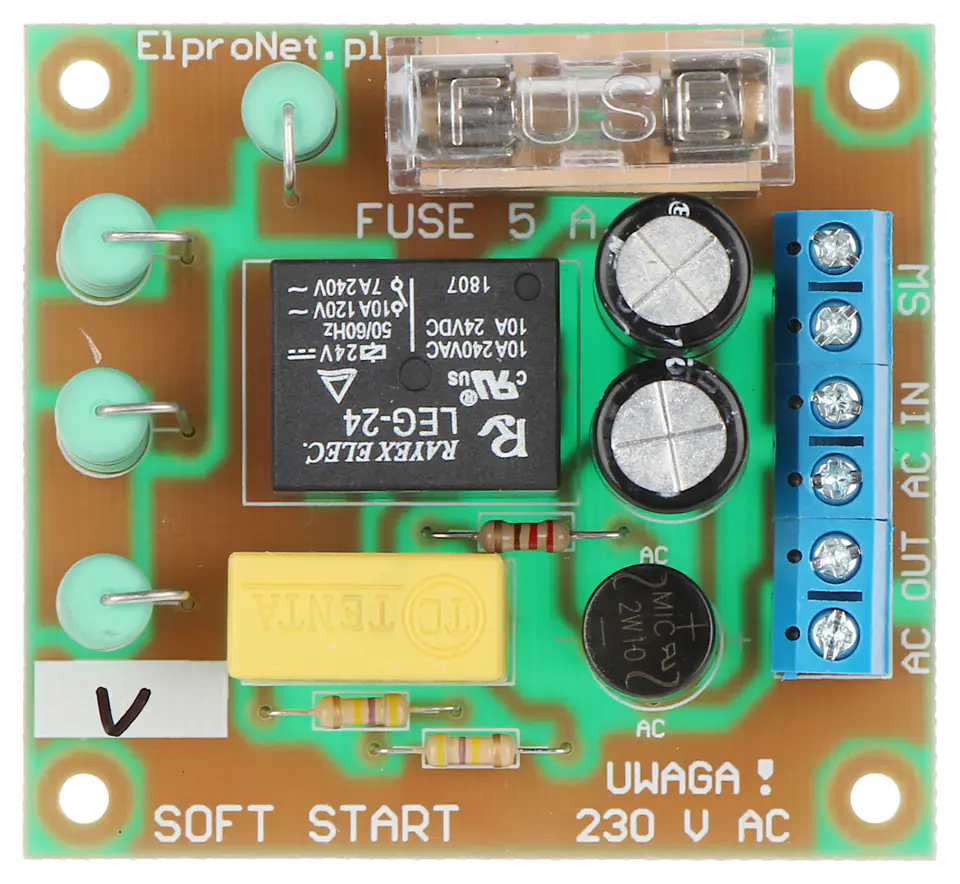

The "soft start" module temporarily limits the large inrush current when switching on inductive receivers. The system is used as a time-lag current protection for toroidal transformers, autotransformers and halogen lamps.
REMARK! There are dangerous voltages in the system. Be extra careful! The module should be mounted in housings made of electrical insulating material with appropriate insulation spacing.
