Description:
Professional set of keys for assembling and disassembling alternators type Bosch and Magneti Marelli. Adapted to cars of brands: Audi, BMW, Fiat, Ford, Mercedes, Opel, Porsche, Renault, Peugeot, Seat, Skoda, Volvo, VW and others.
The keys allow you to simultaneously unscrew the pulley mounting bolt (using the appropriate bit) and hold the wheel with the clutch (using a specialized cap).

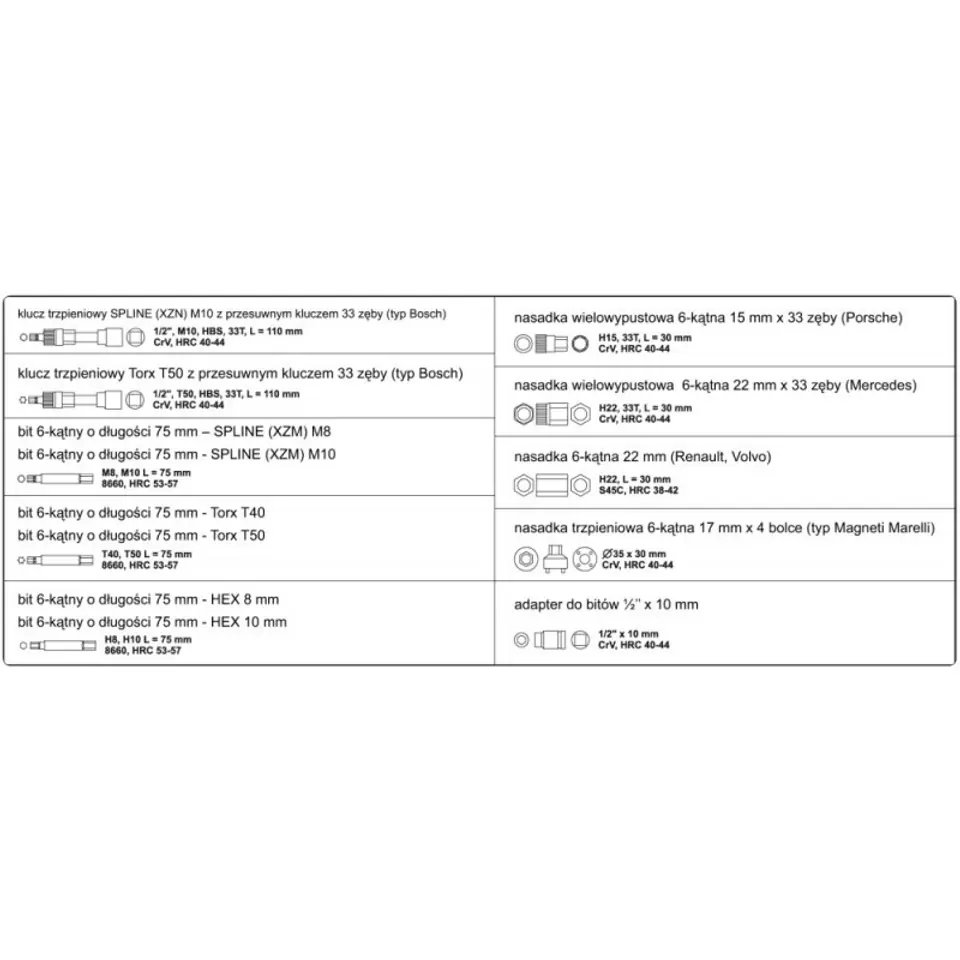

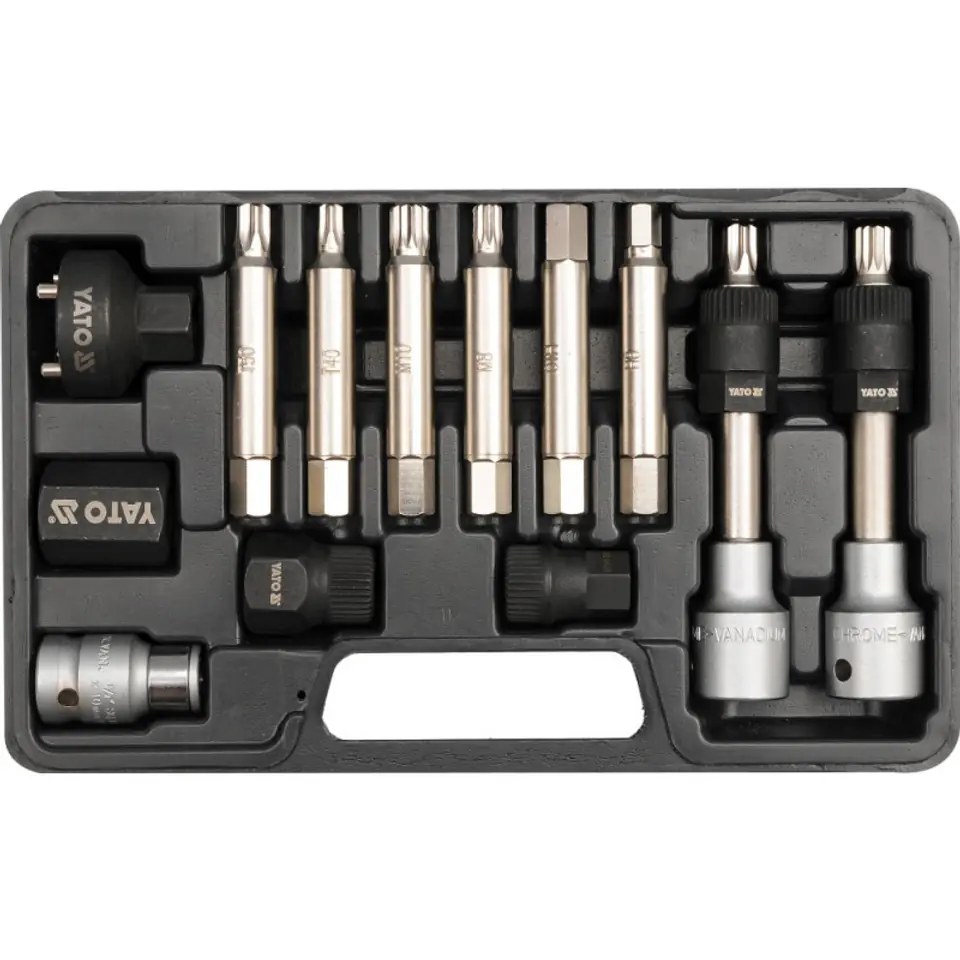

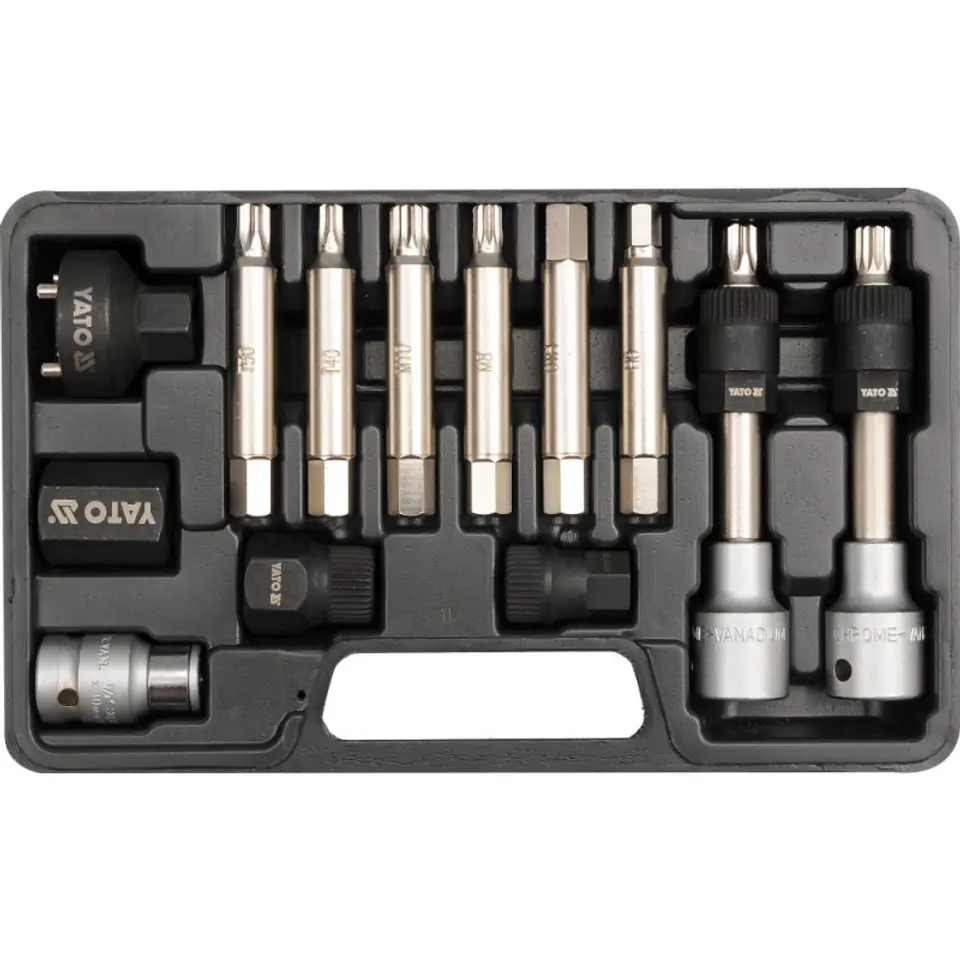

Contents:
- 1/2" mandrel wrench: Torx T50 with sliding wrench 33 teeth (Bosch type), L= 110 mm
- 1/2" mandrel wrench: SPLINE (XZN) M10 with sliding wrench 33 teeth (Bosch type), L= 110 mm
- 6-point bit: Torx T40, L=75 mm
- 6-point bit: Torx T50, L=75 mm
- 6-point bit: SPLINE (XZM) M8- L= 75 mm
- 6-point bit: SPLINE (XZM) M10, L=75 mm
- 6-point bit: HEX 8 mm, L=75 mm
- 6-point bit: HEX 10 mm, L=75 mm
- Splined socket 6-point 15 mm x 33 teeth (Porsche)
- Splined socket 6-point 22 mm x 33 teeth (Mercedes)
- Mandrel socket 6-point 17 mm x 4 prongs (type Magneti Marelli)
- 6-point socket 22 mm (Renault, Volvo)
- Adapter for 1/2" x 10 mm bits
-Suitcase
Specifications:
- Index number YT-0421
- Gross weight (kg) 1.2670
- Material: HRC 40-44, S45C, HRC 38-42, HRC 53-57, STEEL 8660
- Size [mm] 12,5
- Drive size [in] 1/2"
- Number of elements [pcs.] 13
