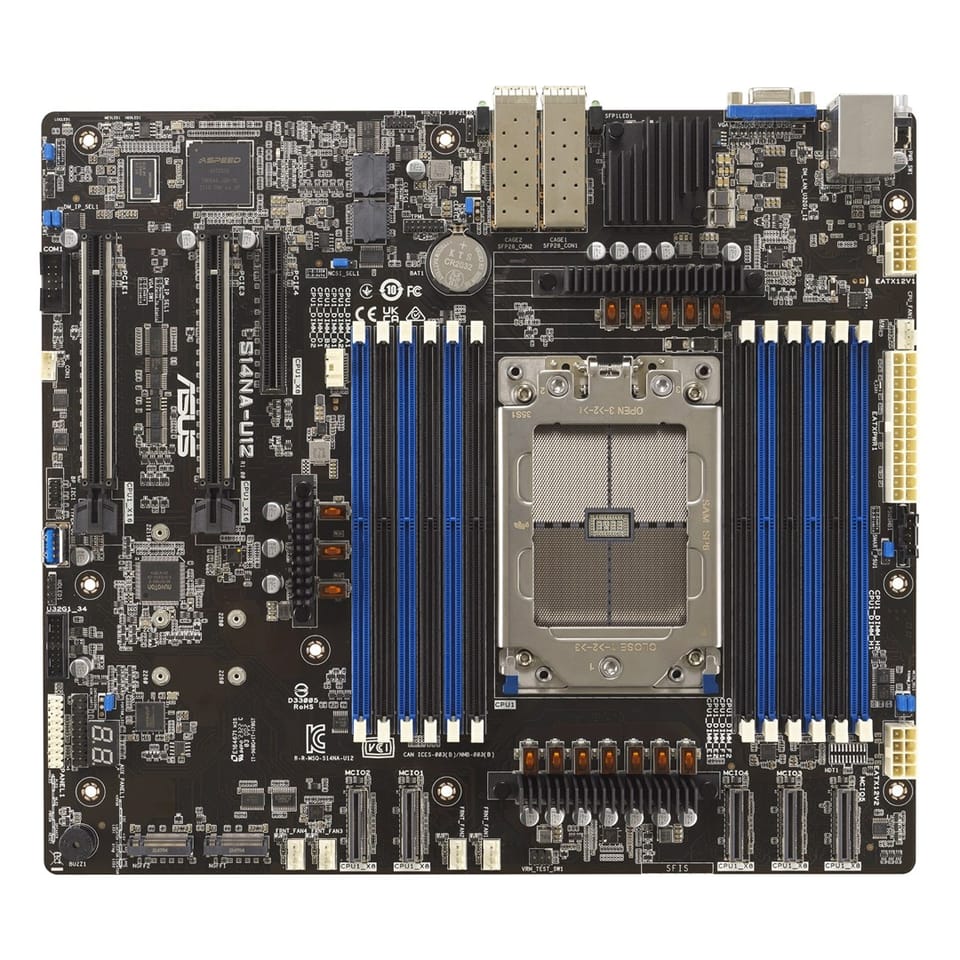

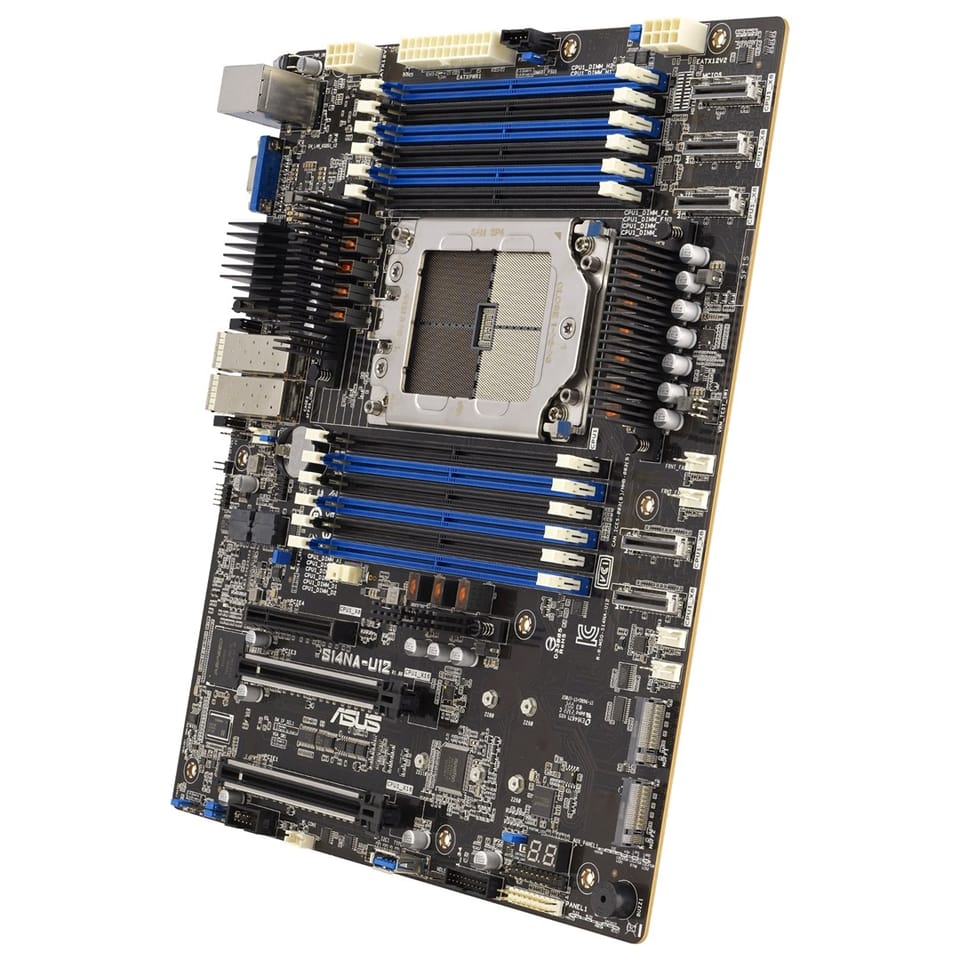

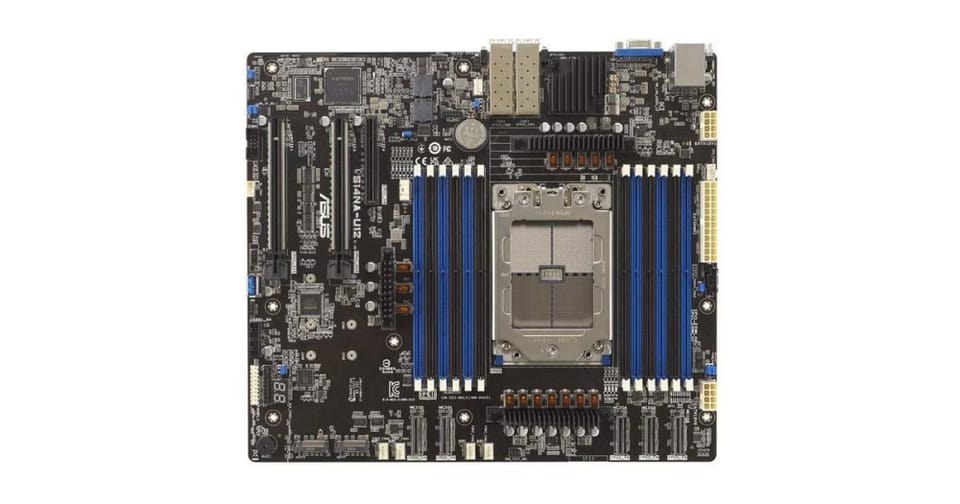

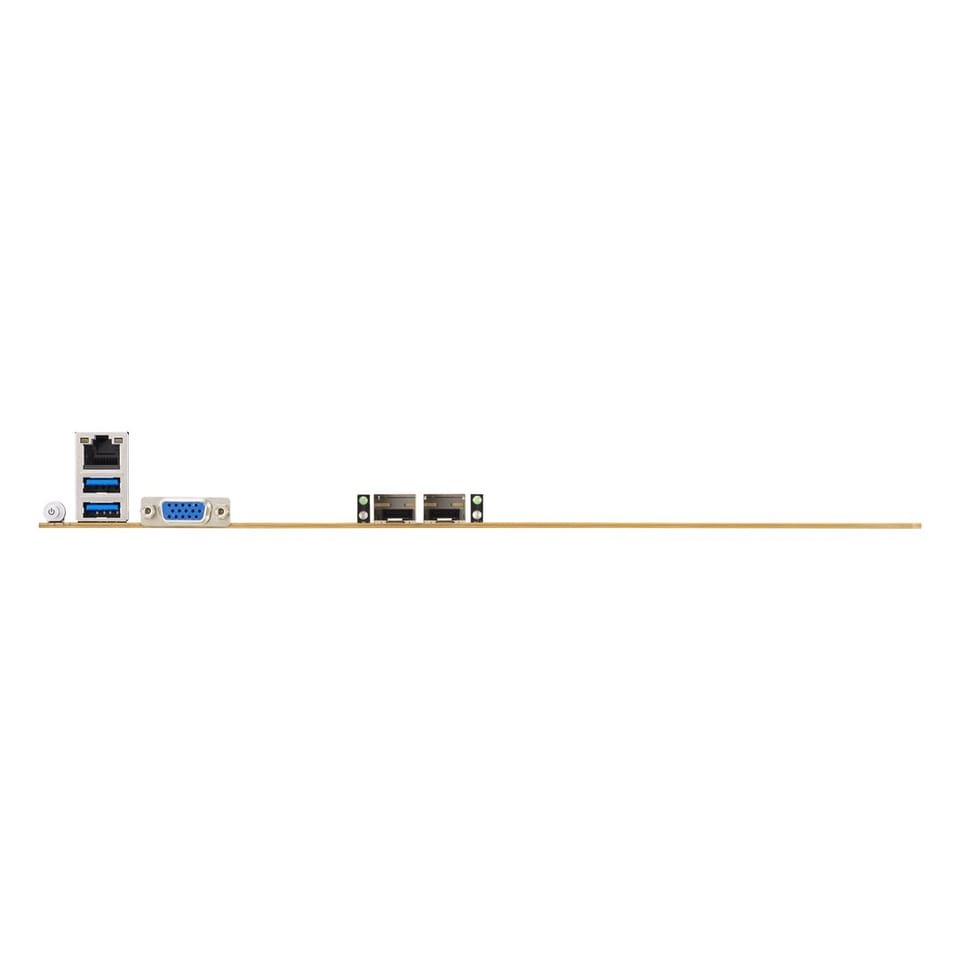

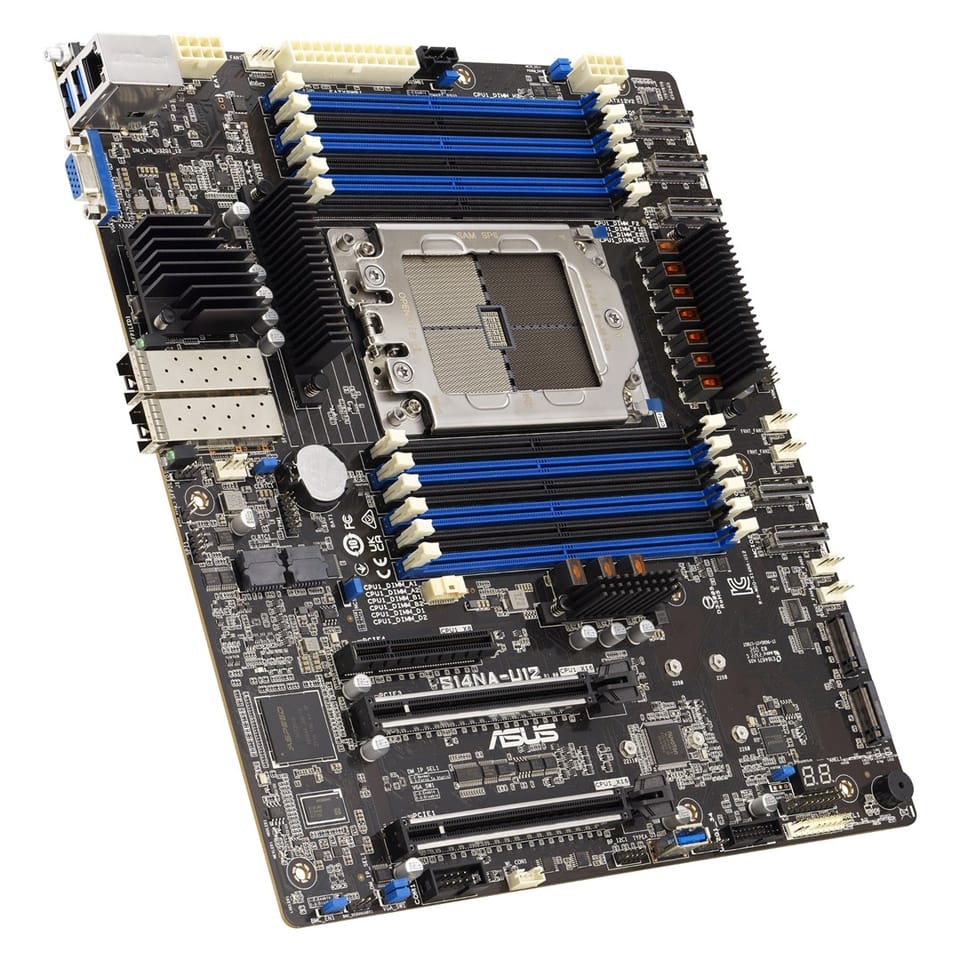

Server motherboard ASUS S14NA-U12 AMD EPYC 8004 SP6 (LGA 4844) CEB (90SB0CG0-M0UAY0)
€766.79
Shipping from warehouse: A3
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- 90SB0CG0-M0UAY0 / 4711387343203
Share this product:
Specification
| 4-pin +12v fan connectors: | 6 |
|---|---|
| Component for: | Server |
| Depth: | 266.7 mm |
| Ethernet interface type: | Fast Ethernet, Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Maximum internal memory: | 96 GB |
| Maximum rdimm memory: | 1152 GB |
| Memory slots: | 12 |
| Motherboard form factor: | CEB |
| Number of dimm slots: | 12 |
| Number of m.2 (m) slots: | 2 |
| Number of mcio connectors: | 5 |
| Number of mgmt lan ports: | 1 |
| Number of processors supported: | 1 |
| Operating temperature (t-t): | 10 - 35 °C |
| Pci express x16 (gen 5.x) slots: | 2 |
| Pci express x8 (gen 5.x) slots: | 1 |
| Processor manufacturer: | AMD |
| Processor model: | EPYC 8004 |
| Processor number of cores supported: | 64 |
| Processor socket: | Socket SP6 |
| Processor thermal power (max): | 225 W |
| Processor threads: | 128 |
| Serial port headers: | 1 |
| Sfp28 ports quantity: | 2 |
| Storage relative humidity (h-h): | 20 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Supported dimm module capacities: | 24GB, 48GB, 16GB, 32GB, 64GB, 96GB |
| Supported memory clock speeds: | 3600, 4000, 4800 MHz |
| Supported memory types: | DDR5 RDIMM |
| Supported storage drive interfaces: | M.2 SATA, NVMe SSDs |
| Tpm connector: | Yes |
| Trusted platform module (tpm): | Yes |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) ports quantity: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) ports quantity: | 2 |
| Vga (d-sub) ports quantity: | 1 |
| Wi-fi: | No |
| Width: | 304.8 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
