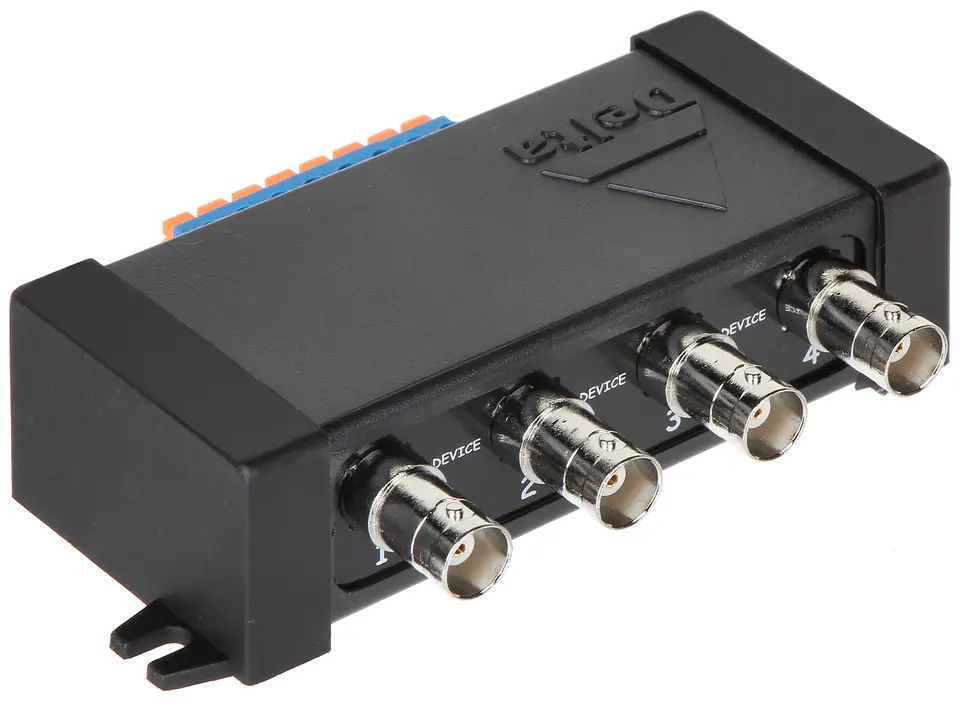

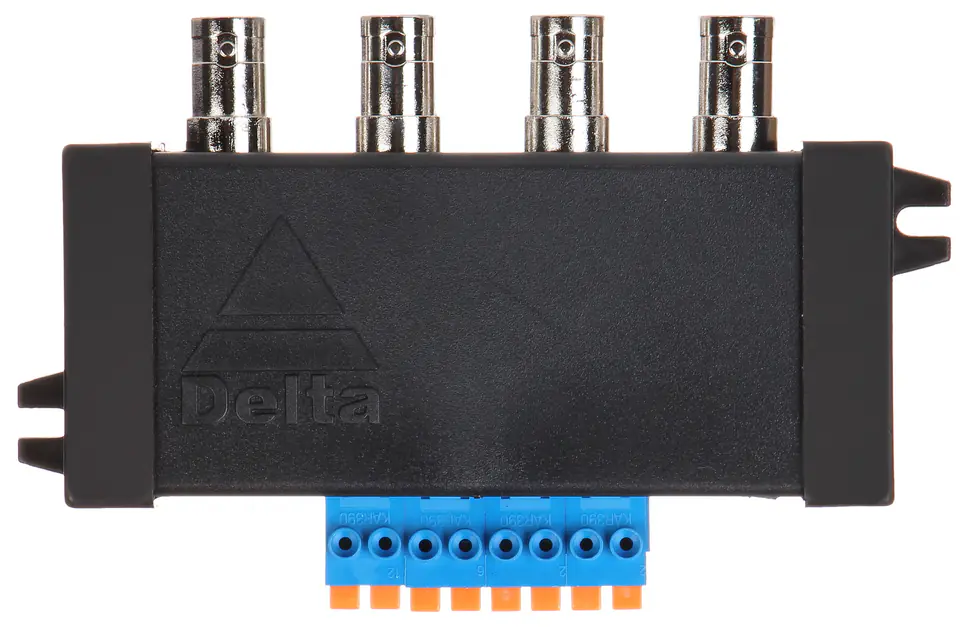

SEPARATOR WITH VIDEO TRANSFORMER D-SEP/HD-4/TR

€28.97

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: D-SEP/HD-4/TR / 5902887044069

Specification

Attenuation::	4.43 MHz @ 0.34 dB 11 MHz @ 0.49 dB 21 MHz @ 0.71 dB 38 MHz @ 1.00 dB 42 MHz @ 1.08 dB 67.5 MHz @ 1.70 dBThe attenuation is for two devices connected to each other
Bandwidth::	200 MHz
Cmrr (db @ 5mhz)::	50 dB
Device type::	Passive
Dimensions::	103 x 75 x 30 mm
Entrance protection::	ESD, IEC 61000-4-2, ±30kV contact, ±30kV airEFT, IEC 61000-4-4, 40A (5/50ns)Lightning, IEC 61000-4-5, 30A (tP=8/20μs)
Galvanic separation between individual channels::	> 2000 V
Galvanic separation between inputs and outputs::	50 VDC
Input impedance::	100 Ω
Manufacturer / brand::	DELTA
Number of channels::	4 pcs. Video
Number of inputs::	4 pcs. cable clamps
Number of outputs::	4 pcs. BNC socket
Operating temperature::	-20 °C ... 55 °C
Output impedance::	75 Ω
Scales::	0.09 kg
Standard::	AHD - 8 Mpx, 4K UHD HD-CVI - 8 Mpx, 4K UHD HD-TVI - 8 Mpx 4K UHD CVBS - PAL / NTSC
Video coverage::	250 m @ 720p - UTP cat. 5e 150 m @ 1080p - UTP cat. 5e 400 m @ CVBS - PAL / NTSC - UTP cat. 5e
Warranty::	3 years

D-SEP/HD-4/TR performs the following functions: galvanic separator, ground loop isolator - eliminates or reduces signal interference resulting from the potential difference between devices and currents flowing with the signalground Video transformer - adjusts the impedance of a 75Ω coaxial cable to the impedance of a symmetrical cableEvery input is protected by a specialized TVS diode

D-SEP/HD-4/TR consists of 4 independent (galvanically separated) channels

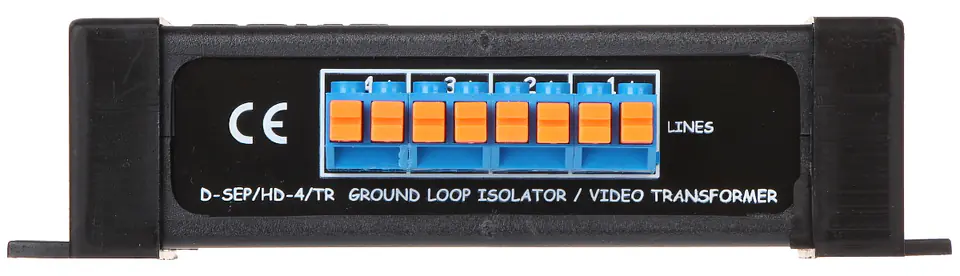

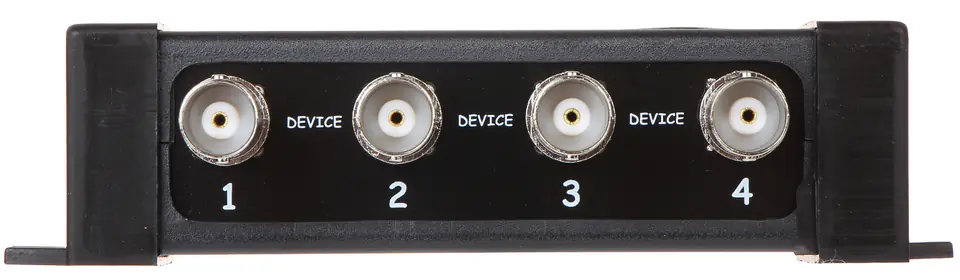

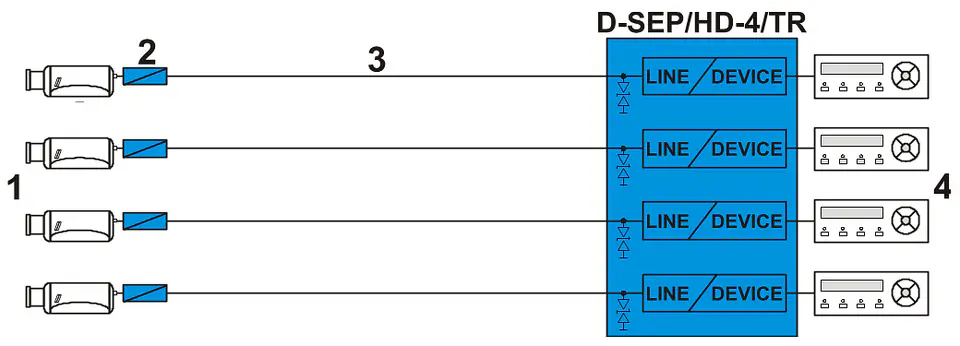

D-SEP/HD-4/TR requires a correct connectionLINES (cable terminals) – signal from the camera (symmetrical transmission line)DEVICE (BNC socket) – recorder, monitor

Pay attention to the correct connection of terminals (+) and (-)Reverse connection will cause image interference
