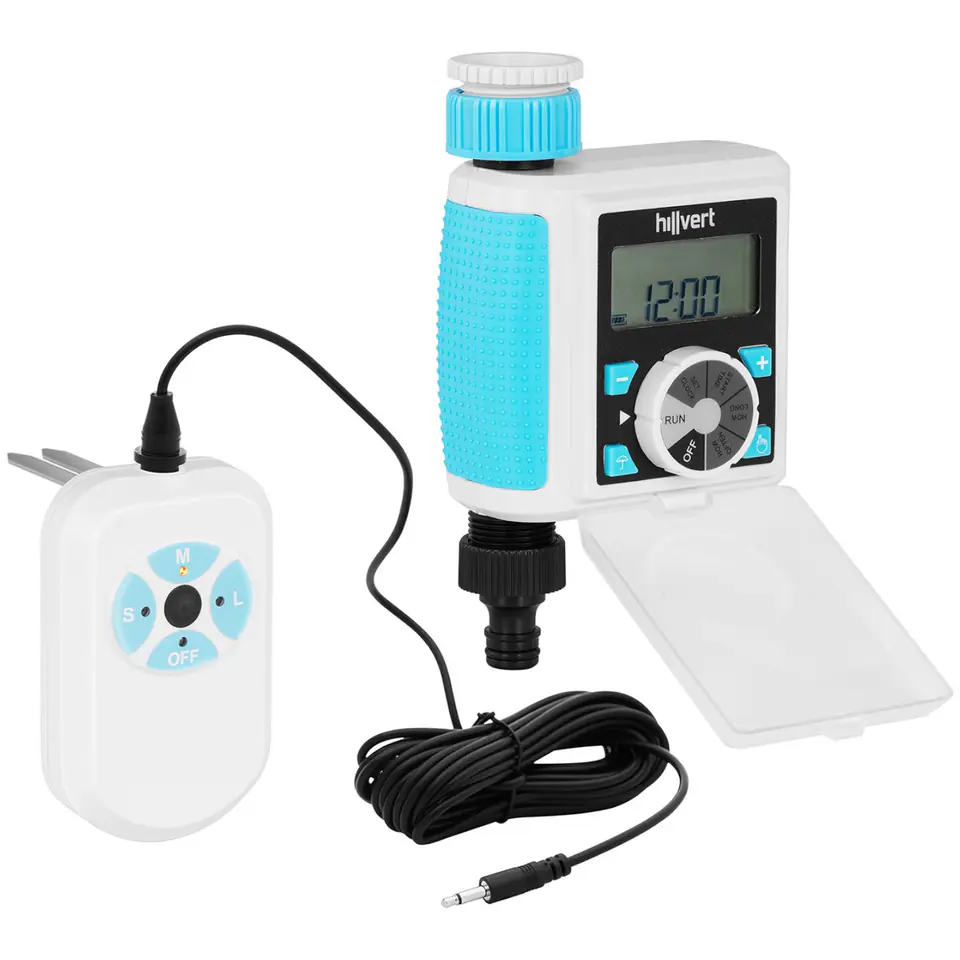

Manufacturer's code: 10090182The Hillvert soil moisture sensor is suitable for monitoring soil moisture levels so that the automatic irrigation system controller can stop watering when it is too wet. The device fits most irrigation controllers, especially Hillvert models with part numbers 10090184, 10090187 and 10090188. One of three levels of soil moisture (25%, 45% and 60%) is set on the meter. When its actual level is higher than set, the sensor sends a signal to the controller to turn off the irrigation cycle. The measurement is made every 60 s. The cable for connection to the controller is resistant to weather conditions. LED lights make it easy to use. The desired humidity level is selected with the appropriate button, which signals that the diode is lit. If no changes are made within a minute, the control turns off by saving the setting.
Product features:
- - Universality - three different levels of humidity - 25%, 45%, 60%,
- - Efficiency - saving water and protecting plants from excessive watering,
- - Precision - measurement made every 60 s,
- - Durability - resistant to weather conditions, also suitable for outdoor use,

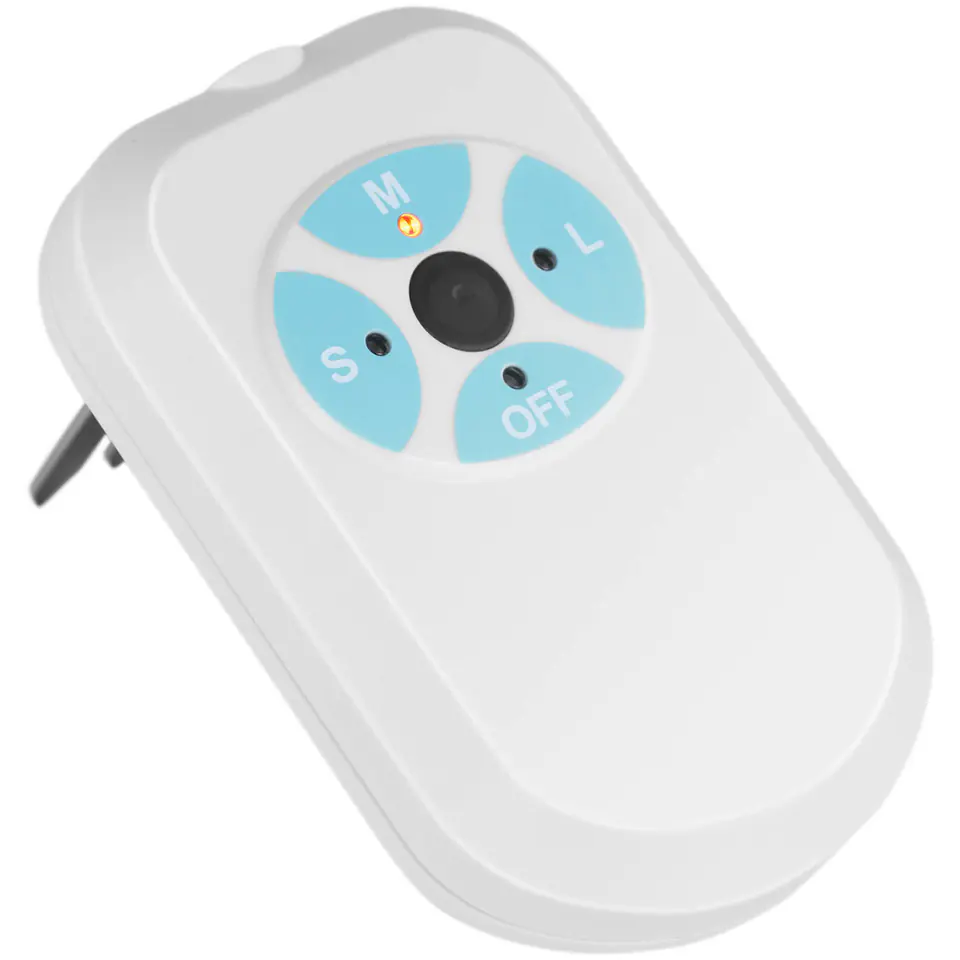

- - Easy operation - three buttons and LEDs to indicate the settings.
- - Model - HT-IRI-02
- - Manufacturer's code - 10090182
- - Product condition - New
- - Power cord [m] - 5
- - Material - PP
- - Adjustment of watering duration - N/A
- - Output plug - Mini-jack socket
- - Time setting [min] - N/A
- - Operating mode - S = 25%, M = 45%, L = 60% (volume index)
- - Watering frequency adjustment - N/A
- - Power source - 2 x AA 3 V
- - Thread - N/A
- - Degree of protection IP - IP66
- - Frequency of periodic measurements [s] - 60
- - Dimensions (LxWxH) [cm] - 10 x 8 x 13
- - Weight [kg] - 0,2
- - Shipping dimensions (LxWxH) [cm] - 11 x 9 x 15
- - Shipping weight [kg] - 0,22
- - Soil moisture sensor
- - User Manual
