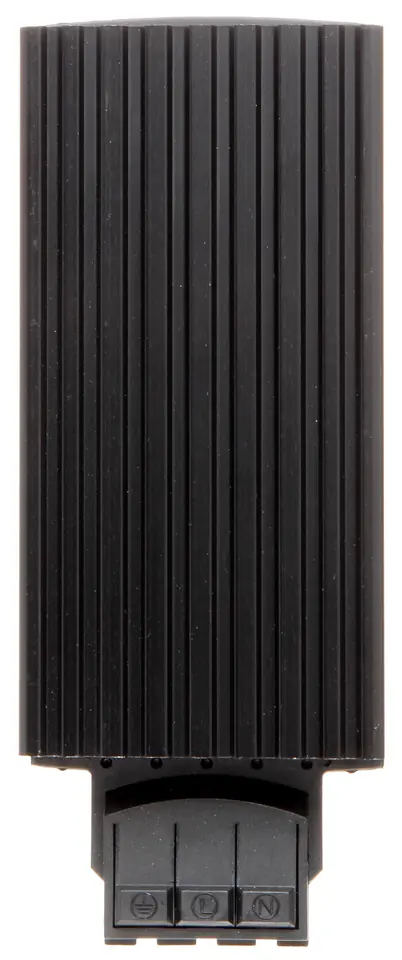

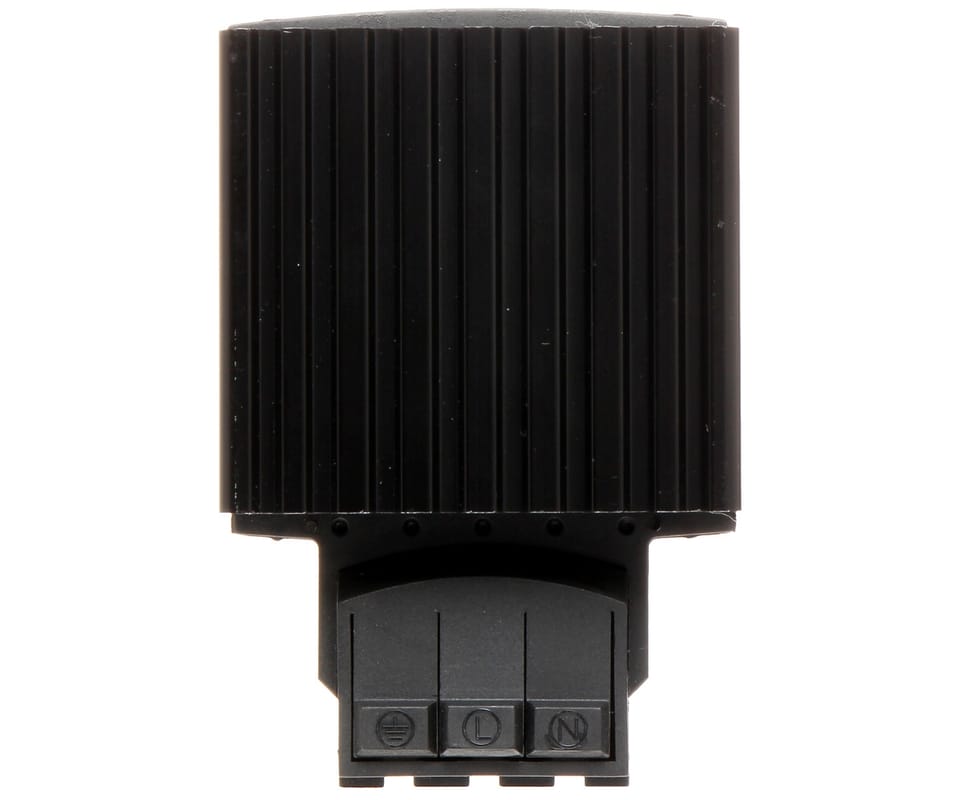

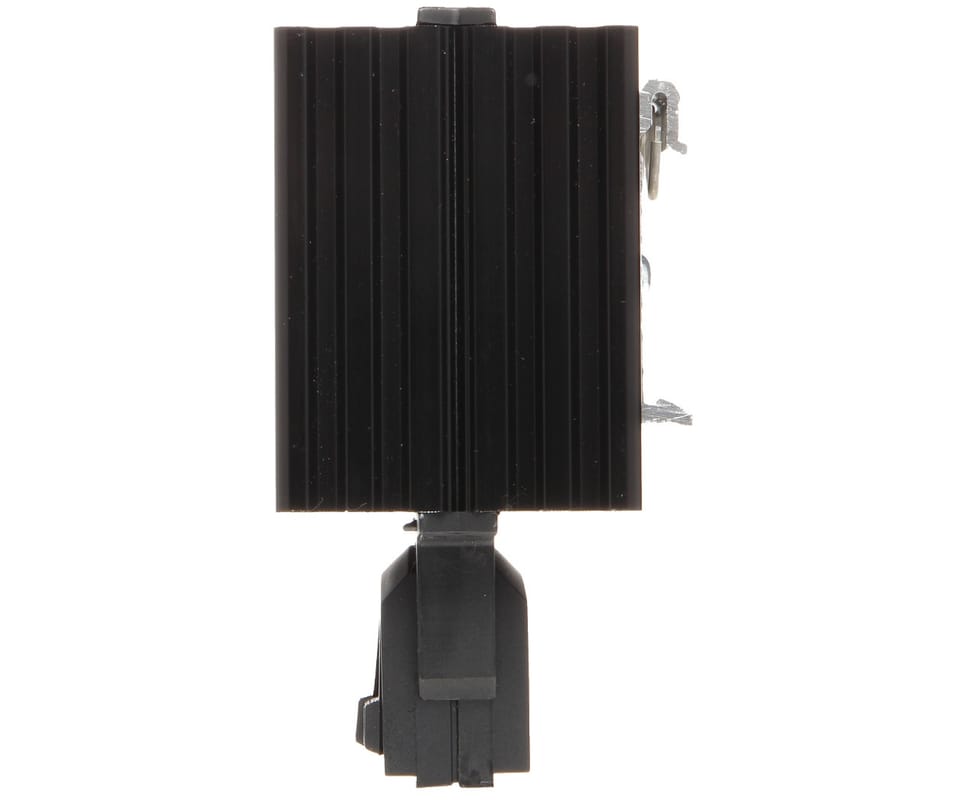

SEMICONDUCTOR HEATER HG-140-60W

€20.64

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: moderate quantity
Product code:: HG-140-60W / 5902887007668

Specification

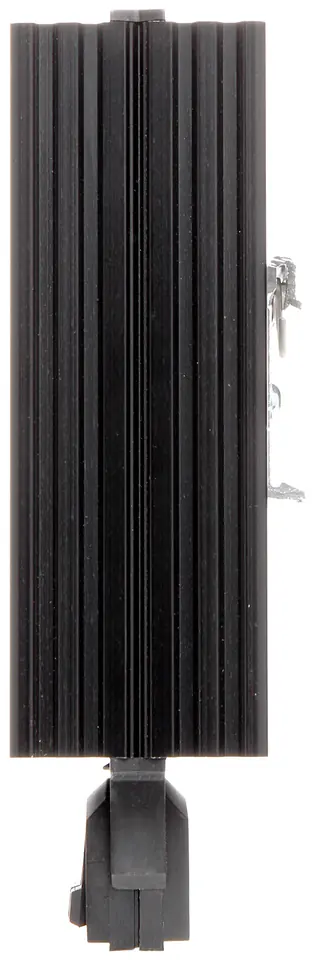

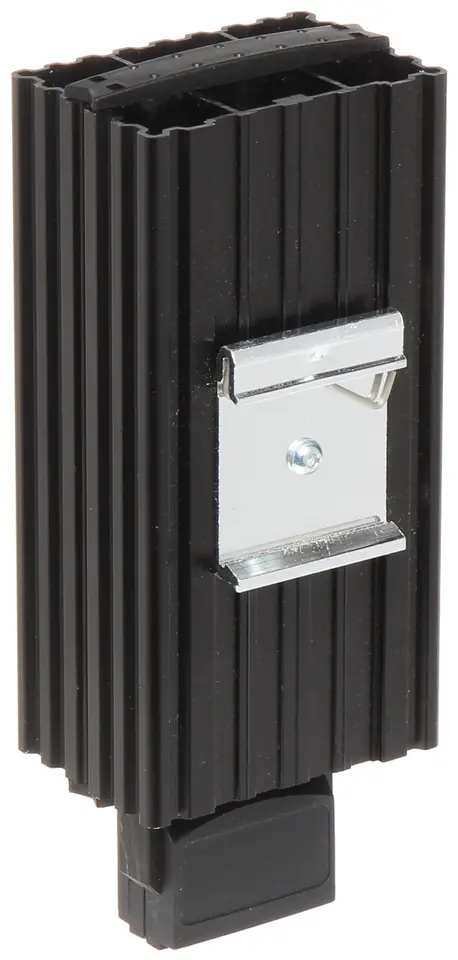

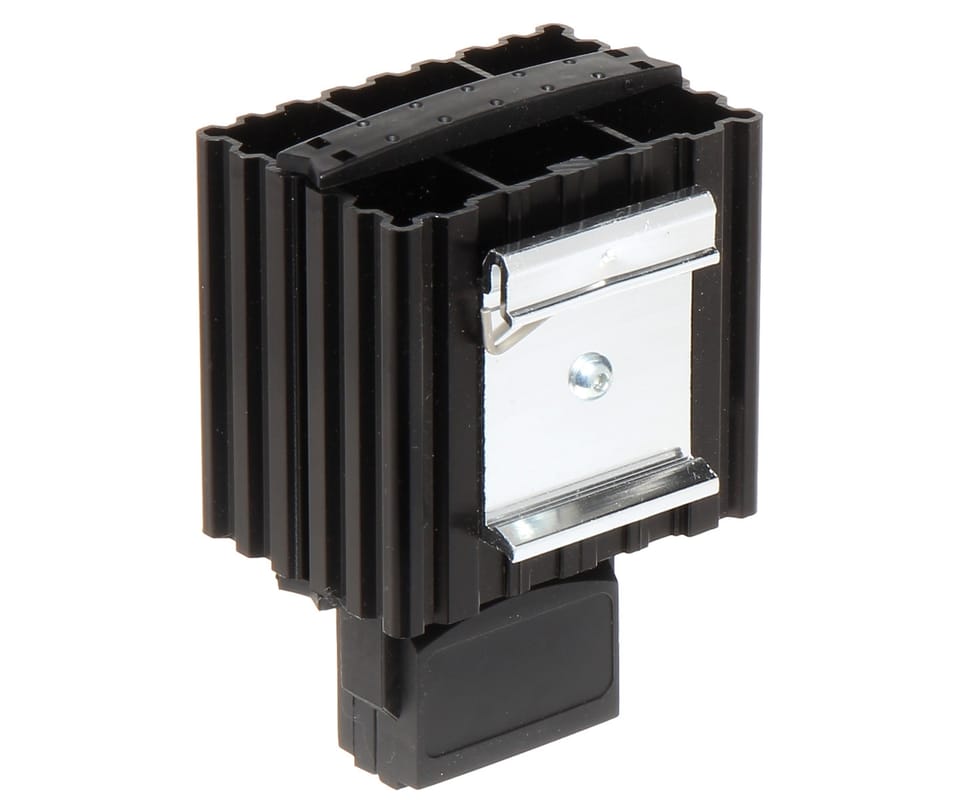

Assembly::	DIN rail TS-35, vertical

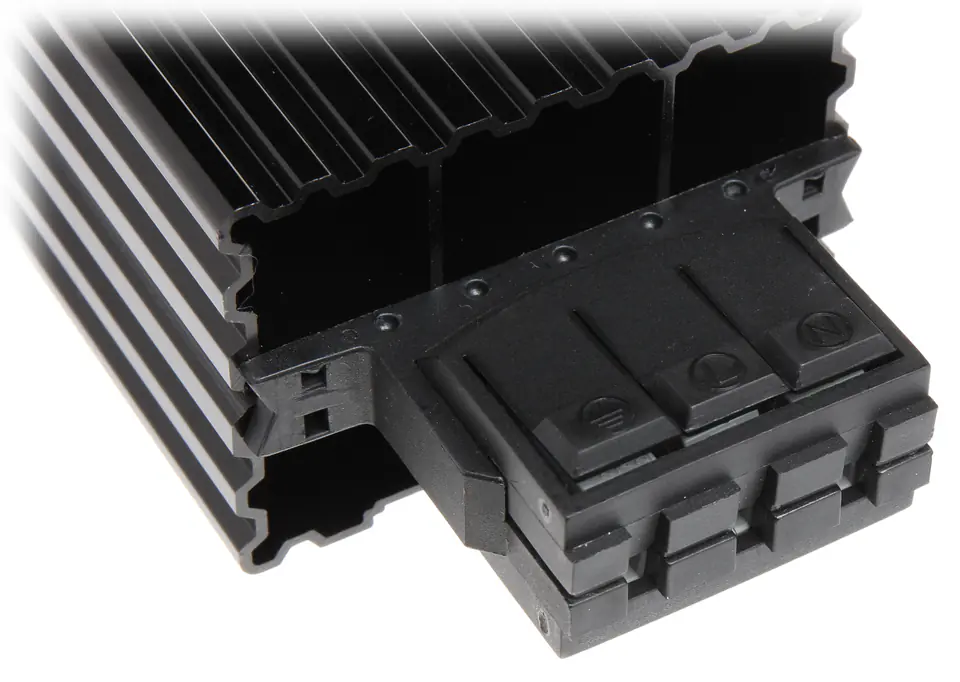

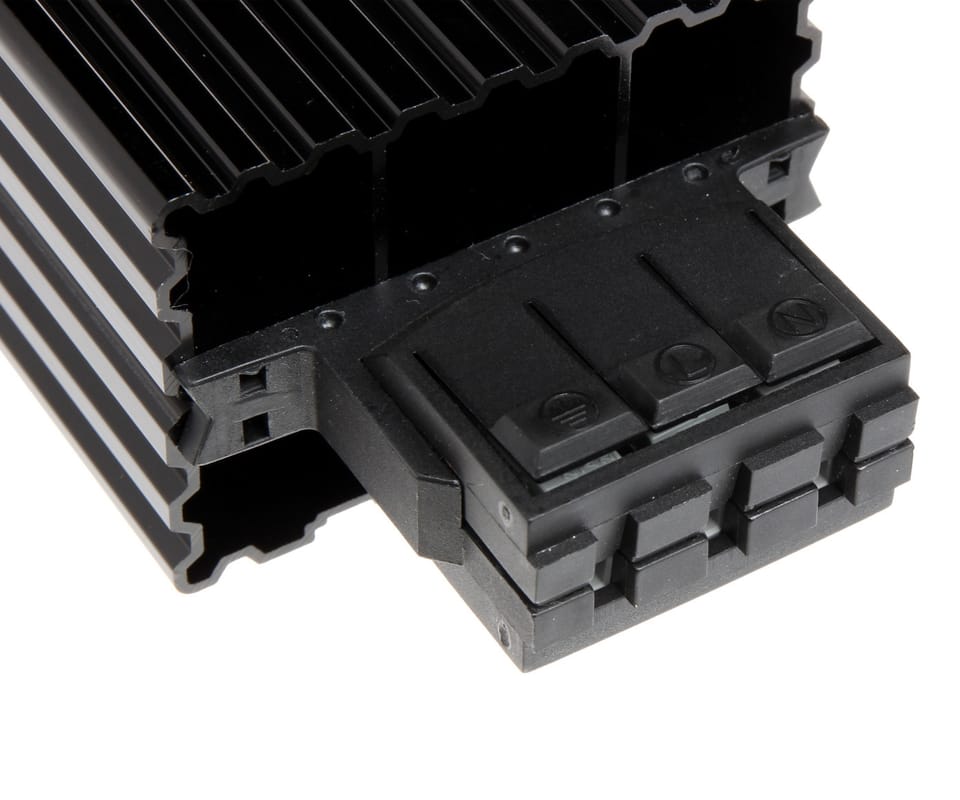

Connectors::	Cable clamps - 3 pcs.
Current consumption::	Max. 2.5 A - at the time of switching on

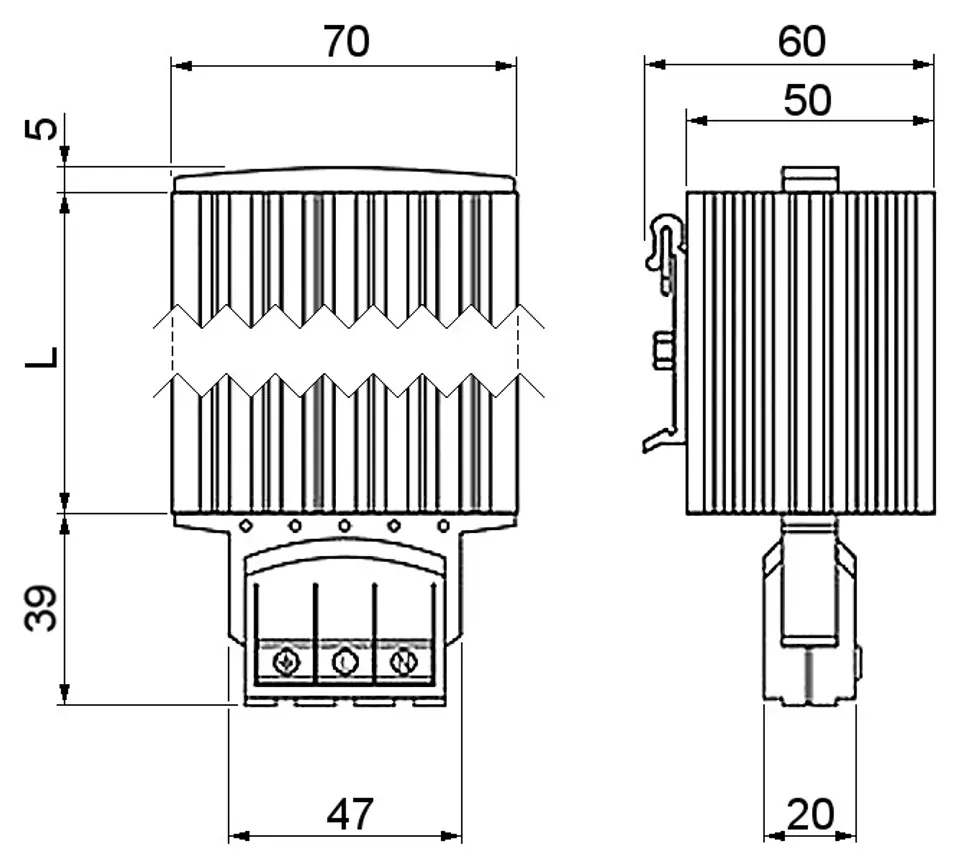

Dimensions::	184 x 70 x 58 mm
Heating element::	PTC thermistor - semiconductor, self-regulating

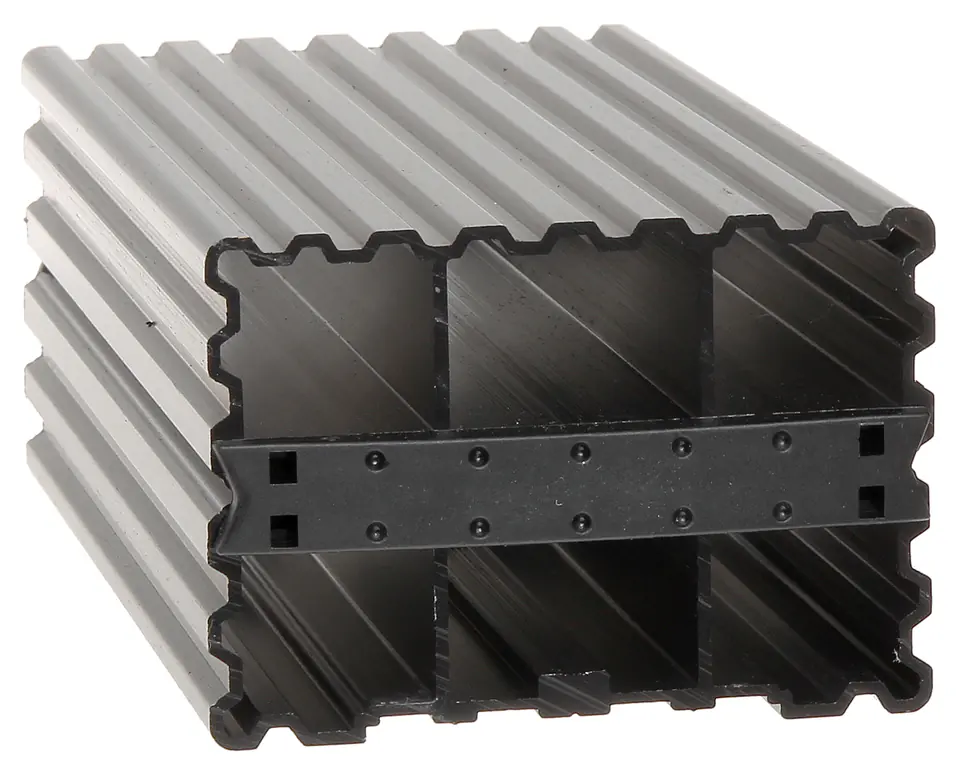

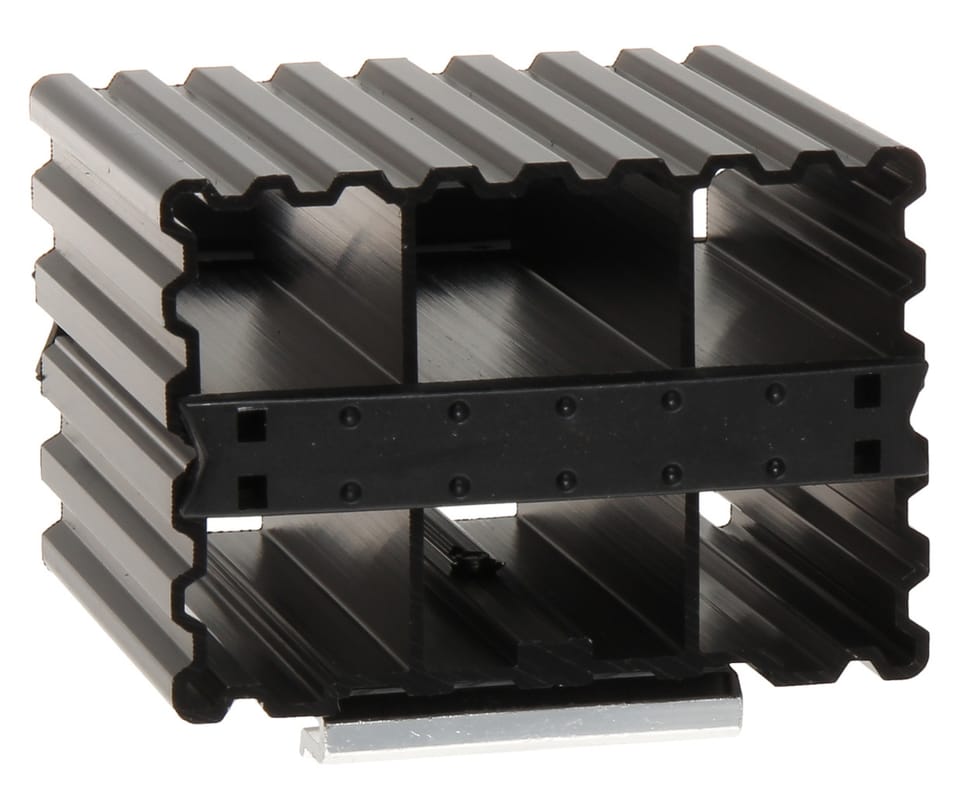

Heatsink::	Aluminium - Extruded profiles, Anodized surface
Operating temperature::	-45 °C ... 70 °C
Power::	110 V ... 265 VAC/DC
Scales::	0.32 kg
Temperature of the heater included::	120 °C ... 140 °C
Warranty::	2 years

Semiconductor heater HG-140-60W works on the basis of PTC thermistor

Heaters and heating blowers prevent condensation of water vapour and maintain the right operating temperature of the devicesIn order to achieve optimal air circulation, it is recommended to install convection heaters in the lower part of the distribution cabinet in an upright position

Remark! The device is designed to be used only in closed distribution cabinetsFor safety reasons, a minimum distance of 50mm from wires and other devices should be maintained PTC frequencies are not suitable for serial connection

In order to maintain a constant temperature in the cabinet, a suitable thermostat should be connected in series to the heater

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
