SEMI-AUTOMATIC WELDING MACHINE TECNOMIG 200/2 MMA 230/400V

Specifications:

Idle voltage 56 V
Maximum current 200A
Operating current 100% 130 A
Operating current 60% 200 A(MIG) / 180 A(MMA)
Diameter of aluminum wire 0.8 - 1.0 mm
Self-shielding wire diameter 0.8 - 1.2 mm
Steel wire diameter 0.6 - 1.0 mm
Welding electrode diameter 1.6 - 4.0 mm
Stages of welding current regulation Stepless
Welding current adjustment range 30 - 200 A
Wire spool size 0.45 - 5 kg
Protection class IP 21S
Weight of the device / set 15/16 kg
Overall dimensions L x W x H 640x250x380 mm
Rated supply voltage 230/400 V 50Hz (1ph/2ph)



TECNOMIG 200/2 MMA is an inverter semi-automatic welding machine designed for arc welding by MIG/MAG, MMA and FLUX methods.
The device has been designed for a wide range of applications: from maintenance work to repairs of car bodies.
TECNOMIG 200/2 MMA is used for welding carbon and low-alloy steels and aluminum.
Welding takes place in the shield of inert gas, active gas or mixture, and at the opposite polarity without gas.
The device is equipped with inductance regulation.
The device has a fan cooling system, which significantly increases its efficiency.
The device is equipped with overload protection, which increases its reliability.
Single-phase (230V) and interfacial (400V) power supply.
The device is equipped with a power plug.



The set includes:

welding torch MIG 15 with a length of 3 meters,
2 meter ground cable
2 meters long electrode wire.

**

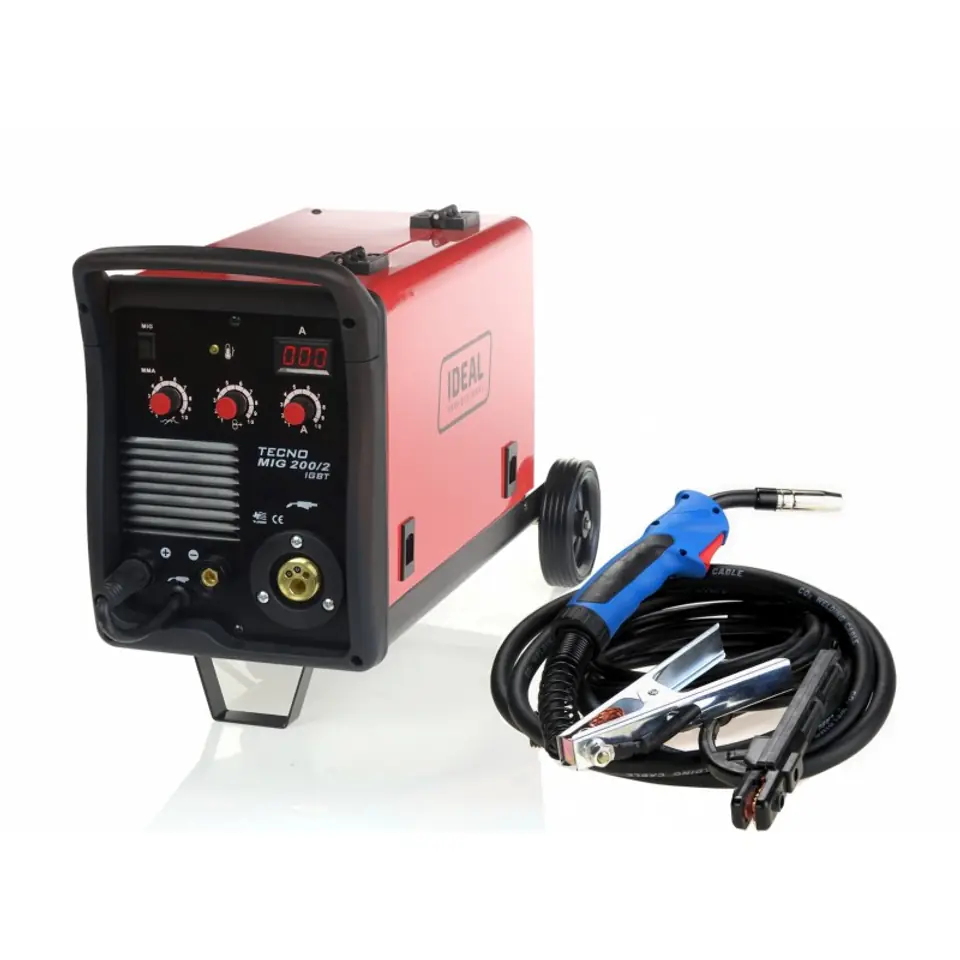

Illustrative photo.
