Self-leveling optical level with tripod and patch - magnification 28x avg. 36 mm

€208.94
Shipping from warehouse: ⁨H1⁩
Estimated shipping: Mon, Nov 18 - Tue, Nov 19
14 days returnUnconditional return policy
Availability:
running out
Brand:
Steinberg Systems
Product code:
10030467 / 4062859994318

Specification

Sku:1010947
10030467 Steinberg Systems optical viewfinder with tripod to a 36 mm lens zoom in 28 timesMinimum focal length is 0.3 m standard deviationless than 1.5 mmMagnetic compensatorPublic libella with mirror-adjustable heightProduct features:
  • - Solidity - housing, tripod and patch made of solid aluminum,
  • - Precision - standard deviations are 1.5 mm,
  • - Efficiency - 28x magnification + minimum focal length - 0.3 m,
  • - Practicality - built-in magnetic compensator automatically levels the instrument,
  • - Convenience - box libella with mirror allows you to set the level without any problems.
Technical parameters:
  • - Model - SBS-LIS-28/36
  • - Catalogue number - 10030467
  • - Article status - New

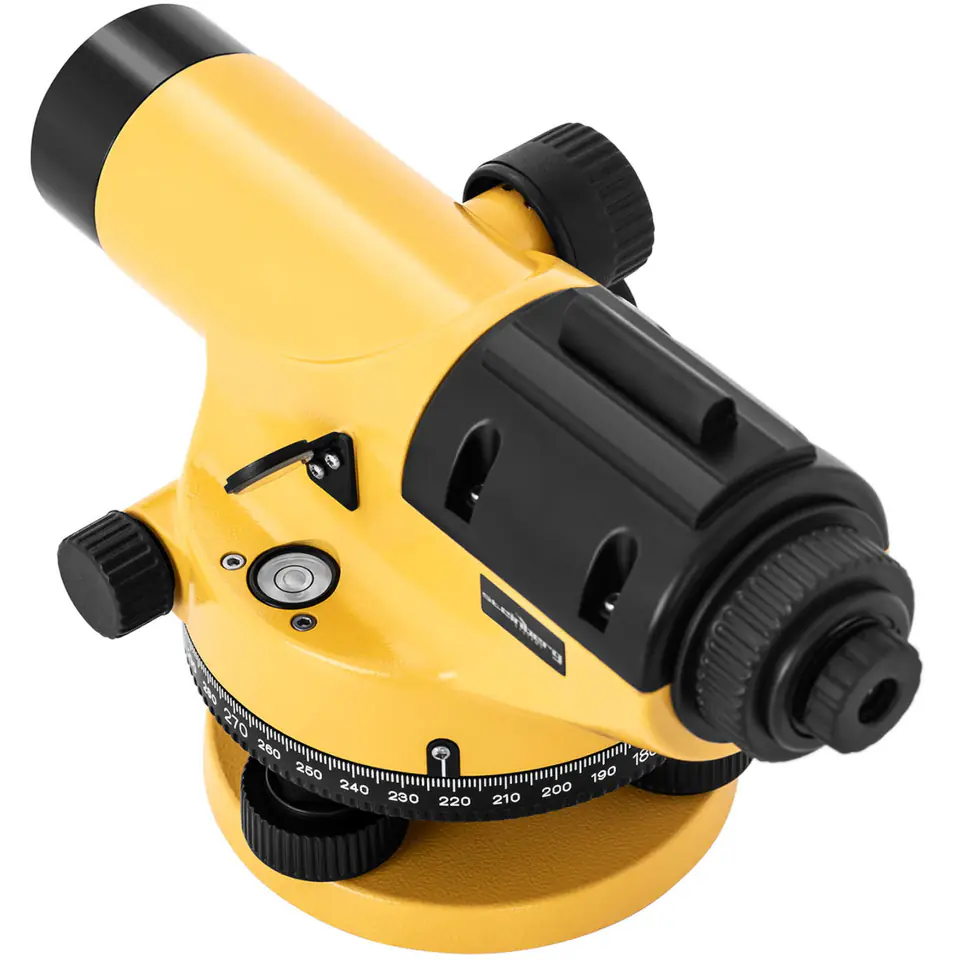

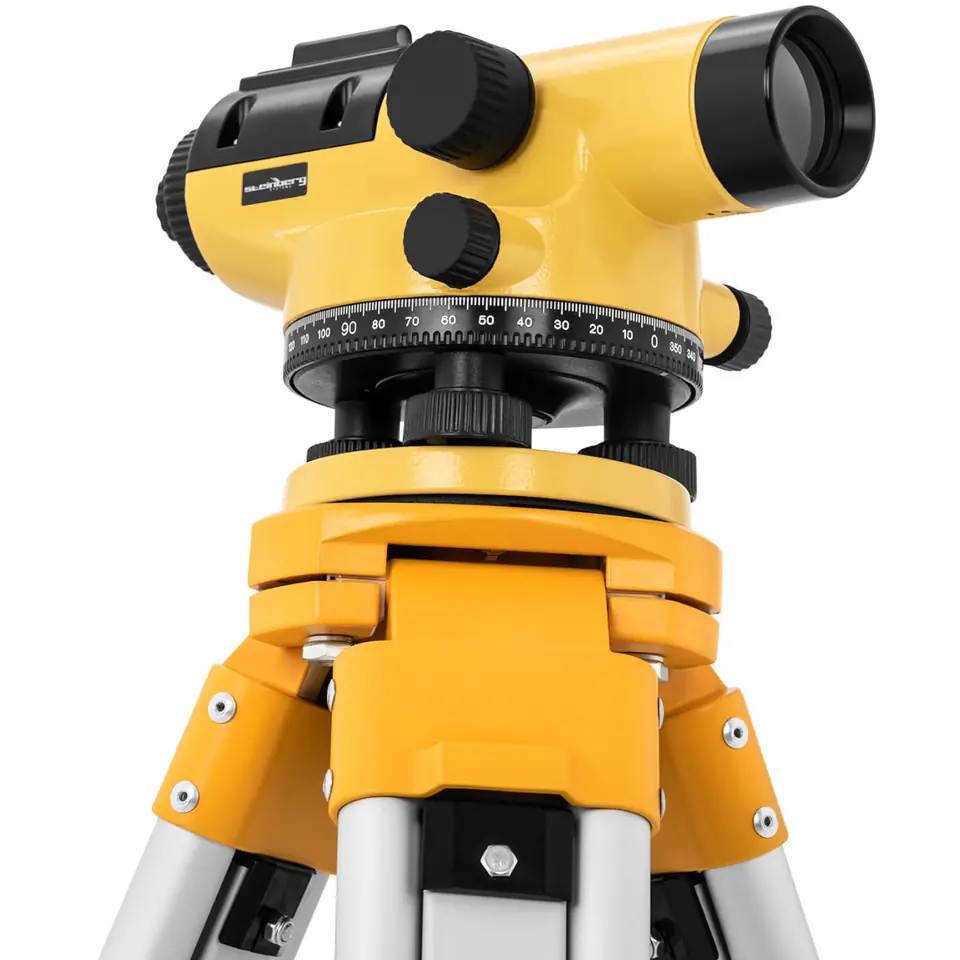

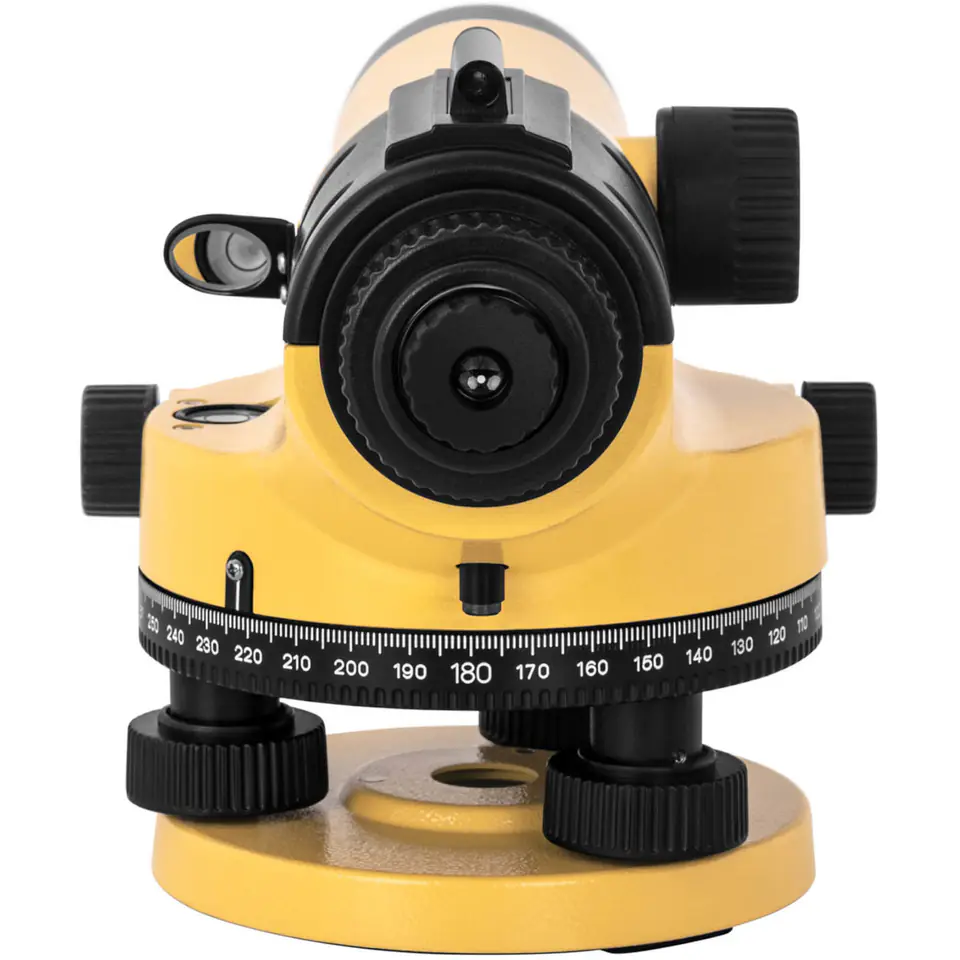

Optical level
  • - Housing material - Aluminum
  • - Standard deviation - 1.5 mm
  • - Image - Simple
  • - Magnification - 28x
  • - Lens aperture diameter - 36 mm
  • - Field of view - 120
  • - Minimum focal length - 0.3 m
  • - Compensator - Magnetic attenuation
  • - Compensator range - ±15
  • - Compensator setting - Less than 2 s
  • - Compensator precision - ±0.5
  • - Libella sensitivity - 8/2 mm

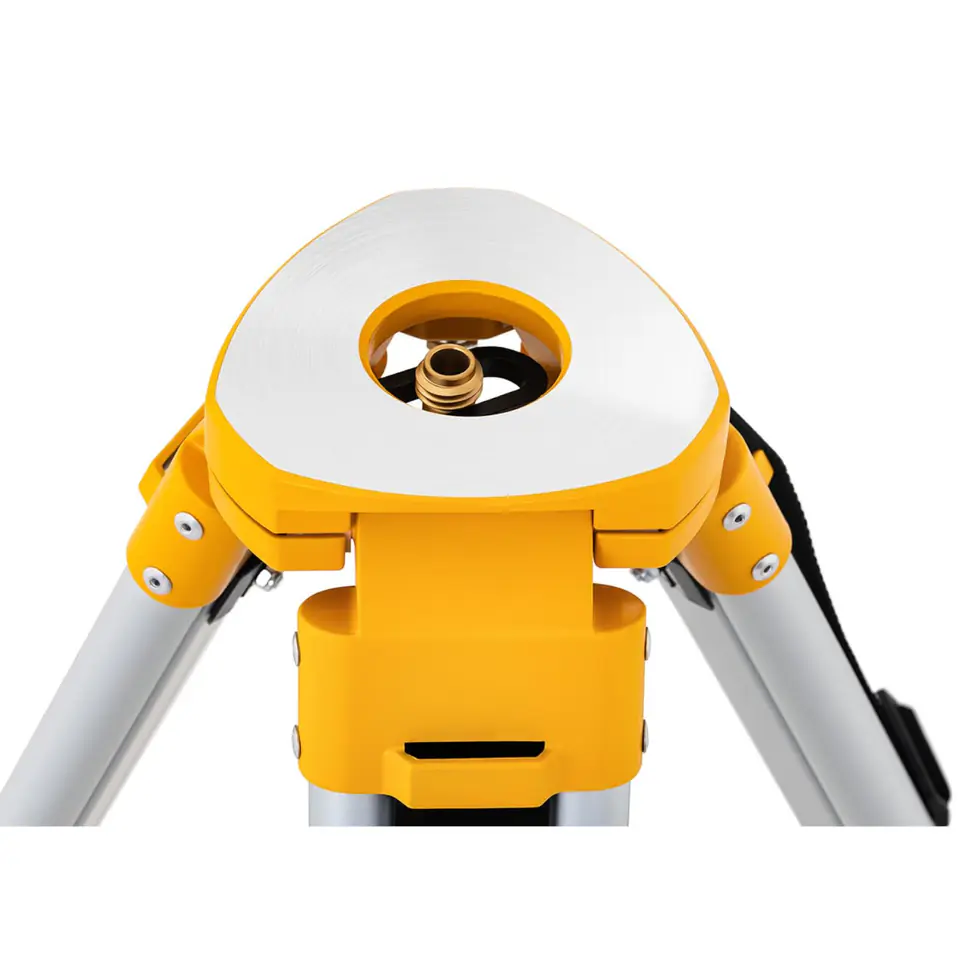

Tripod
  • - Height - 1050-1650 mm
  • - Clamp - Screw-down
  • - External dimension of the head - 120 mm
  • - Internal dimension of the head - 45 mm

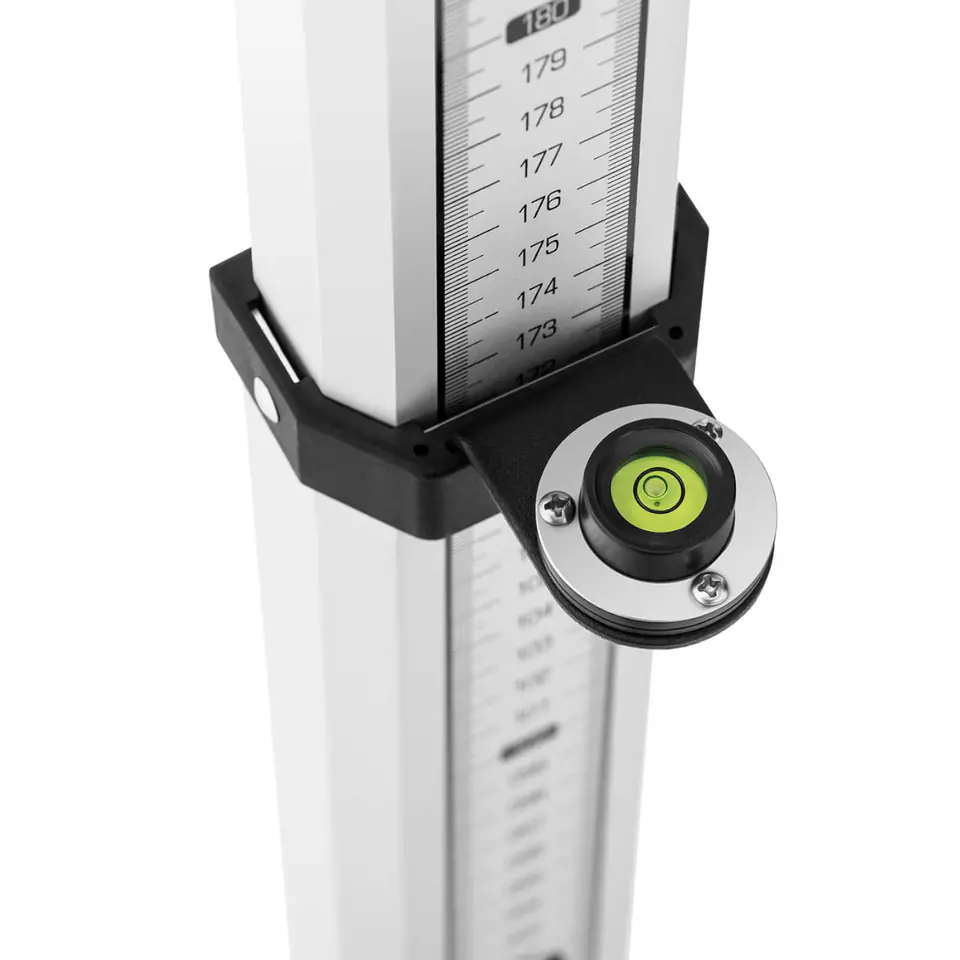

Leveling patch
  • - Maximum length - 5 m
  • - Number of sections - 5
  • - Deviation with each meter - ±0.5 mm
  • - Scale - Front: cm/E, Rear: mm
  • - Transport length - 1230 mm
Overall dimensions
  • - Dimensions (LxWxH) - 286 x 286 x 179 cm
  • - Weight - 6.6 kg
  • - Shipping dimensions (LxWxH) - 127 x 24.5 x 21.5 cm
  • - Shipping weight - 8,35 kg

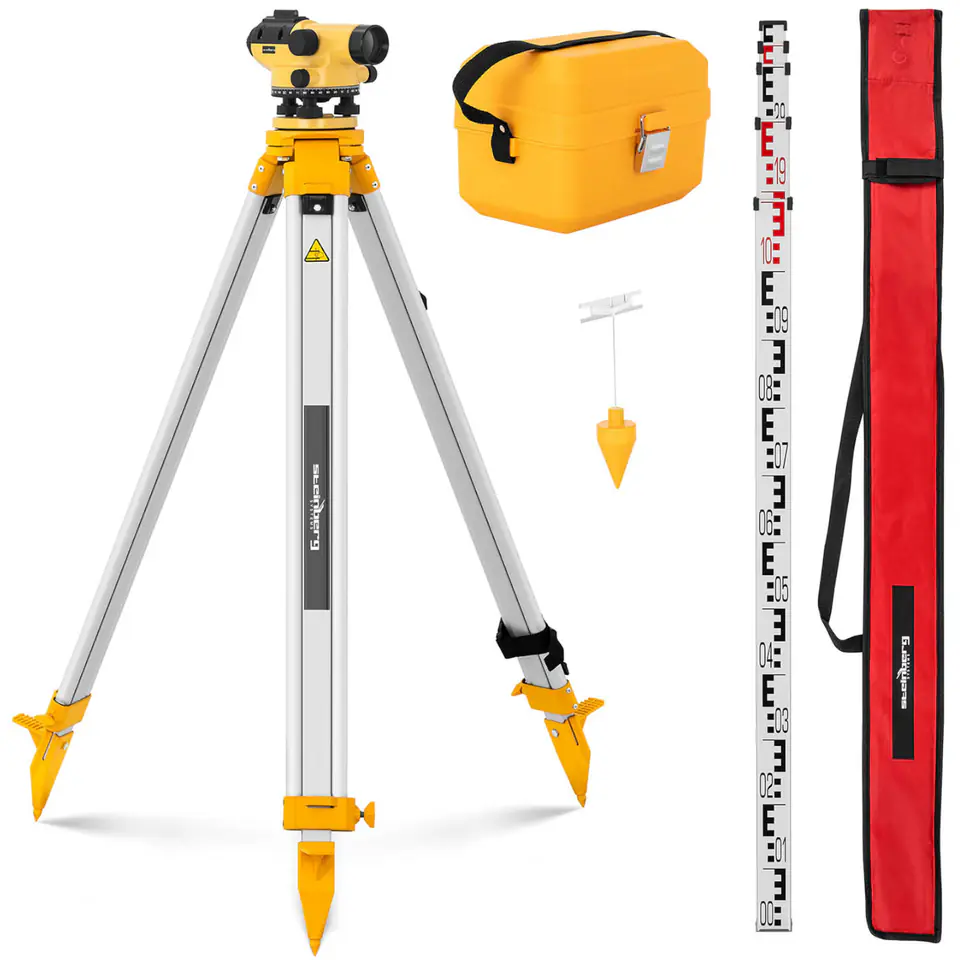

Included:

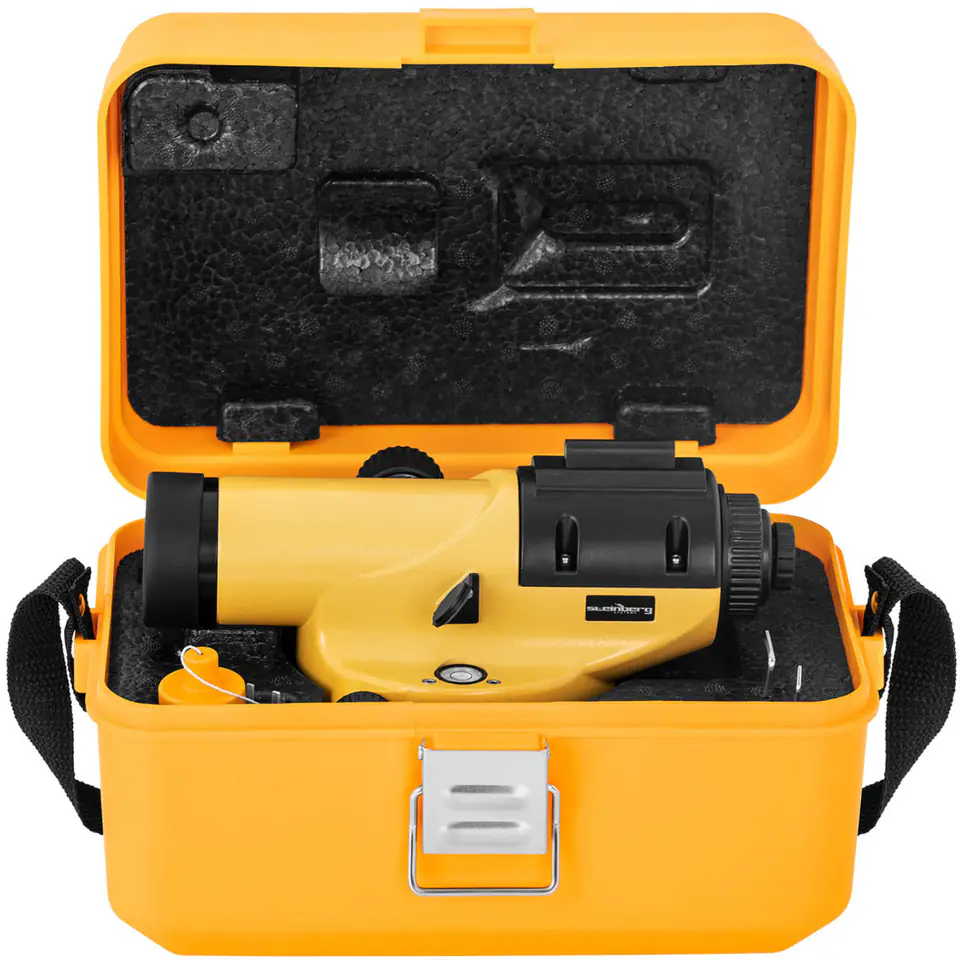

  • - Level with suitcase
  • - Tripod
  • - Leveling patch
  • - String riser
  • - Manual EN

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
