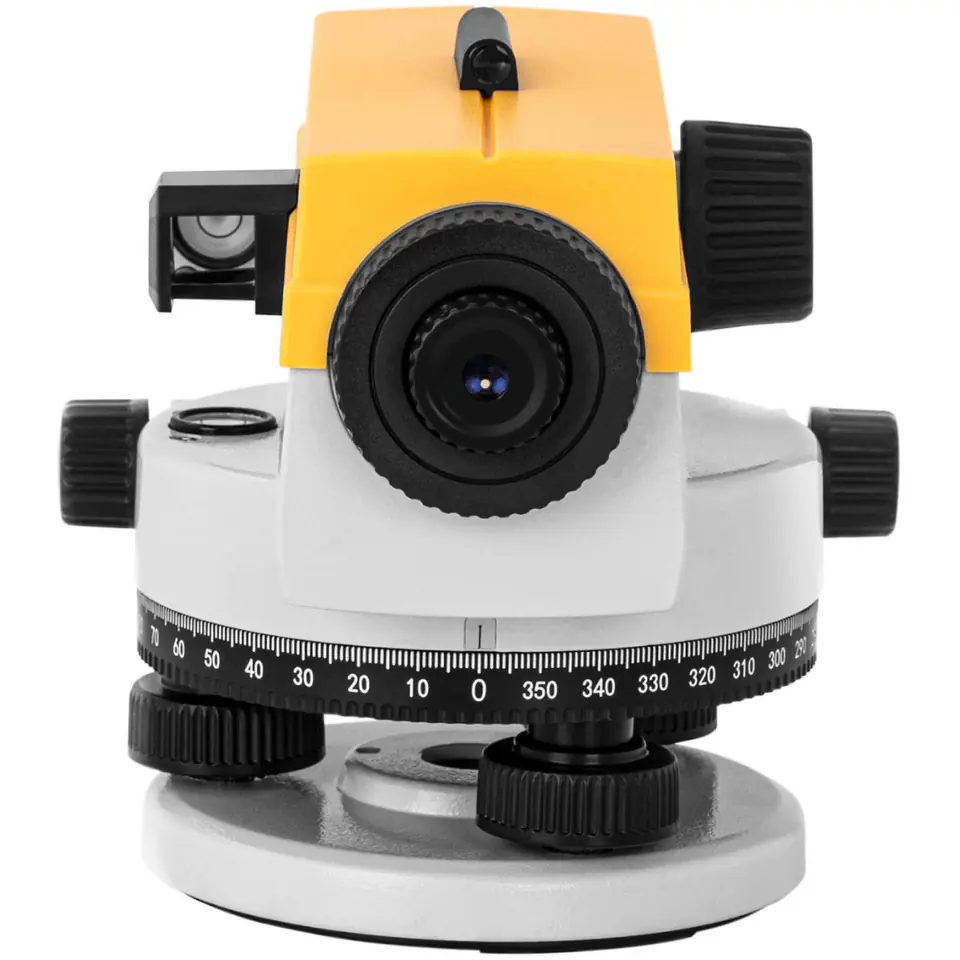

Self-leveling optical level with tripod and patch - magnification 24x avg. 36 mm

€185.04
Shipping from warehouse: ⁨H1⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Steinberg Systems
Product code:
10030466 / 4062859994301

Specification

Sku:1010946
10030466 The optical level with tripodSteinberg Systems lens with a diameter of 36 mm zoom in 24 timesMinimum focal length is 0.3 standard deviation2 mmAir compensator Box libella with mirror adjustable heightProduct features:
  • - Solidity - housing, tripod and patch made of solid aluminum,
  • - Precision - standard deviations are 2 mm,
  • - Efficiency - 24x magnification + minimum focal length - 0.3 m,
  • - Practicality - built-in air compensator automatically levels the instrument,

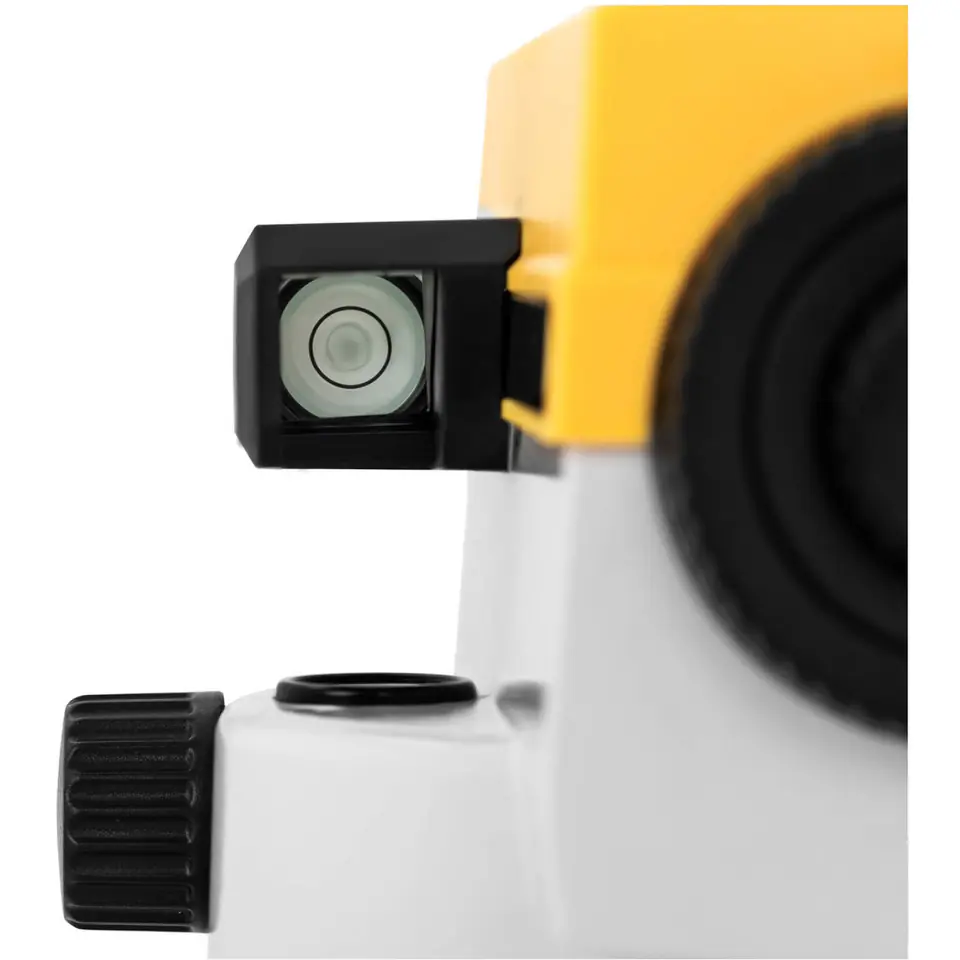

  • - Convenience - box libella with mirror allows you to set the level without any problems.
Technical parameters:
  • - Model - SBS-LIS-24/36
  • - Catalog no. - 10030466
  • - Article status - New

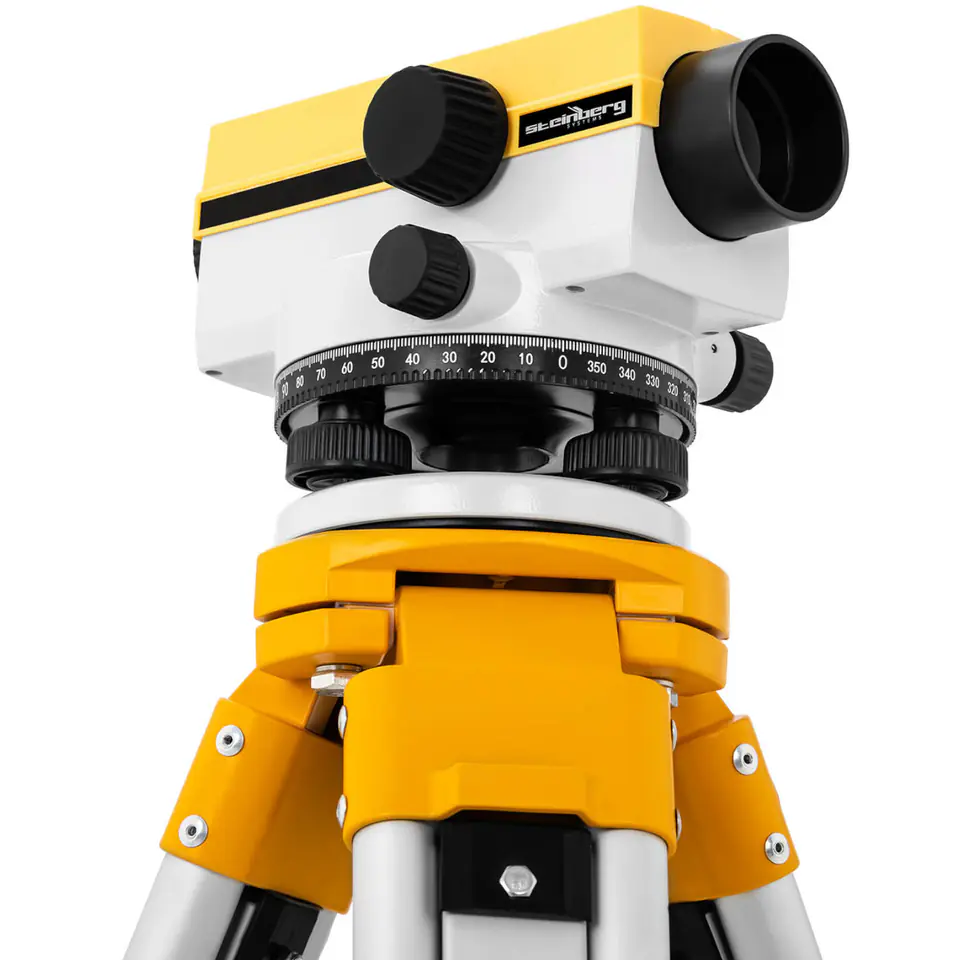

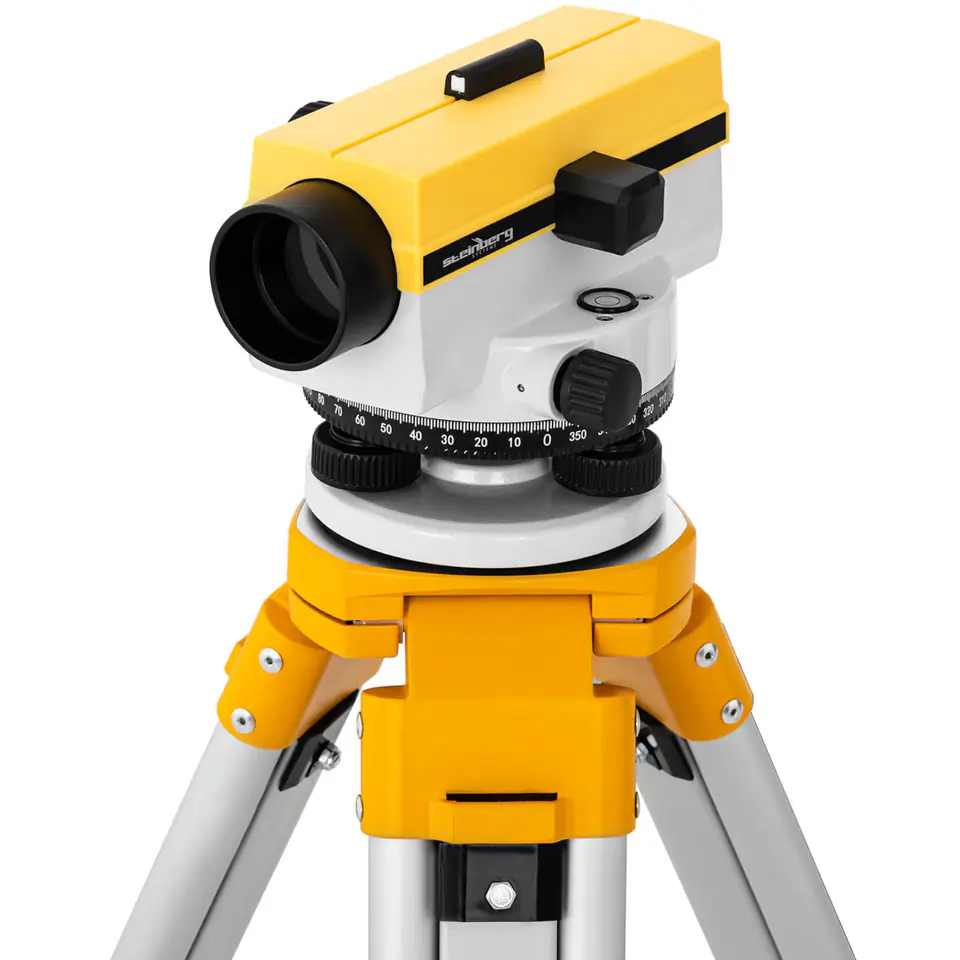

Optical level
  • - Housing material - Plastic
  • - Standard deviation - 2 mm
  • - Image - Simple
  • - Magnification - 24 times
  • - Lens aperture diameter - 36 mm
  • - Field of view - 120
  • - Minimum focal length - 0.3 m
  • - Compensator - Air damping
  • - Compensator range - ±15
  • - Compensator setting - Less than 2 s
  • - Compensator precision - ±0.5
  • - Libella sensitivity - 8/2 mm

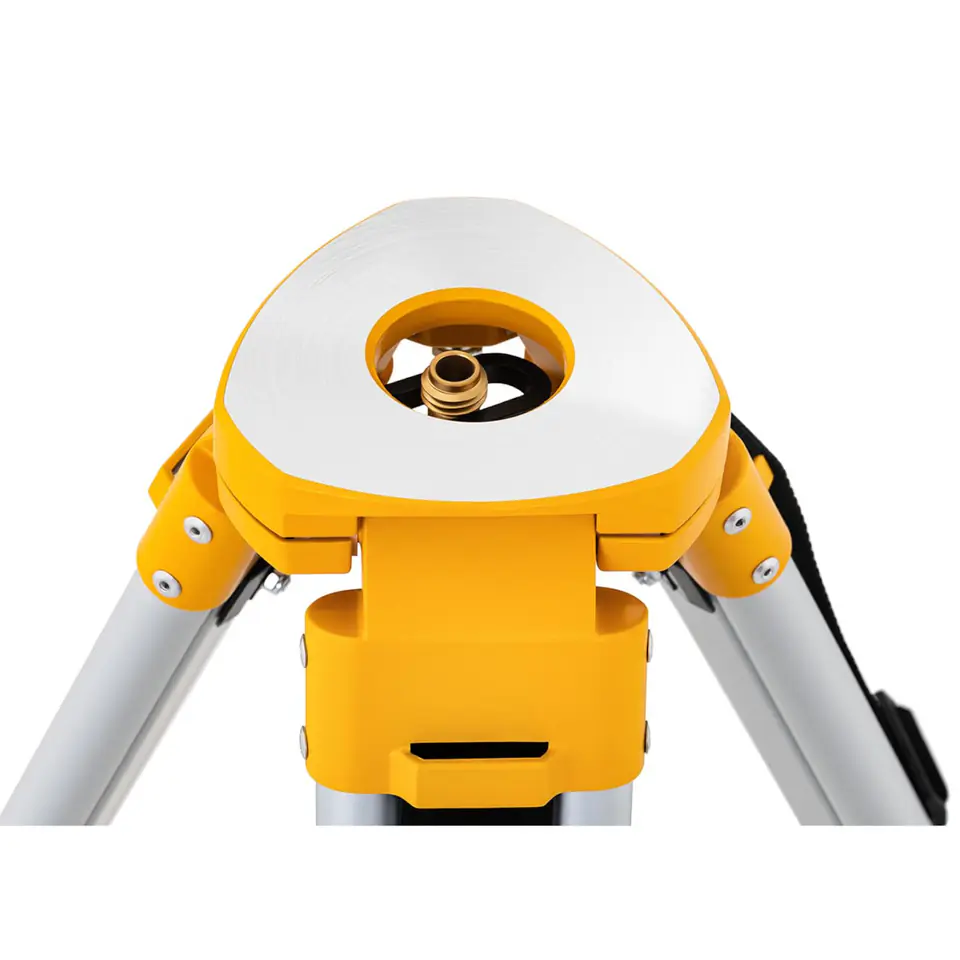

Tripod
  • - Height - 1050-1650 mm
  • - Clamp - Screw-down
  • - External dimension of the head - 120 mm
  • - Internal dimension of the head - 45 mm

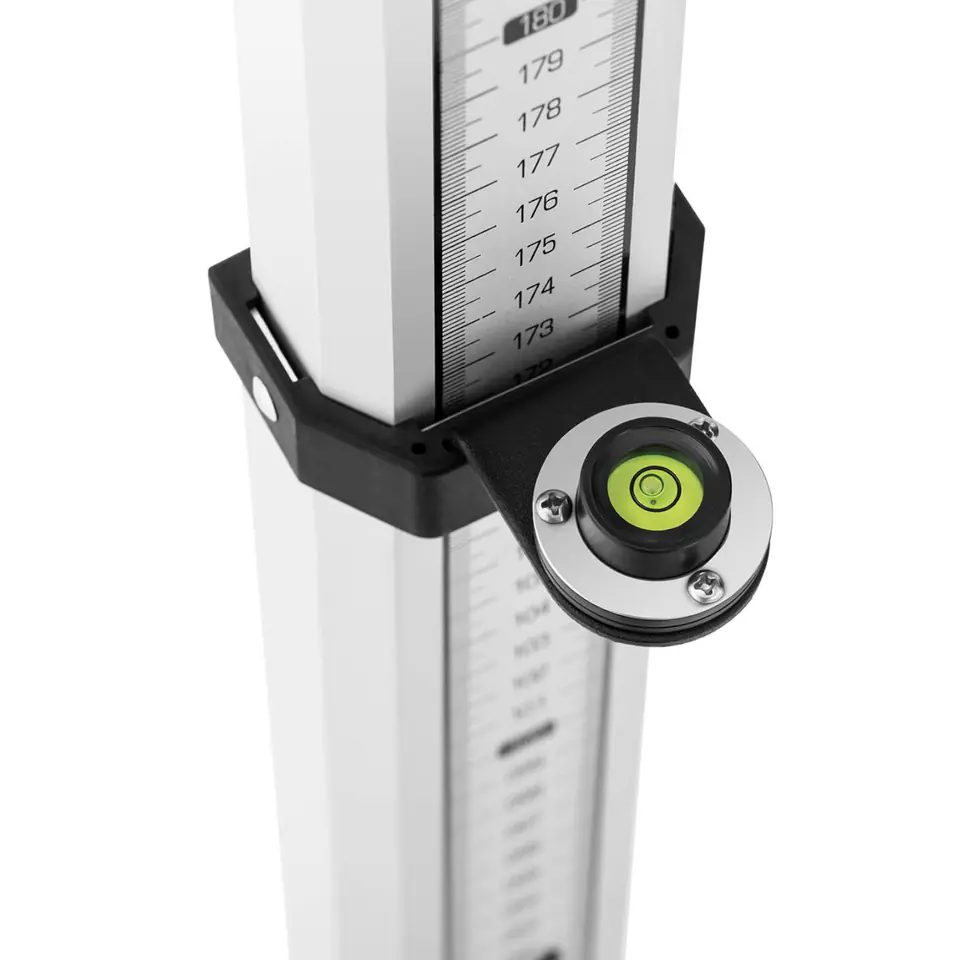

Leveling patch
  • - Maximum length - 5 m
  • - Number of sections - 5
  • - Deviation with each meter - ±0.5 mm
  • - Scale - Front: cm/E, Rear: mm
  • - Transport length - 1230 mm
Overall dimensions
  • - Dimensions (LxWxH) - 286 x 286 x 179 cm
  • - Weight - 6.6 kg
  • - Shipping dimensions (LxWxH) - 126.5 x 24.5 x 21.5 cm
  • - Shipping weight - 8,35 kg

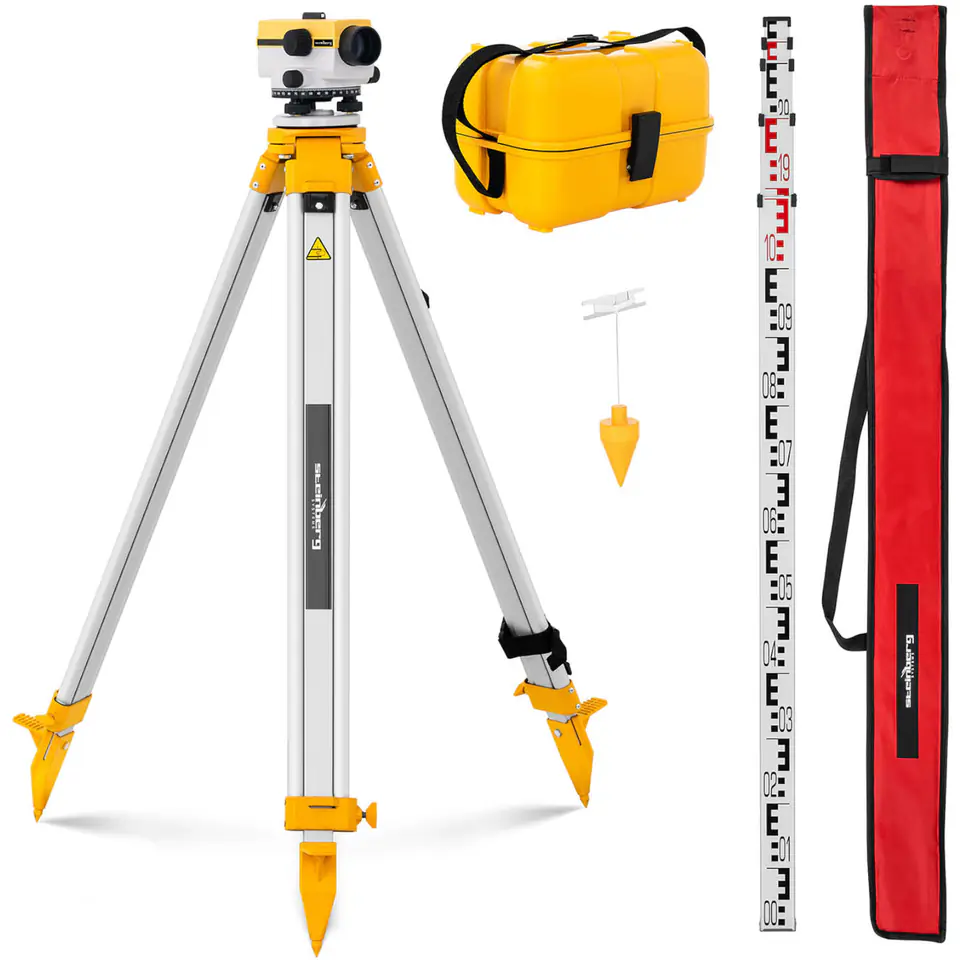

Included:

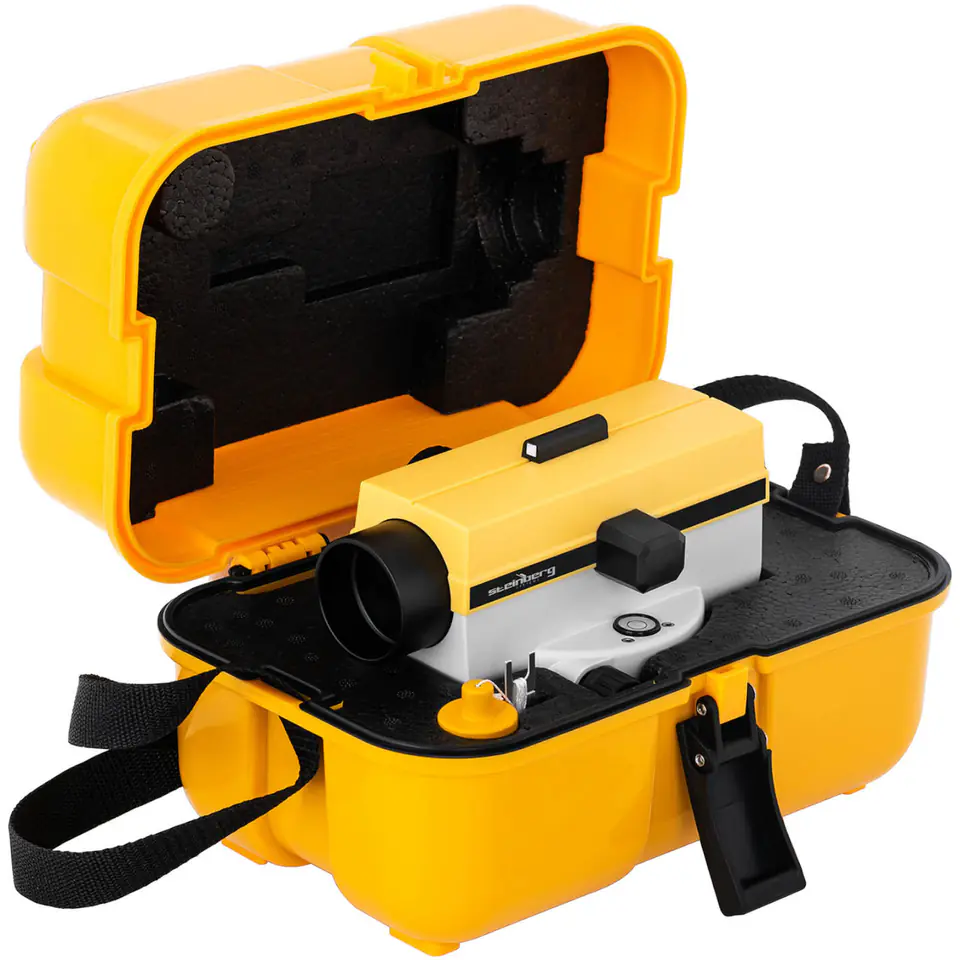

  • - Level with suitcase
  • - Tripod
  • - Leveling patch
  • - String riser
  • - Manual EN

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
