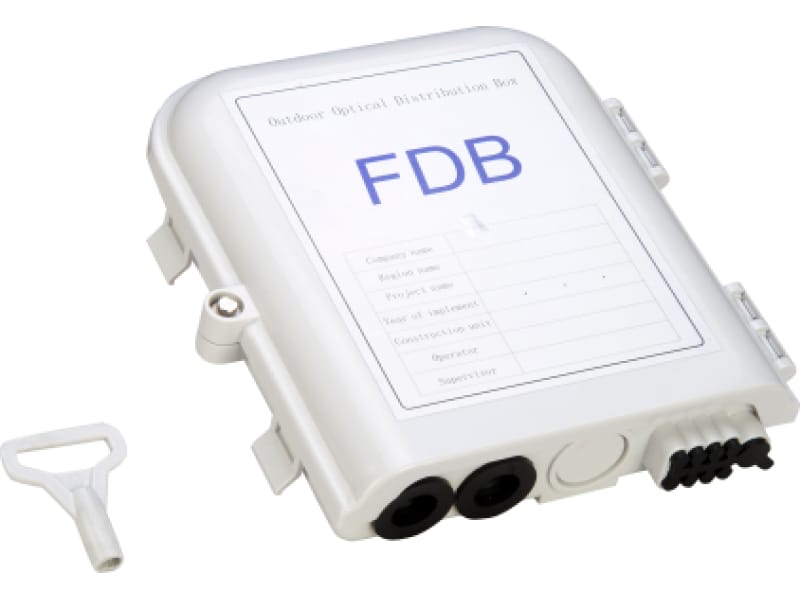

Subscriber panel equipped with 10 inlet/outlet ports. This type of muff is used to protect fiber optic cable strands and splitting applications. The PC material forming the housing is made of high quality plastic resistant to UV radiation, low (-40 ° C) and high (+60 ° C) temperature, and chemicals, which makes it suitable for both overhead and duct and ground installations. It is designed so that its installation is uncomplicated and efficient, and at the same time offers a proven fiber optic management system. All metal elements of the are made of corrosion-resistant materials.
CONTENT

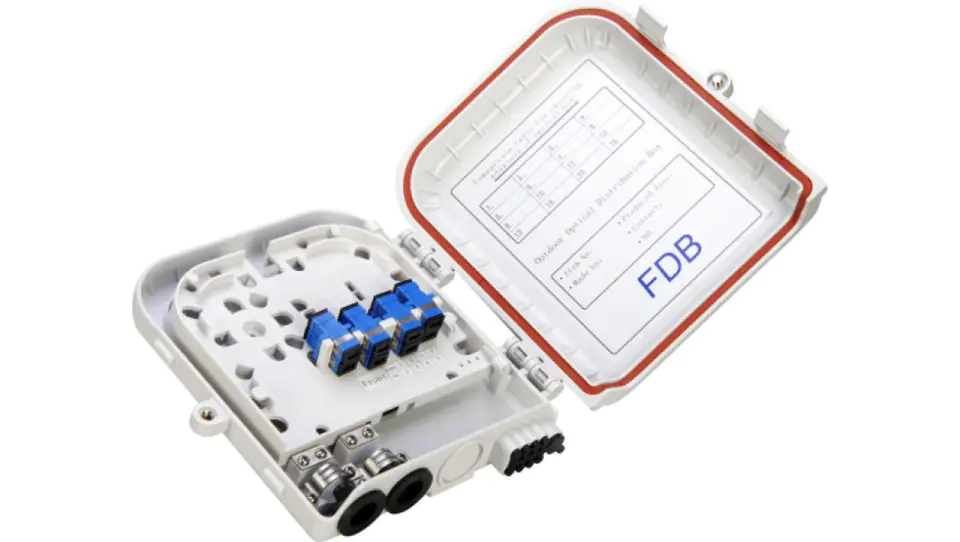

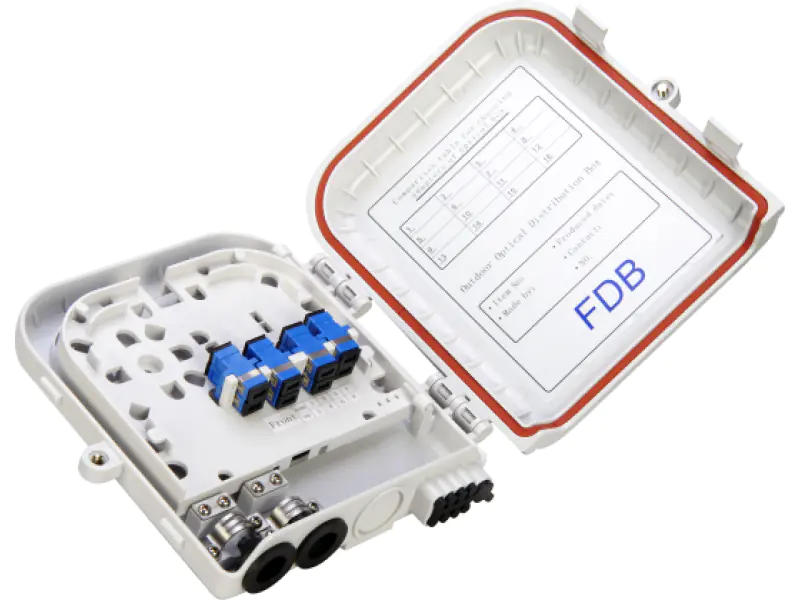

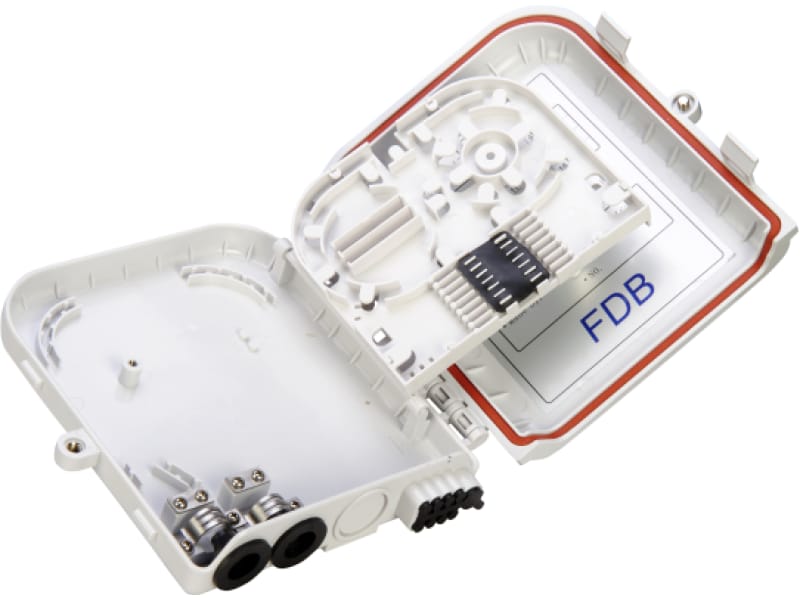

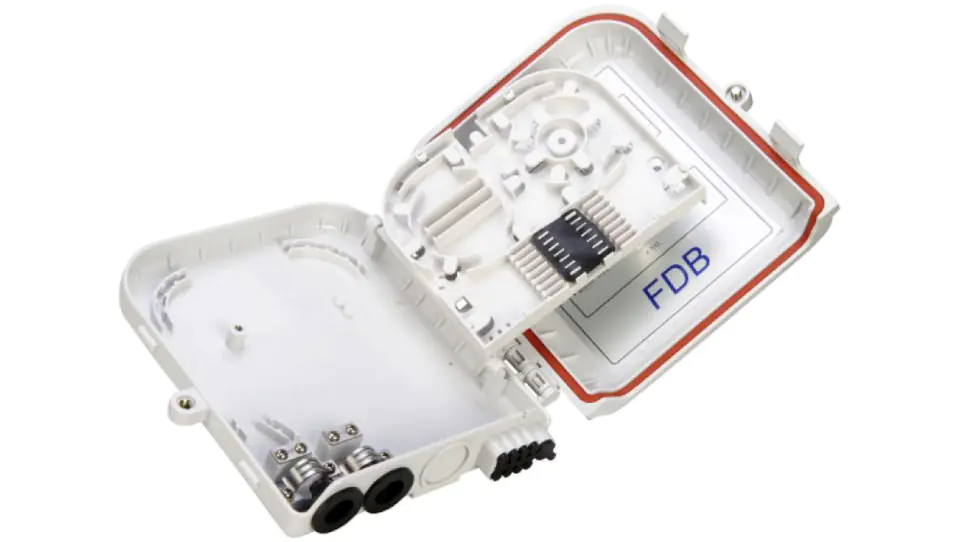

- Integrated fiber optic tray for 8 splices
- Integrated cable spare cassette
- Integrated brackets for 8 x SC simplex / LC duplex fiber optic adapters (max. 16 connections)
- Sealing tape
- Protective tubes for fibre distribution
- Plastic cable ties for single use
- One key
- Mounting screws and pins
- Sealing accessories
PROPERTIES
- Suitable for a wide range of cables.
- Modern material and strip housing provide resistance to oxidation of the housing
| PARAMETRY | PARAMETRY2 |
|---|---|
| Wymiary | wys. 207 x szer. 181 x głęb. 45 mm |
| Zakres temperatur | od -40ºC do +60ºC |
| Szczelność | IP65 |
