Technical data:
Impact energy: 2.2 J
Tool mounting system (holder): SDS-Plus
Power consumption: 800 W
Type of stroke: electropneumatic
Stroke frequency: 0 - 4600 ud/min
No-load speed: 0 - 1200 rpm
Drilling capacity:
In concrete: 26 mm
In wood: 32 mm
In steel: 13 mm
Crown drill: 68 mm
Diamond Crown Drill (dry): 80 mm
Weight: 3.0 - 4.3 kg
Dimensions (L x W x H): 604 mm x 89 mm x 260 mm
Power cord length: 2.5 m
Noise and vibration:
Sound pressure level error: 3 dB(A)
Sound Power Level Error: 3 dB(A)
Vibration level error: 1.5 m/s2
Sound pressure level: 91 dB(A)
Sound power level: 102 dB(A)
Vibration level for impact drilling in concrete: 12.5 m/s2
Vibration level for forging with side handle: 9.5 m/s2
Vibration level when drilling in metal: 2.5 m/s2
3 operating modes: drilling, impact drilling and forging
Built-in dust extraction system with HEPA filter
Filter cleaning mechanism with knob
Easy adjustment of the dedusting connection position using the lever
The telescopic guide of the suction system can also be used as a depth limiter
Tight connection between the dust response section and the container prevents dust from escaping to the outside
Easy-to-empty, transparent dust container
Switch with lock for continuous operation
Tool holder dust cover
Sliding handle for easy tool change
40-position chisel adjustment
Side handle (158057-6)
Depth limiter (324219-0)
Dust extraction kit
Sealing cover (424474-5)
Suitcase
**

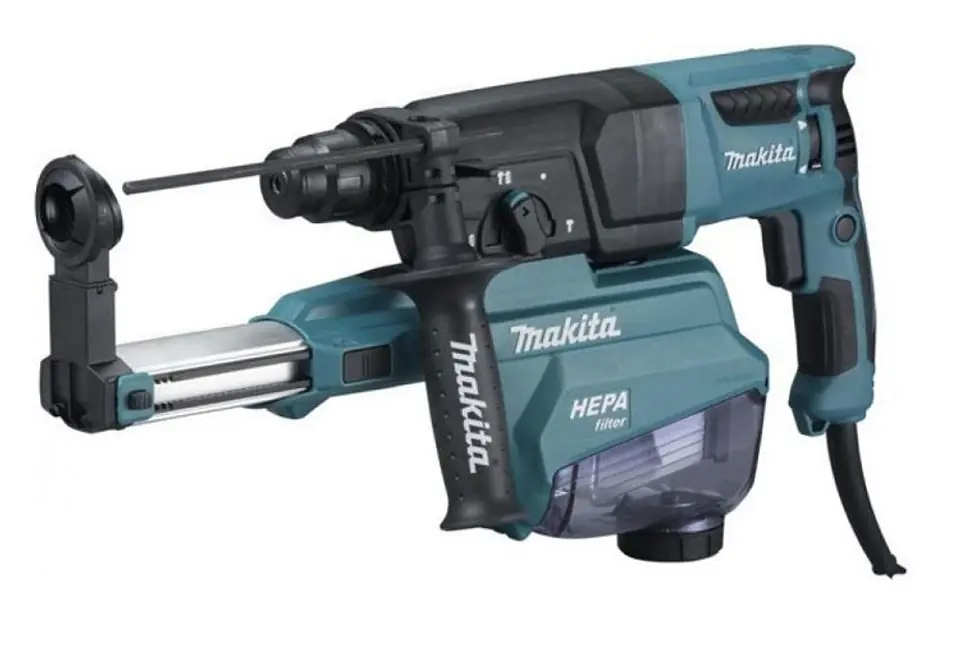

The photo has an illustrative function.
Impact energy: 2.2 J
Tool mounting system (holder): SDS-Plus
Power consumption: 800 W
Type of stroke: electropneumatic
Stroke frequency: 0 - 4600 ud/min
No-load speed: 0 - 1200 rpm
Drilling capacity:
In concrete: 26 mm
In wood: 32 mm
In steel: 13 mm
Crown drill: 68 mm
Diamond Crown Drill (dry): 80 mm
Weight: 3.0 - 4.3 kg
Dimensions (L x W x H): 604 mm x 89 mm x 260 mm
Power cord length: 2.5 m
Noise and vibration:
Sound pressure level error: 3 dB(A)
Sound Power Level Error: 3 dB(A)
Vibration level error: 1.5 m/s2
Sound pressure level: 91 dB(A)
Sound power level: 102 dB(A)
Vibration level for impact drilling in concrete: 12.5 m/s2
Vibration level for forging with side handle: 9.5 m/s2
Vibration level when drilling in metal: 2.5 m/s2
3 operating modes: drilling, impact drilling and forging
Built-in dust extraction system with HEPA filter
Filter cleaning mechanism with knob
Easy adjustment of the dedusting connection position using the lever
The telescopic guide of the suction system can also be used as a depth limiter
Tight connection between the dust response section and the container prevents dust from escaping to the outside
Easy-to-empty, transparent dust container
Switch with lock for continuous operation
Tool holder dust cover
Sliding handle for easy tool change
40-position chisel adjustment
Side handle (158057-6)
Depth limiter (324219-0)
Dust extraction kit
Sealing cover (424474-5)
Suitcase
**
The photo has an illustrative function.
