Screw Stand With Magnetic Foot 6400M-100 AMF

€70.35
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
AMF
Product code:
73403 / 4020772073404

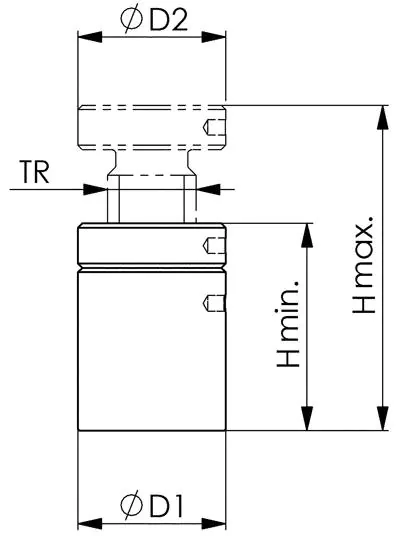

Specification

Base diameter:50 mm
Clamping height b-h:80-110 mm
Lifting capacity:100 kN
Overlay diameter:50 mm
Size:110 mm

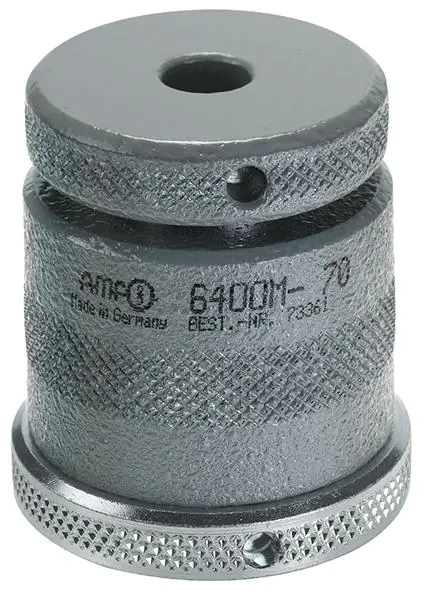

Screw support with magnetic foot

Material: screw supports of medium heavy. Body and spindle made of heat-treated steel, painted. Spindle with self-locking trapezoidal thread and end protection. With a 12 mm diameter centering hole for fixing various pads.
Application: for pressure feet with a gap width of approx. 14-22 mm.
Note: For appropriate overlays, see #SAPB2807922#.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
