TV socket connector - Telmor
CBC
Professional connector for cable TV network and
Collective
and individual antenna installations.
Standard "IEC" - the "female" version of the plug.
Working bandwidth up to 1000MHz.
Cast metal body for effective
Shielding
and high mechanical resistance.
Embedding the cable by screwing in - the possibility of
Multiple
use of the connector.
Automatic connection of the inner vein - elimination
soldering.
WPG socket
is designed for disjoint, multiple coaxial connections
w.cz cable. (RF) with electronic devices equipped with IEC sockets, e.g.
subscriber sockets, TV sets, audio-video modulators,
etc.
The body of the plug is cast from light alloys, which
provides high mechanical stability and very good shielding. In
threaded hole of the body screws in the coaxial wire with the braid wound on
his outer coat. Connection of the plug with the inner vein occurs
automatically (clamping mechanism), without soldering.

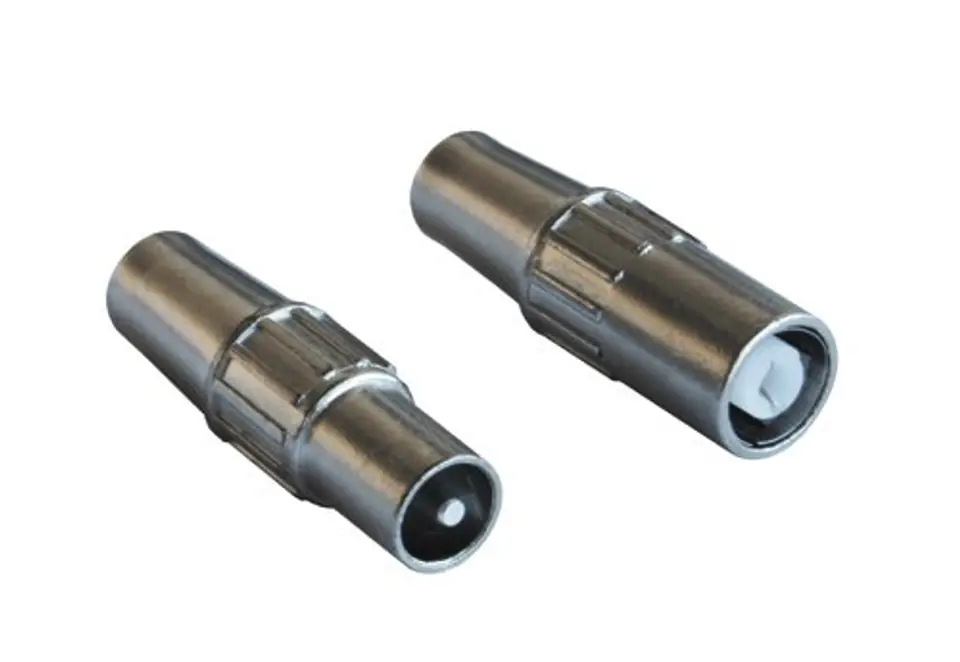

Plug-in connectors
are offered in two versions - WPW as a plug "IEC" - "male" and WPG
plug "IEC" - "female".
