Manufacturer no: 10021109

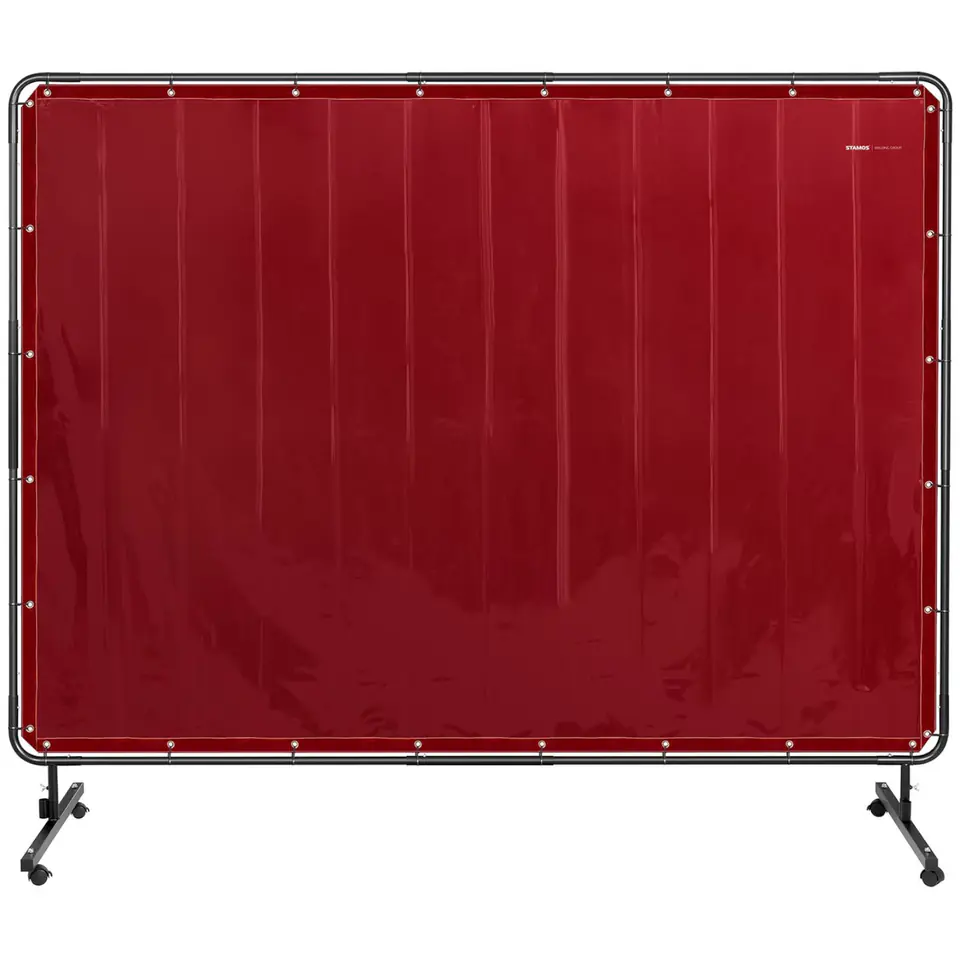

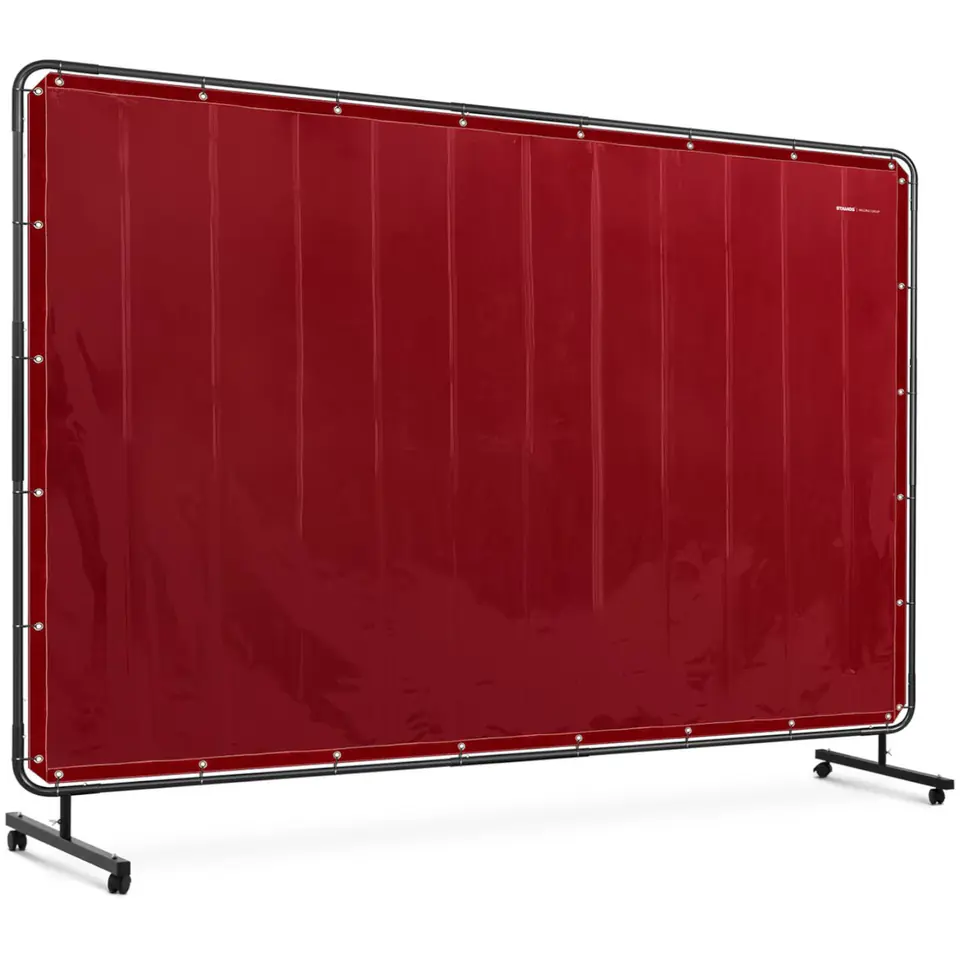

The welding curtain is a product designed to protect outsiders from the light of the welding arc, sparks and chips. The large size effectively separates the working area.

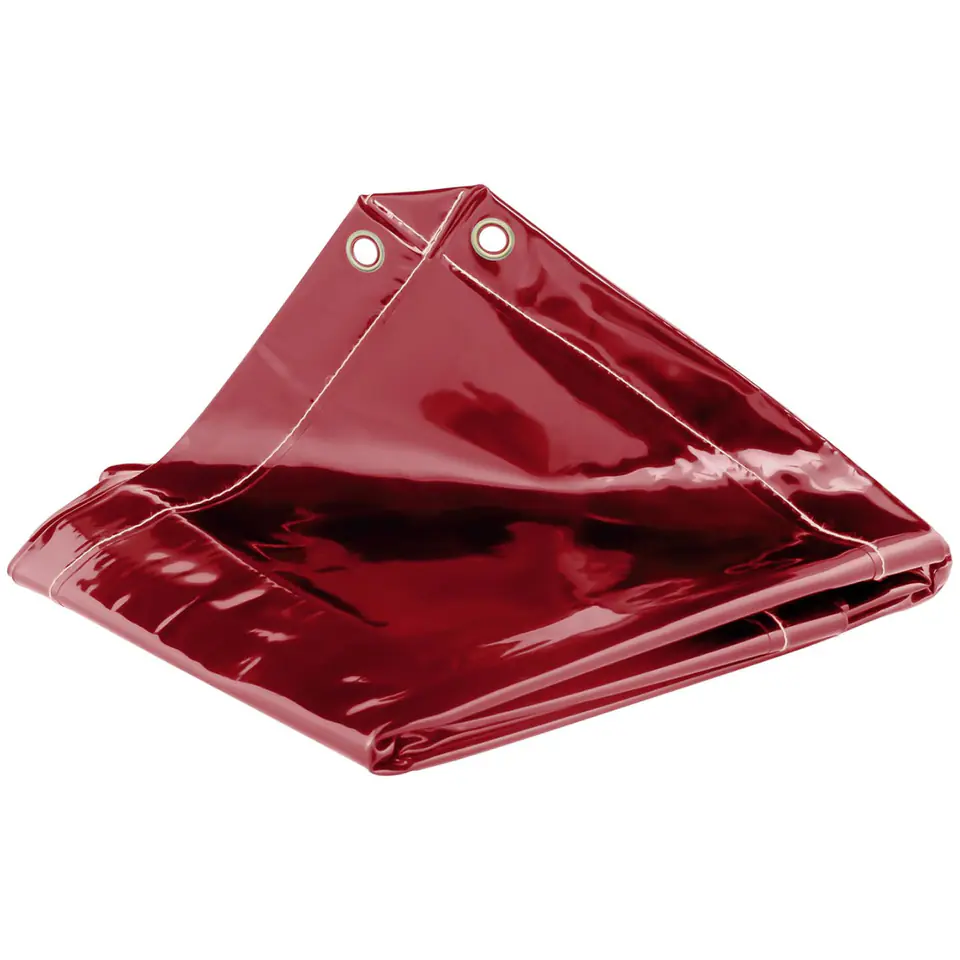

The screen is made of vinyl with a thickness of 0.4 mm, which is non-flammable and resistant to UV rays. Around the perimeter there are eyelets for fastening. The screen is equipped with high-quality seams made of strong fire-resistant threads. The stability of the screen is ensured by a solid steel base measuring 240 x 180 cm. The diameter of the pipes is 22 mm. 4 wheels provide the curtain with mobility. The product has a certificate of compliance with EN ISO 25980 required in health and safety procedures.
Product features:
- - Resistance - vinyl with a thickness of 0.4 mm resistant to UV rays and flame retardant,
- - Durability - seams made of strong threads resistant to heat and fire,
- - Protection - a large area measuring 239 x 175 cm,
- - Safety - in accordance with EN ISO 25980,
- - Mobility - solid frame on wheels,

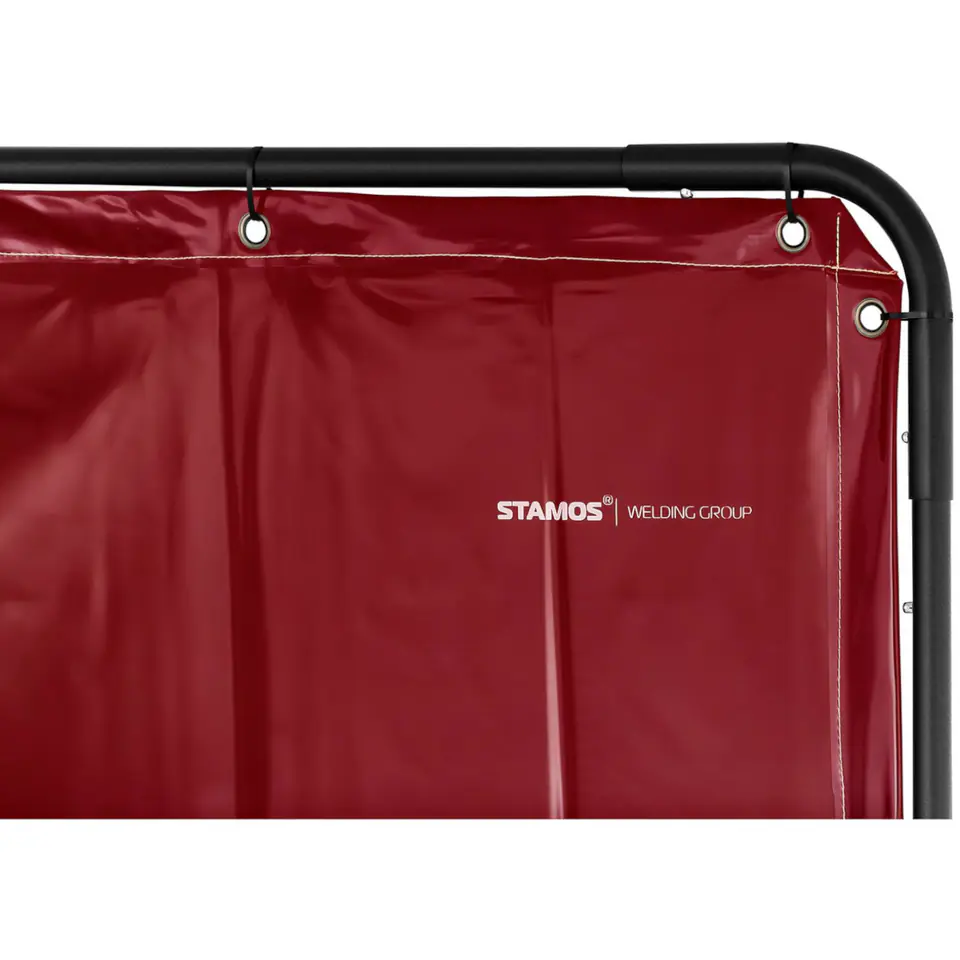

- - Easy fixation - there are grommets around the perimeter for mounting on the rack.
- - Model - SWS04
- - Catalog No. - 10021109
- - Article status - New
- - Material - Vinyl
- - Wheel material - Plastic
- - Type of wheels - Swivel 360
- - Diameter of rack tubes - 22 mm
- - Seams - Strong fireproof threads
- - Light transmittance based on light source A> 0.0001 - 0.0093
- - Spectral penetration coefficient for wavelength 210nm≤λ≤313nm - < 0.002%
- - Spectral penetration coefficient for wavelength 313nm≤λ≤400nm [%] - < 3
- - Hazard level 1 (400nm≤λ≤1400nm) - 0.6
- - Light transmittance based on light source A after exposure to UV rays - 0.0063
- - Relative change in light transmittance after exposure to UV rays - 0.296
- - Threat level - 59
- - Moderate UV resistance - Yes
- - Fire resistance - Yes
- - Spacing between grommets - 304 mm
- - Material thickness - 0.4 mm
- - Curtain dimensions - 239 x 175 cm

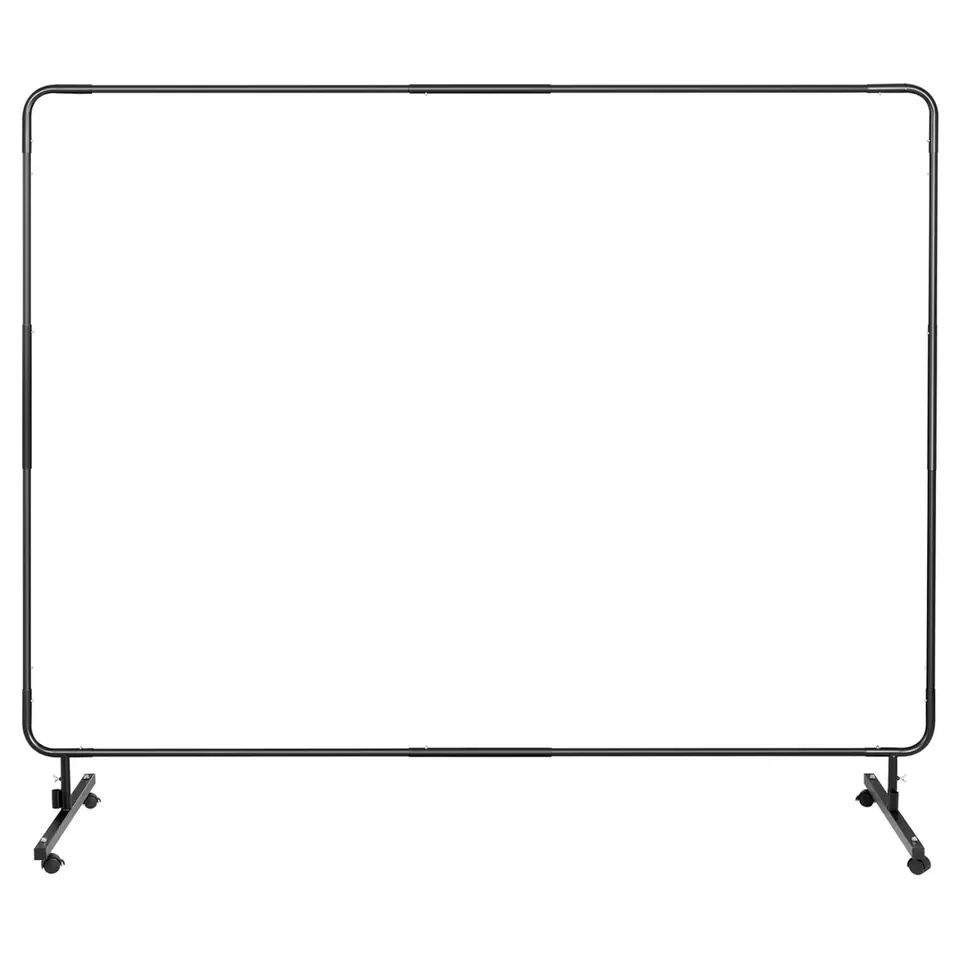

- - Frame dimensions - 240 x 180 cm
- - Dimensions (LxWxH) - 66.00 x 240.00 x 196.00 cm
- - Weight - 8.70 kg
- - Shipping dimensions (LxWxH) - 23.50 x 120.00 x 8.00 cm
- - Shipping weight - 9,00 kg

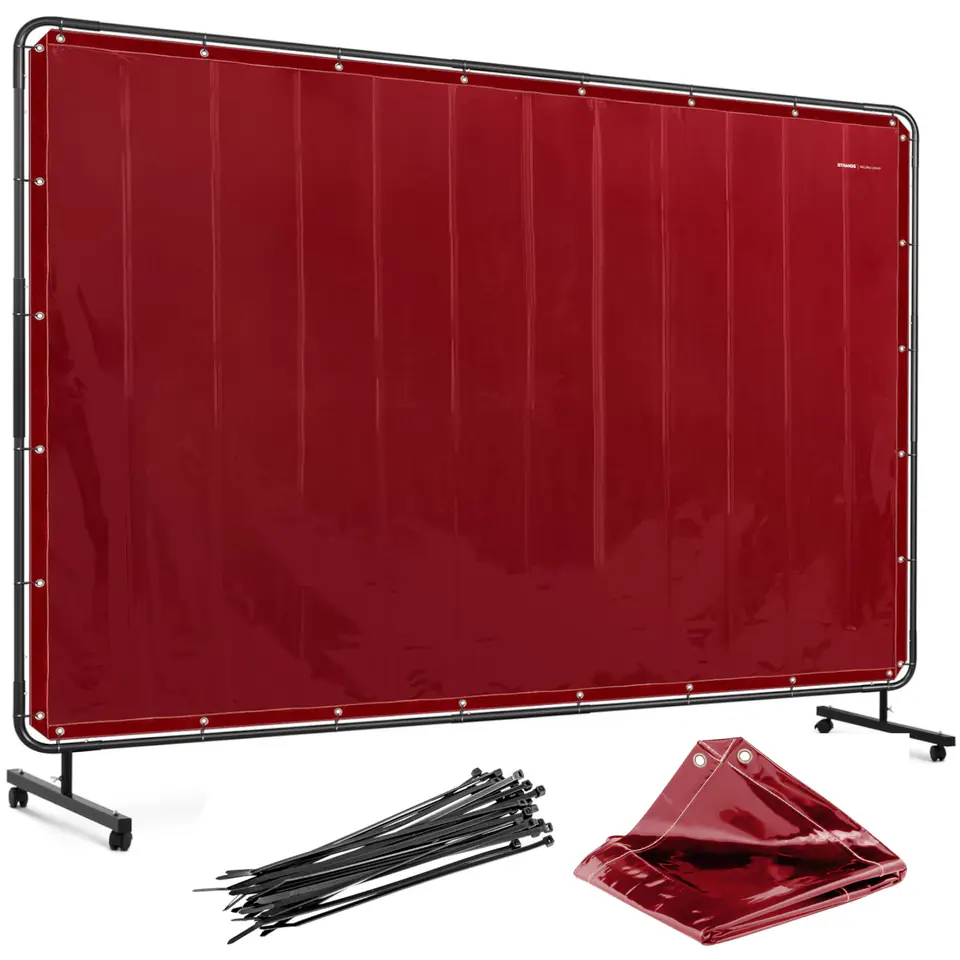

- - Welding curtain
- - Frame
- - Instruction
