Technical data:
Power Supply Type: Electric
Power: 1200W
Rotational speed: 2200-5200rpm
Dial Diameter: 165mm
Dial Hole Diameter: 20mm
Maximum cutting depth (without strip): 57mm
Max cutting depth (with strip): 52mm
Cutting Range: 0-47 degree
Packaging: carton
Weight: 4.6 kg

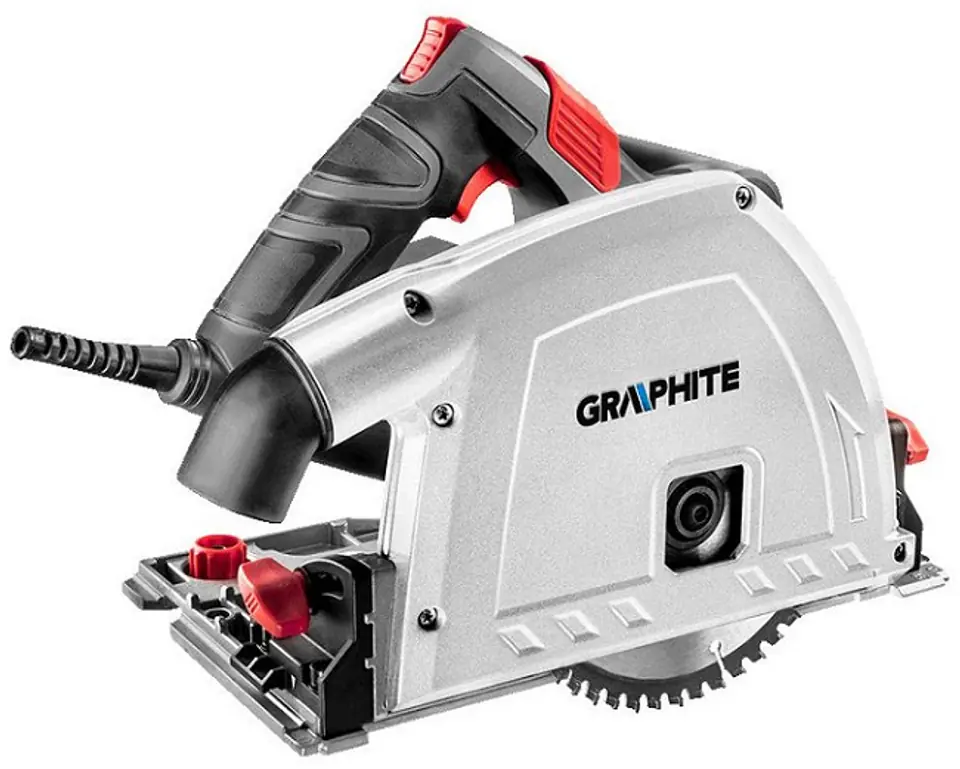

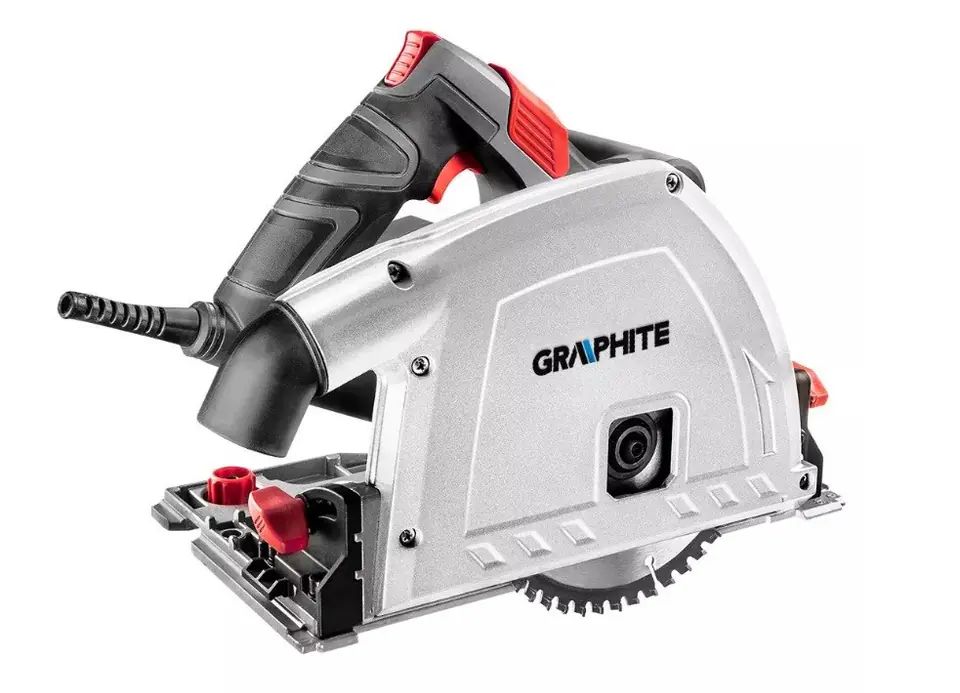

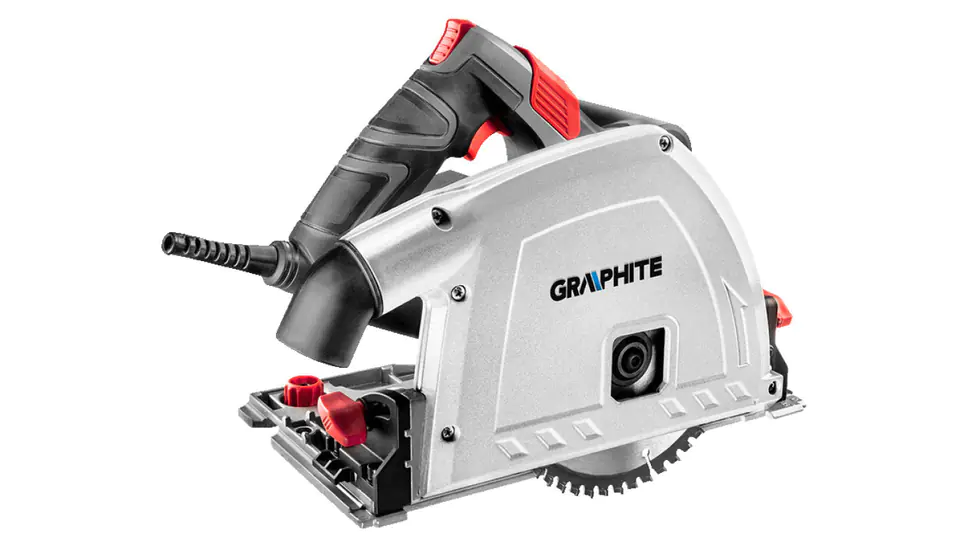

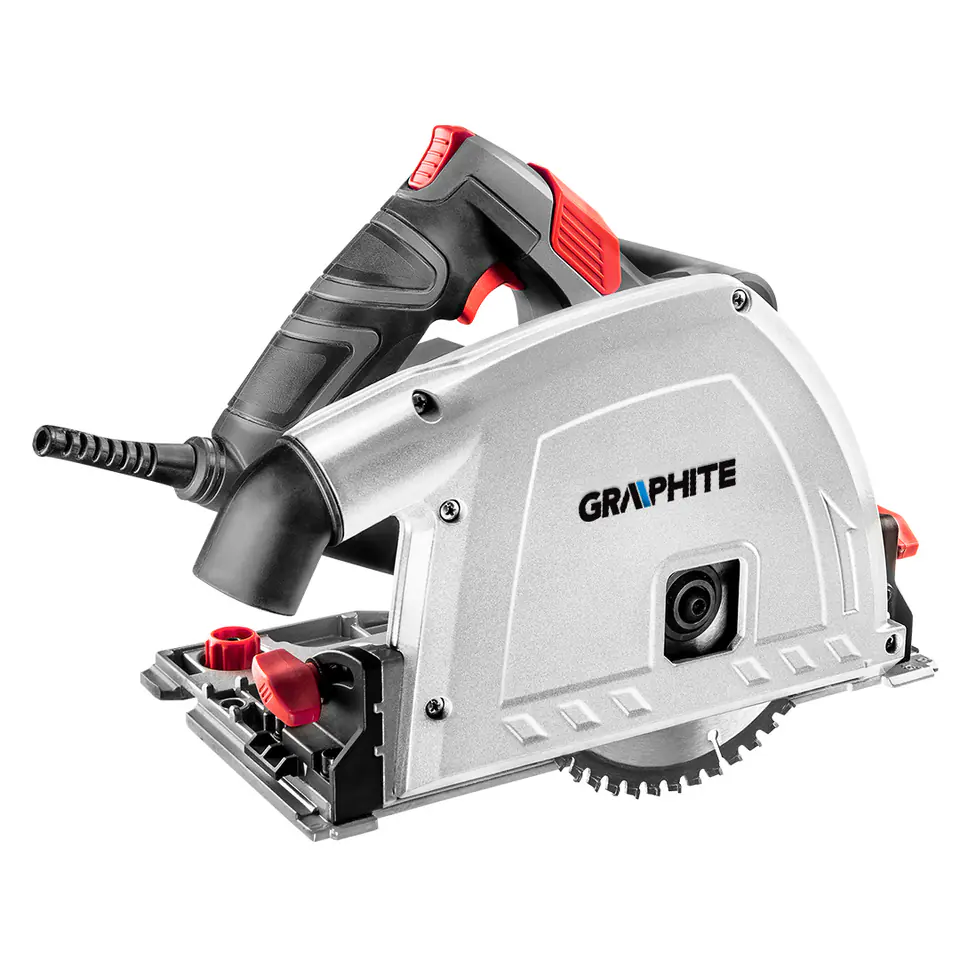

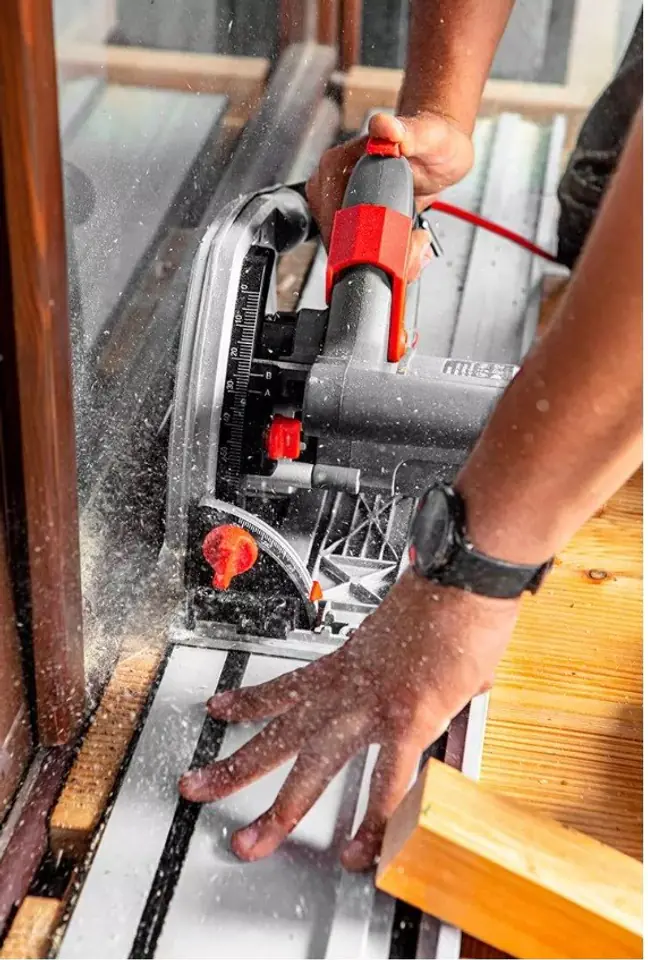

The GRAPHITE saw-recesser with a power of 1200W is a precise device used to make cuts in materials such as wood, laminate or aluminum.
The design of the saw-sinker allows you to make plunge cuts anywhere in the material – without having to start cutting from the edges as is the case with traditional circular saws.
The device works with cutting discs with a diameter of 165 mm and allows you to work at an adjustable speed in the range of 2200-5200 rpm.

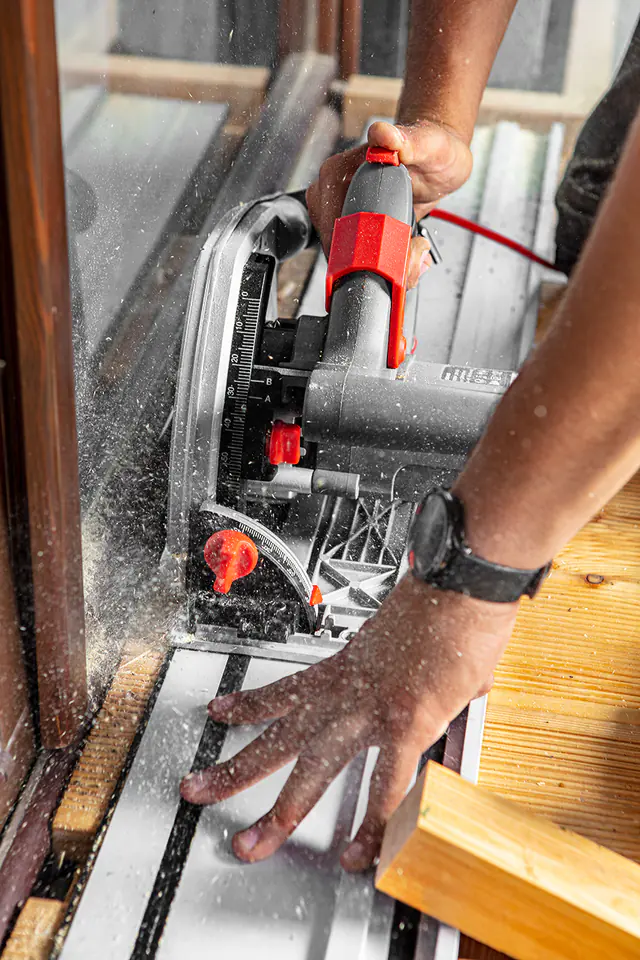

To increase precision when making longer formatting cuts, it is recommended to use a guide rail, which is also in the GRAPHITE brand offer.
The maximum cutting thickness without a guide strip is 57 mm, while with a strip 52 mm.
The device is equipped with a depth limiter with a precise scale and an indicator, allowing you to easily choose the depth both when working with and without a strip.
The saw-plunger foot is equipped with a system of adjusting the clearance relative to the guide strip and allows you to adjust the cutting angle in the range of 0-47°.
The shield cover is made of aluminum, and the entire side of the device has been profiled in such a way as to minimize the gap between the disc and the outer edge of the housing.
This means that the minimum distance of the cutting line from an obstacle, e.g. in the form of a wall, is only 11.5 mm.
The device is equipped with a rotating chip ejection with the possibility of connecting a vacuum cleaner.
Integrated dust extraction connection
Key
Gear disc 165x20mm
**
