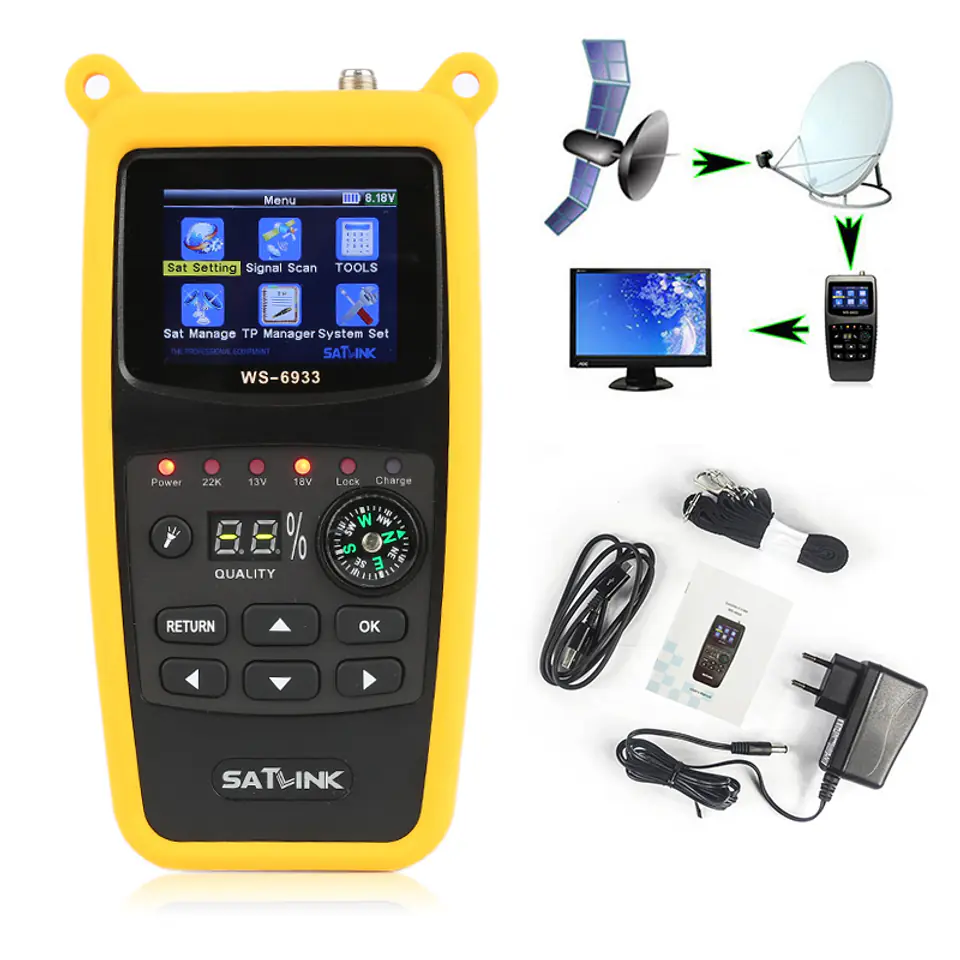

Satellite meter Satlink WS-6933 HD Compact
Simple satellite signal meter from Satlink model WS-6933 HD Compact with color LCD display allowing you to easily and precisely position the satellite dish to the right satellite. The meter has entered several satellite positions (satellites + transponders) in addition, it is possible to edit each parameter. The WS-6933 HD model has a measurement of DVB-S2 - HD channels.
- input frequency: 950-2150MHz
- multilingual menu, including Polish
- input signal level; -80 ~-20dBm
- input impedance: 75ohm
- converter power supply: 13/18V
- minimum noise level: about 35dbuV
- maximum noise level: about 90 dBuV
- surge protection of the converter
- PWR power level, dBuV
- indication of signal strength and quality
- percentage indication of signal quality
- sound signal of finding a satellite (possibility of switching off)
- indication of BER errors
- audible and light alarm,when the signal is blocked
- LI-ION battery (800mAh), working time approx. 3 hours
- the ability to edit satellite, transponder, frequency
- DiSEqC support: 1.0, 1.1, 2.0 and 22 kHz
- possibility to update the software via USB connector
- power supply: 100-240V/50/60Hz 12V, 1000mA
- Satellite meter
- Silicone case with shoulder strap holder
- Braces
- AC adapter
- USB cable
