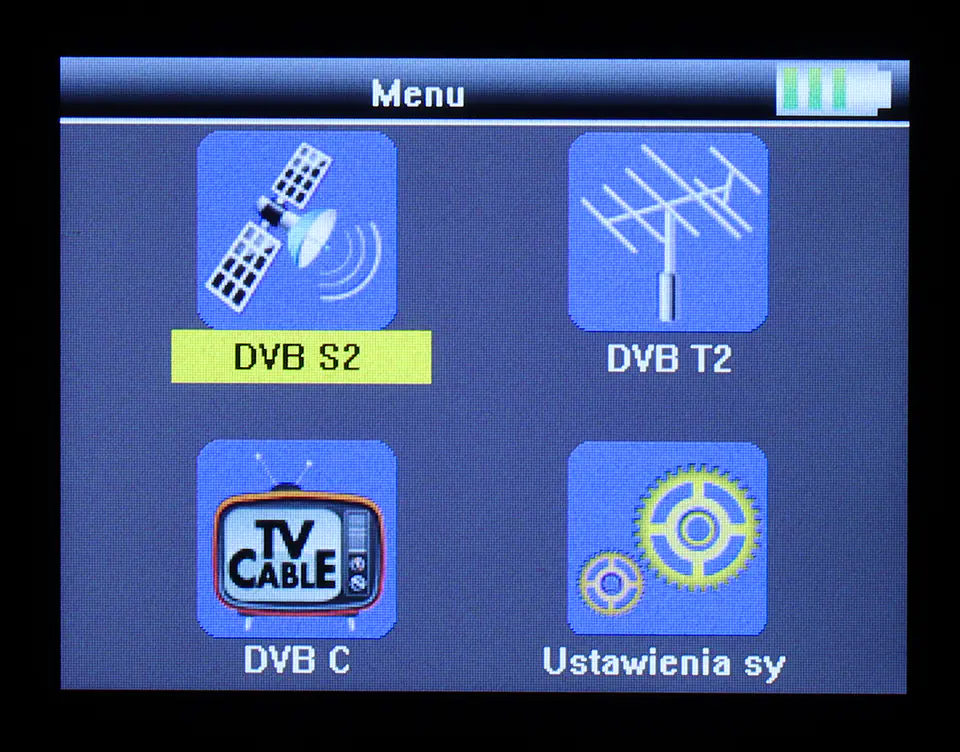

WS-6944P allows you to measure TV signals in DVB-T/T2, DVB-S/S2, DVB-C/C2 networksReadable menu will certainly facilitate the work of any installer
Remark! The built-in compass is too inaccurate to correctly determine the direction

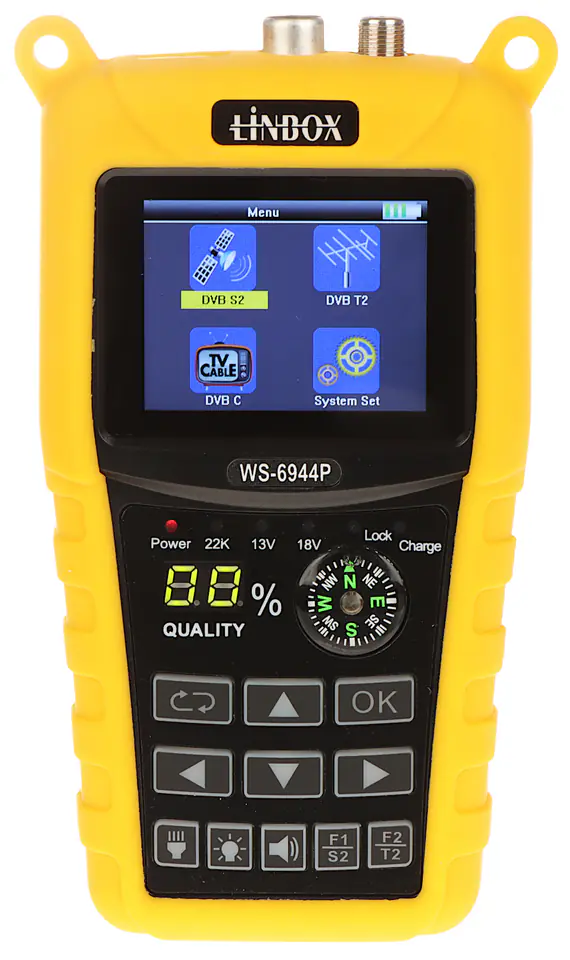

SATELLITE METER WS-6944P
€128.64
Shipping from warehouse: D4
Estimated shipping: Tue, Sep 10 - Fri, Sep 13
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- WS-6944P / 5903715550981
Share this product:
Specification

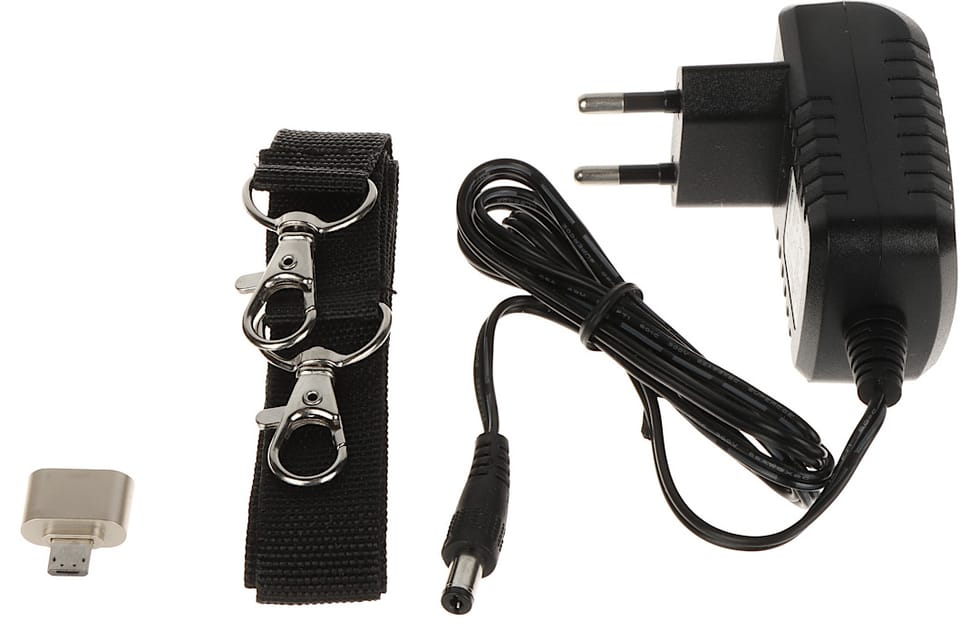

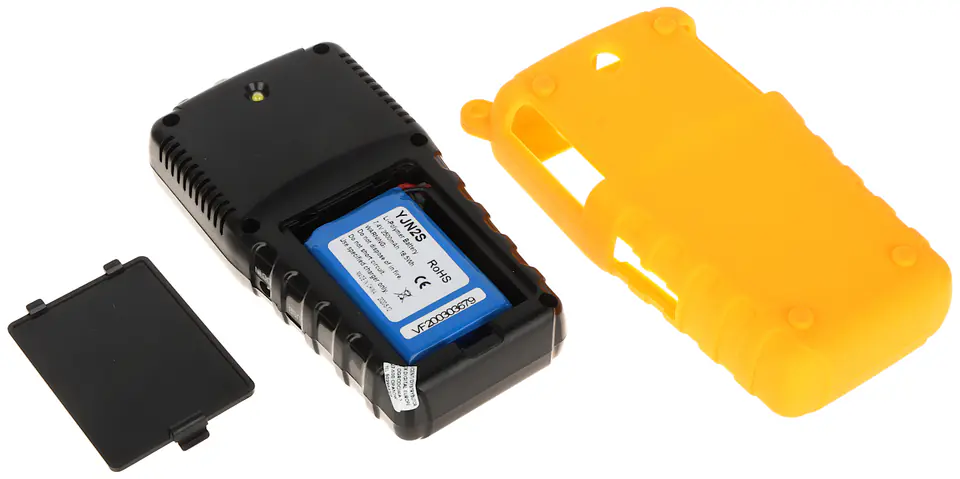

| Battery:: | Li-Poly Battery : 7.4V / 2500mAh12V / 1A Power Supply (Power Supply Included) |
|---|---|
| Converter power supply:: | 13/18 volts |
| Dimensions:: | 165 x 94 x 40 mm |
| Diseqc:: | 1.0, 1.1, 1.2, 2.0 |
| Display:: | 2.4" TFT LCD |
| Frequency range:: | 42 MHz ... 862 MHz - DVB-T / DVB-T2 / DVB-C / DVB-C2, 950 MHz ... 2150 MHz - DVB-S / DVB-S2 |

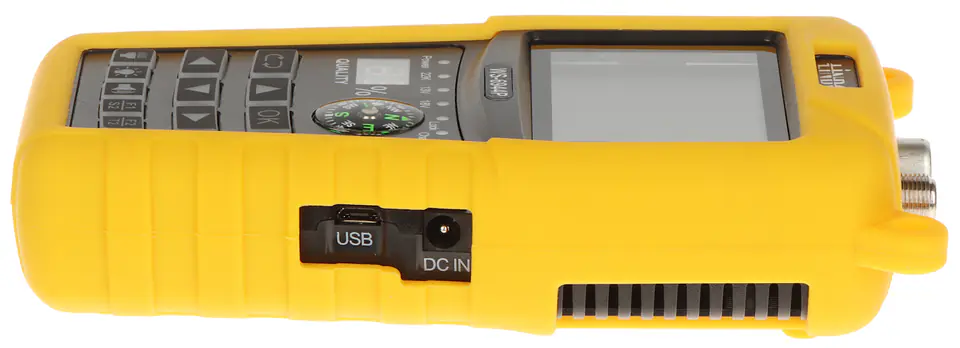

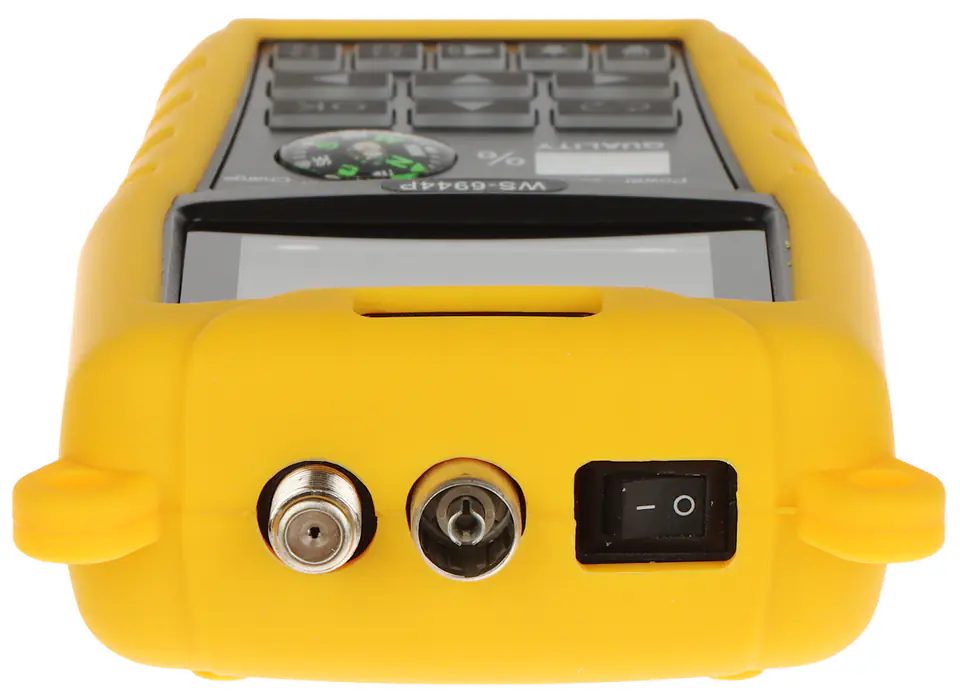

| Output and input:: | 1 pc. Socket F, 1 pc IEC socket, 1 pc micro USB |
| Scales:: | 0.3 kg |
| Selected features:: | Beep Support DiSEqC signal and 22kHz Built-in flashlight |
| Signal level:: | -65 ... -25 dBm |
| Software programming and updating:: | via USB port |

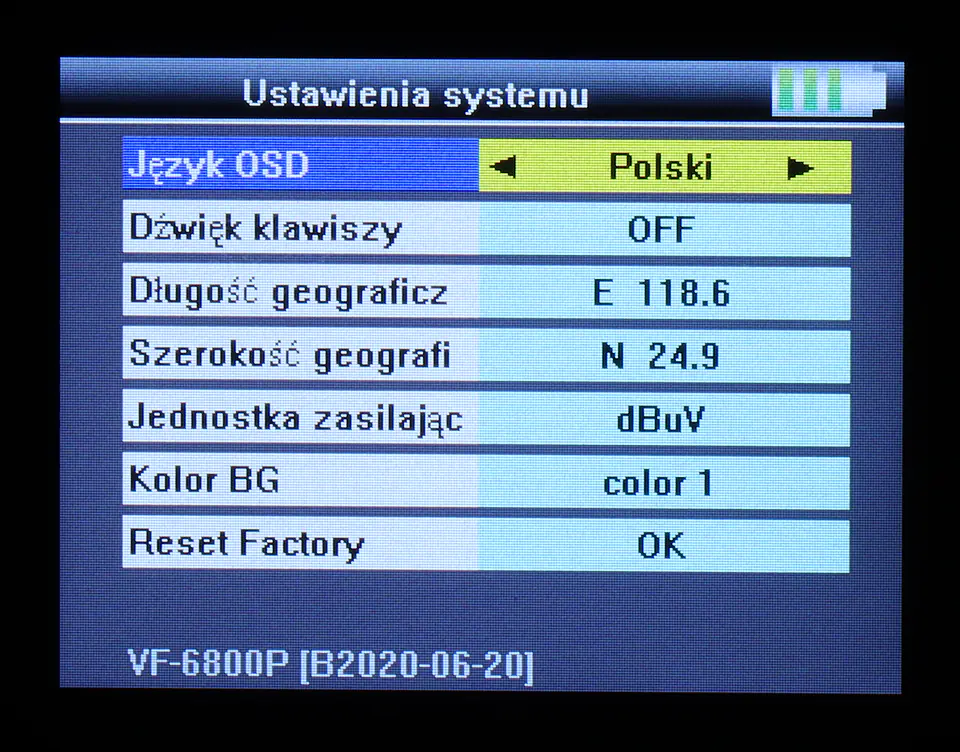

| Supported languages:: | Polish, English, Spanish, Portuguese, Russian |
| Switching between bands:: | 22 kHz |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
