TSC-1270 allows you to measure TV signals in DVB-T/T2, DVB-S/S2, DVB-C/C2 networksClear menu will certainly facilitate the work of any installer

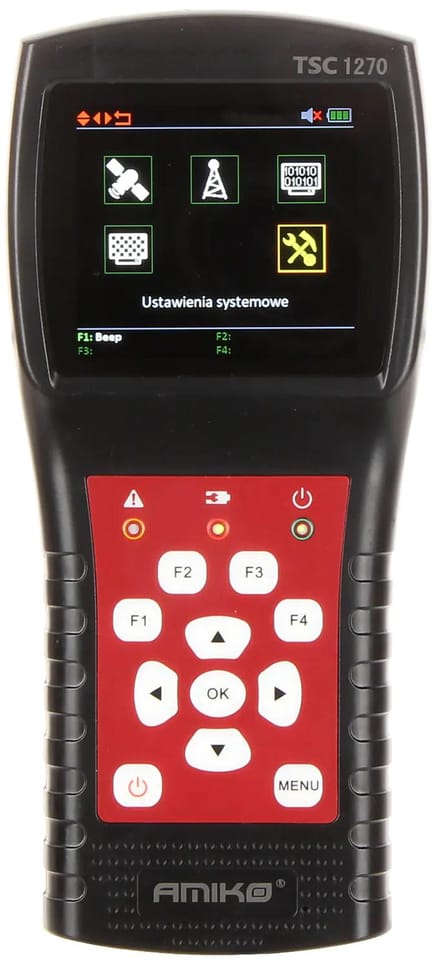

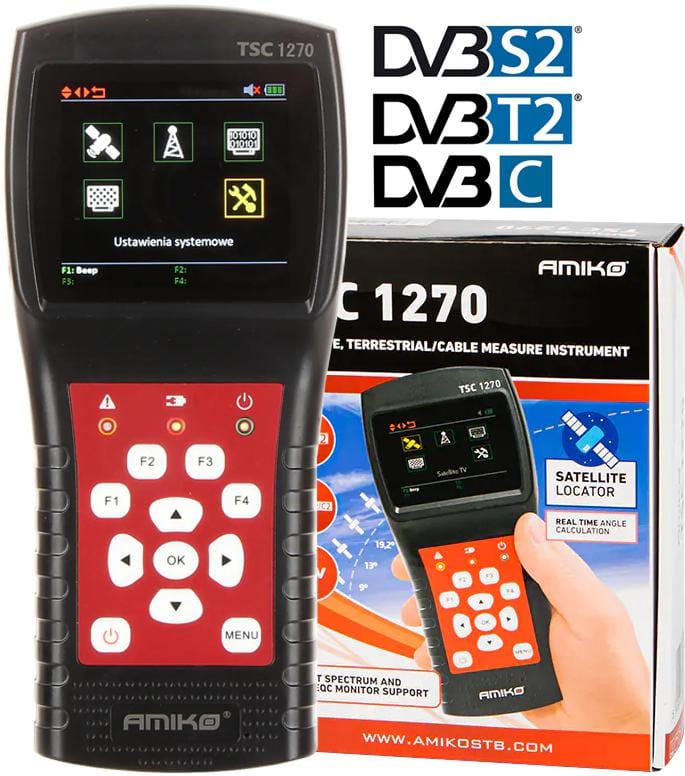

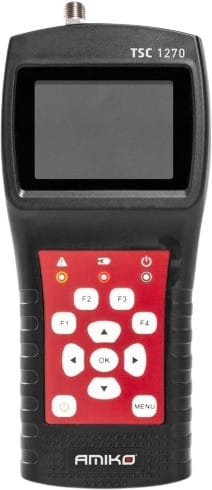

Satellite meter AMIKO TSC-1270
€177.71
Shipping from warehouse: H7
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- TSC-1270 / 5999883026205
Share this product:
Specification
| Antenna power supply: | 5 / 12 / 18 / 24 volts |
|---|---|
| Antenna power supply:: | 5 / 12 / 18 / 24 volts |
| Battery: | Li-Ion battery 7.4 V / 1400 mAh 12 V / 1 A (power adapter included) |
| Battery:: | Li-Ion battery 7.4 V / 1400 mAh 12 V / 1 A (power adapter included) |
| Dimensions: | 178 x 81 x 36 mm |
| Dimensions:: | 178 x 81 x 36 mm |
| Diseqc: | Support for DiSEqC 1.0, 1.2, USALS, SCD, SCD2 |
| Diseqc:: | Support for DiSEqC 1.0, 1.2, USALS, SCD, SCD2 |
| Display: | 400 x 360 px TFT LCD |
| Display:: | 400 x 360 px TFT LCD |

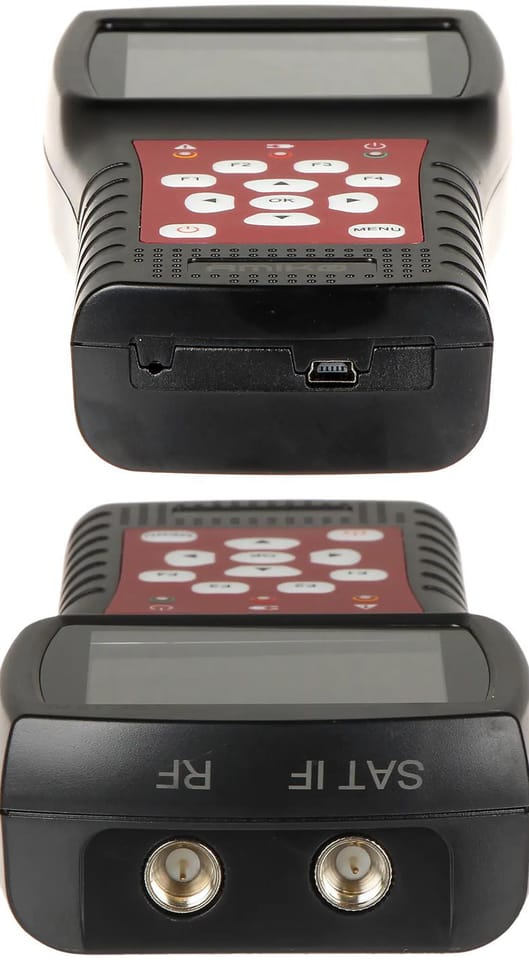

| Exit and entry: | 1 pc Slot F, 1 pc IEC socket, 1 pc(s) mini USB |
| Frequency range: | 42 MHz ... 1005 MHz - DVB-T / DVB-T2 / DVB-C / DVB-C2, 950 MHz ... 2150 MHz - DVB-S / DVB-S2 |
| Frequency range:: | 42 MHz ... 1005 MHz - DVB-T / DVB-T2 / DVB-C / DVB-C2, 950 MHz ... 2150 MHz - DVB-S / DVB-S2 |
| Lnb power supply: | 13 / 18 V, max. 400 mA |
| Lnb power supply:: | 13 / 18 V, max. 400 mA |
| Manufacturer / brand:: | Amiko |
| Modulation: | QPSK, 8PSK, 16APSK, 32APSK - DVB-S / DVB-S2 QPSK, 16-QAM, 64-QAM, 256-QAM - DVB-T / DVB-T2 16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM, 1024-QAM, 4096-QAM - DVB-C / DVB-C2 |
| Modulation:: | QPSK, 8PSK, 16APSK, 32APSK - DVB-S / DVB-S2 QPSK, 16-QAM, 64-QAM, 256-QAM - DVB-T / DVB-T2 16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM, 1024-QAM, 4096-QAM - DVB-C / DVB-C2 |
| Output and input:: | 1 pc Slot F, 1 pc IEC socket, 1 pc(s) mini USB |
| Producer / brand: | Amiko |
| Programming and software update: | via mini USB port |
| Programming and updating software:: | via mini USB port |
| Scales: | 0.23 kg |
| Scales:: | 0.23 kg |

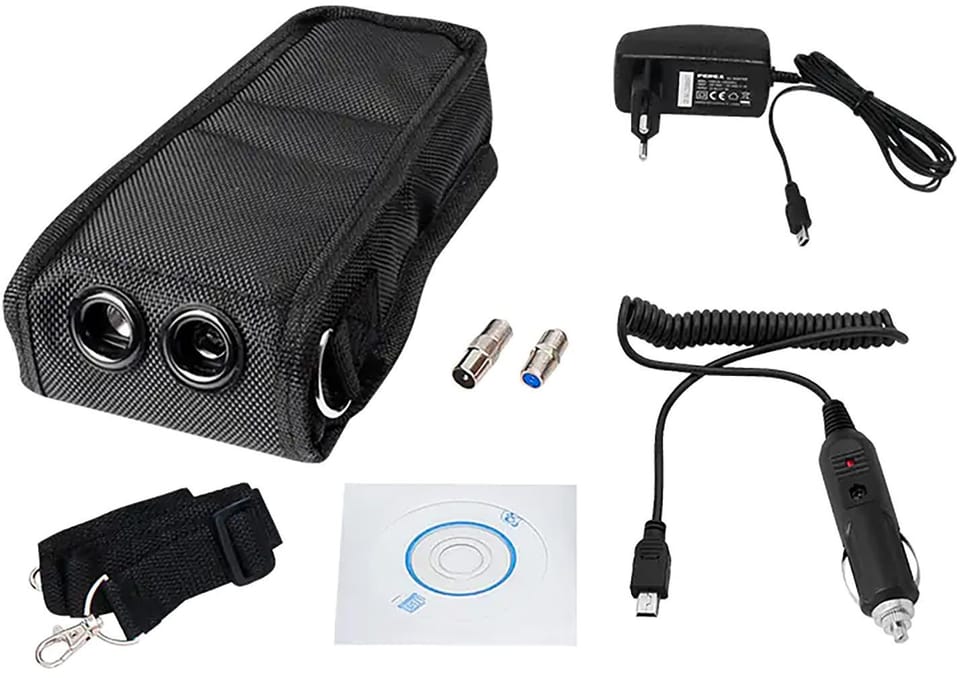

| Selected features: | DVB-S/S2 : Power measurement, CNR MEASUREMENT, CBER, VBER (DVBS), LBER (DVBS2), Real-time spectrum analyzer, Possibility to display signal parameters for 4 transponders on one screen - Easy identification for Quattro LNB, Satellite identification function, Satellite location function, Azimuth and elevation measurement, Automatic identification DisEqC, DVB-T/T2 : Power measurement, VBER measurement (DVBT), LBER (DVBT2), SNR and CBER, Ability to display signal parameters (strength and quality) for 4 channels on one screen, Spectrum analyzer, Automatic scanning of DVB-C/C2 channels: Power measurement, BER measurement, PER(DVBC/MCNS), LBER(DVBC2), SNR, spectrum analyzer, Automatic channel scanning Analog signal measurement capability Built-in speaker High measurement accuracy Practical case included Estimated battery life ~ 3 h |
| Selected features:: | DVB-S/S2 : Power measurement, CNR MEASUREMENT, CBER, VBER (DVBS), LBER (DVBS2), Real-time spectrum analyzer, Possibility to display signal parameters for 4 transponders on one screen - Easy identification for Quattro LNB, Satellite identification function, Satellite location function, Azimuth and elevation measurement, Automatic identification DisEqC, DVB-T/T2 : Power measurement, VBER measurement (DVBT), LBER (DVBT2), SNR and CBER, Ability to display signal parameters (strength and quality) for 4 channels on one screen, Spectrum analyzer, Automatic scanning of DVB-C/C2 channels: Power measurement, BER measurement, PER(DVBC/MCNS), LBER(DVBC2), SNR, spectrum analyzer, Automatic channel scanning Analog signal measurement capability Built-in speaker High measurement accuracy Practical case included Battery life ~ 3 h |
| Signal level: | 35 ... 100 dBμV - DVB-S / DVB-S2 / DVB-C, 30 ... 100 dBμV - DVB-T / DVB-T2 / DVB-C2 |
| Signal level:: | 35 ... 100 dBμV - DVB-S / DVB-S2 / DVB-C, 30 ... 100 dBμV - DVB-T / DVB-T2 / DVB-C2 |
| Supported languages: | Polish, English |
| Supported languages:: | Polish, English |
| Switching between bands: | 0 / 22 kHz |
| Switching between bands:: | 0 / 22 kHz |
| Warranty: | 2 years |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
