| Alarm signaling:: | LED, Signal for alarm control panel |
|---|---|
| Colour:: | white |
| Cooperation:: | Alarm control panel |
| Depth: | 23 mm |
| Detection:: | Door or window opening, Vibration, Water |
| Dimensions:: | 20 x 102 x 23 mm (sensor) Ø 10 x 28 mm ( magnet ) |
| Electromagnetic emissions: | EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-2-6 |
| Environmental class: | II |
| Environmental class en 50130-5:: | II |
| Grade:: | 2 |
| Height: | 102 mm |
| Input voltage: | 12 V |
| Manufacturer / brand:: | SATEL |
| Maximum current consumption: | 14 mA |
| Moisture (max): | 93±3% |
| Operating temperature (t-t): | -10 - 55 °C |
| Operating temperature:: | -10 °C ... 55 °C |
| Output connection type: | Alarm NC, Alarm S, Tamper (NC) |
| Permissible load on relay contacts (resistive):: | 40 mA / 24 VDC |
| Power source type: | DC |
| Power:: | 12 V DC / 14 mA (max) |
| Product colour: | White |
| Relay outputs: | 3 |
| Scales:: | 0.02 kg |

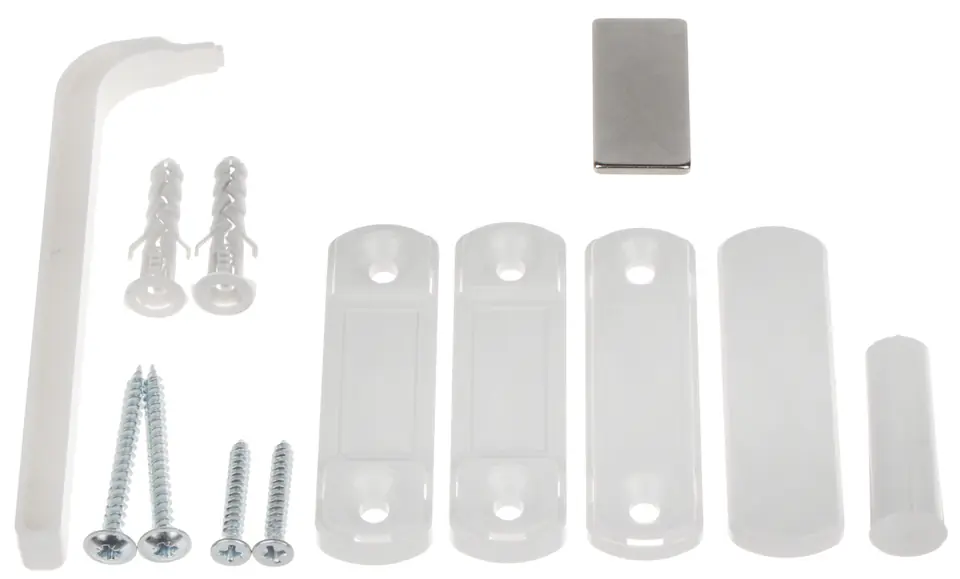

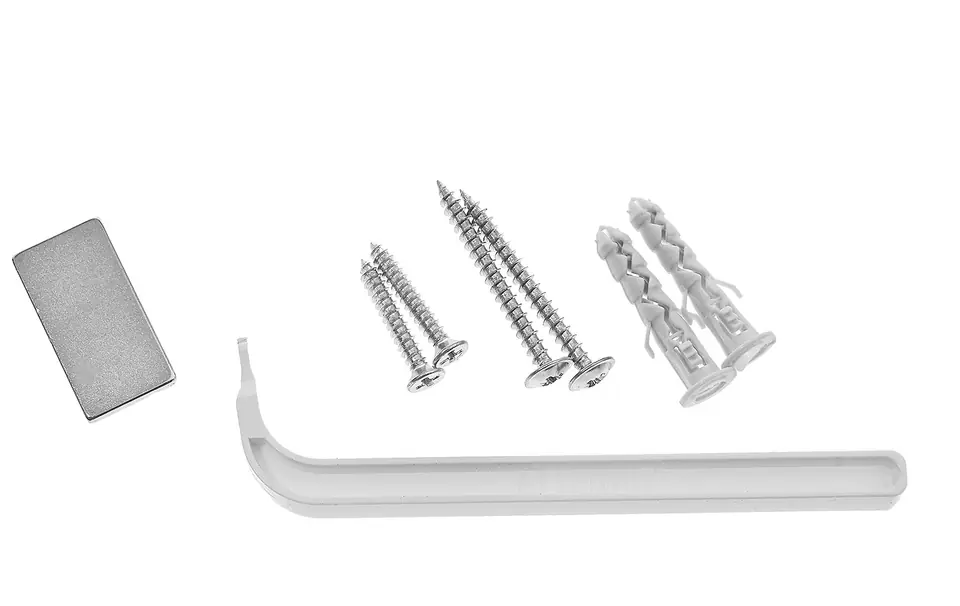

| Selected features:: | Operating modes: Magnetic detector- Opening a door or window - input enabling connection of a wired detector type NC- 1 Alarm output Shock detector - Detection of shocks and vibrations accompanying attempts to force through a door or window - Range: 3 m - input enabling connection of a wired detector type NC- 1 Alarm output Shock and magnetic detector - Detection of shocks and vibrations accompanying attempts to force force through a door or window - Opening a door or window - entrance enabling connection of a wired detector type NC- 1 / 2 Alarm outputs Water flood sensor - FPX-1 probe required available separately - detection of the presence of water in rooms at risk of flooding - 1 Alarm output Detection of sabotage - opening of the housing, detachment from the ground LED signaling Supervision of supply voltage In the set 2 magnets (for surface mounting and flush mounting) Compliance with EN 50130-4 standards, EN 50130-5, EN 50131-1, EN 50131-2-6 |
| Sensitivity of sns input (flood probe): | 1 s |
| Shock detection range: | 3 m |
| Shock sensor: | Yes |
| Sns input sensitivity (nc type detector): | 150 ms |
| Warranty:: | 2 years |
| Weight: | 46 g |
| Width: | 20 mm |

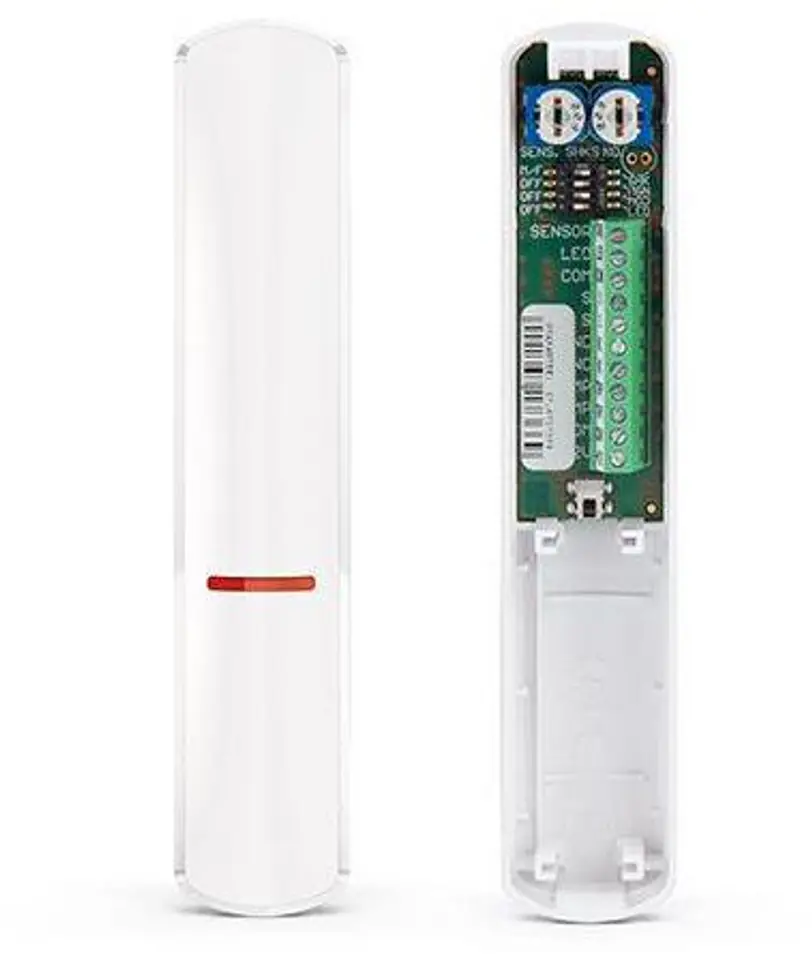

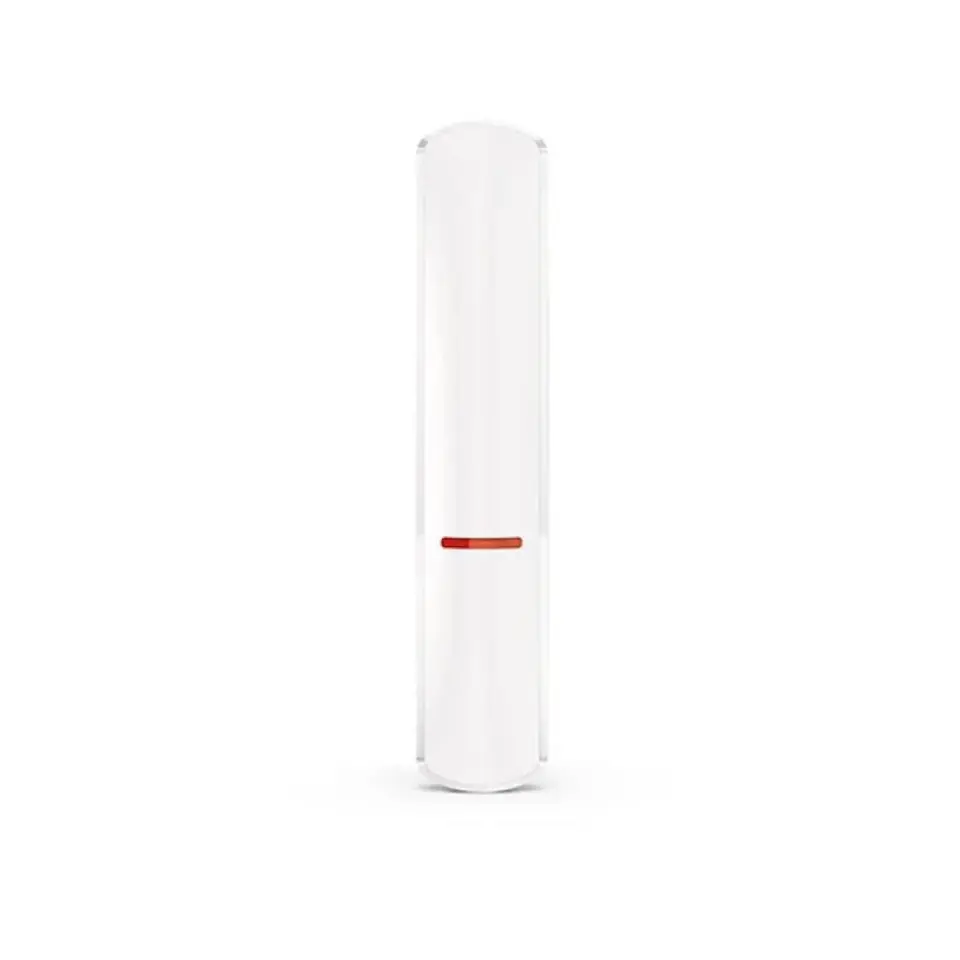

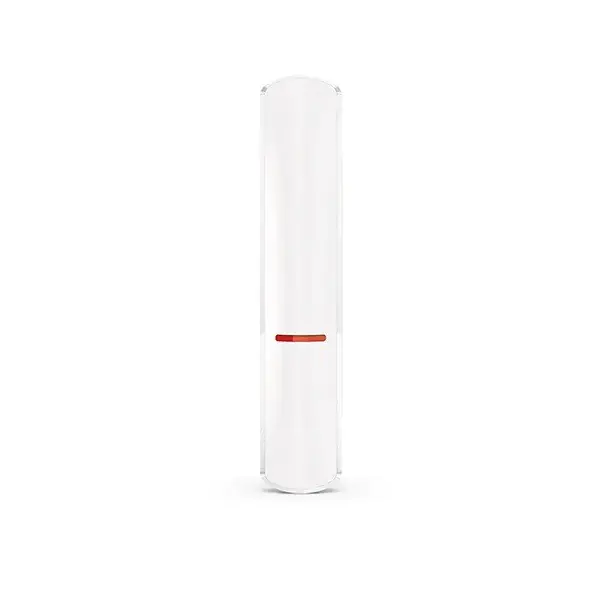

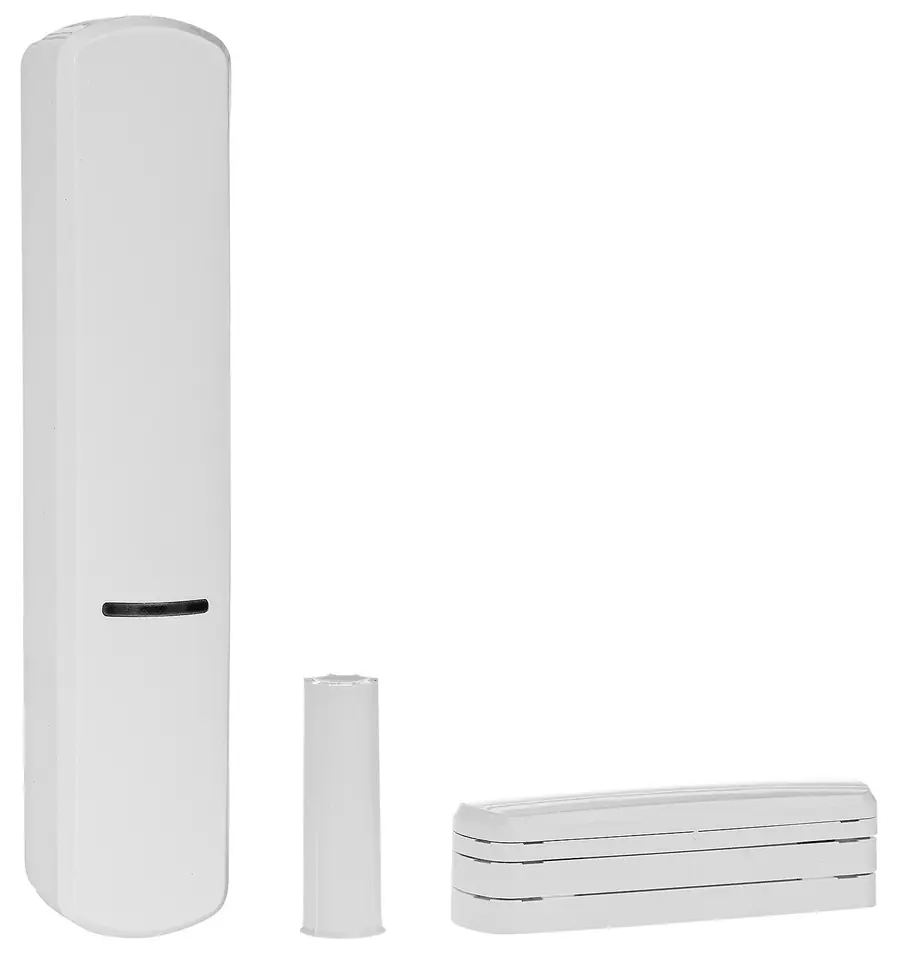

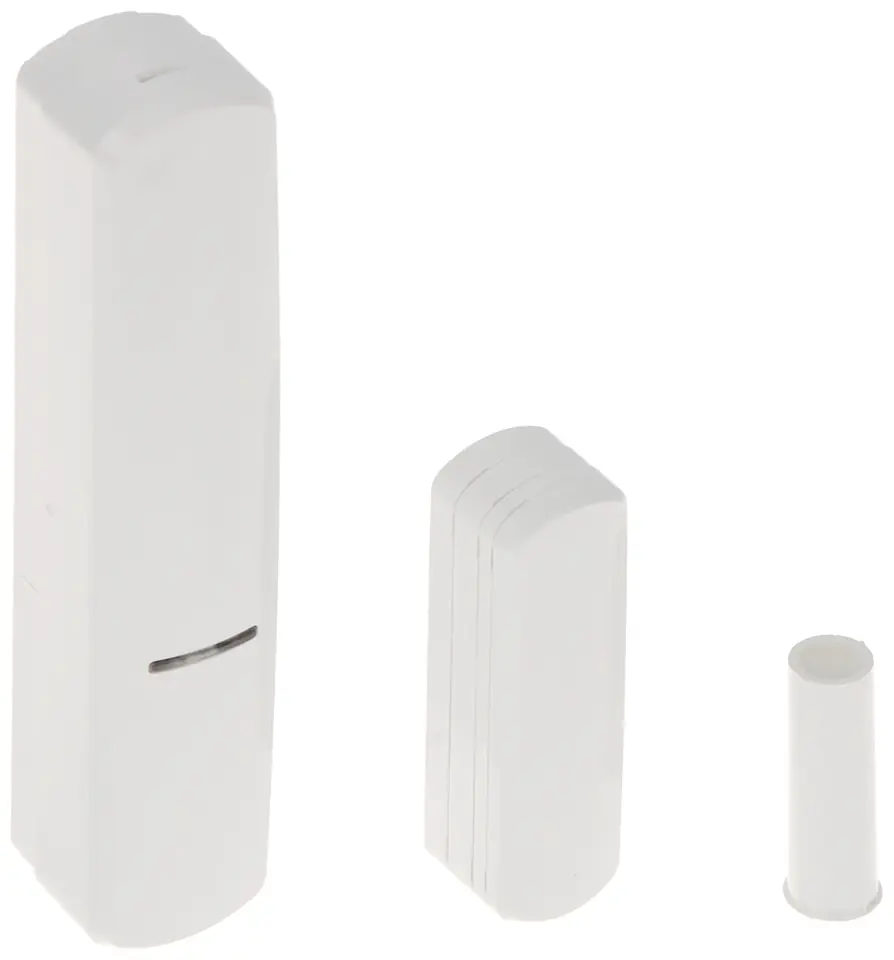

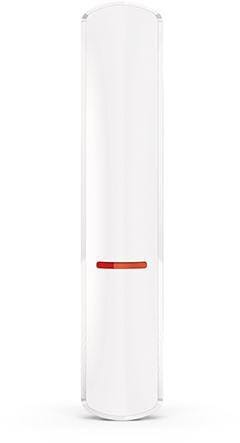

The XD-2 wired detector can work in one of 4 modes, which makes it an extremely versatile deviceThe device, depending on your needs, can be configured as: magnetic detector, shock detector, reed shock detector or water flood detector (external FPX-1 probe required - available separately)
XD-2 works with any alarm control panel
