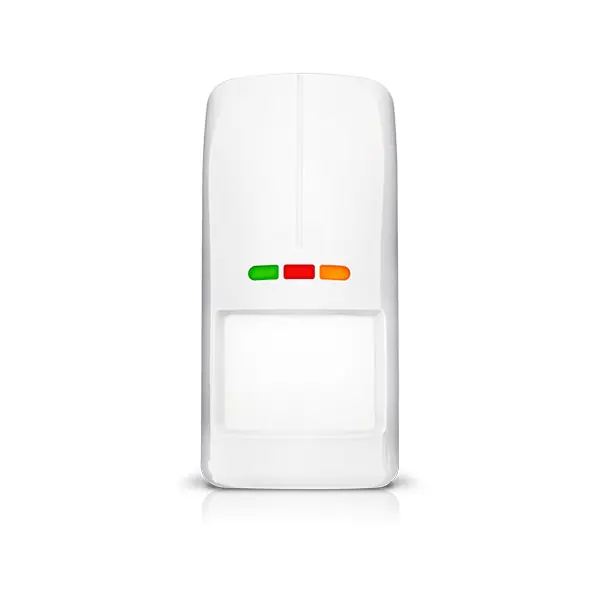

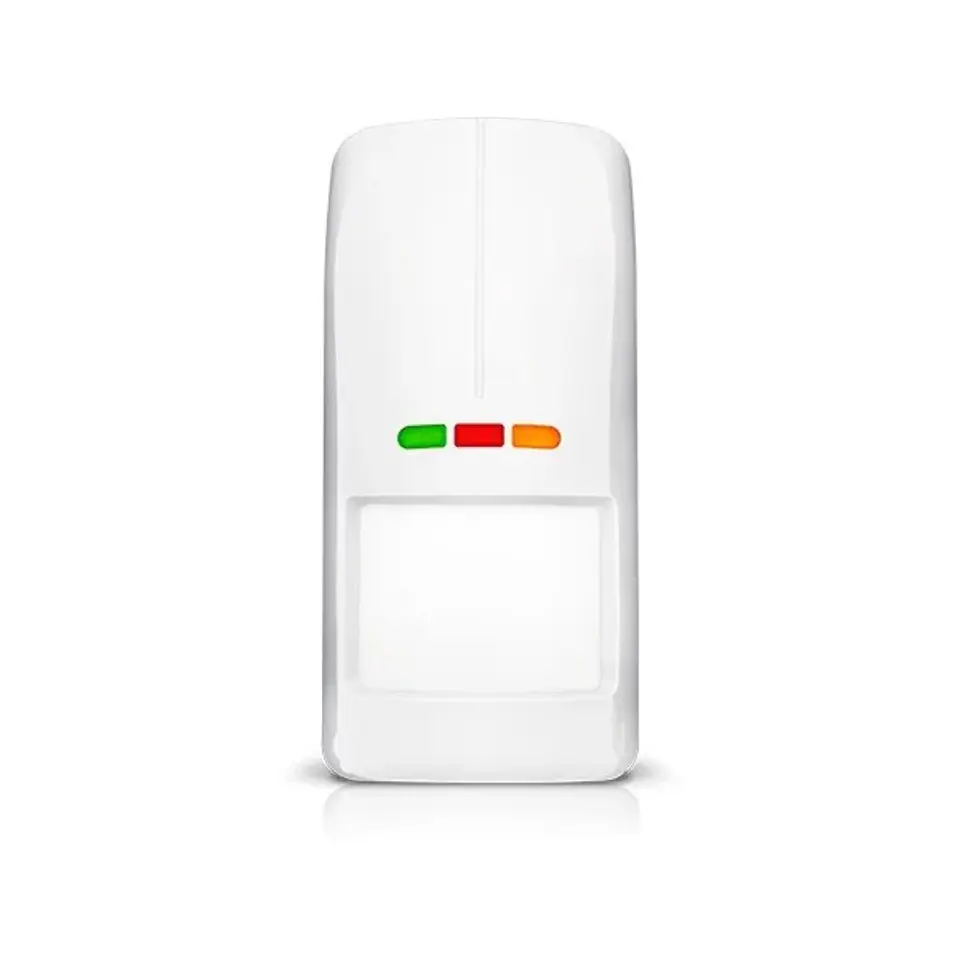

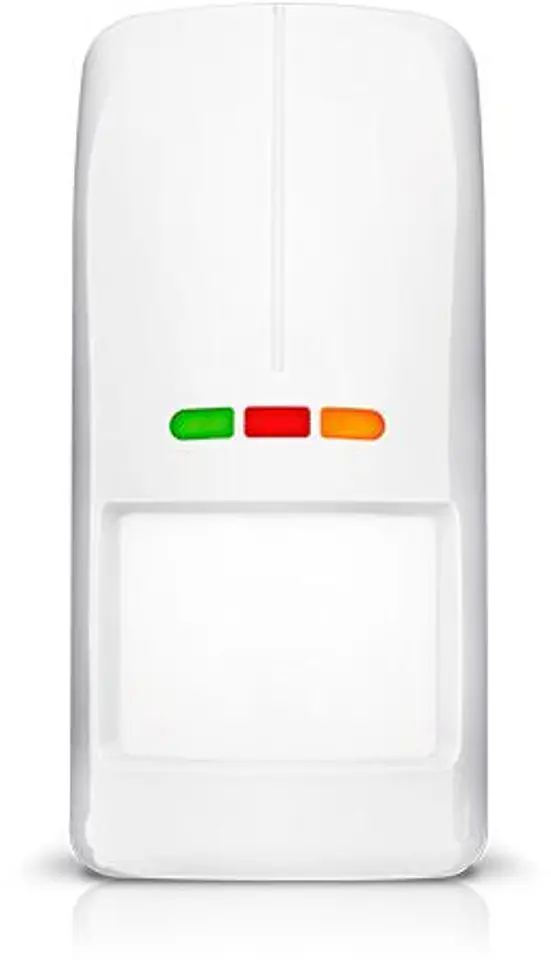

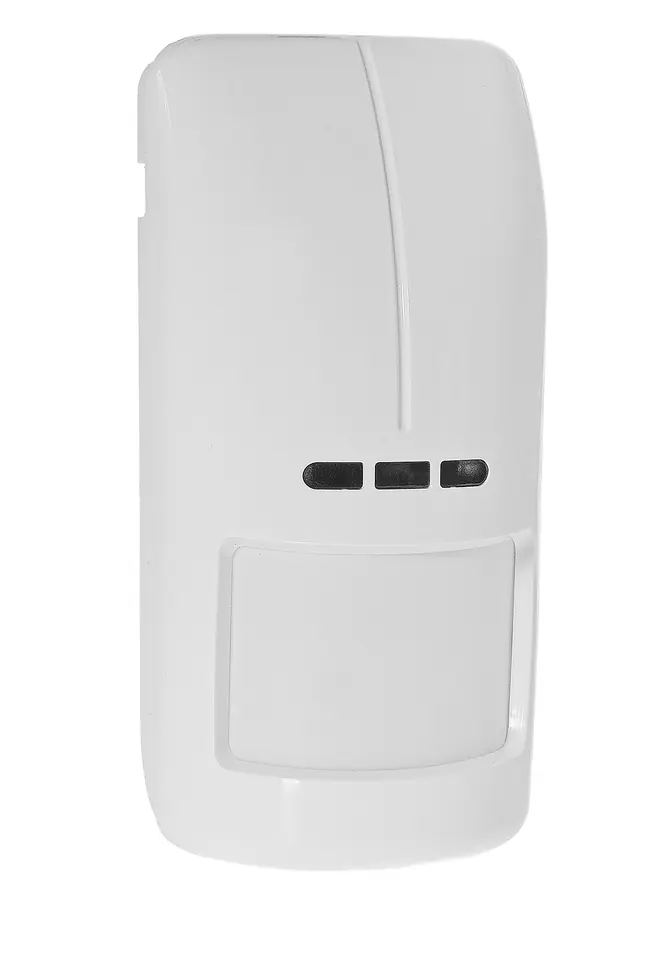

AOD-210 Dual Wireless Detector
The AOD-210 detector is designed to operate as part of a two-way wireless ABAX 2/ABAX system outdoors as well as indoors in protected areas with specific environmental conditions (e.g. halls). The detector complies with the requirements of EN 50131 Grade 2 (for indoor applications).

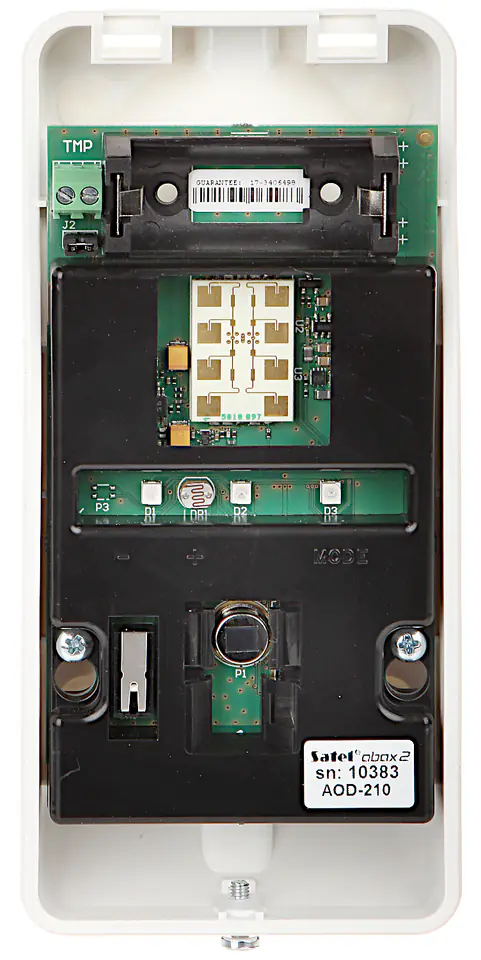

The use of two detection paths (PIR + MW), combined with advanced digital signal processing and dynamic temperature compensation, ensures effective motion detection. The device can also protect the approach zone and also perform the pet immunity function (up to 20 kg). The AOD-210 monitors the motion detection system and signals any malfunctions. The detector is characterised by high resistance to false alarms.
The AOD-210 has built-in sensors: temperature and twilight (with sensitivity adjustment), which allow it to be used in alarm systems with home automation without the need to install additional solutions. LED indicators indicate violations in test mode, facilitating the detector testing process.
Configuration of the device, as well as software updates, take place remotely. In the ABAX 2 system, radio communication is encrypted in the AES standard.

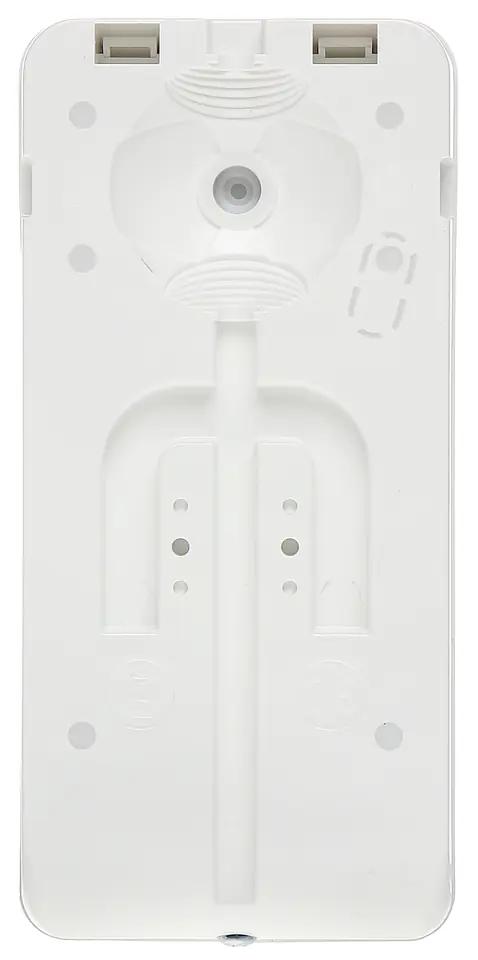

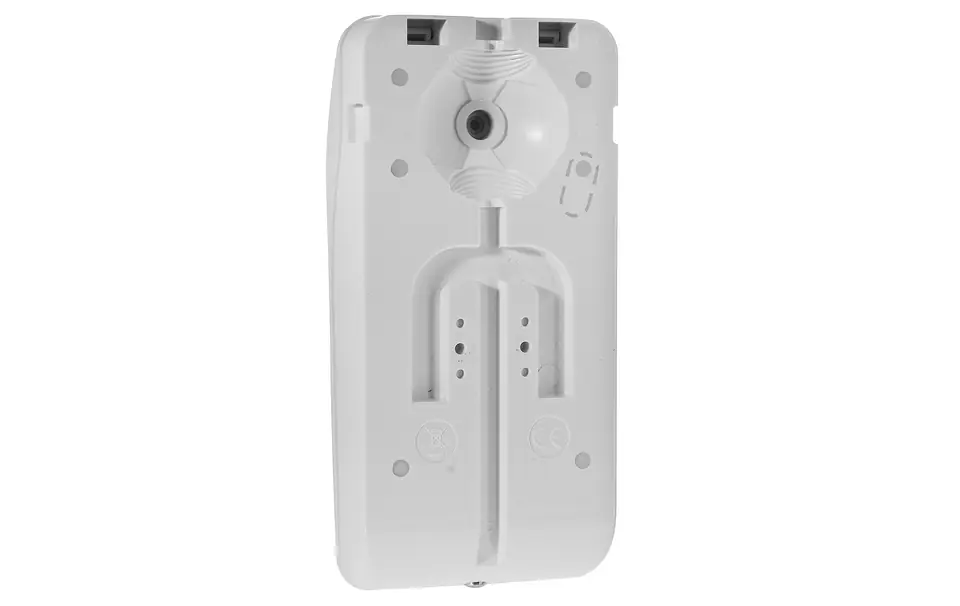

The detector has a polycarbonate housing (IP54 protection class), on which it is possible to mount the HOOD C (white colour) or HOOD C GY (grey colour) protective canopy. The design of the AOD-210 detector allows it to be mounted directly on a flat surface. If the unit is to be tilted, either vertically or horizontally, special brackets - angle or ball - from the set: BRACKET E, or BRACKET C (white) or BRACKET C GY (grey) should be used.
To increase the detector's distance from the wall, even by several centimetres, it is worth using the BRACKET E modular bracket. This will prevent the detector's detection area from being restricted by a cornice, external blind, cable tray, lamp, gutter or uneven wall.
The detector is equipped with sabotage protection, against opening and detachment from the ground.
- The AOD-210 is available in two colour versions: white (AOD-210) and grey (AOD-210 GY).
- Complies with EN 50131 Grade 2 requirements (for indoor applications)
- Two detection paths: PIR (double pyroelement) and microwave

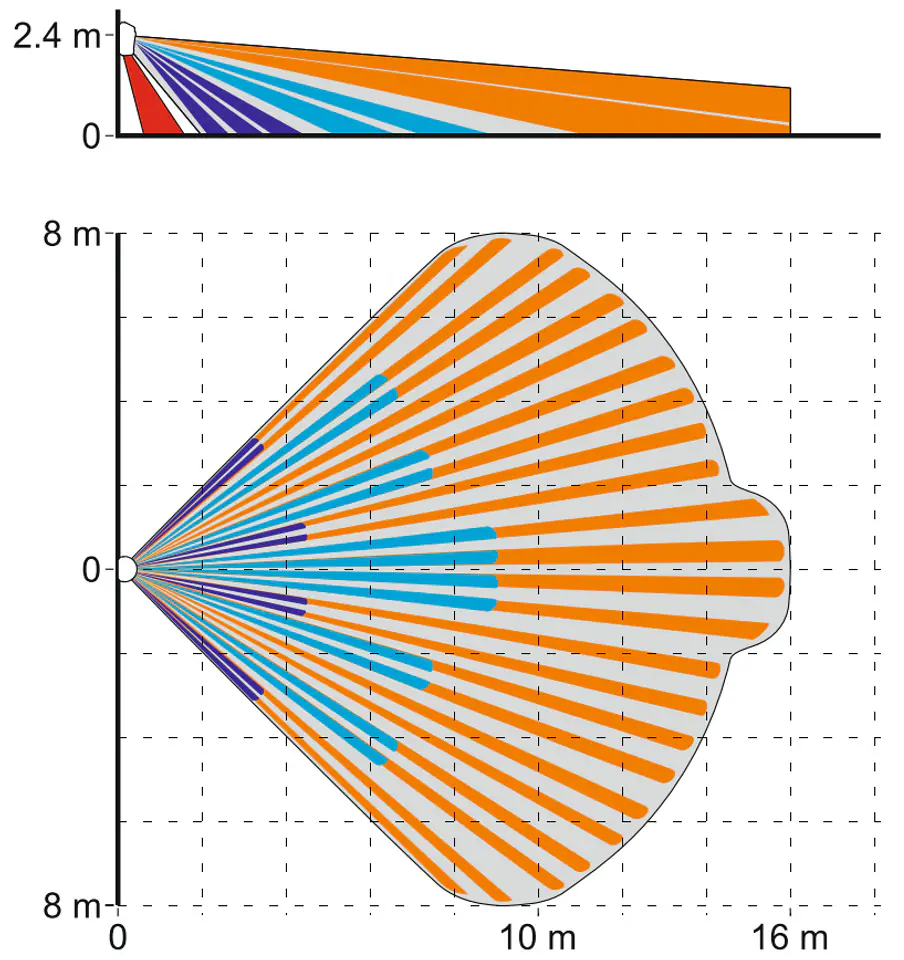

- Detection area: 16 m x 16 m, 90° angle
- High resistance to false alarms
- Advanced digital signal processing
- Dynamic compensation for temperature variations
- Creep zone control
- Built-in twilight sensor
- Remote configuration and software update
- Built-in temperature sensor (temperature measurement from -40°C to +55°C)
- Independently adjustable sensitivity of PIR, MW and twilight sensors
- Three LED indicators for indicating violations in test mode
- Pet immunity function (up to 20 kg)
- Weatherproof polycarbonate housing with IP54 rating
- Low energy consumption and battery monitoring
- ECO option to extend battery life (ABAX 2 only)

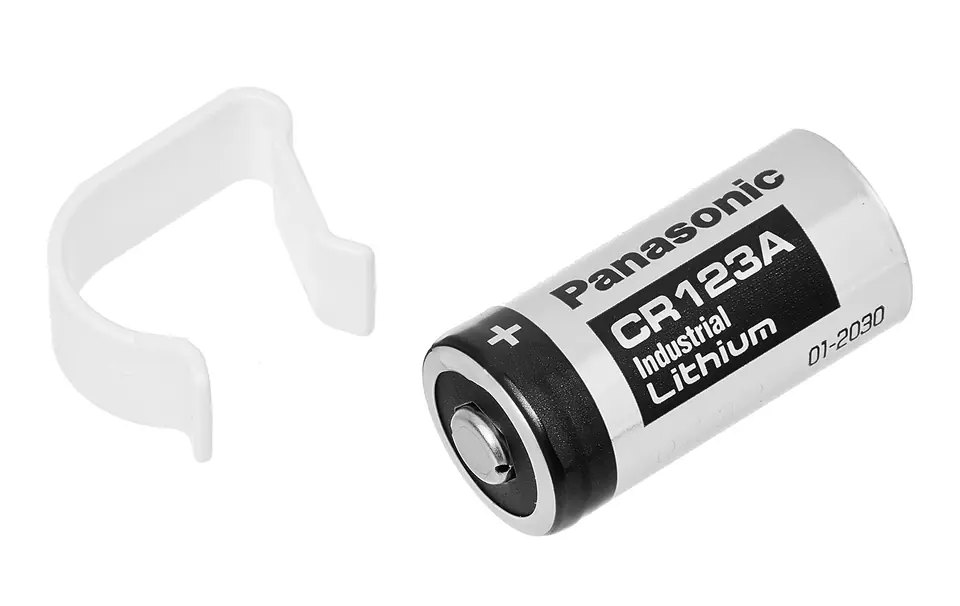

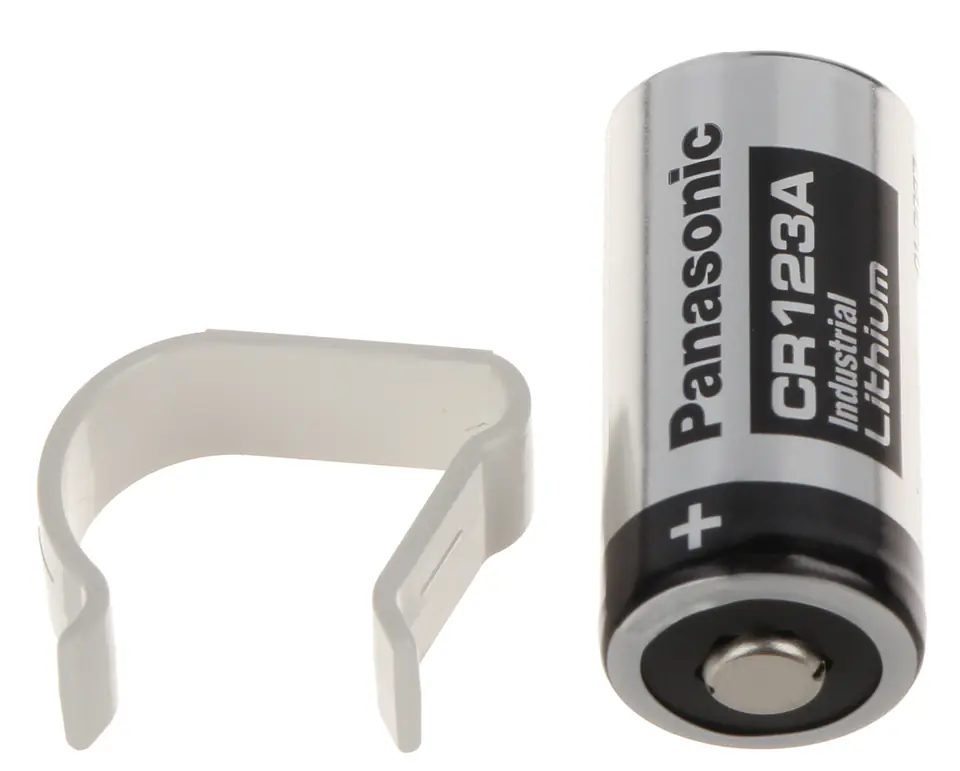

- Power supply: CR123A 3 V battery
Works with:
- ABAX 2 system controllers (ACU-220 and ACU-280) and ARU-200 retransmitter
- ABAX system controllers (ACU-120, ACU-270, ACU-250 and ACU-100 (min. version 4.04)), INTEGRA 128-WRL control panel and ARU-100 retransmitter - please refer to its description on www.
Range of radio communication in open space:
- In ABAX 2: up to 2000 m (with ACU-220) / up to 1600 m (with ACU-280).
- In ABAX: up to 500 m
Can be mounted directly on a flat surface or with the use of:
- Dedicated brackets from the BRACKET C set:
- Angle bracket: fixed angle 45°
- Ball bracket: up to 60° vertically and up to 90° horizontally
Dedicated holders from BRACKET E set:
- BRACKET E-1 (GY) body for mounting BRACKET E-2B
- BRACKET E-2B (GY) insert for mounting AOD-210 outdoor detectors
- BRACKET E-3 (GY) distance piece (height 30 mm)
- BRACKET E-4 (GY) base (height 20 mm)
- BRACKET E-5 (GY) ball mount for OPAL series outdoor detectors: range 60° vertically and up to 90° horizontally
- BRACKET E-6 tamper switch (1 NO/NC switch, cable length 50 cm)
- Tamper-proof against opening the housing and against tearing off the ground
- Protective canopy HOOD C can be mounted on the housing
