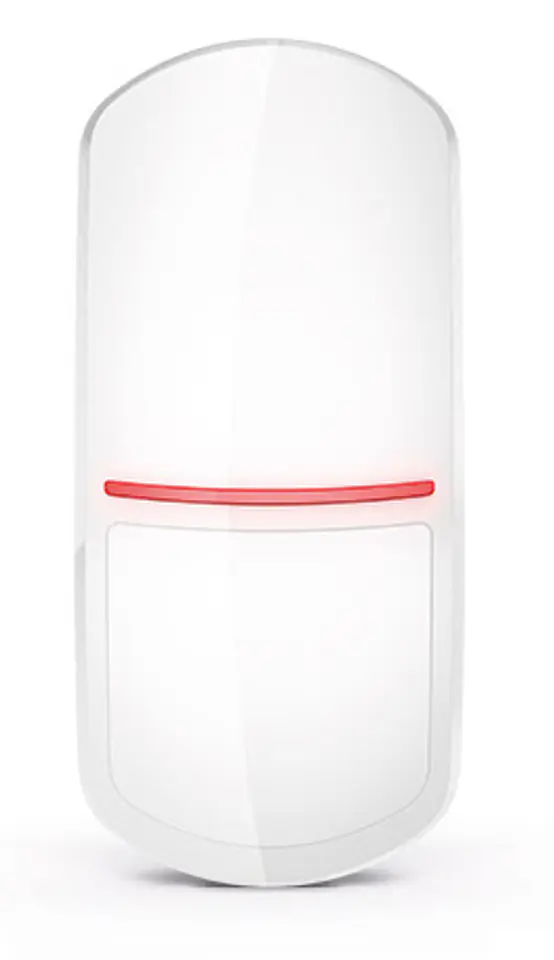

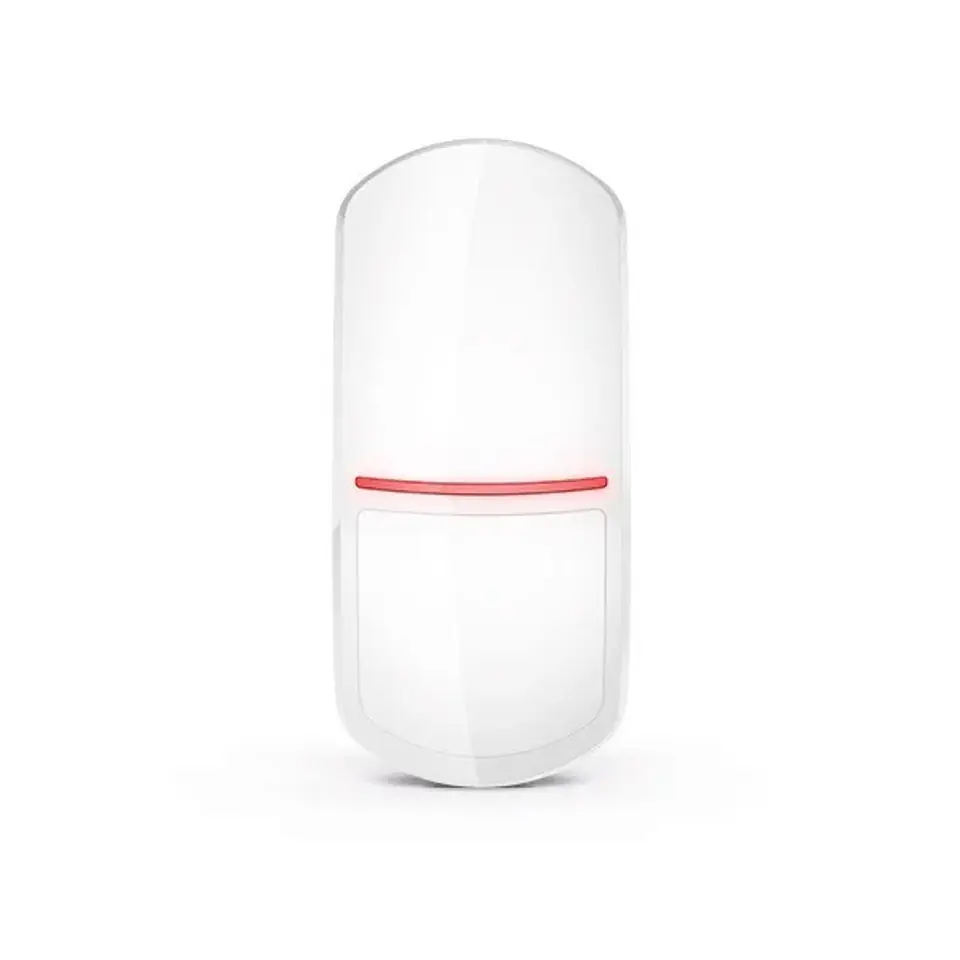

APD-200 wireless motion detector
The APD-200 detector is designed for use within an ABAX 2/ABAX two-way wireless system. It is certified in accordance with the requirements of EN 50131 Grade 2.
Effective motion detection is achieved thanks to a double pyroelement, digital detection algorithm and dynamic temperature compensation of the protected premises. The APD-200 has a modern wide-angle lens. It is possible to replace it with a curtain lens (CT-CL) or a long-range lens (LR-CL). Depending on requirements, the detector can also protect the approach zone by means of an adjustable mirror. The APD-200 monitors the motion detection system in case it malfunctions, the unit will report an alarm.
Configuration, as well as updating of the APD-200 software, is carried out remotely. Radio communication in the ABAX 2 system is encrypted in the AES standard.

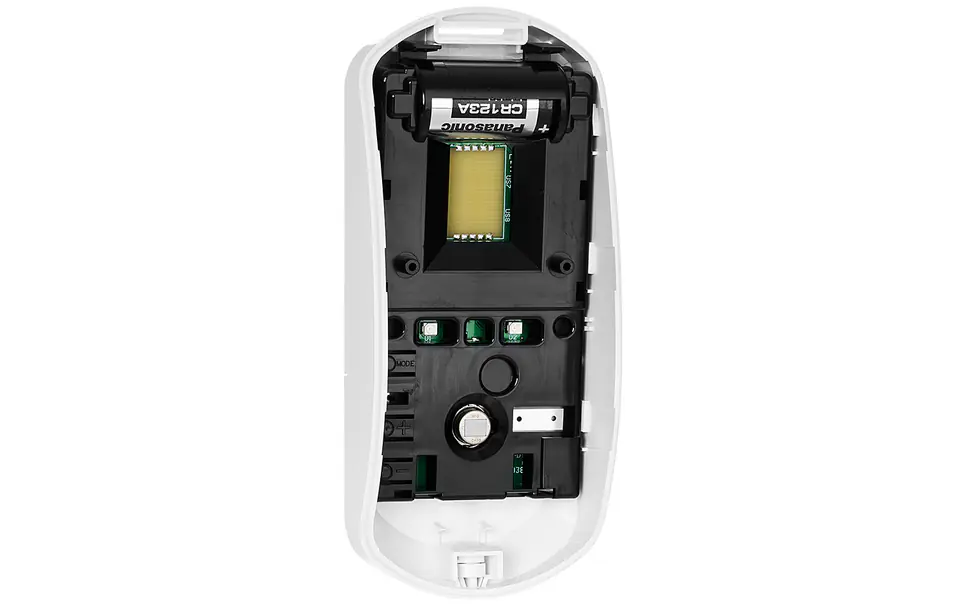

The detector is powered by a CR123A 3 V battery, the status of which is continuously monitored. The device is characterised by low power consumption. The available ECO option (only on ABAX 2) allows up to four times the operating time, without having to replace the battery.

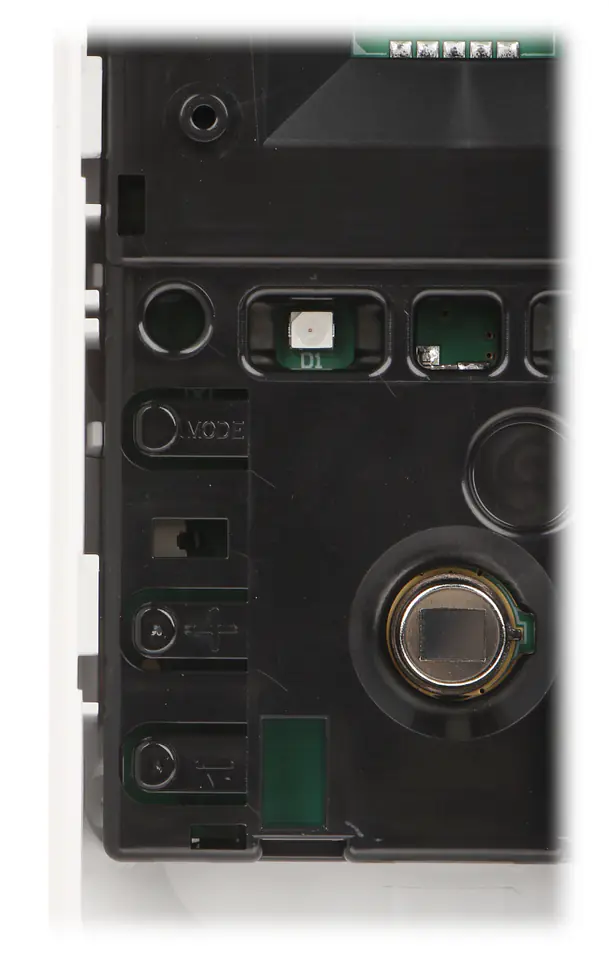

An LED indicator signals violations in test mode, facilitating the detector testing process.

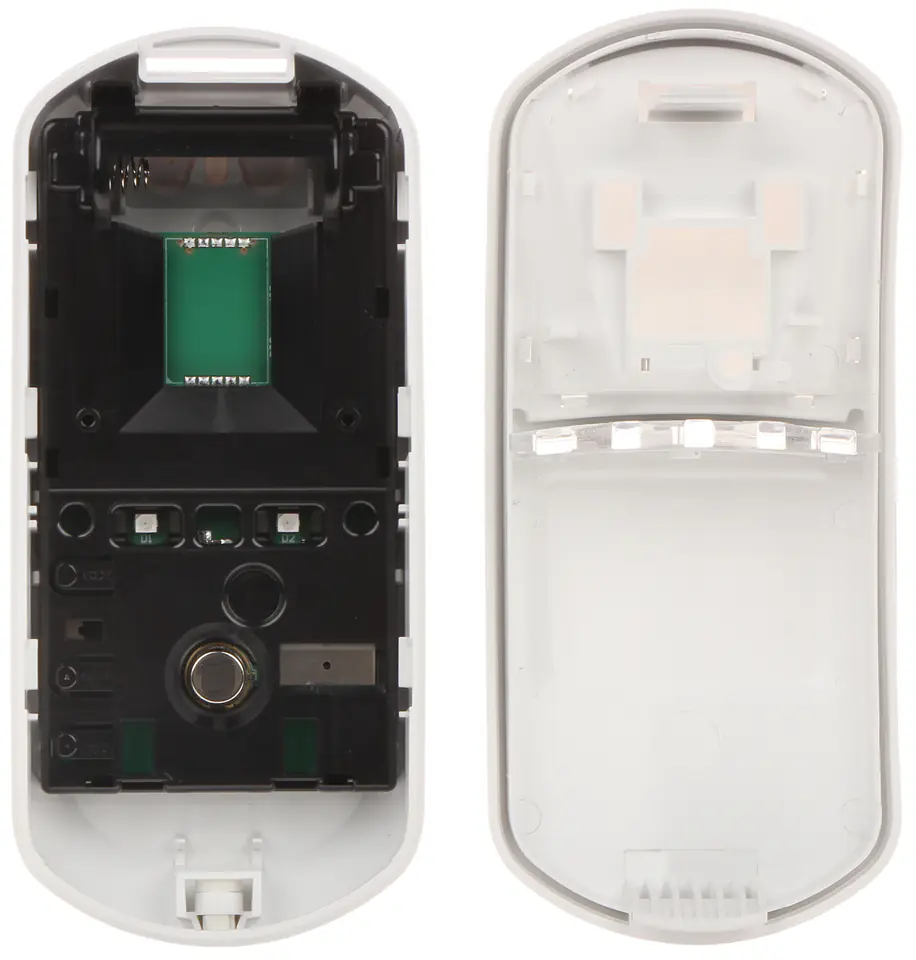

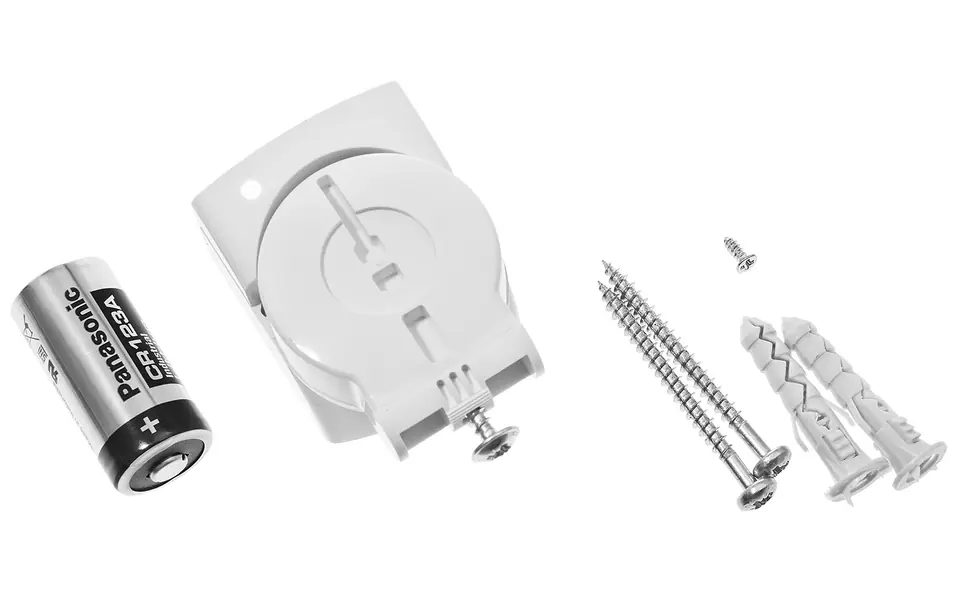

The unit can be mounted on an adjustable ceiling/wall bracket. The detector has tamper protection against opening and detachment from the ground.
- Certified to EN 50131 Grade 2 requirements.
- Dual pyroelement (passive infrared detector)
- Modern wide-angle lens

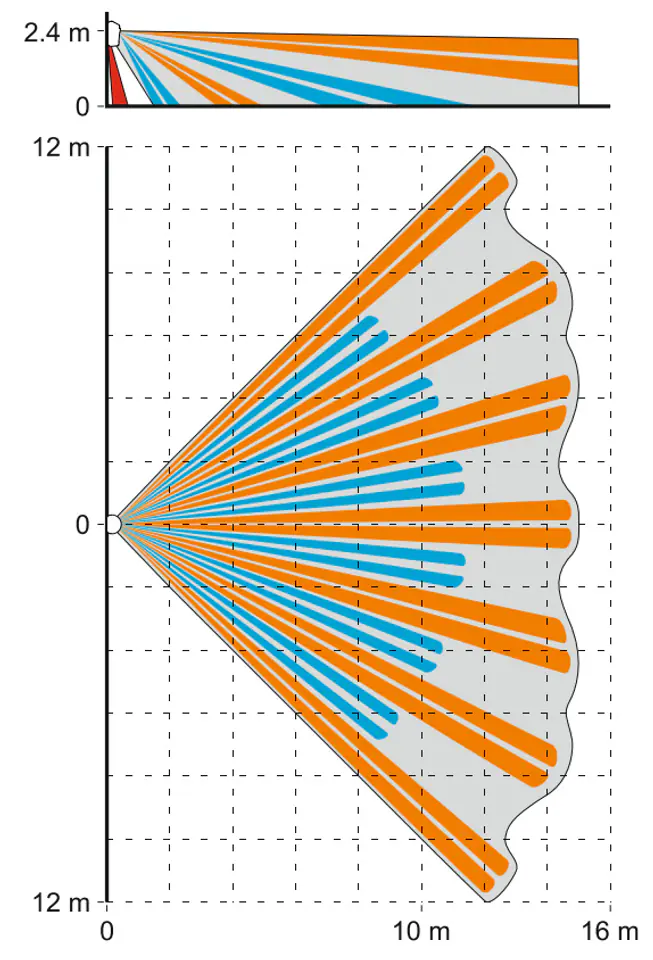

- Detection area: 15 m x 24 m, 90° angle
- Lens interchangeable with curtain (CT-CL) or long-range (LR-CL) lens
- Advanced digital signal processing
- Dynamic compensation for temperature variations in the room to be protected
- Remote configuration and software update
- Built-in temperature sensor (temperature measurement from -10°C to +55°C)
- Creep zone monitoring can be switched on/off
- LED display indicating violations in test mode
- Low power consumption and battery monitoring
- ECO option to extend battery life (ABAX 2 only)

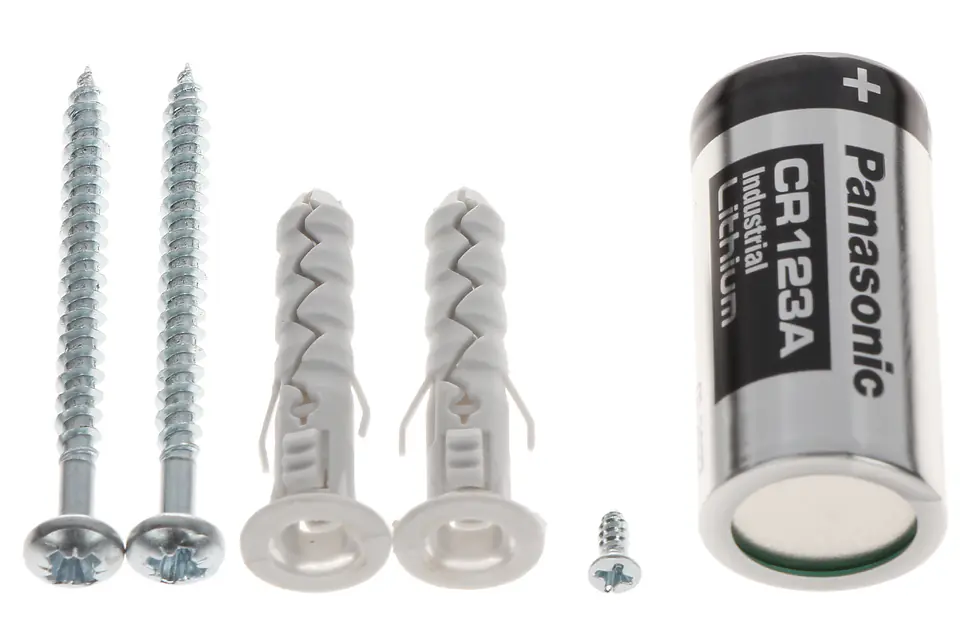

- Power supply: CR123A 3 V battery
- Adjustable bracket for mounting on wall or ceiling
- Tamper protection against opening the housing and against detachment from the ground
Works with:
- ABAX System Controllers 2 (ACU-220 and ACU-280) and Retransmitter ARU-200
- ABAX system controllers (ACU-120, ACU-270, ACU-250 and ACU-100 (min. version 4.04)), INTEGRA 128-WRL control panel and ARU-100 retransmitter - please refer to its description on www.
Range of radio communication in open space:
- In ABAX 2: up to 2000 m (with ACU-220) / up to 1600 m (with ACU-280).
- In ABAX: up to 500 m
