| Alarm signaling:: | Signal to the control panel |
|---|---|
| Battery life:: | ~ 2 years |

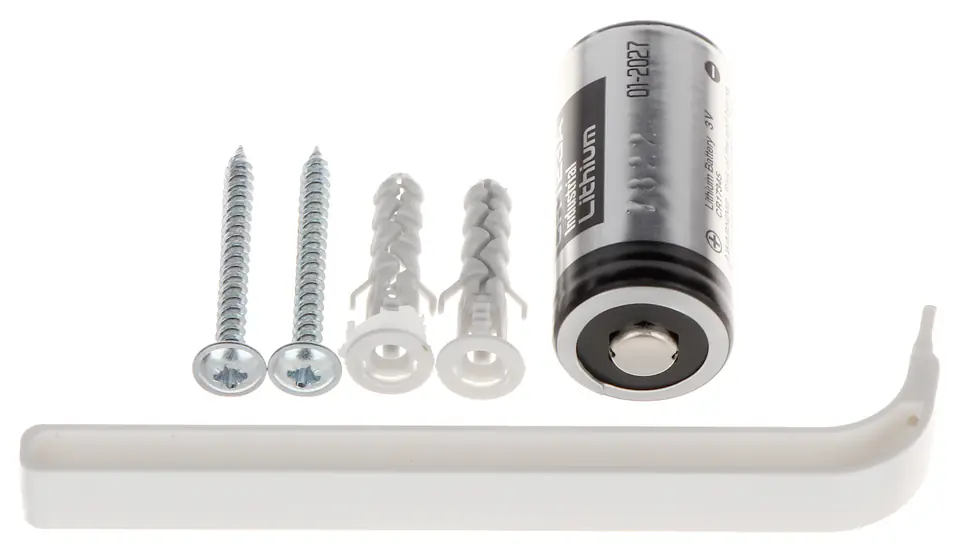

| Battery:: | CR123A 3 V - 3.0 V (included) |
| Colour:: | white |
| Cooperation:: | ABAX/ABAX2 |
| Detection:: | detection of breakage of ordinary, tempered and laminated glass |
| Dimensions:: | 20 x 102 x 23 mm |
| Frequency band:: | 868 MHz ... 868.6 MHz |
| Manufacturer / brand:: | SATEL |
| Operating temperature:: | -10 °C ... 55 °C |
| Radio communication range (in open area):: | ~ 500 m @ ABAX, ~ 2000 m @ ABAX2 |
| Scales:: | 0.02 kg |
| Selected features:: | Advanced Microprocessor Dual-Track Signal Analysis Remote Configuration TamperIng Protection |
| Warranty:: | 2 years |
The sensor signals an alarm if it registers a low-frequency signal (impact sound) and a high-frequency signal (broken glass sound)A low-frequency sound wave caused by an impact causes the sensor to start analyzing the high-frequency channel
AGD-200 works with other devices compatible with the ABAX/ABAX2 wireless system
