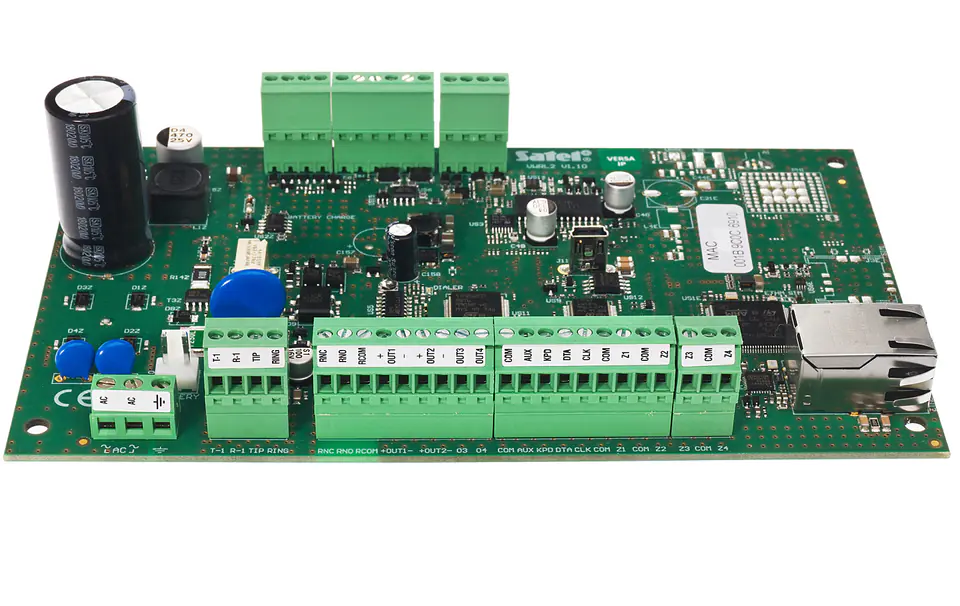

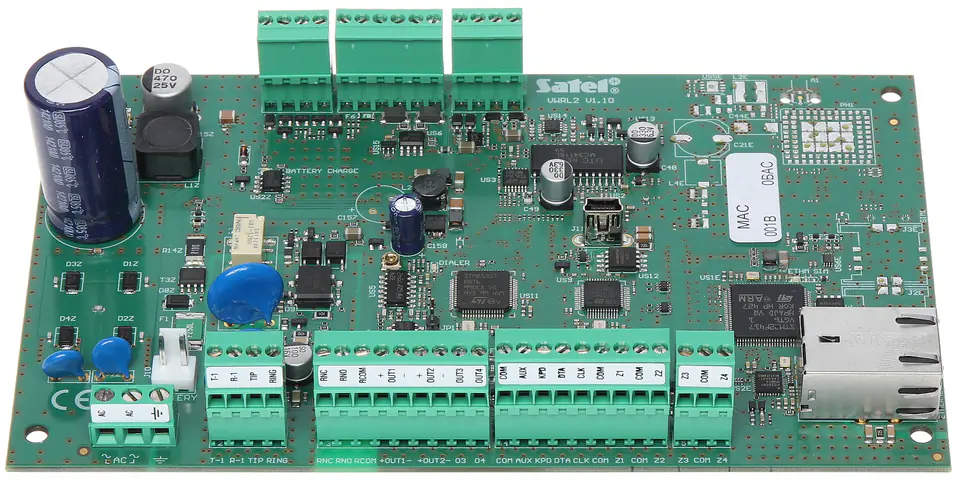

SATEL VERSA-IP CONTROL PANEL

Name: SATEL VERSA-IP CONTROL PANEL
Brand: Satel
SKU: 515441
Price: 221.47 EUR
Availability: InStock

€221.47

Shipping from warehouse: ⁨H7⁩

Estimated shipping: Mon, Nov 25 - Wed, Nov 27

14 days returnUnconditional return policy

Availability:: large quantity
Brand:
Product code:: VERSA-IP / 5905033330177

Specification

Current efficiency of the power supply::	2 A

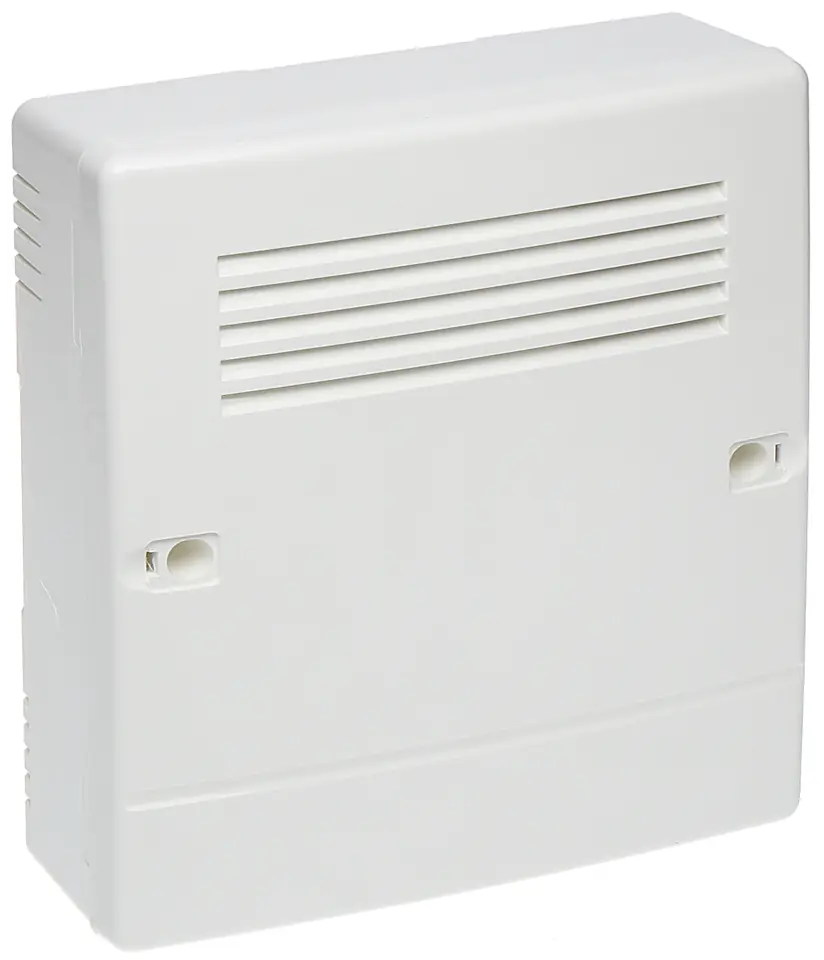

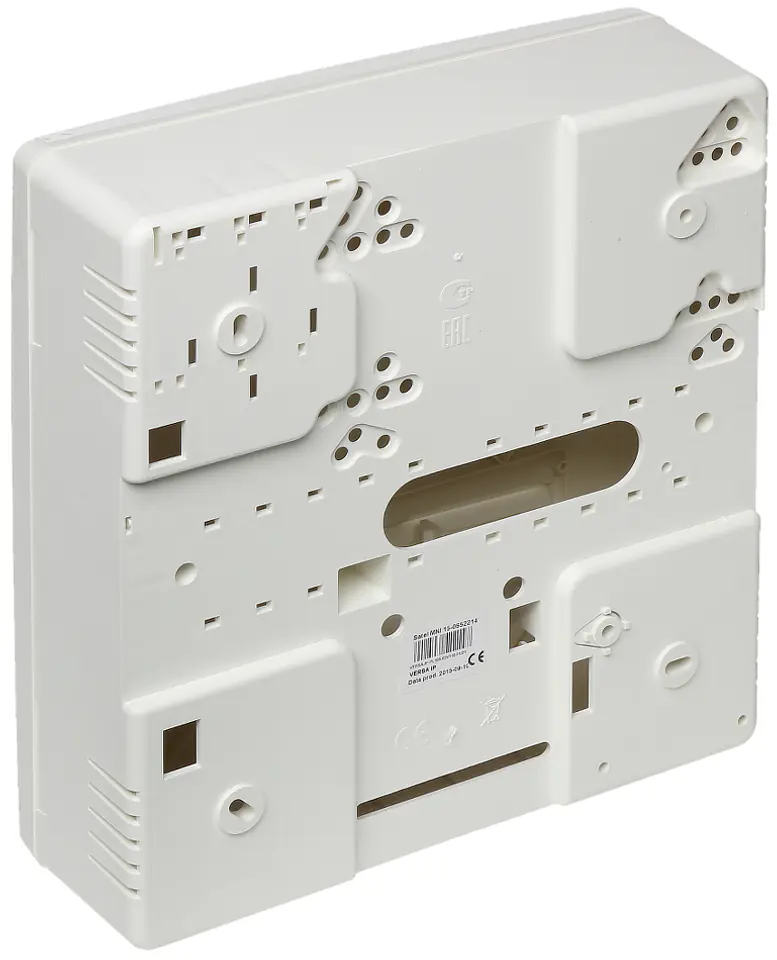

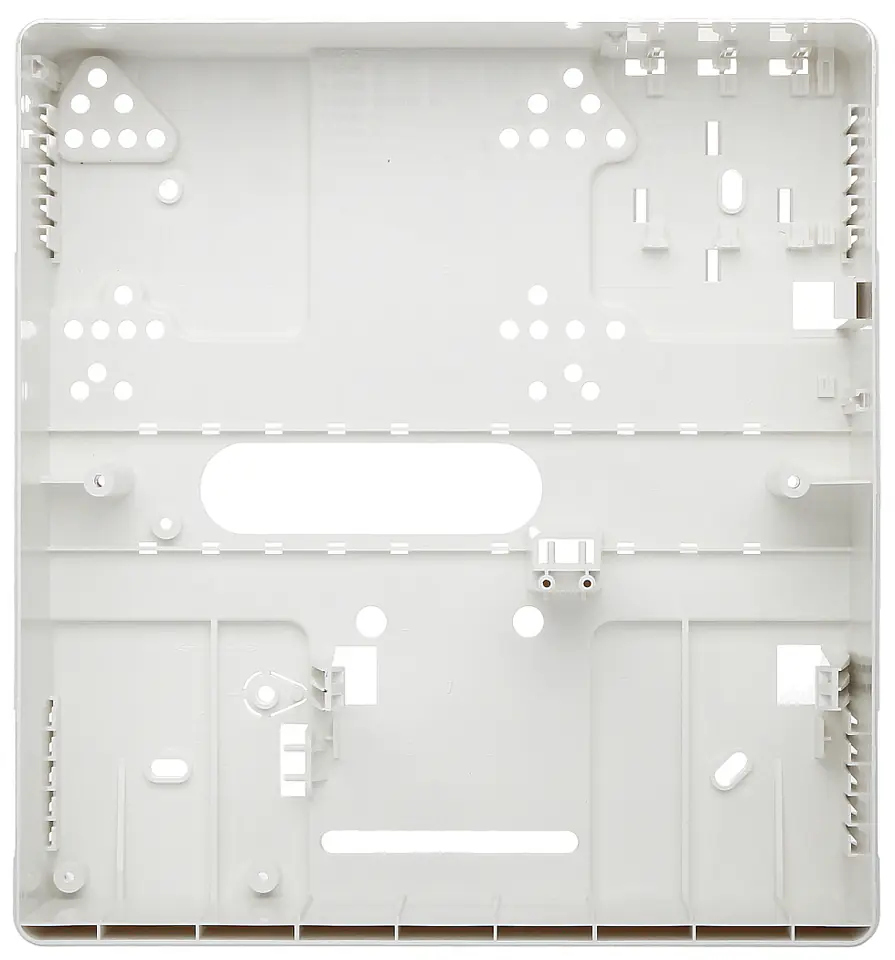

Dimensions::	173 x 105 mm - PCB286 x 266 x 100 mm - Enclosure
Event memory::	2047
Expansion modules::	Max. 3
Grade::	2
Load capacity of high-current programmable outputs (+/- 10%)::	1.1 A - 2 pcs.
Load capacity of low-current programmable outputs::	50 mA
Manufacturer / brand::	SATEL
Maximum number of supported inputs::	30 pcs.
Maximum number of supported outputs::	12 pcs.
Motherboard inputs::	4 pcs.
Motherboard outputs::	5 pcs.
Operating temperature::	-10 °C ... 55 °C
Permissible relative humidity::	93 %
Power::	18 V AC / 200 mA

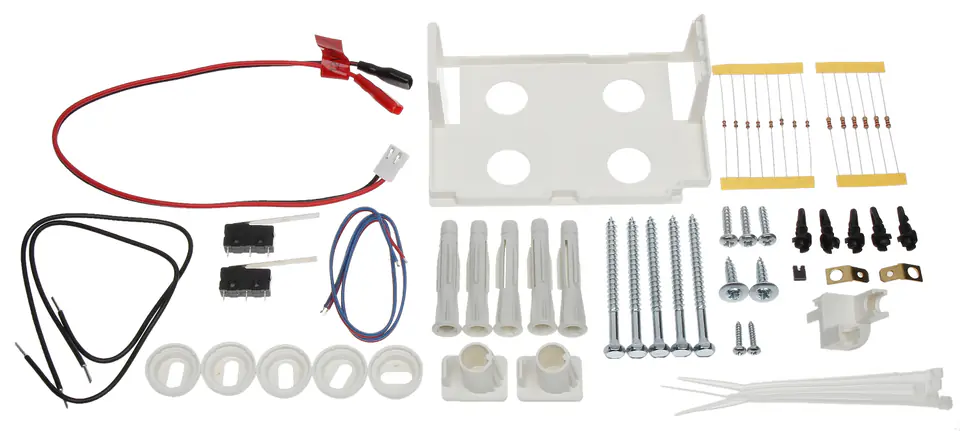

Scales::	1.22 kg (with housing and accessories)
Supported keyboards::	Max. 6 pcs.
Supported languages::	Polish - no possibility to change the language
Timers::	4
Users + administrators::	30
Warranty::	2 years
Zone::	2

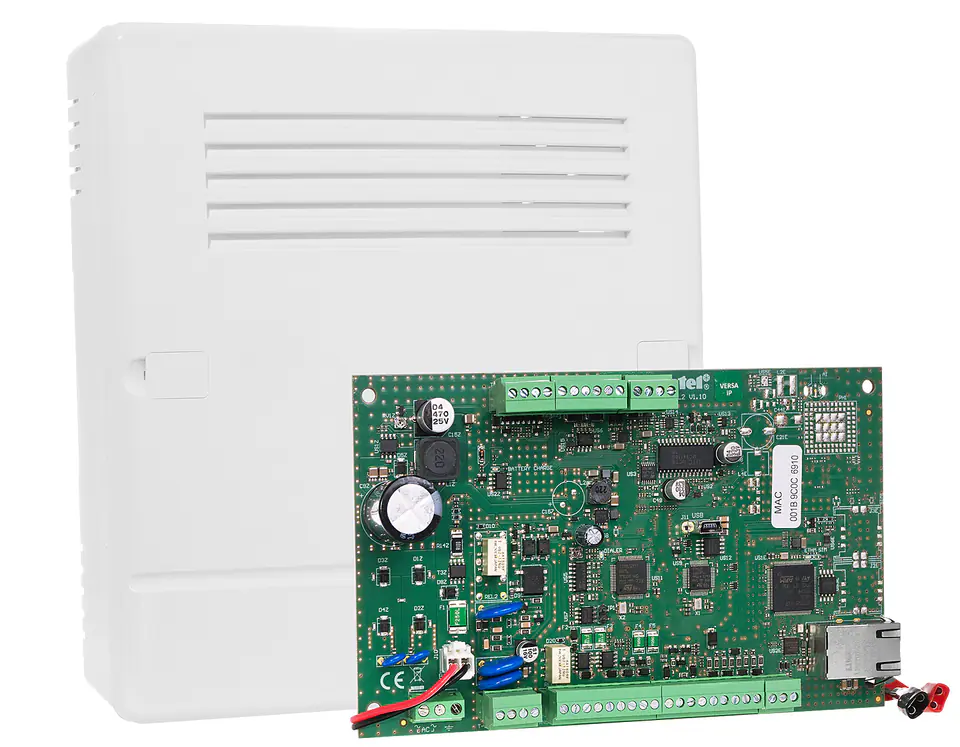

The VERSA-IP control panel is designed to protect small and medium-sized objects, offering comprehensive functionality in the field of securityThe device allows you to create a wired or wireless system, as well as a hybrid one, combining both these forms of installationCooperates with controllers that offer an excellent range of operation of devices from the ABAX family - up to 500 m in the open area

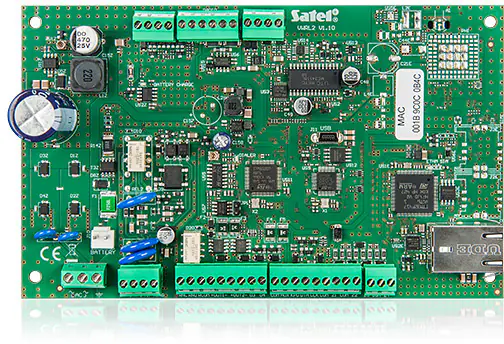

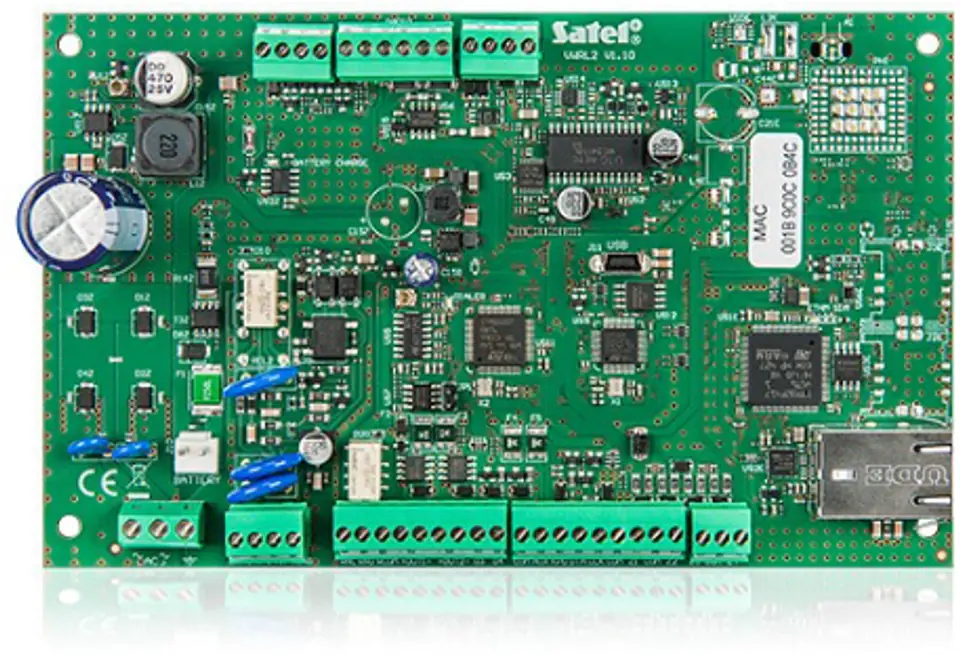

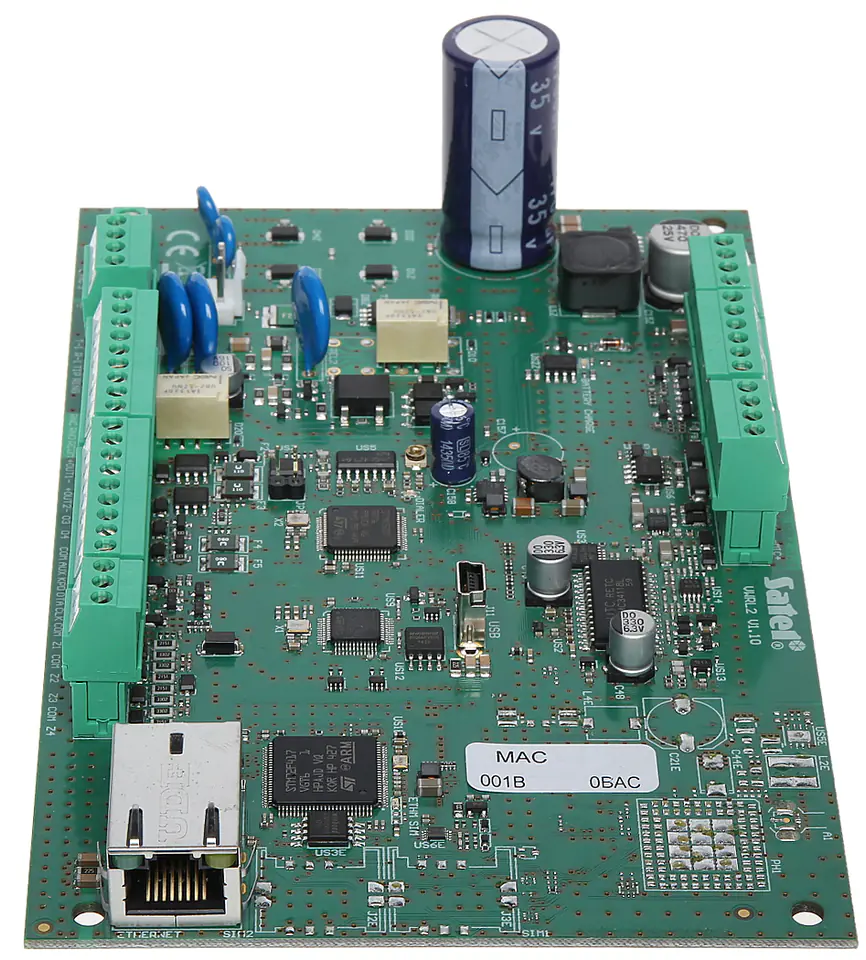

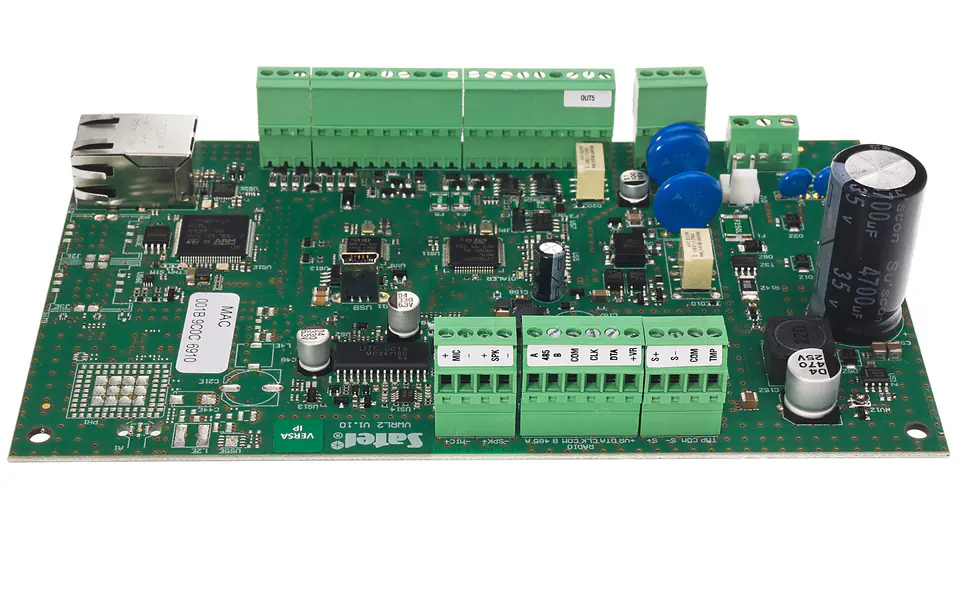

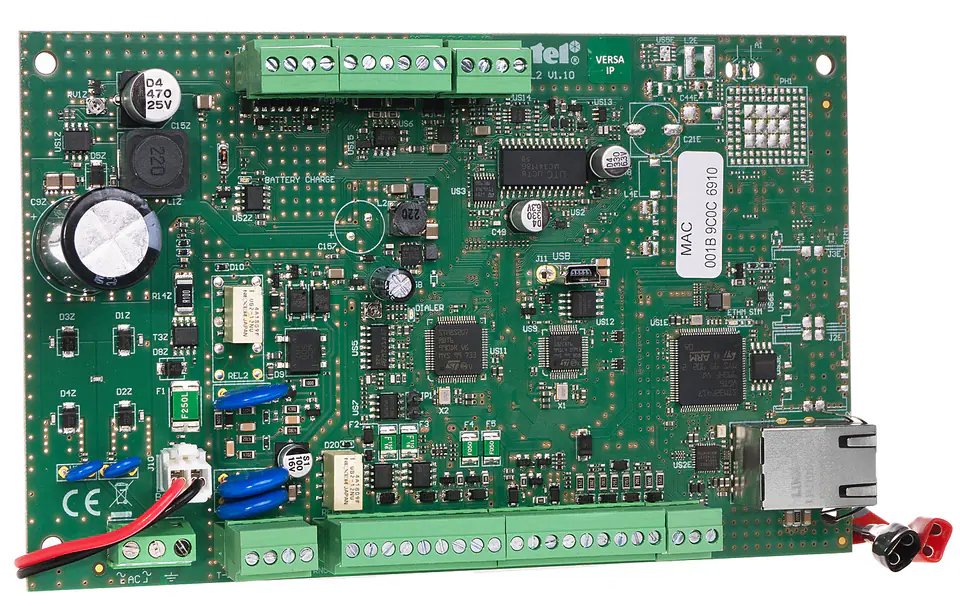

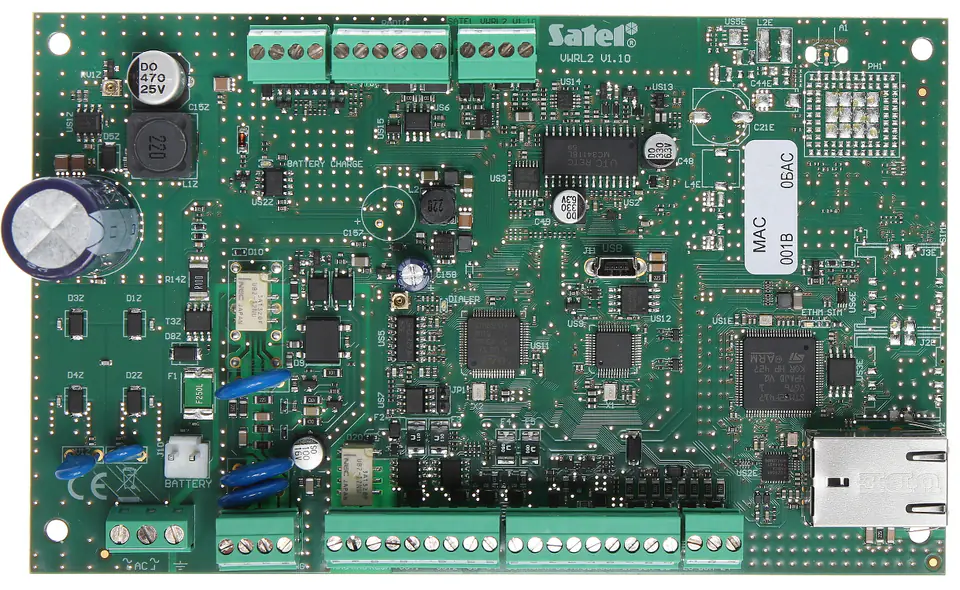

VERSA-IP is a solution that combines functionalities that have so far been available through the use of several separate devicesThe main board integrates the following modules: ETHM, INT-VG, INT-AV and PSTN dialer. Thanks to this, the control panel enables communication via 2 channels (Ethernet, PSTN), ensuring effective transfer of information

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
