| Alarm signaling:: | Signal to alarm control panel LED |
|---|---|
| Battery life:: | Max. 2 years |

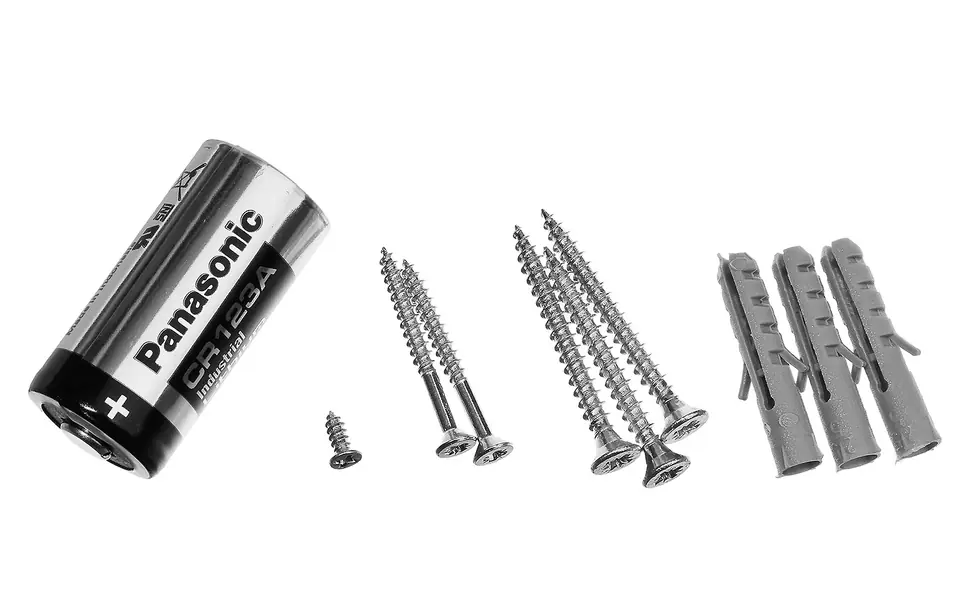

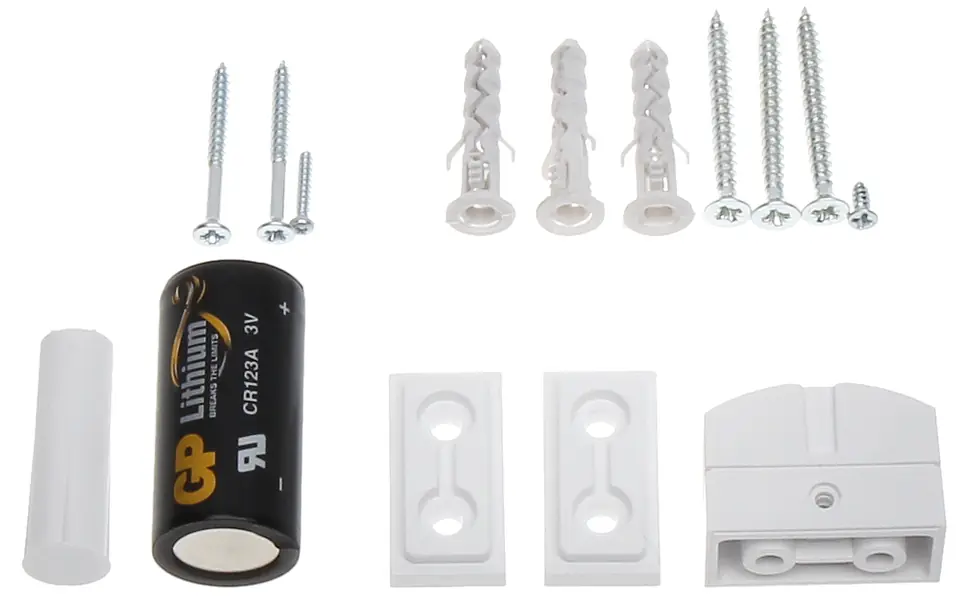

| Battery:: | CR123A 3 V (included) |
| Colour:: | white |
| Cooperation:: | Satel MICRA |
| Current consumption:: | ≤ 22 mA |
| Detection:: | Opening a door or window, Shocks, Vibrations, Water |

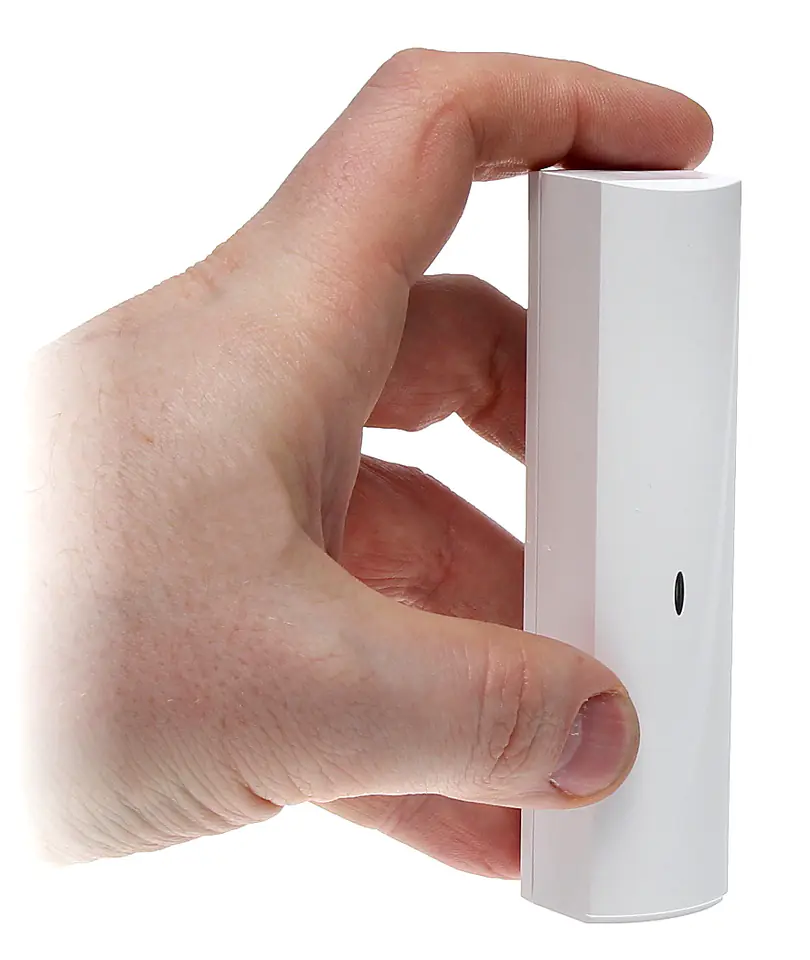

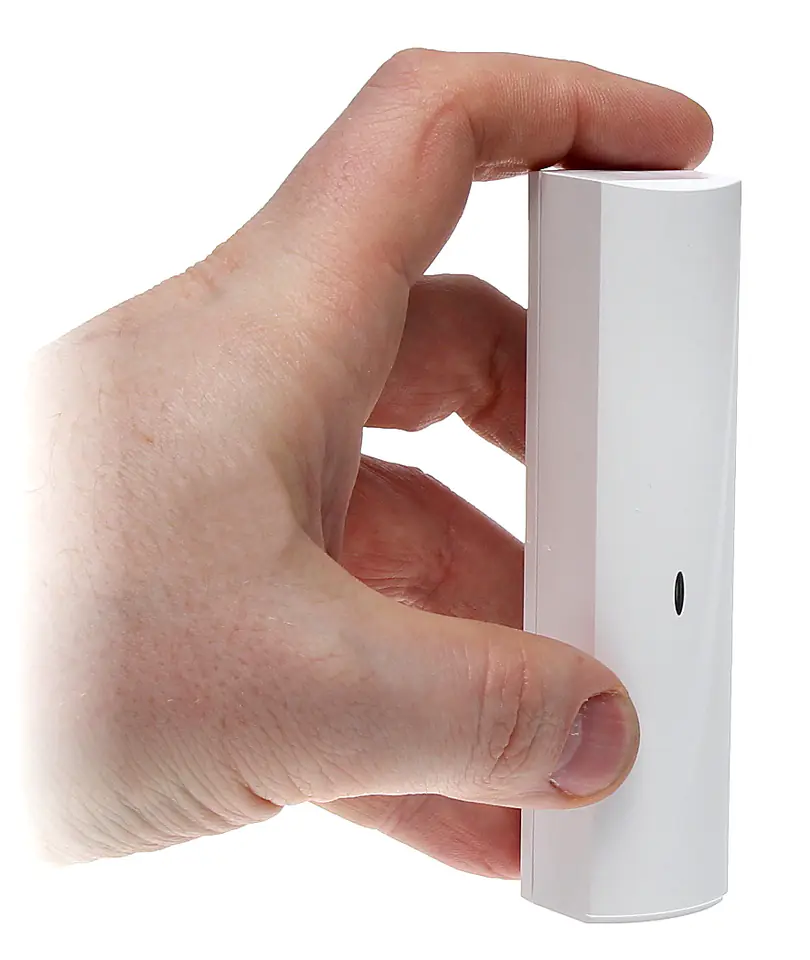

| Dimensions:: | 24 x 110 x 27 mm |
| Environmental class en 50130-5:: | II |
| Frequency band:: | 433.05 MHz ... 434.79 MHz |
| Grade:: | 2 |
| Manufacturer / brand:: | SATEL |
| Operating temperature:: | -10 °C ... 55 °C |
| Permissible relative humidity:: | 93 ± 3 % |
| Radio communication range (in open area):: | ≤ 600 m - PERFECTA≤ 500 m - VERSA-MCU / MTX-300 / MICRA≤ 300 m - MRU-300 |
| Scales:: | 0.04 kg |
| Selected features:: | detection of the presence of water in rooms at risk of flooding detection of shocks and vibrations that accompany attempts to force through a door or window, detection of door, window opening, etc. (magnetic detector) input for connecting a wired detector type NC input for connecting a wired roller shutter detector battery status control Encrypted radio communication in the 433 MHz frequency band Tamper detection - opening the housing, detachment from the ground |
| Warranty:: | 2 years |

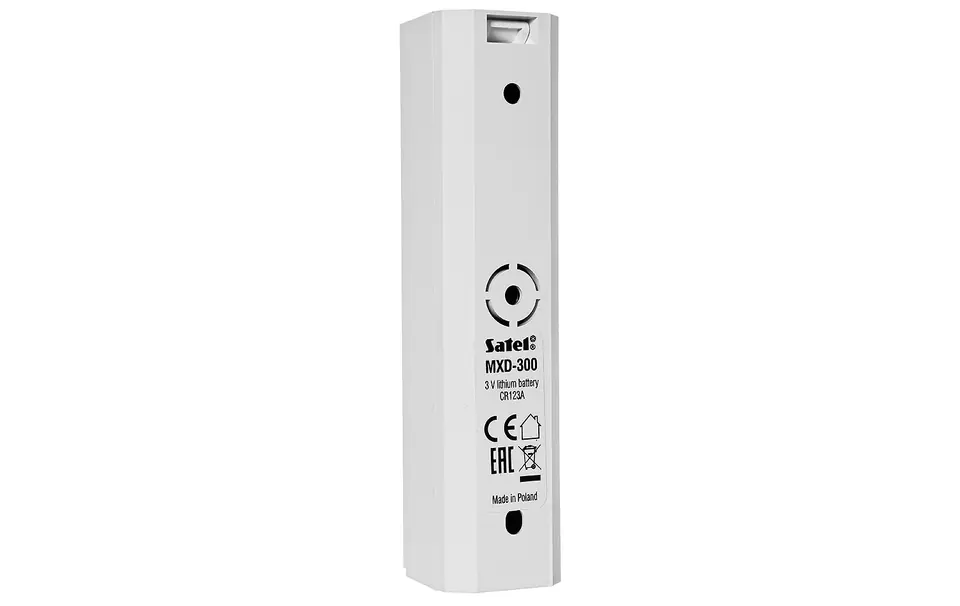

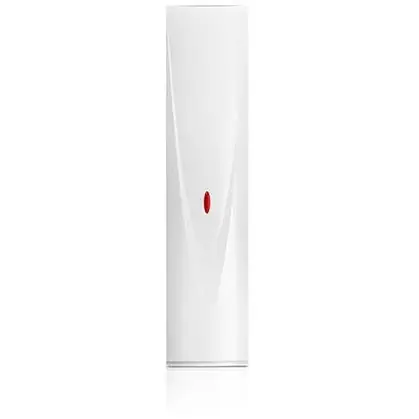

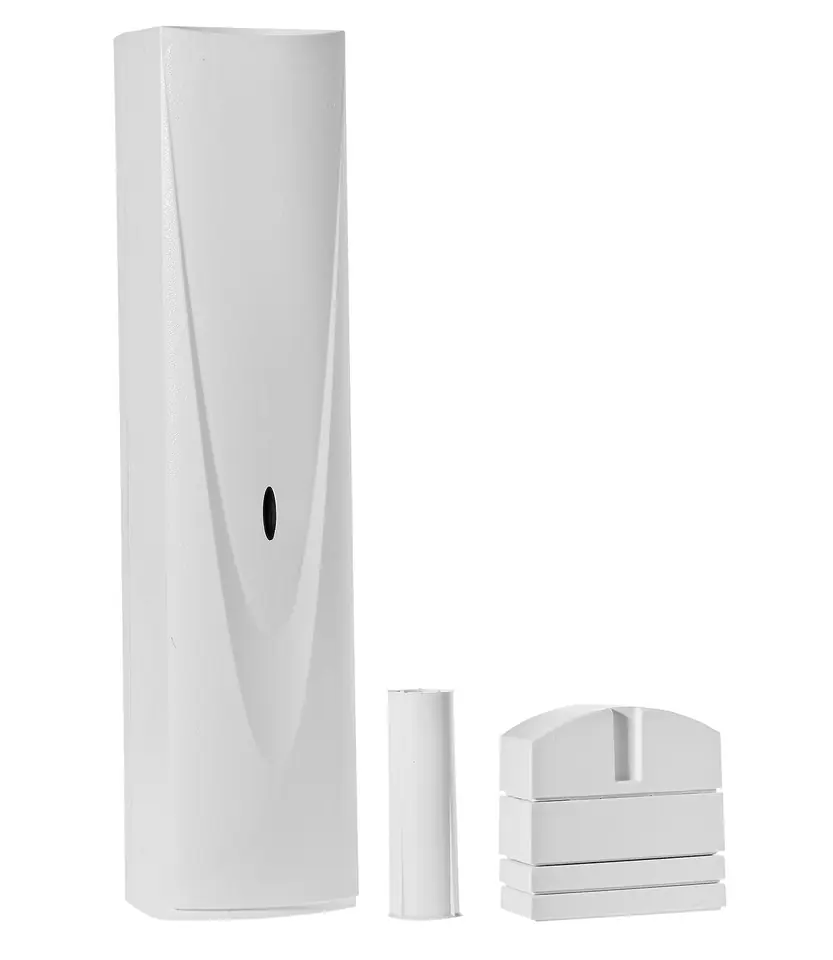

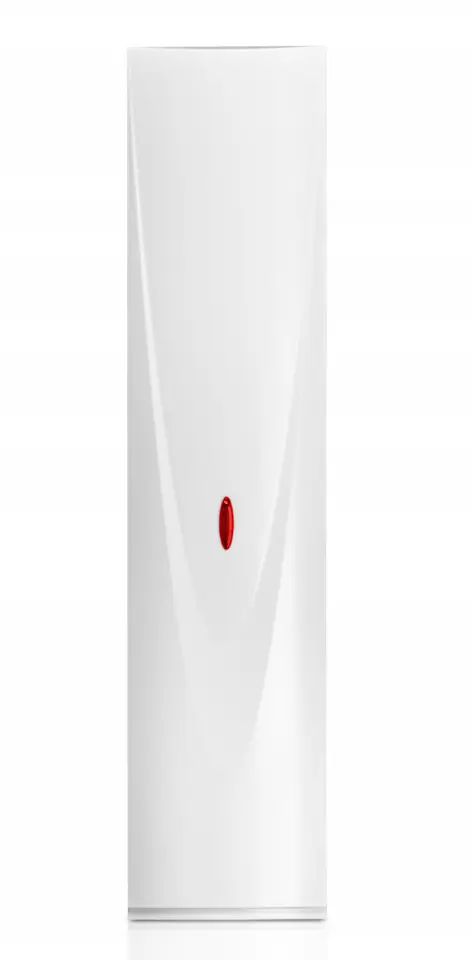

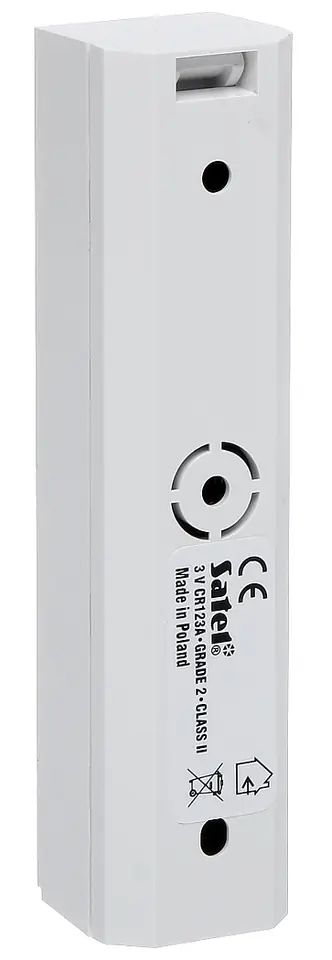

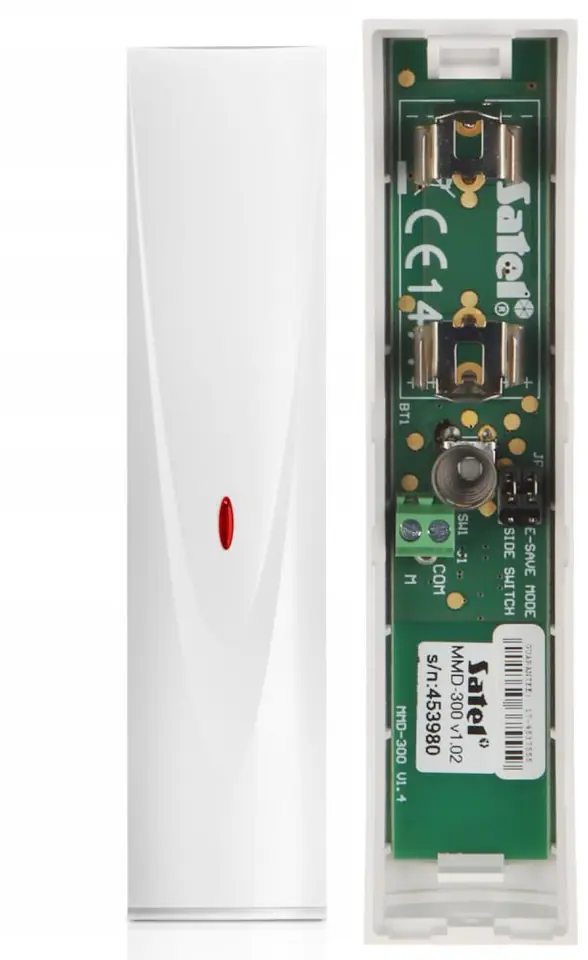

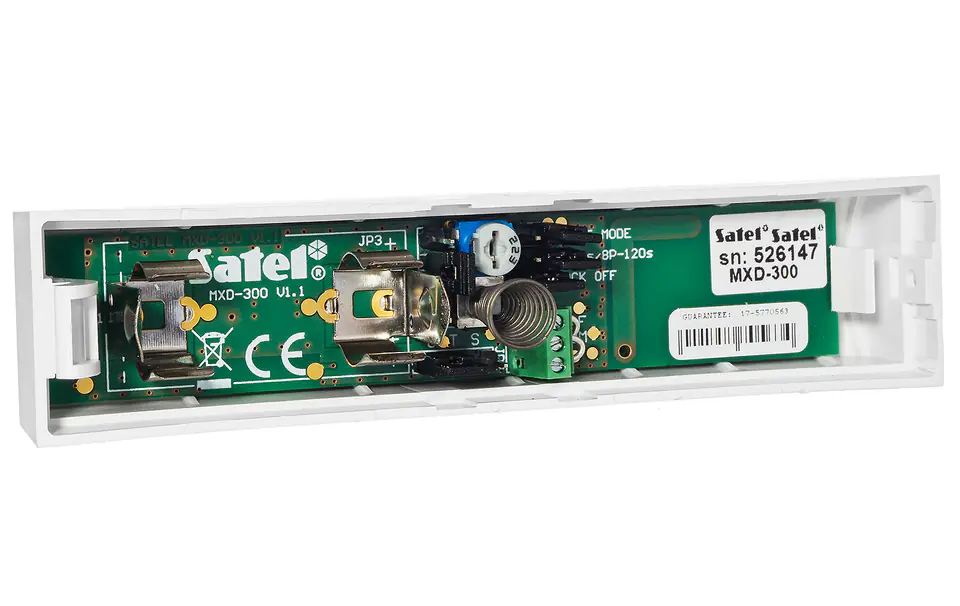

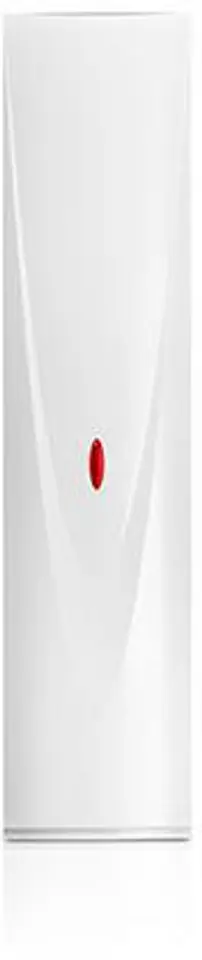

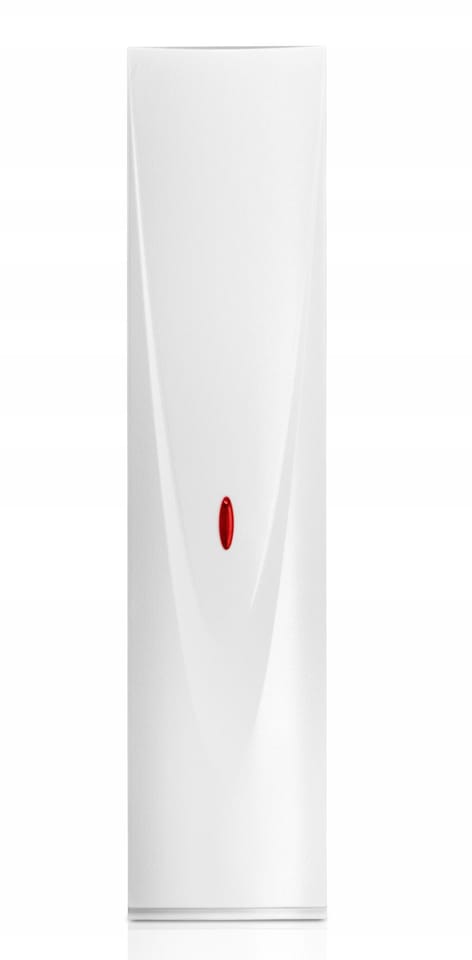

The MXD-300 detector is a multifunctional device that can work as a detector: magnetic, magnetic with roller shutter input, shock, shock and magnetic, water flooding
The sensor works with the MICRA alarm module with software version 2.02 or later
Remark! The detector is sold without the FPX-1 flood probe, which is available separately in our offer
