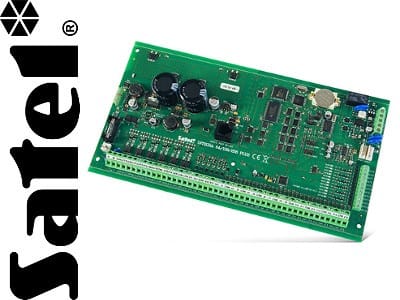

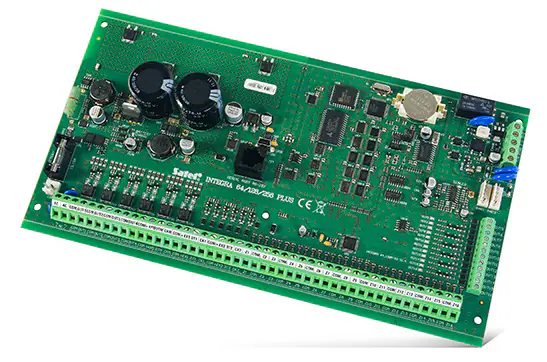

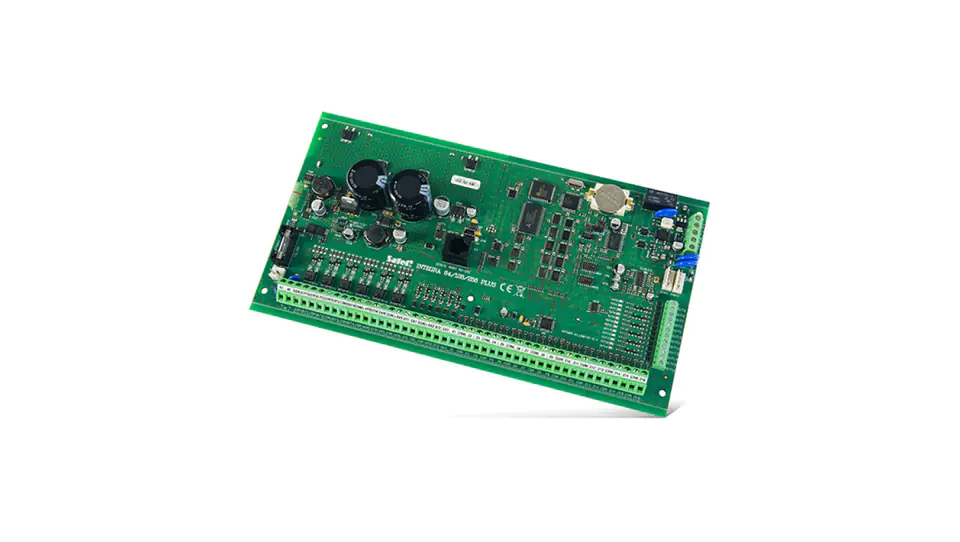

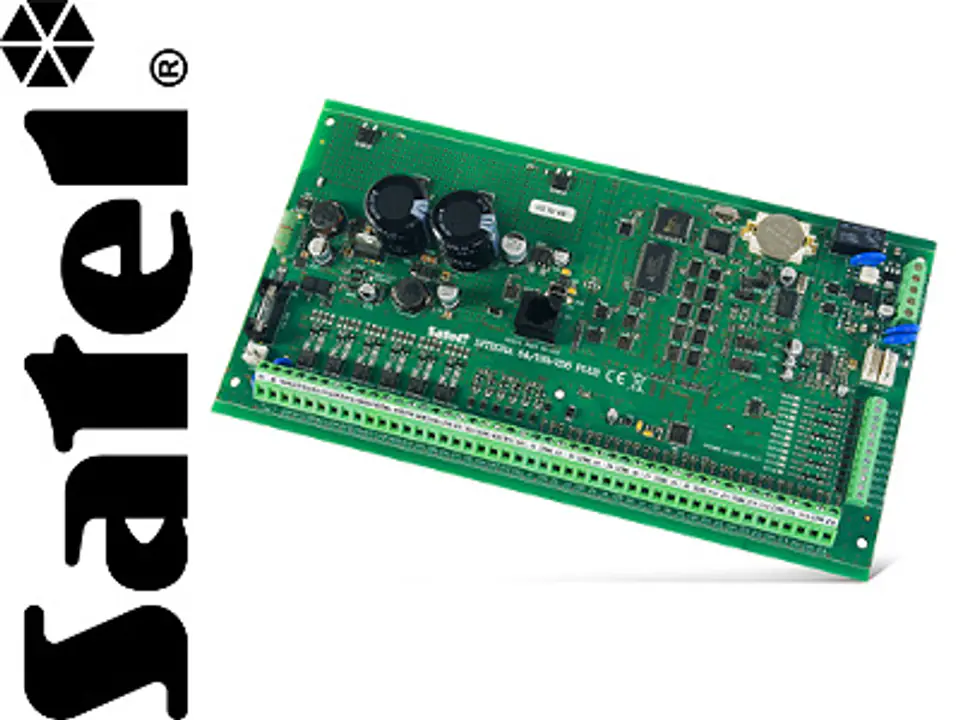

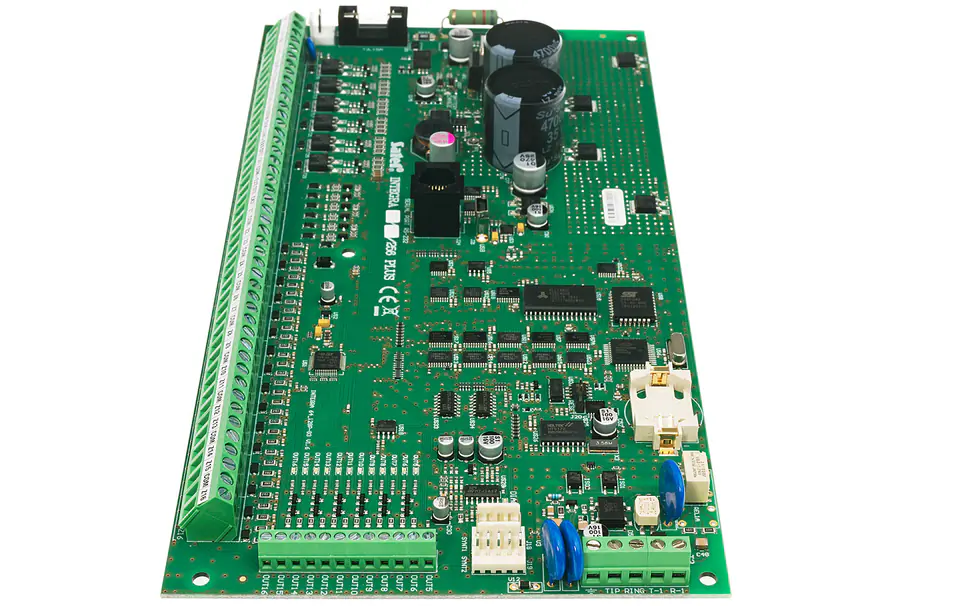

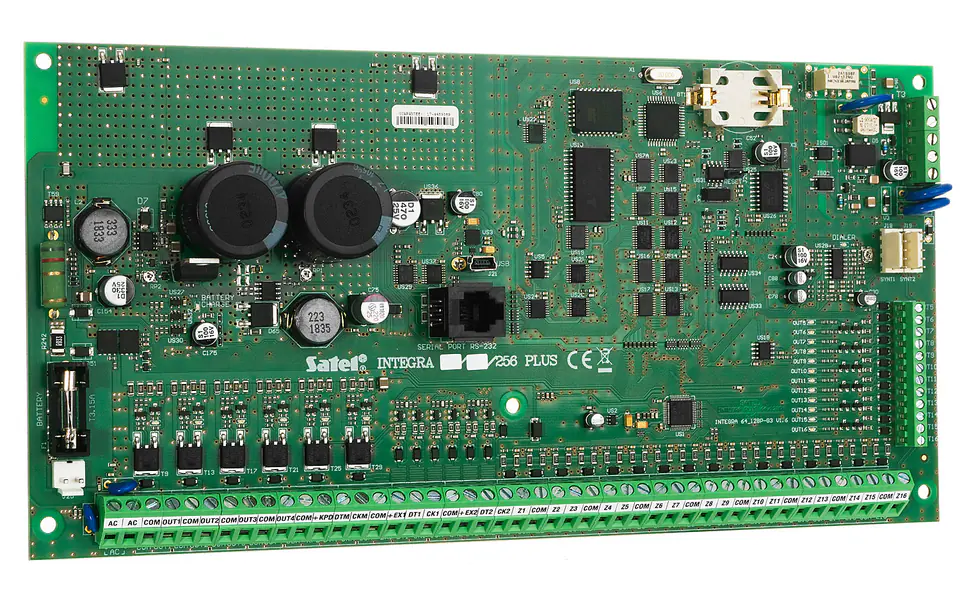

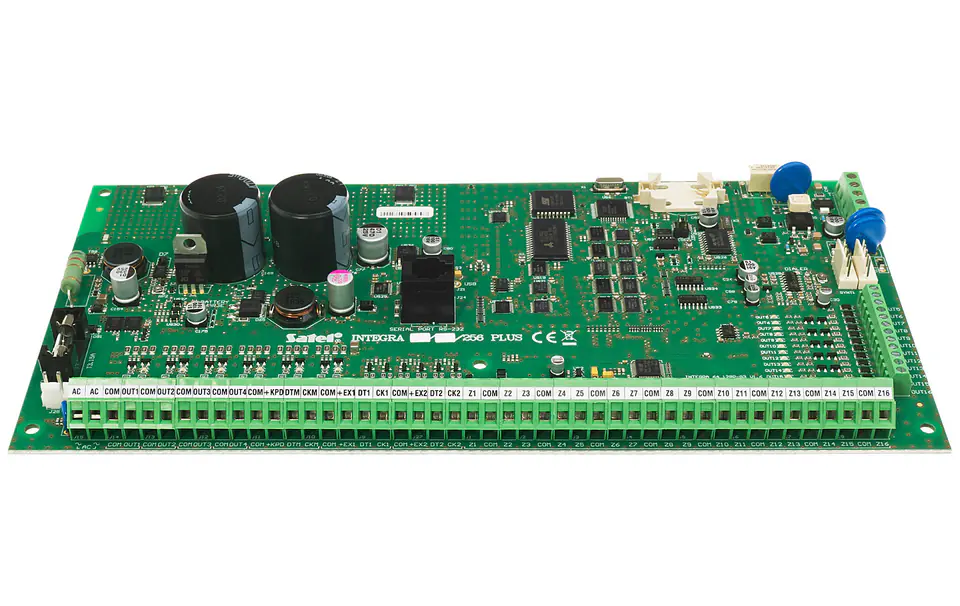

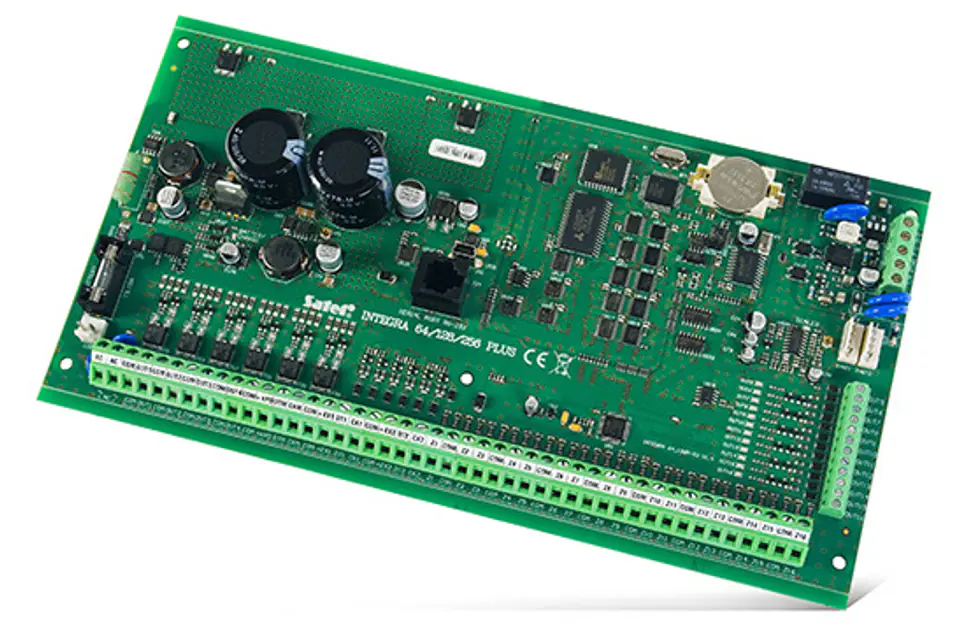

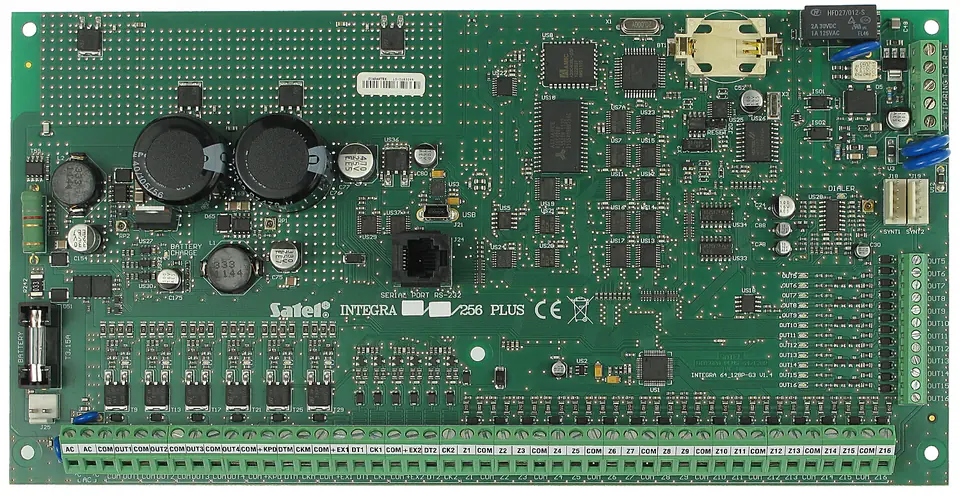

SATEL INTEGRA-256-PLUS CONTROL PANEL BOARD

Name: SATEL INTEGRA-256-PLUS CONTROL PANEL BOARD
Brand: Satel
SKU: 515374
Price: 288.38 EUR
Availability: InStock

€288.38

Shipping from warehouse: ⁨H7⁩

Estimated shipping: Tue, Dec 24 - Fri, Dec 27

14 days returnUnconditional return policy

Availability:: large quantity
Brand:
Product code:: INTEGRA 256 Plus / 5905033330313

Specification

Current efficiency of the power supply::	3 A
Dimensions::	264 x 134 mm
Event memory::	24575
Expansion modules::	Max. 64
Grade::	3
Load capacity of high-current programmable outputs (+/- 10%)::	3 A - 4 pcs.
Load capacity of low-current programmable outputs::	50 mA
Manufacturer / brand::	SATEL
Maximum number of supported inputs::	256 pcs.
Maximum number of supported outputs::	256 pcs.
Motherboard inputs::	16 pcs.
Motherboard outputs::	16 pcs.
Operating temperature::	-10 °C ... 55 °C
Partitions::	8
Permissible relative humidity::	93 %
Power::	20 V AC / 337 mA
Scales::	0.32 kg
Selected features::	Access control and home automation functions Built-in advanced power supply with extensive diagnostics Programming the control panel and changing the firmware via mini USB socket
Supported keyboards::	Max. 8 pcs.
Supported languages::	Polish - no possibility to change the language
Timers::	64
Users + administrators::	240 + 8
Warranty::	2 years
Zone::	32

Advanced alarm control panel offering in addition to alarm functions, also the possibility of implementing home automation systems and access control

Thanks to full compliance with the requirements of EN50131 Grade 3, the INTEGRA Plus series control panels are perfect for the implementation of advanced security systems in facilities with a particularly high risk of burglary – e.g. banks, jewelry stores or public buildingsA large advantage of INTEGRA control panels are their communication capabilities in combination with additional modules - GSM and TCP / IP

The system is operated using LCD keypads, zone keypads, remote controls and proximity cards and remotely using a computer or mobile phoneThe software can be updated using a computer

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
