Keypad designed to work with the alarm control panel, operating on the basis of microprocessor technologyBasic information is transmitted by means of LEDs and sound signals

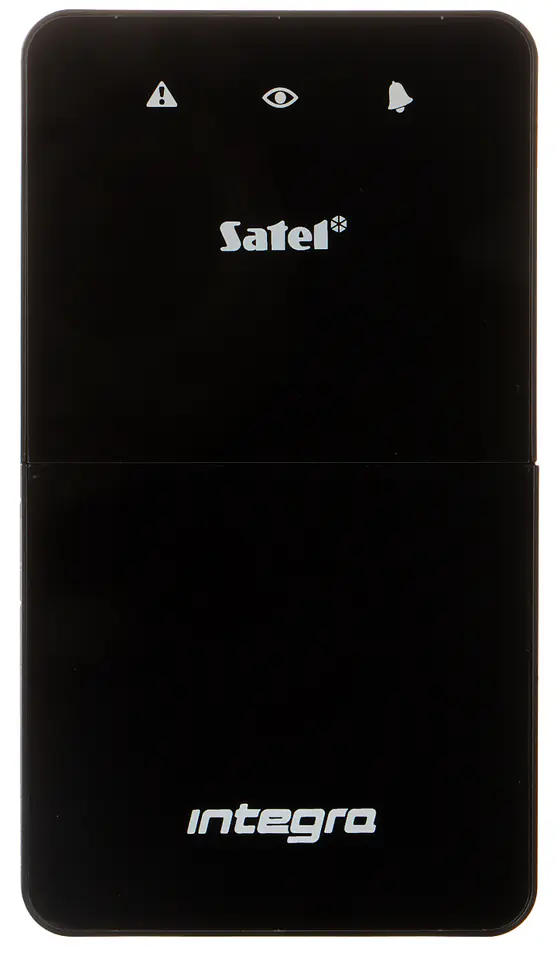

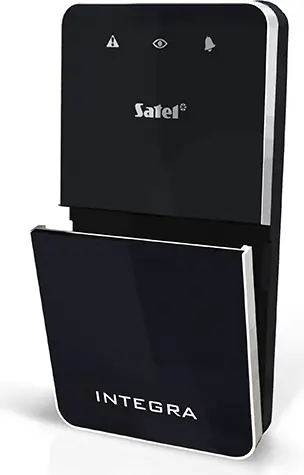

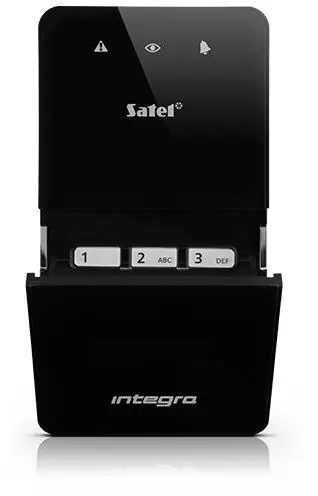

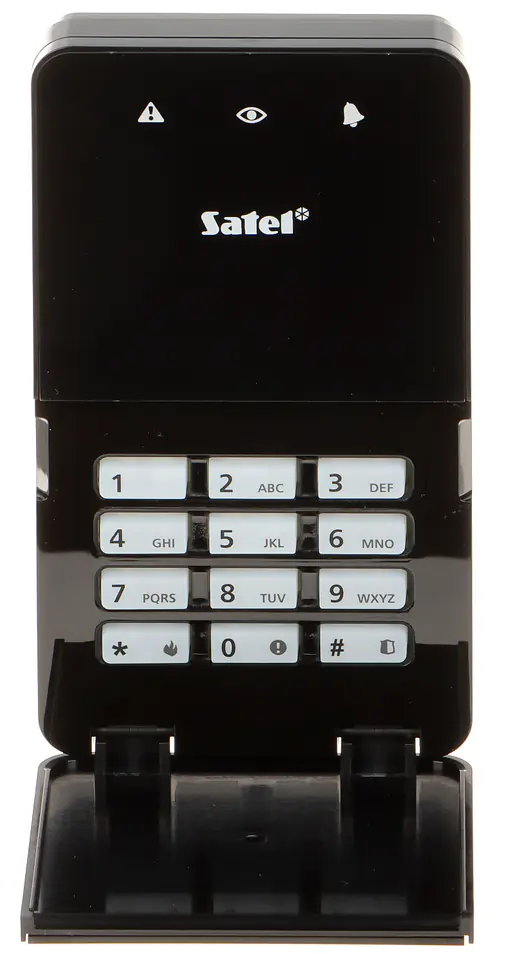

SATEL INT-SF-B ZONE KEYPAD
€52.98
Shipping from warehouse: H7
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
Specification
Colour:: | Black |
---|---|
Cooperation:: | INTEGRATION |
Current consumption:: | Max. 40 mA |
Dimensions:: | 143 x 80 x 25 mm |
Load capacity of relay contacts at dc 24v voltage:: | Max. 2 A |
Manufacturer / brand:: | SATEL |
Operating temperature:: | -10 °C ... 55 °C |
Permissible relative humidity:: | < 93 % |
Power:: | 12 VDC |
Scales:: | 0.18 kg |
Selected features:: | LED indicators displaying the operating status of the device Backlight color - White Alarms: ASSAULT, FIRE, HELP called from the keyboard control of one zone in the system Audible signaling of selected events in the system access control functions relay for controlling an electric strike, bolt or electromagnetic lock input for door status control Microswitch detecting tamper sabotage |
Warranty:: | 2 years |
