The INT-FI converter is used for data conversion and transmission via fiber optic cablesThe device is designed to work with communication buses of keypads or expanders of alarm control panels from the INTEGRA series, as well as with the RS-485 bus of the ACCOINT-FI access control system is equipped with 4 sockets for connecting two pairs of optical fibers and terminals for connecting signals from three communication buses of INTEGRA control panels

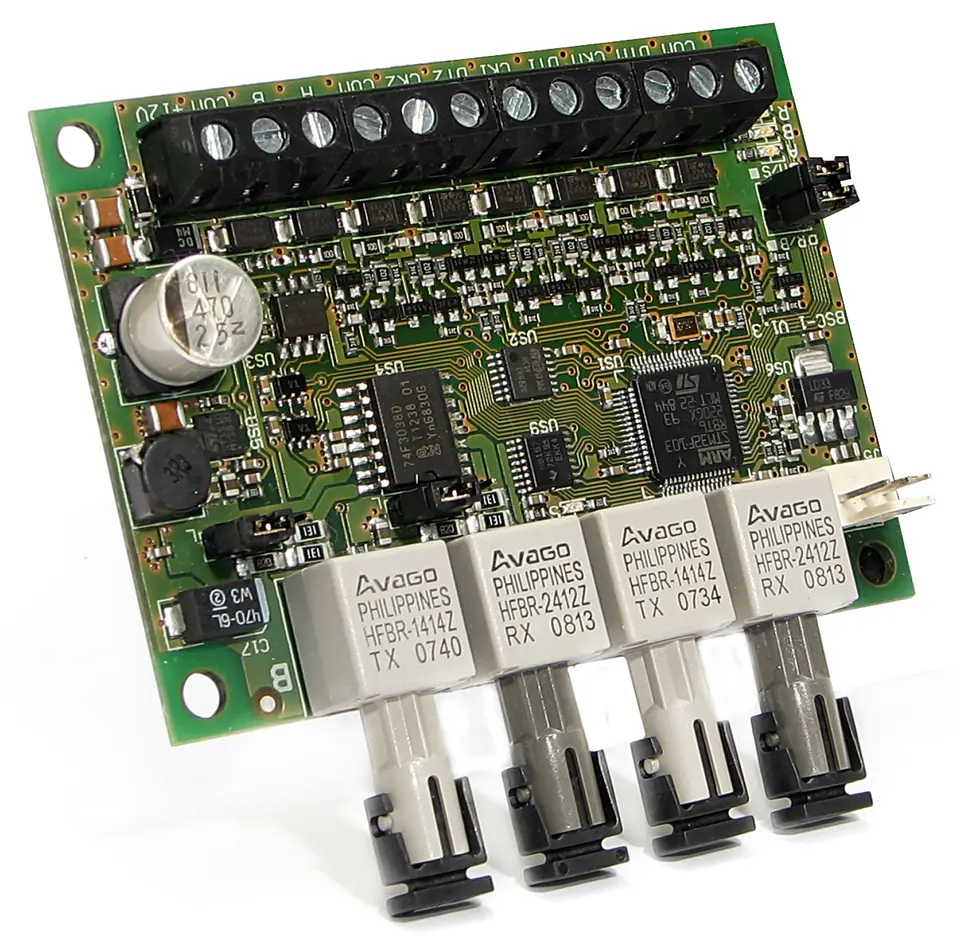

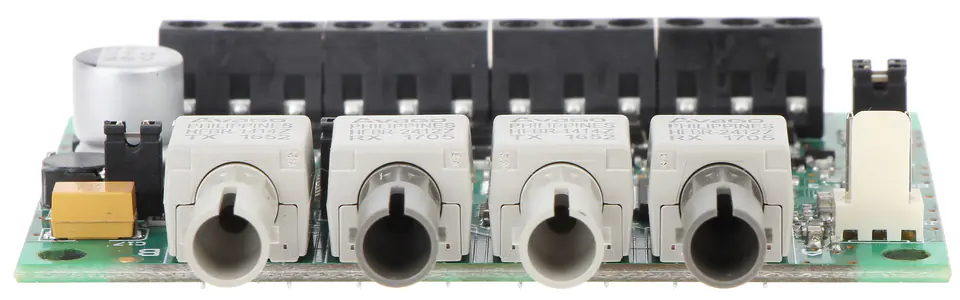

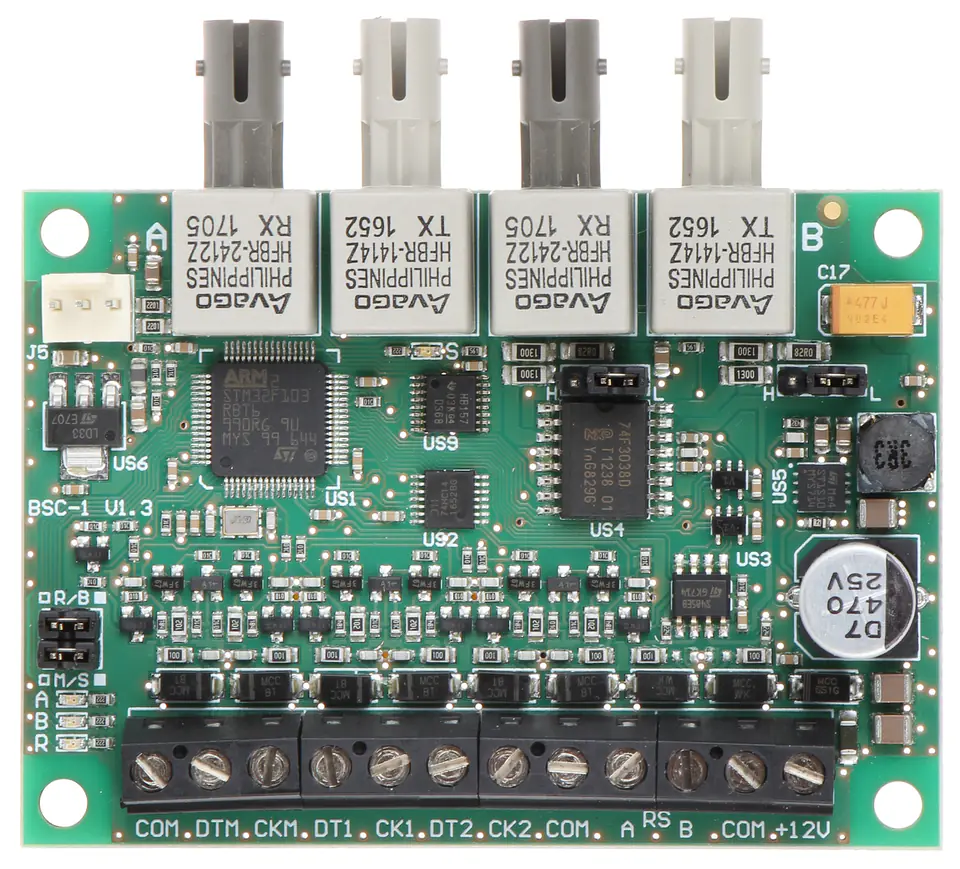

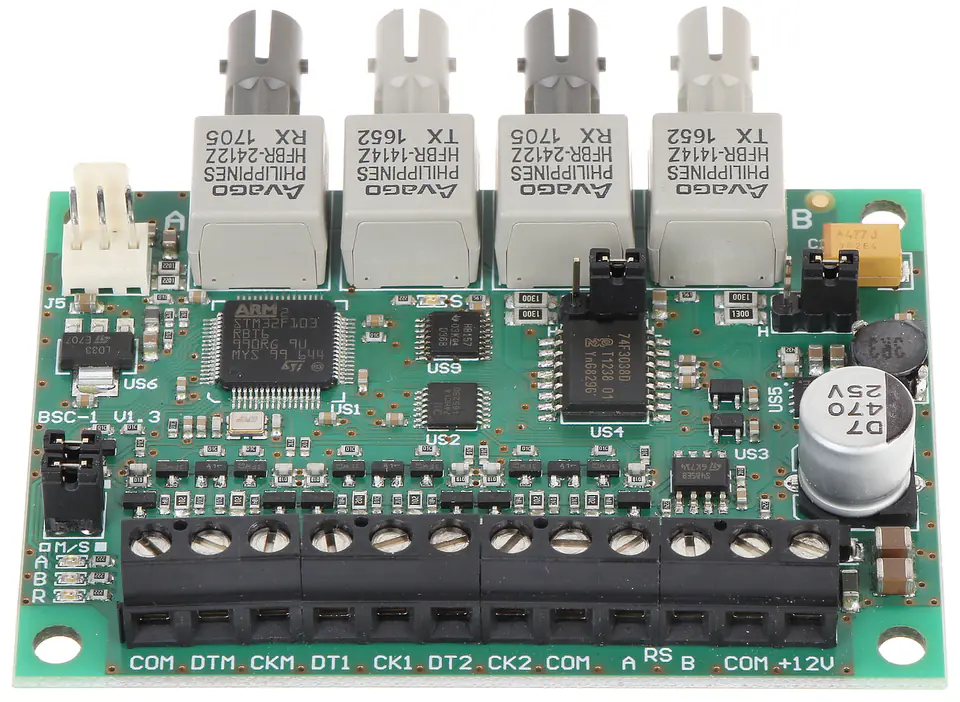

SATEL INT-FI FIBER OPTIC DATA CONVERTER
€228.09
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- INT-FI / 5905033331310
Share this product:
Specification
| Average current consumption:: | 120 mA (standby) |
|---|---|
| Connectors:: | 4 x ST socket - multimode (MM) RS-485 - DTM terminal block - DT1 keypad bus data - DT2 expander bus data 1 - Expander bus data 2 |
| Dimensions:: | 80 x 57 mm - PCB |
| Environmental class:: | II |
| Manufacturer / brand:: | SATEL |
| Operating temperature:: | - 10 ... 55 °C |
| Power:: | 12 VDC |
| Scales:: | 0.04 kg |
| Selected features:: | 4 sockets for connecting two pairs of fibers (in each pair one transmitting and one receiving fiber) Transmission range between two converters ≤ 2 km Possibility to connect 3 converters in a chain Test mode Galvanic separation between input and output Fault resistance |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
