The INT-ADR expander allows you to expand the system by max. 48 wired inputs with support for NO configuration, NCThe device is designed for connecting addressable detectors connected in parallel to the internal data busThe addressable sensor is obtained from a typical NO, NC detector after mounting the CA-64-ADR-MOD module in it

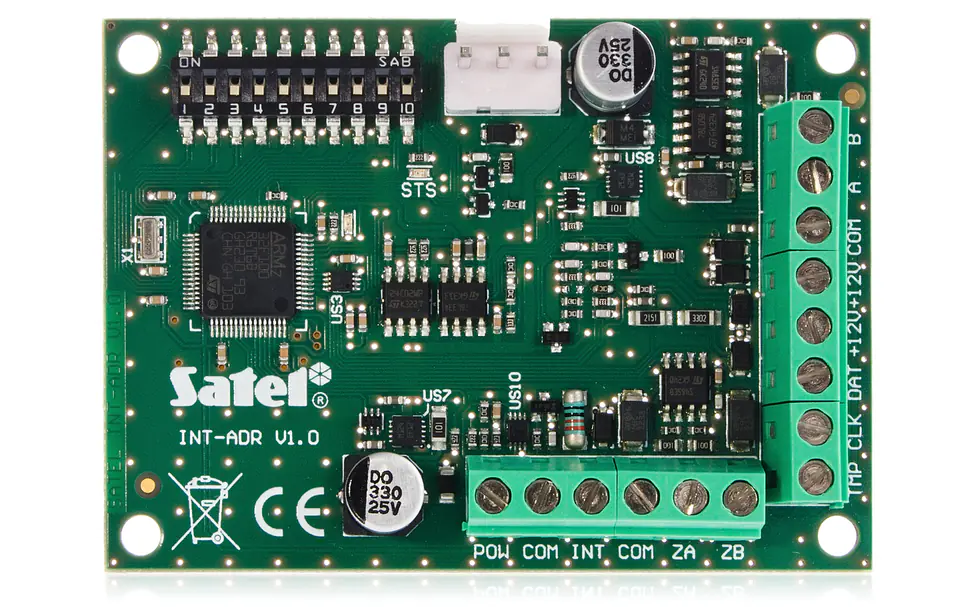

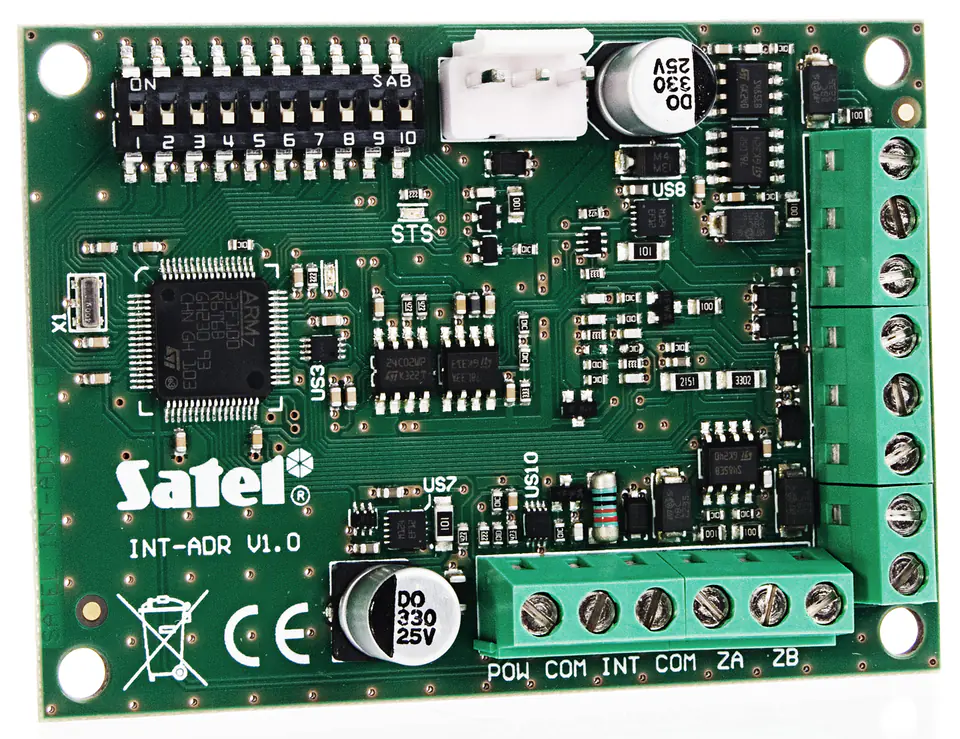

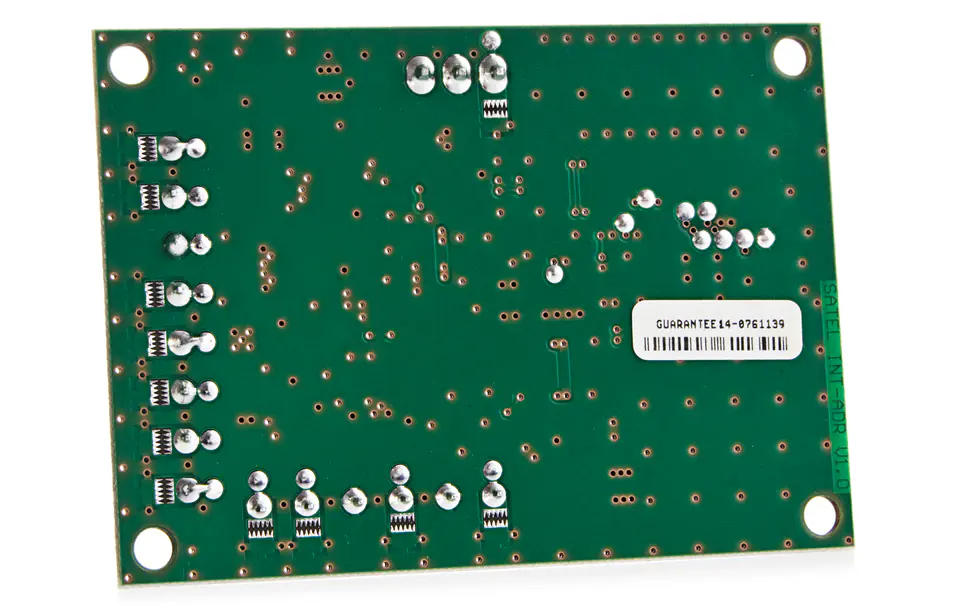

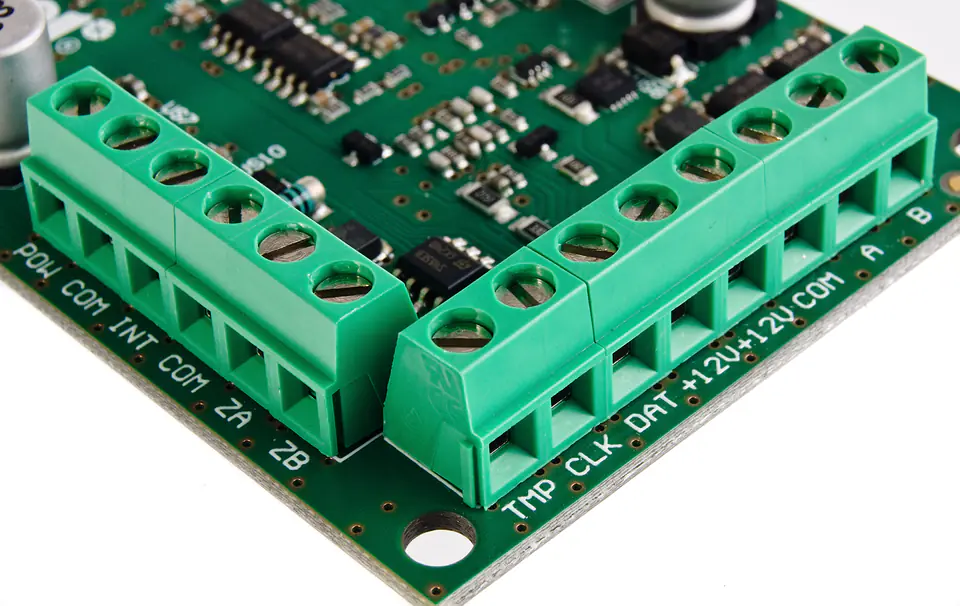

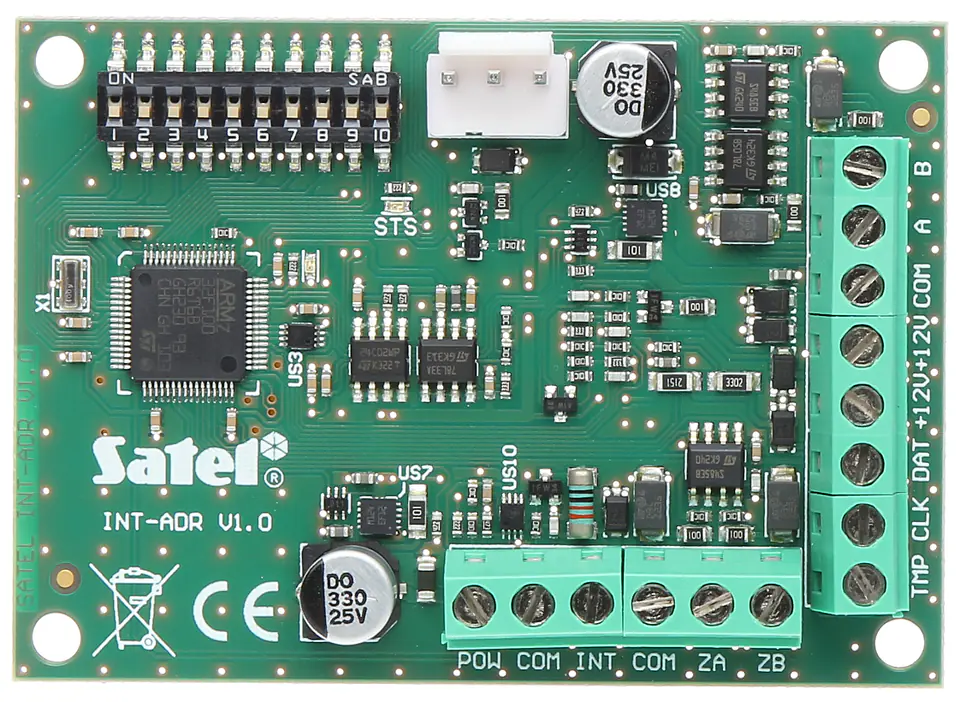

SATEL INT-ADR EXPANDER
€103.52
Shipping from warehouse: D4
Estimated shipping: Mon, Dec 30 - Tue, Dec 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- INT-ADR / 5905033331587
Share this product:
Specification
| Configuration support:: | NO, NC |
|---|---|
| Cooperation:: | INTEGRA / INTEGRA Plus / CA-64 |
| Current consumption:: | Max. 35 mA |
| Dimensions:: | 80 x 57 mm |
| Manufacturer / brand:: | SATEL |
| Maximum number of addressable inputs:: | 48 |
| Operating temperature:: | - 10 °C ... 55 °C |
| Permissible relative humidity:: | < 93 % |
| Power:: | 12 VDC |
| Scales:: | 0.35 kg |
| Selected features:: | dedicated independent bus of addressable detectors |
| Software programming and updating:: | RS-485 |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
