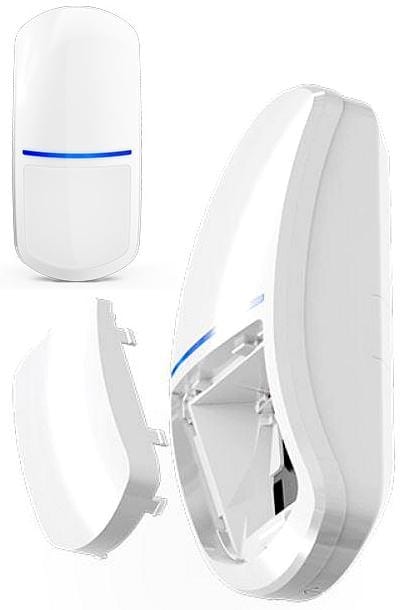

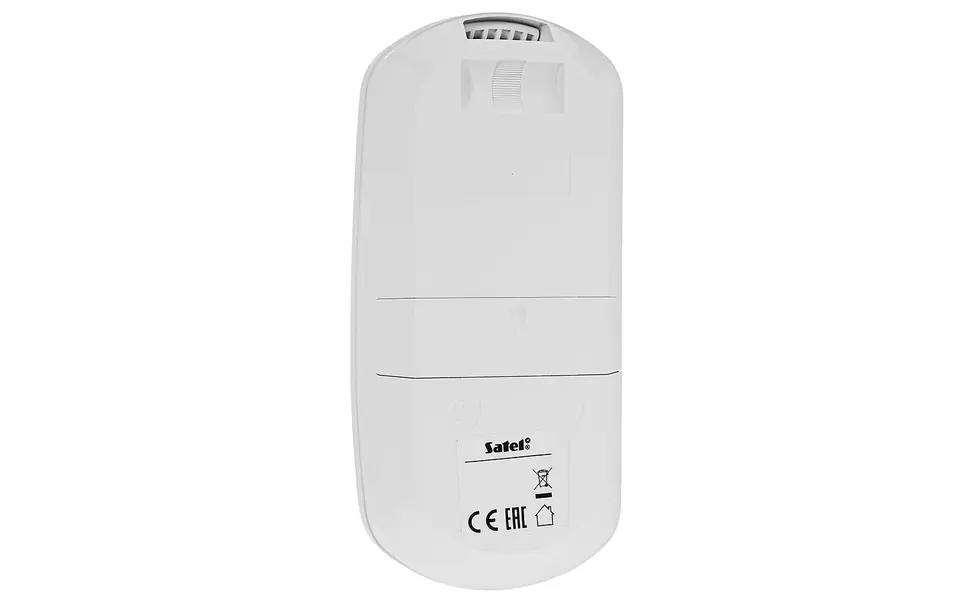

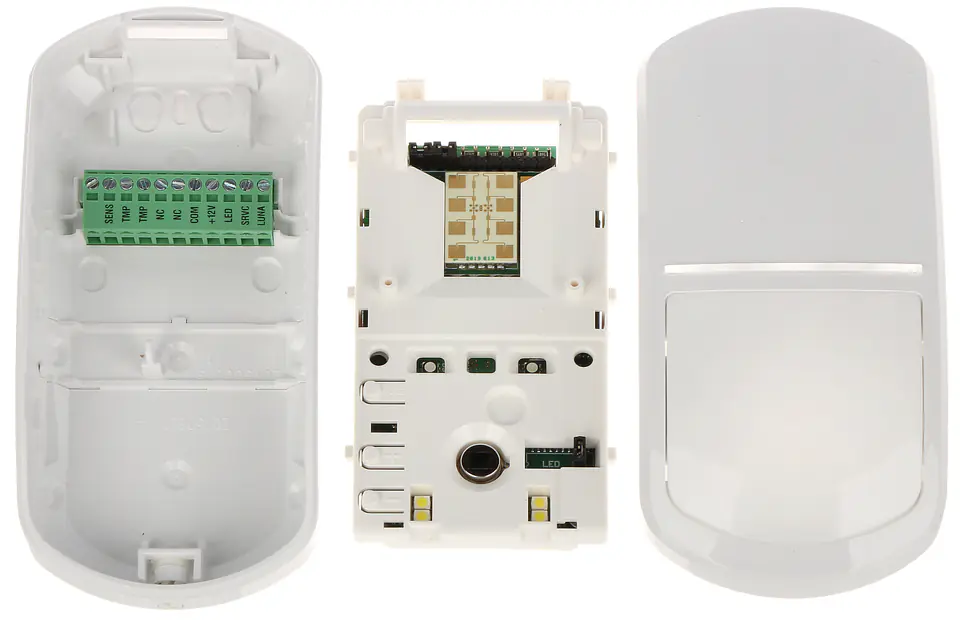

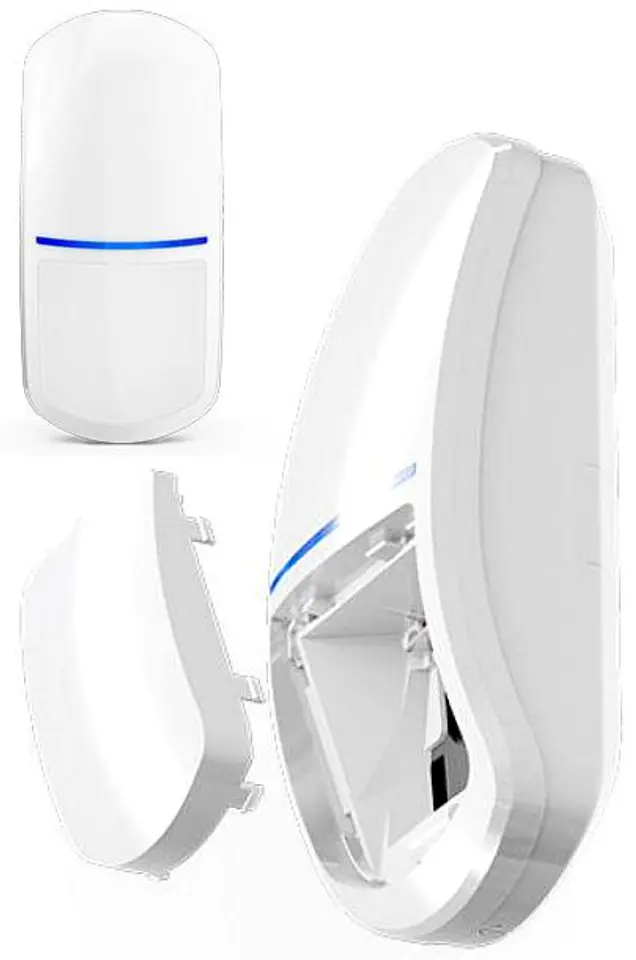

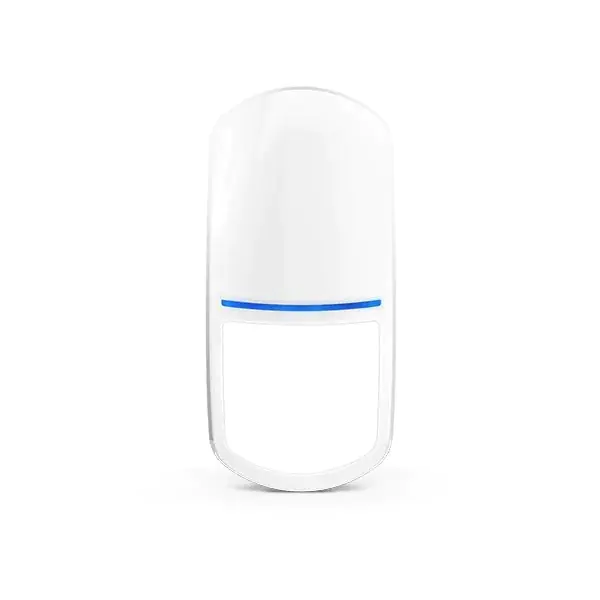

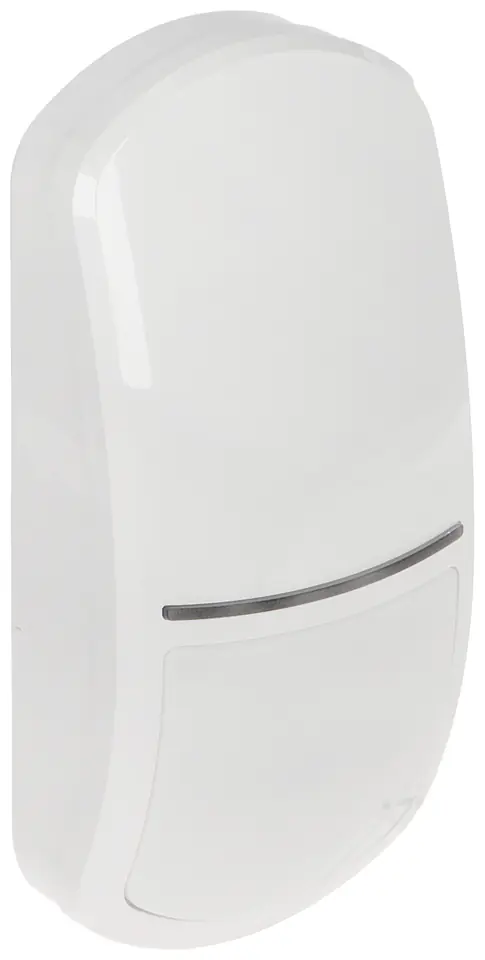

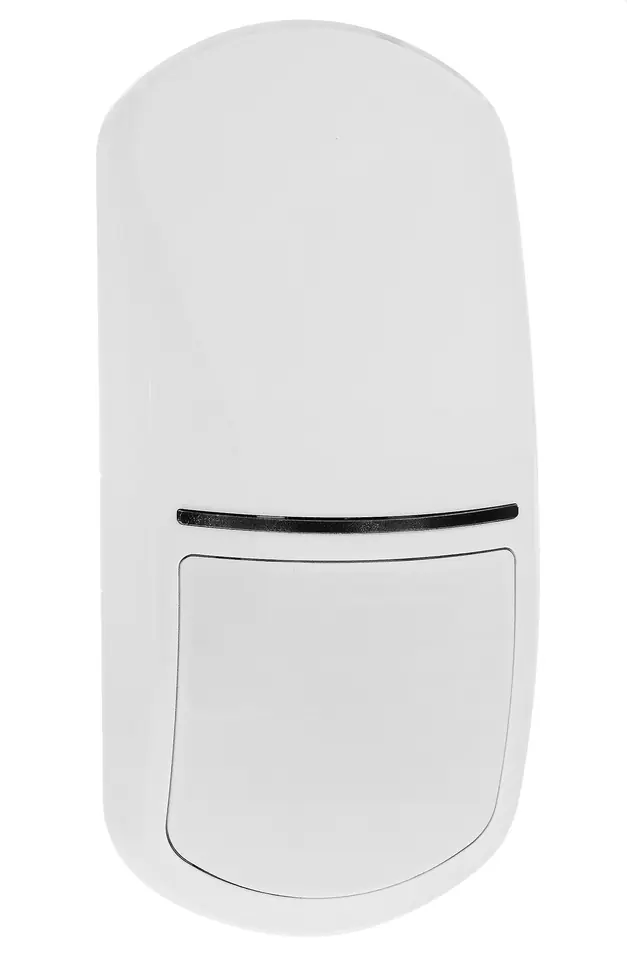

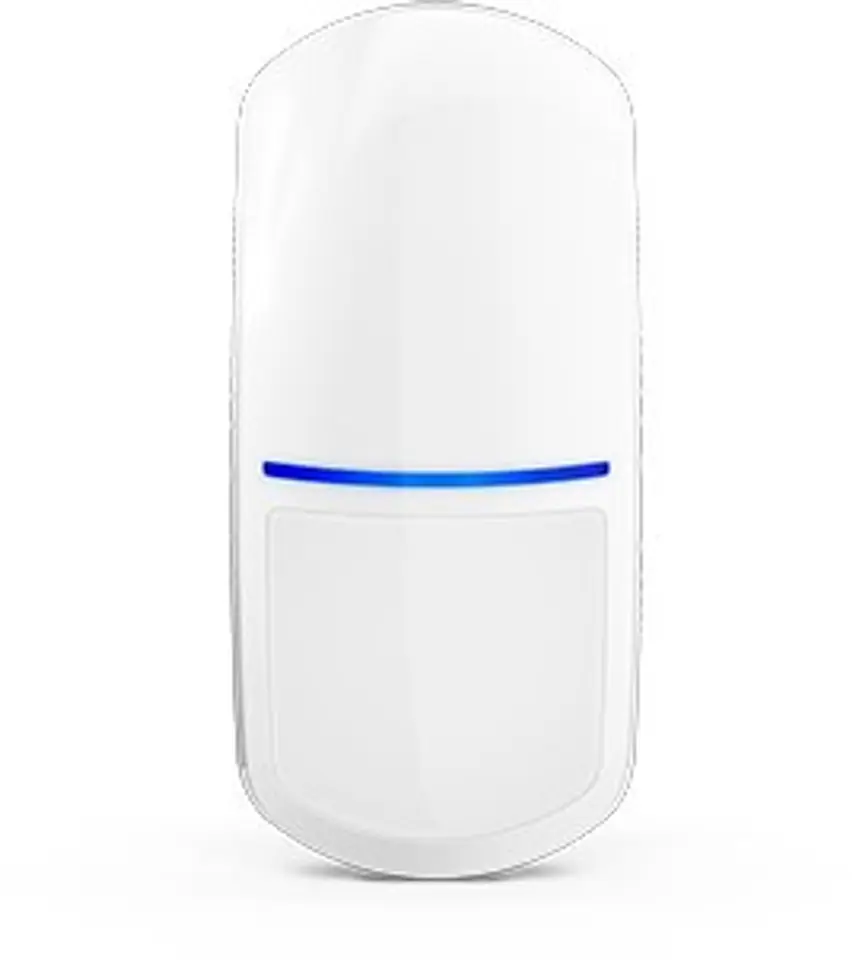

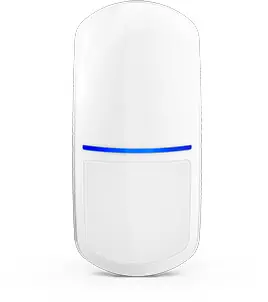

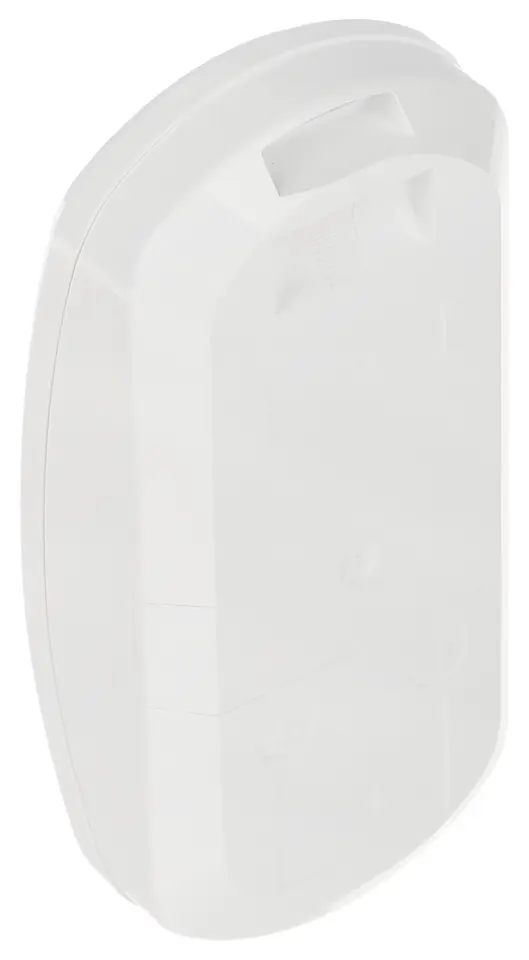

SLIM-DUAL-LUNA dual technology motion detector
The SLIM-DUAL-LUNA detector detects movement in the protected area. In addition, the detector has a set of LEDs that perform the lighting function.
- It is certified in accordance with EN 50131 Grade 2.

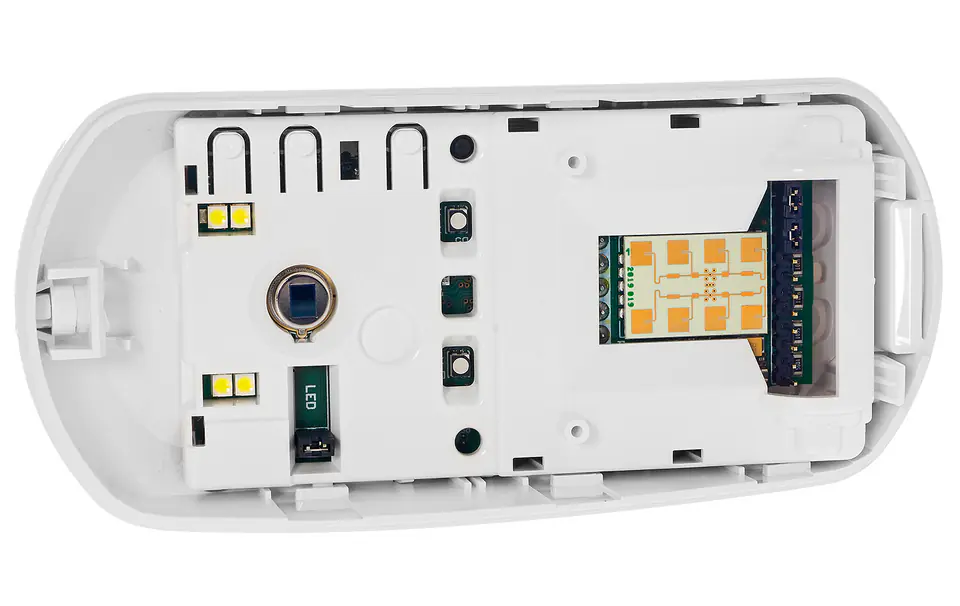

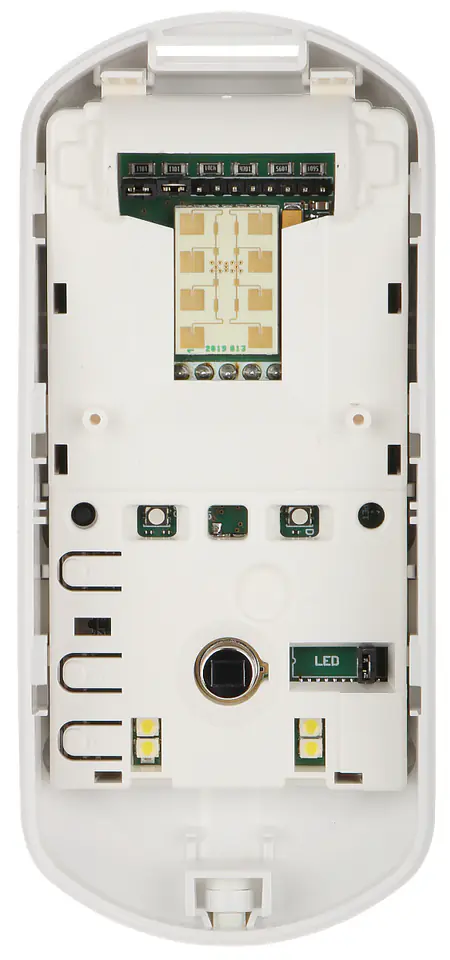

- Motion detection using two sensors: a passive infrared sensor (PIR) and a microwave sensor (MW)
- Adjustable sensitivity of detection of both sensors
- Separate sensor testing possible
- Digital algorithm for motion detection
- Digital temperature compensation
- Digital filtering of signals received by the microwave sensor to ensure immunity to interference from mains power and discharge lamps
- Choice of operating mode: basic, advanced, PIR or MW
- Creep zone monitoring can be switched on/off

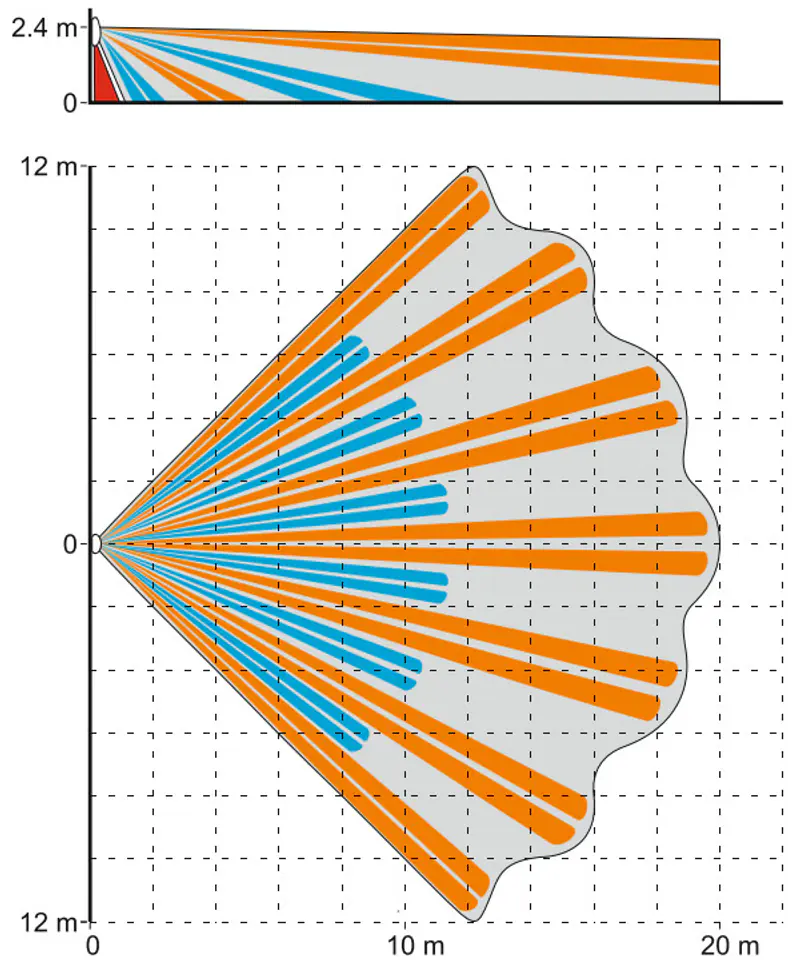

- Wide-angle lens specially designed for SLIM LINE detectors
- Possibility to replace the lens with a curtain lens (CT-CL) or long range lens (LR-CL)
- Possibility to configure detector operating parameters using OPT-1 remote control

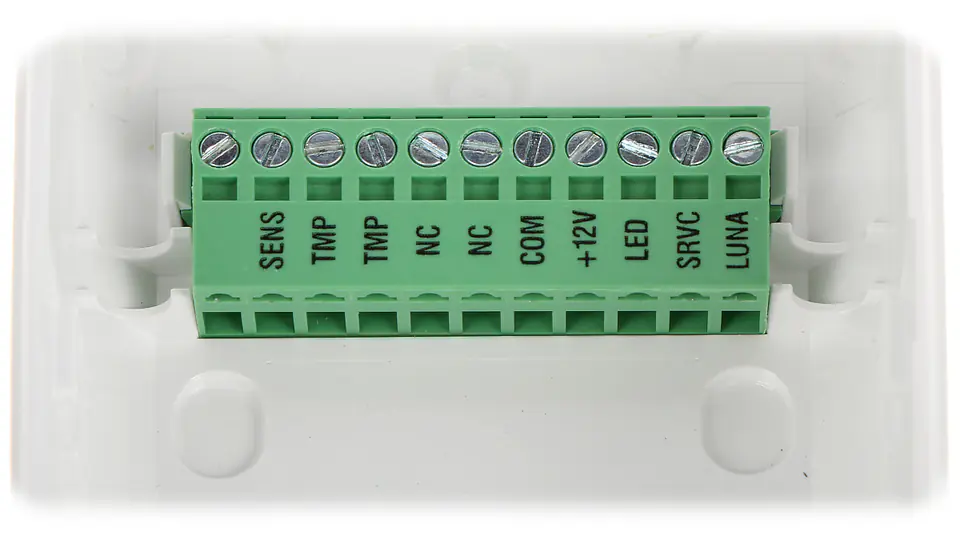

- Built-in parametric resistors (2EOL: 2 x 1.1 k / 2 x 4.7 k / 2 x 5.6 k)
- Lighting function using white LEDs
- Possibility of remote control of the lighting or activation of the lighting by movement
- LED indicator for signalling
- Choice of LED indicator colour (7 colours available)
- Remote on/off switching of the LED indicator
- Remote switching between two sets of detector operating parameters
- Remote activation/deactivation of configuration mode
- Supervision of motion detection system and supply voltage

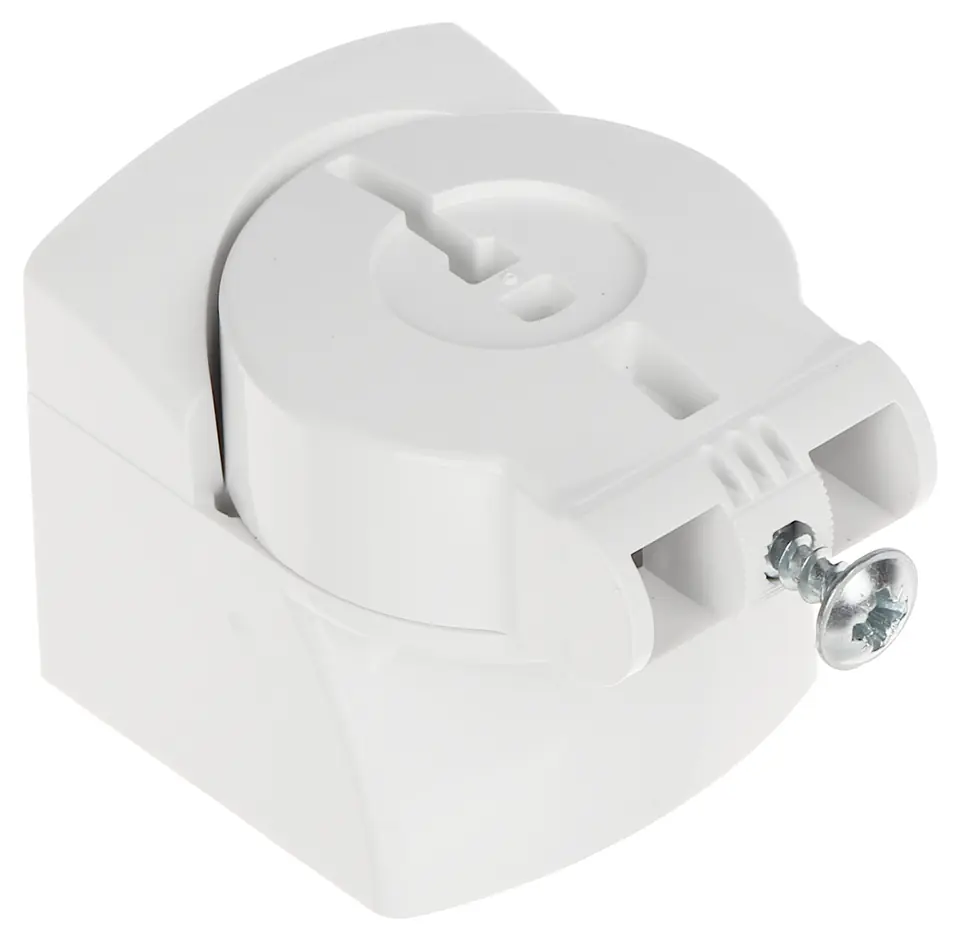

- Tamper protection against opening the housing and detaching from the ground
