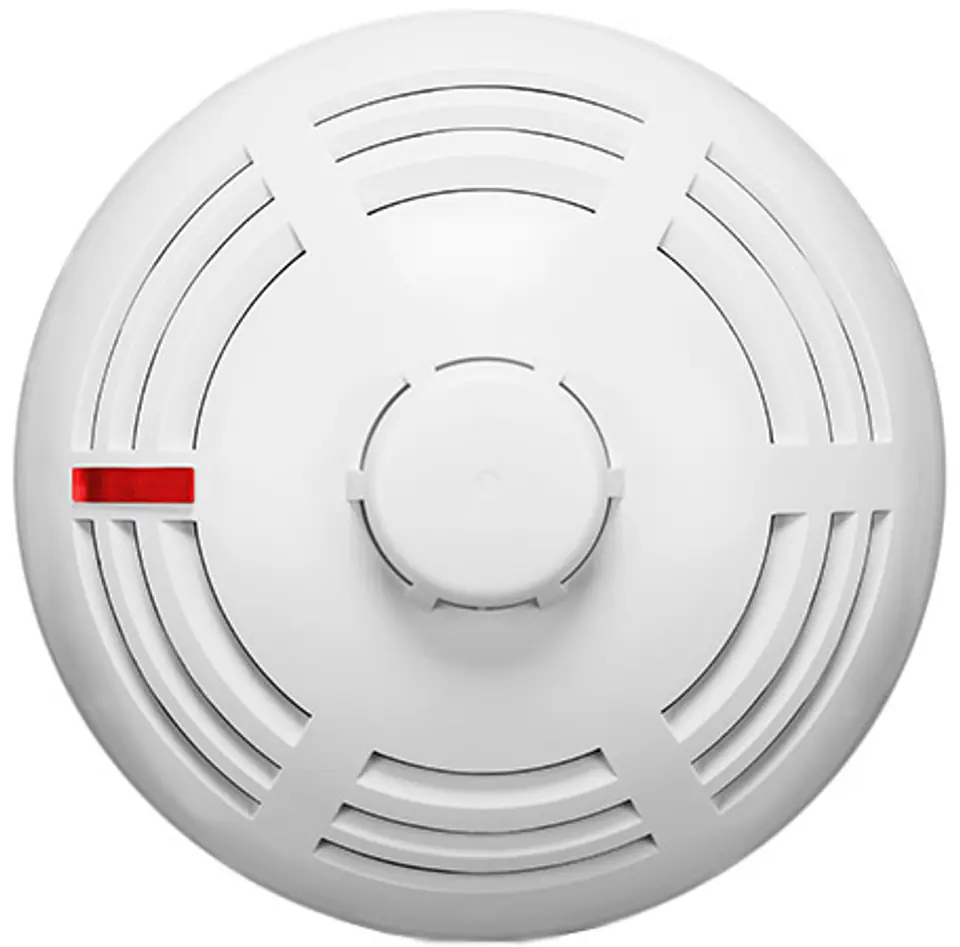

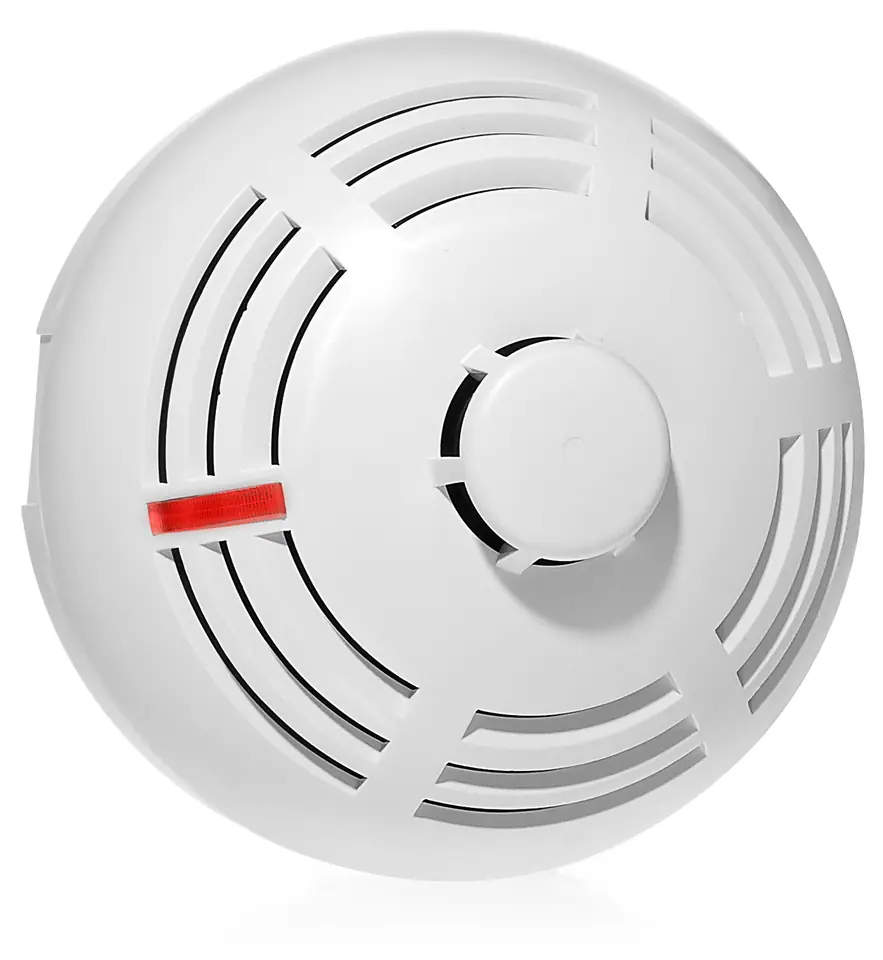

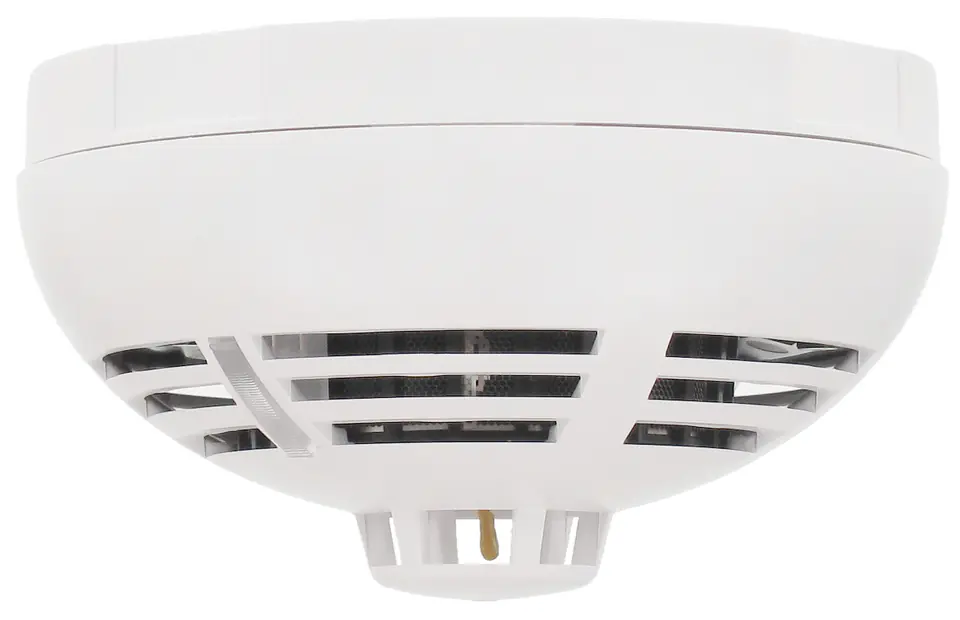

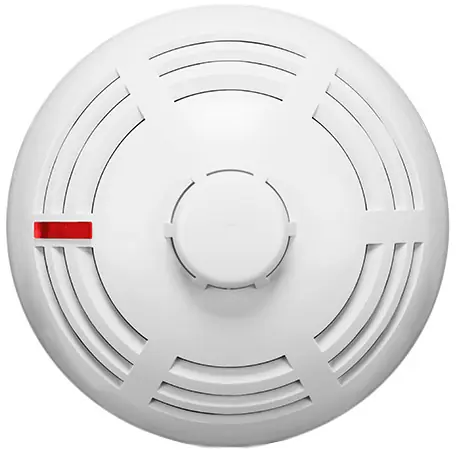

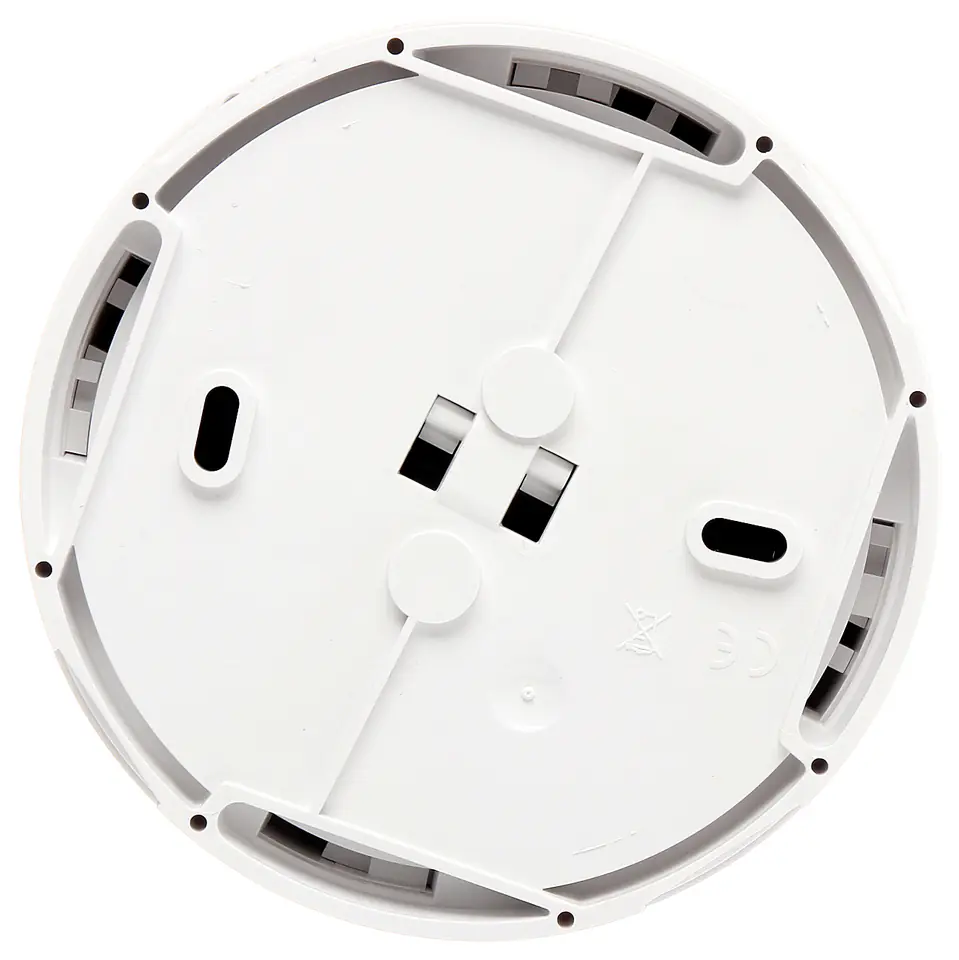

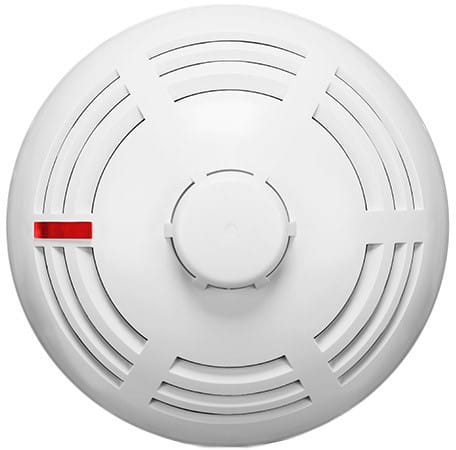

SATEL ASD-200 ABAX/ABAX2 WIRELESS SMOKE AND HEAT DETECTOR

€68.15
Shipping from warehouse: ⁨H7⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Satel
Product code:
ASD-200 / 5905033336698

Specification

Alarm signaling::Buzzer Flashing LED Signal to Alarm Control Panel
Battery life::~ 2 years - ABAX/ABAX2

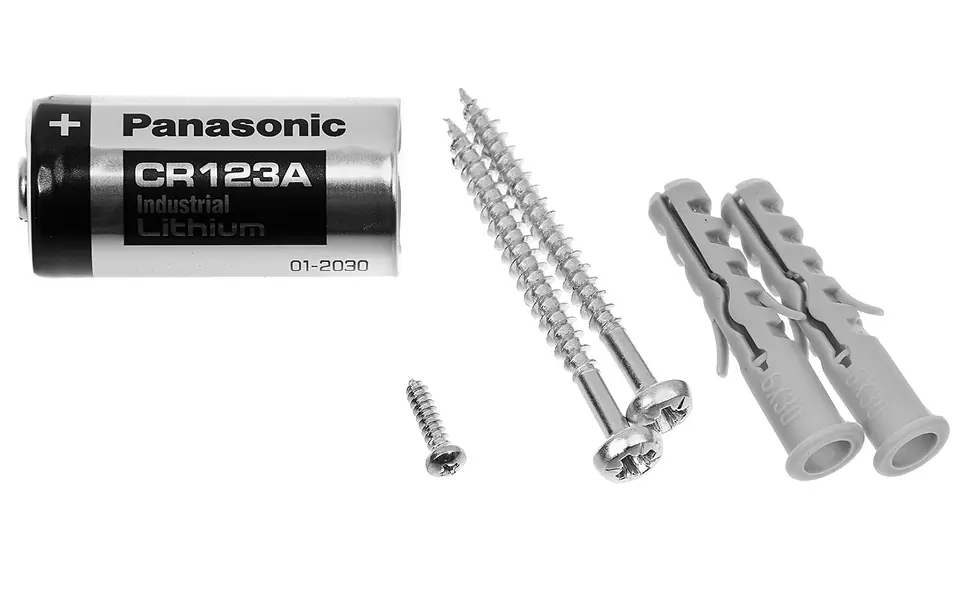

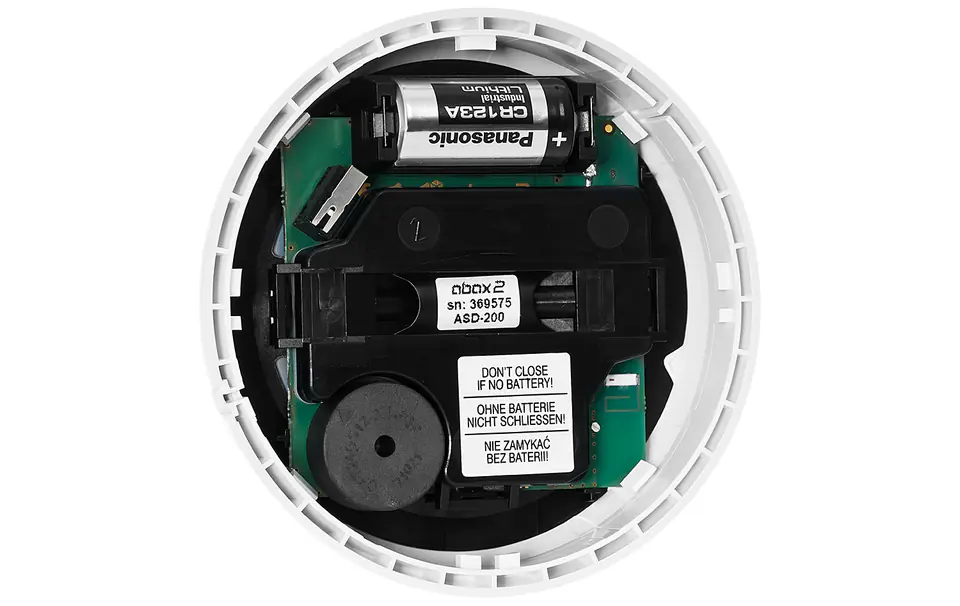

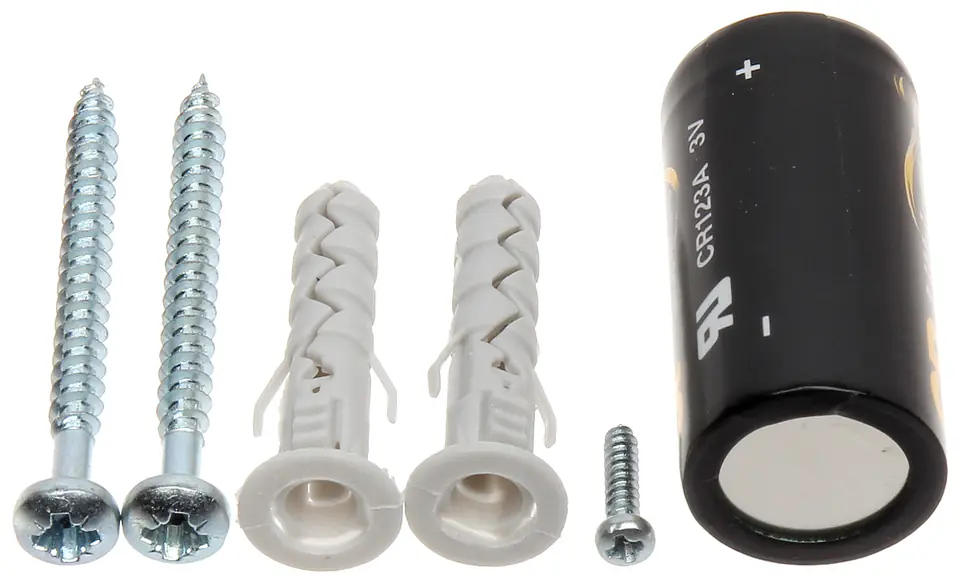

Battery::CR123A 3 V
Cooperation::ABAX/ABAX2
Detection::smoke, heat
Dimensions::Ø 108 x 54 mm
Frequency band::868  ... 868.6 MHz
Manufacturer / brand::SATEL
Operating temperature::0 °C ... 55 °C
Radio communication range (in open area)::≤ 2000 m - ABAX2 @ ACU-220, ≤ 1600 m - ABAX2 @ ACU-280, ≤ 500 m - ABAX
Scales::0.16 kg
Selected features::The ASD-200 can operate autonomously or as part of the ABAX/ABAX2 bidirectional wireless system The "ECO" option allows up to four times the battery life (only in ABAX2) self-diagnostic function Tamper detection - case opening Temperature sensor
Standby current consumption::30 μA
Warranty::2 years

Wireless smoke and heat detector, whose task is to detect a developing fire earlyIn addition to transmitting information about the threat to the control panel, the ASD-200 sensor can warn of danger using a built-in sound sirenThe device is equipped with a photoelectric visible smoke detectorThe sensor also has a thermal sensor, reacting to exceeding the threshold or a sudden increase in temperatureIn addition, the self-diagnostic system controls the condition of the optical chamber and signals the need for maintenance

ASD-200 works with other devices compatible with the ABAX/ABAX2 wireless system
