SATEL ACCO-KP2 TRANSITION CONTROLLER

Name: SATEL ACCO-KP2 TRANSITION CONTROLLER
Brand: Satel
SKU: 516491
Price: 108.76 EUR
Availability: InStock

€108.76

Shipping from warehouse: ⁨H7⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: large quantity
Brand:
Product code:: ACCO-KP2 / 5905033331136

Specification

0.11 kg:	Scales:
110 ma (standby) 480 ma (operating):	Current consumption:
12:	Input lines:
12 vdc:	Power:
142 x 71 x 17 mm:	Dimensions:
2 years:	Warranty:
250 v ac, 30 v dc:	Voltage switched by relay:
5 programmable no/nc input lines additional inputs dedicated to connecting readers, controlling the presence of readers, connecting a tampering circuit power supply input 2 programmable low-current oc output lines additional outputs dedicated for connecting readers relay output for controlling electromagnetic lock, gate controllers or other devices activating the passage 4 power outputs 12 v/0.5 a single pass support with authorization inputs and outputs, 1024 users ability to grant different permissions to individual users identification: card and/or pin, dallas ibutton history 24,576 events logging of working time control information up to 256 access calendars, weekly schedules, daily schedules, time frames christmas access schemes protection function against multiple use of the same code/card for access (anti-passback) unlocking or blocking the passage according to the access schedule created for this purpose limiting inputs compatibility with the em-marin protocol, wiegand 26-56bit, dallas micro usb socket - possibility to update the software own clock with battery backup led indicators displaying the device's operating status aps power socket - satel power supply (not included):	Selected features:
50 ma / 12 v dc - (out 1-12) 0.5 a / 12 v dc - (+g 1-4):	Current carrying capacity of outputs:
8 a:	Load capacity of relay contacts:
93 % ± 3 %:	Permissible relative humidity:
Autonomous operation, work in the acco/acco net system:	Operating modes:
Rs-485:	Communication:
Satel:	Manufacturer / Brand:

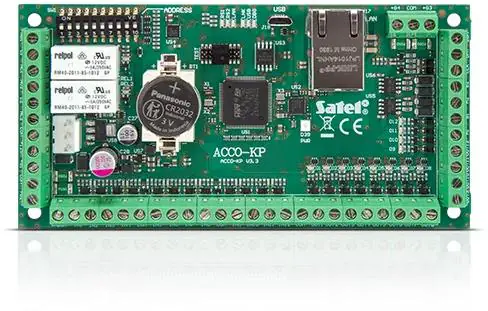

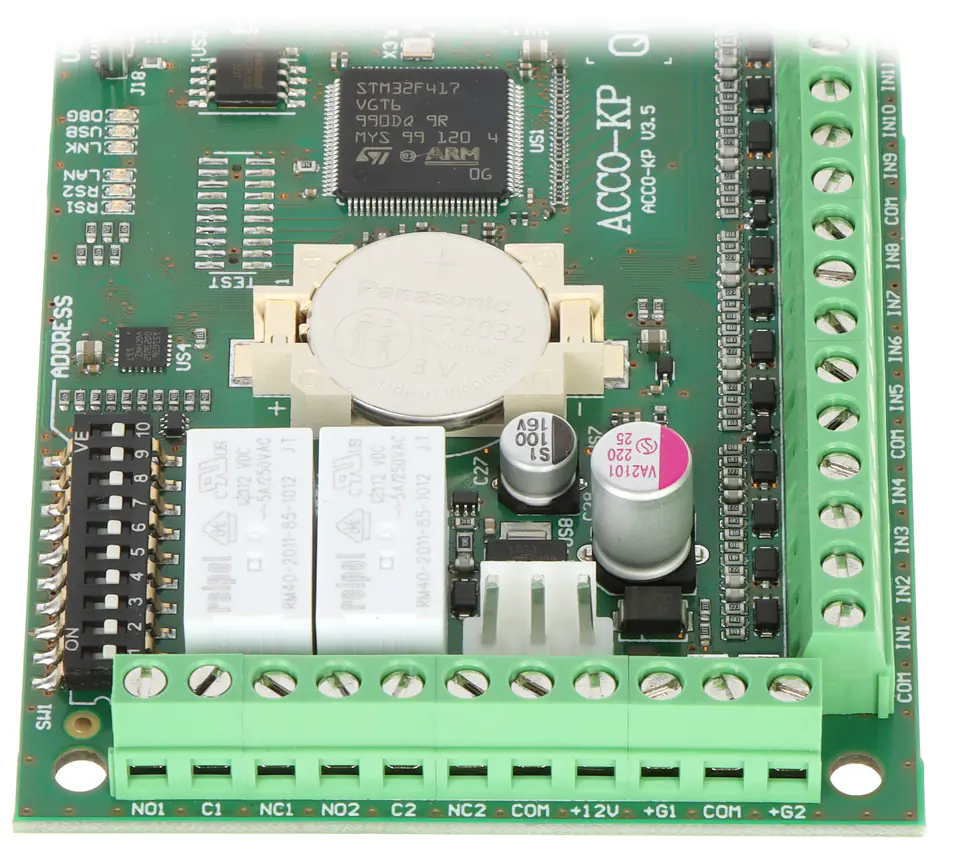

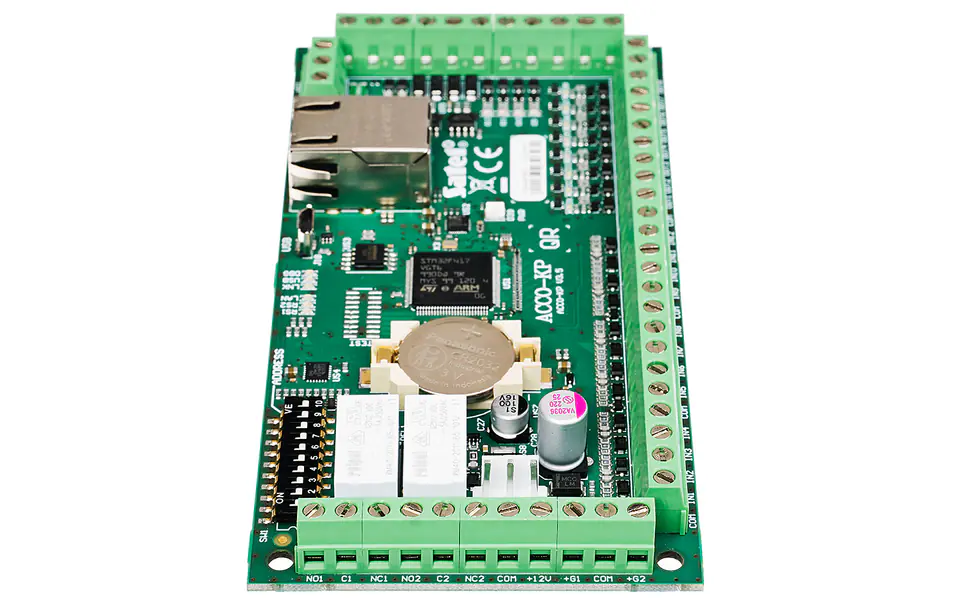

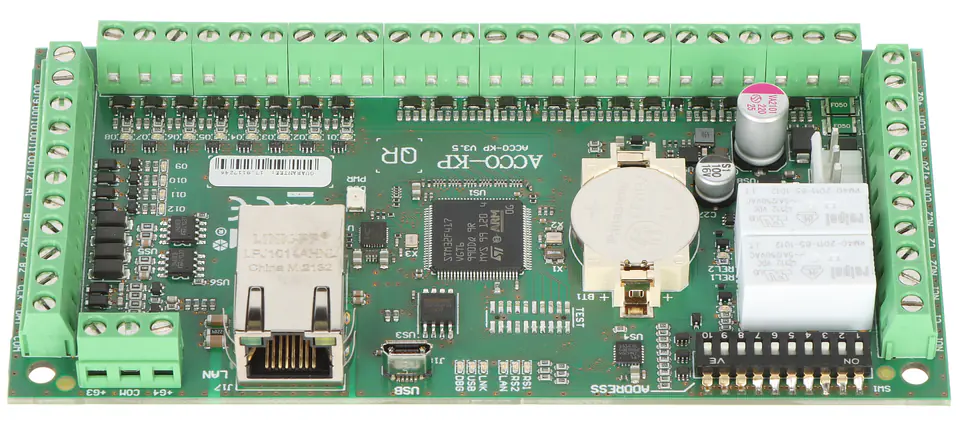

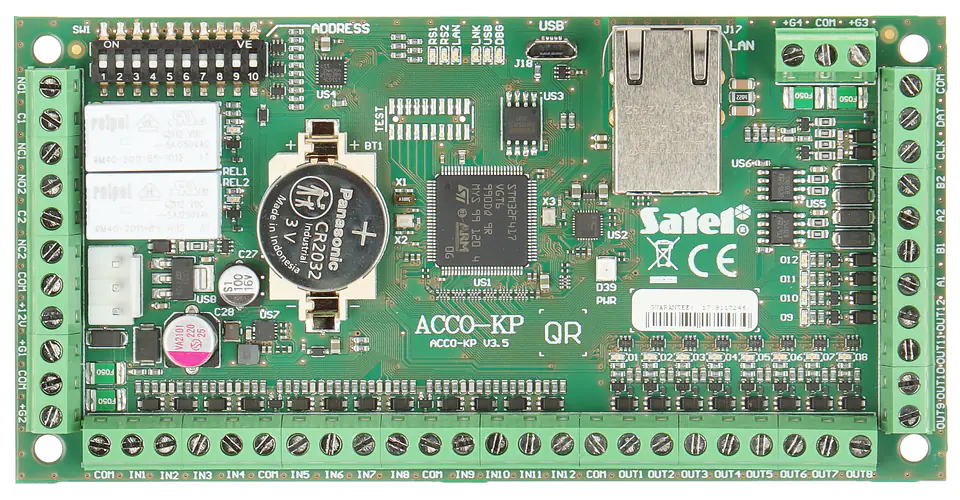

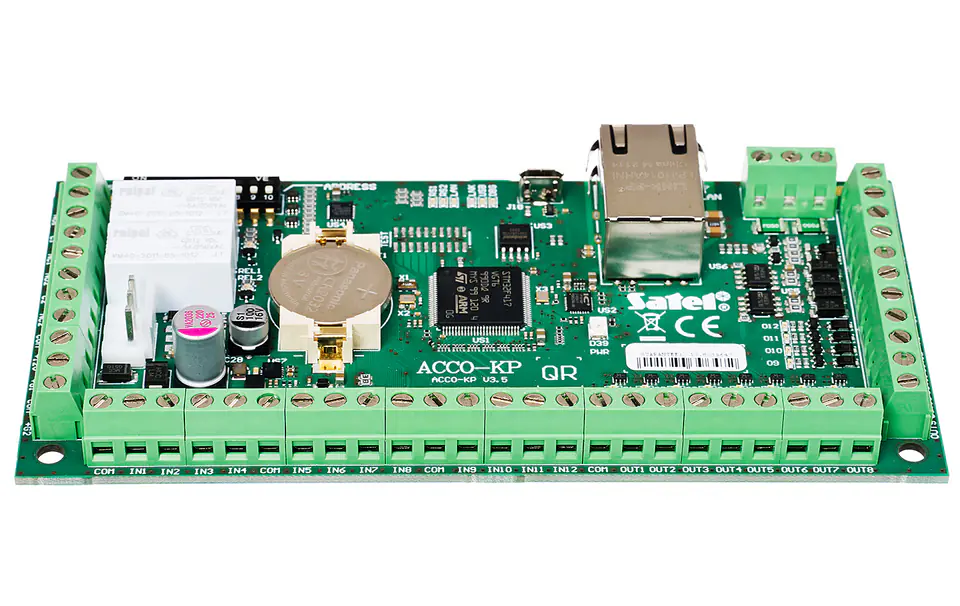

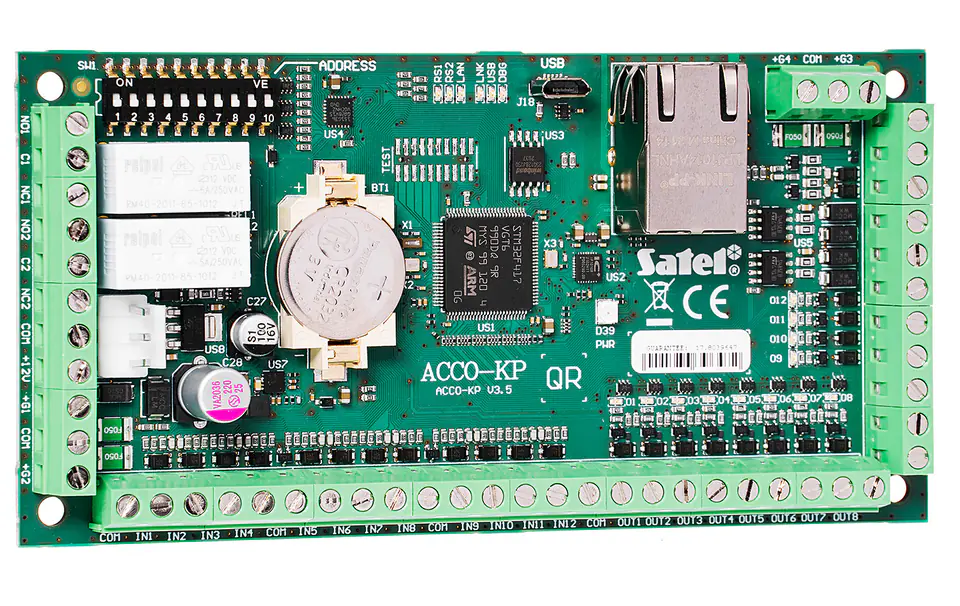

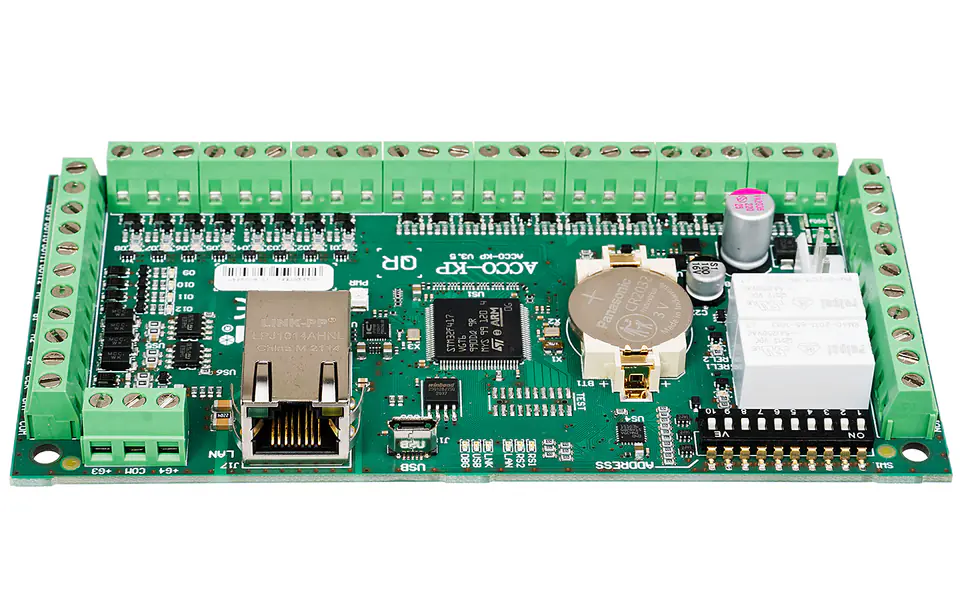

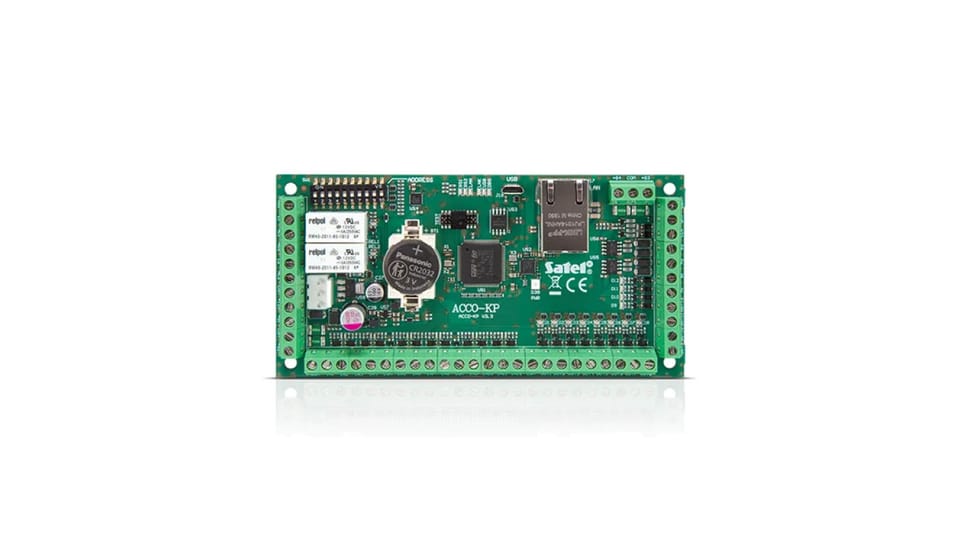

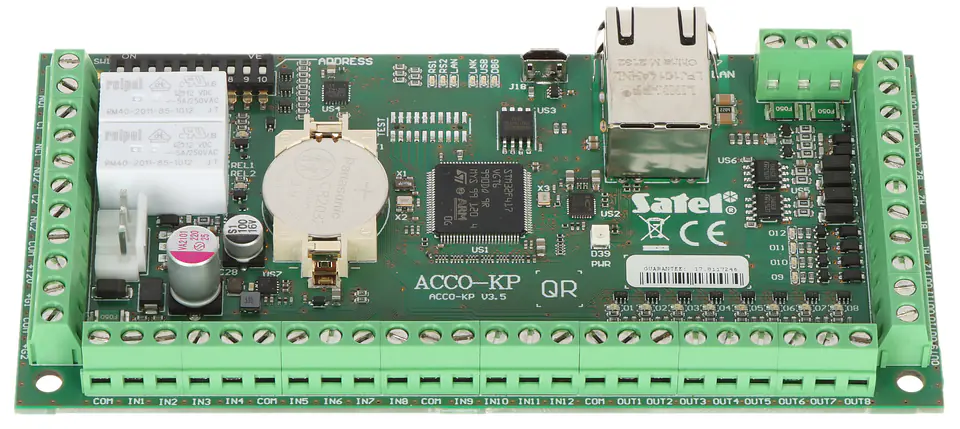

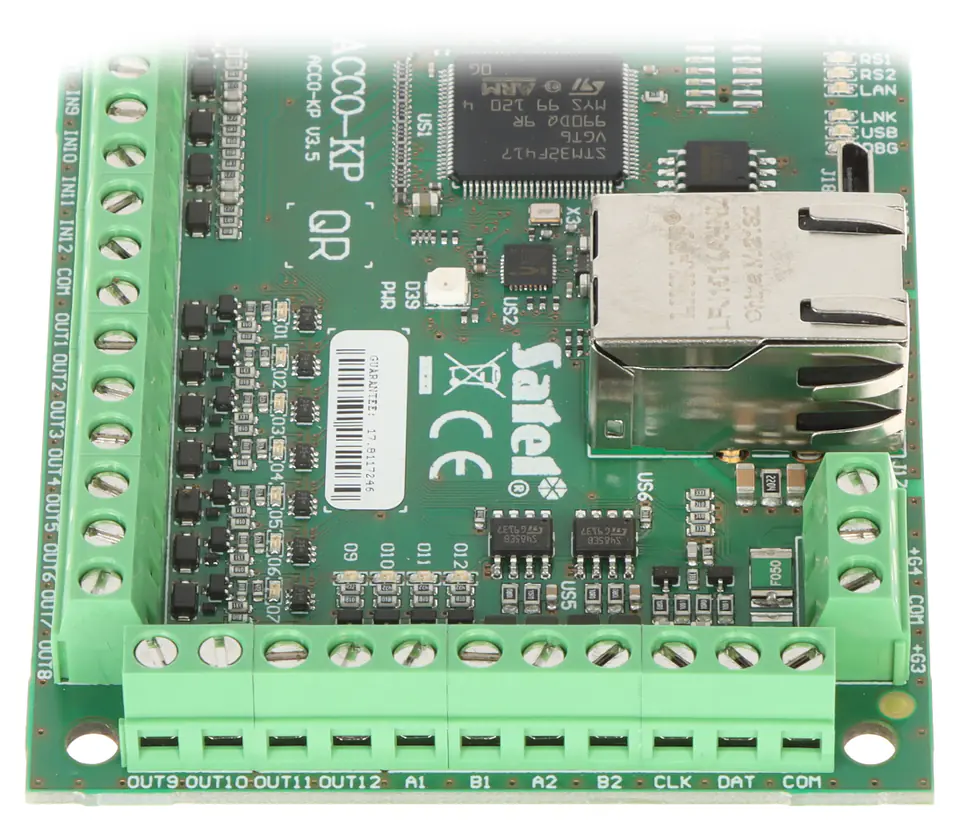

The ACCO-KP2 controller is designed to control one passage (e.g. door) within the ACCO/ACCO NETAutouthion of users is carried out on the basis of a code or passive transponder (card, key ring, etc.) The device is equipped with a relay output that can be used to operate an electromagnetic lock or other device activating the passageACCO-KP2 is also equipped with 2 OC type outputs (e.g. for operating two-way gates and rotary gates)Thanks to additional inputs and outputs, the module can cooperate with the alarm system

The device is characterized by extensive configuration capabilities, m.in in terms of user rights and time schedules for each of themIn non-volatile memory, more than 24,000 events can be recorded

The ACCO-KP2 controller can operate in stand-alone or network mode

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
